HL-1919 is a precision-extruded LED aluminum profile for LED strip lighting. This model features extruded from AL6063-T5+PC, inner channel fits strip up to 11 mm wide, Anodized/…
Mounting type · Corner

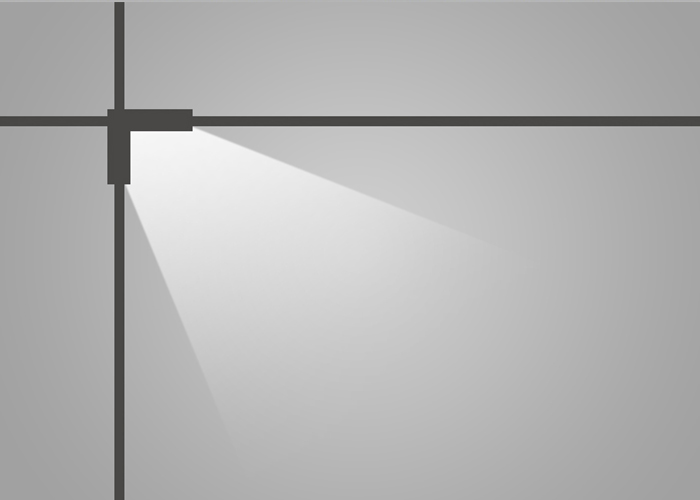

Perfis de canto de LED — seamless corner transitions
Corner LED profiles turn a run of light through 90°, or wrap it around an external edge, without a dark break at the corner. They are used where a wall meets a ceiling, where two walls meet, or along the nosing of a step or shelf. Filter by angle and strip width to find the section that matches your detail.
11corner profiles
7strip widths accepted
4 mlengths, cut to size
3year warranty
Section referenceW · H · S
Selection guide
How to choose a corner profile
Identify the corner first — interior wall-to-ceiling, interior wall-to-wall, or an external nosing — then match the angle and strip width.
| Outer width W | Typical strip width | Where it is used | In this category |
|---|---|---|---|
| W < 15mm | 5–8 mm | Reveals, trim lines, hairline accents | 2 |
| W 15mm - 19.9mm | 8–10 mm | Thin feature lines on walls and ceilings | 4 |
| W 20mm - 25.9mm | 10–12 mm | Cabinet interiors, shelving, subtle ceiling lines | 1 |
| W 26mm - 35.9mm | 12–15 mm | The general-purpose band — offices, retail, residential | 4 |
| W 36mm - 55.9mm | 20–35 mm | Two strips or higher output; primary lighting runs | 0 |
| W 56mm - 89.9mm | up to 48 mm | High-output linear lighting, long continuous runs | 0 |
| W > 90mm | up to 185 mm | Engineered lighting: wide dual-emission, feature ceilings | 0 |
Reference
What is an LED corner profile?
An LED corner profile is an extruded aluminum section shaped to carry an LED strip around a corner or along an edge — the inside angle between a wall and a ceiling, the vertical edge where two walls meet, or the nosing of a shelf or step. Because the section is extruded to the angle, the light turns with the building rather than stopping short of the corner.
The alternative to a dedicated corner section is to mitre two straight channels, which almost always leaves a visible dark joint and a shadow at the change of direction. A formed corner section carries the diffuser through the turn, so the line of light stays continuous.
What to check: the angle the section is formed to (interior or exterior, and the degree), the strip width it accepts, and whether the section is being used up or down — some corner sections emit on one face only, others on two.
Showing 1–11 of 11 profiles
Achieve professional-grade corner lighting with the 3030 Corner LED Strip Profile and Diffuser. 19mm LED Profile, Fits LED strip up to 19 mm wide, AL6063-T5+PC extrusion.This ve…
HL-3030F is a precision-extruded LED aluminum profile for LED strip lighting. This model features extruded from AL6063-T5+PC, inner channel fits strip up to 19 mm wide, Anodized…
HL-BAPL005 is a 16×16 mm black anodized corner profile that tucks LED strip into the V-groove at cabinet bottoms, pantry edges and display case corners. The 10 mm slot keeps st…
For tight right-angle runs, HL-BAPL006 is the 16 mm LED aluminium corner profile that turns an under-shelf strip into a crisp line of light at the cabinet edge. Mounted at the V…
HL-BAPL007 is an LED corner channel sized for a 12 mm strip in an 18.4 × 18.4 mm anodized aluminium body. It is the cleanest way to run light along a 90° corner – under …
HL-BAPL015 mounts into the wall corner to carry a 20 mm strip vertically along corners and wall junctions, producing an even up-light accent without drilling the wall face. Spec…
Featuring a sturdy aluminum frame, the HL-BAPL016 corner profile offers superior durability for LED lighting. Ideal for corners, it ensures stability & seamless integration.…
HL-BAPL067-F is a narrow led aluminum profile LED aluminum profile for clean, continuous linear lighting. It is designed to be fixed into 90-degree inside or outside corners, ke…
HL-BAPL068-F is the heavy-duty option in the corner range – a wide 90° aluminium profile for architectural linear runs that wrap building corners and deep-set reveals. Th…
Other mounting types
Compare with the other ways to mount a profile
SuspensoHangs on cables; sets its own drop height.84 profilesRecessoFlush with the surface — trimless or flanged.75 profilesSuperfícieScrewed or clipped onto a finished surface.50 profilesCantoCarries the light around a 90° turn or an edge.11 profiles
Related pages
PERGUNTAS FREQUENTES
LED Corner Profiles — frequently asked questions
Interior and exterior corners — what is the difference?
An interior corner section is formed to sit in an inside angle, such as where a wall meets a ceiling, and emits into the room. An exterior corner section wraps an outside edge, such as the vertical corner of a wall or the nosing of a step, so it is visible from both sides. They are not interchangeable.
Can I just mitre two straight profiles instead?
You can, but the joint usually shows. Mitred aluminum sections leave a dark seam at the change of direction and the diffuser has to be cut, which often produces a shadow right at the corner. A formed corner section carries the diffuser through the turn and keeps the line of light continuous.
What angles are available?
Sections in this range cover the common details from 30° through to 150°, plus the standard 90° wall-to-wall and wall-to-ceiling cases. For anything outside the standard set, send the drawing — custom extrusion is possible.
Where are corner profiles most often used?
Where a wall meets a ceiling, along the vertical corner of a room, around the nosing of stairs and shelves, and inside cabinet returns. They are also used wherever a change of direction has to be lit without a visible joint at the turn.
Are the corner sections supplied with the diffuser formed to match?
Yes. The diffuser and end caps are supplied as accessories with the section and are listed on each product page, so the turn is covered in one piece.
Need a corner profile cut to length?
Send the strip width, the run length and the drop or depth. We will come back with the section, the accessories and a price per meter.
