Perfis de LED montados em superfície

Canal de LED de parede embutido HL-BAPL010 | Fonte de 15,5 mm para corredores

Name: Canal de LED de parede embutido HL-BAPL010 | Fonte de 15,5 mm para corredores
Brand: Iluminação LED Helian
SKU: HL-BAPL010
Availability: InStock

🟢 In Stock & Ready for Rapid Dispatch (Standard Qty)

Modelo: HL-BAPL010

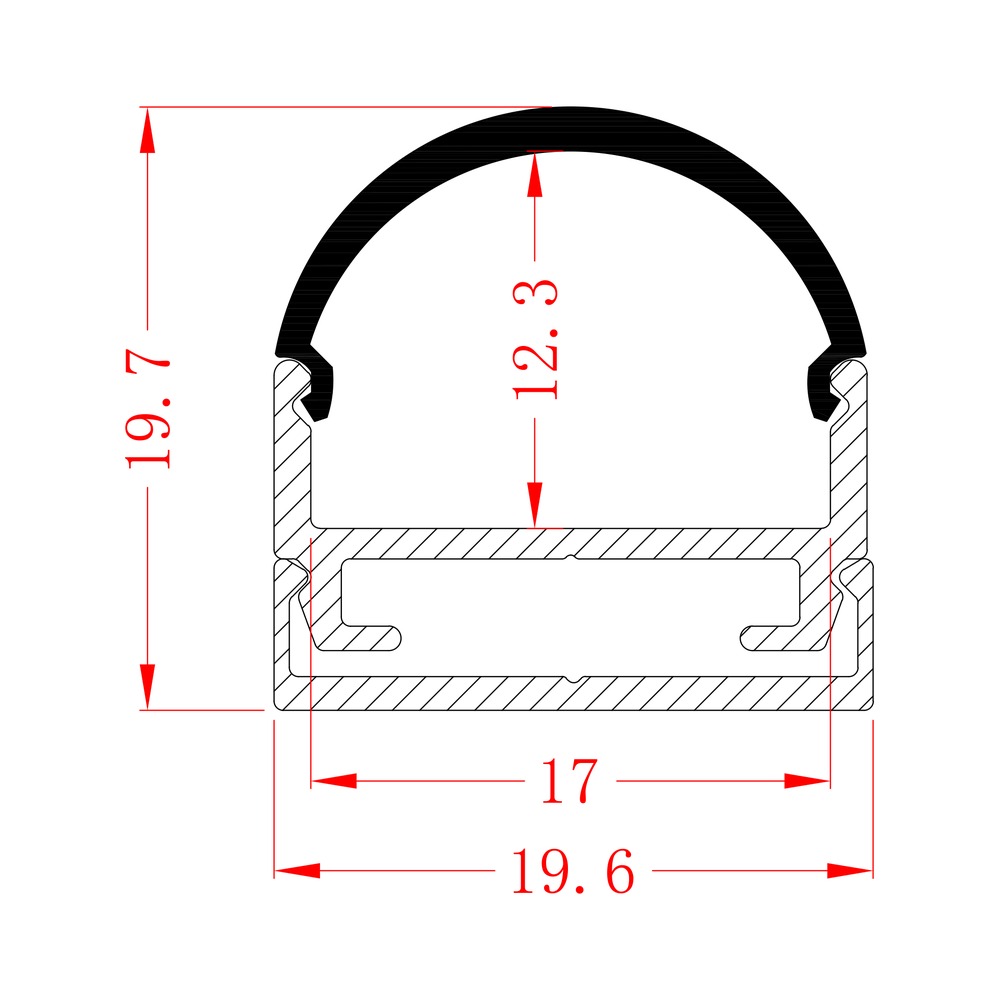

Profile size:W:19.6mm * H: 19.7mm

PCB width: 17 mm

Installation:Surface Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

Especificações técnicas

Modelo:

HL-BAPL010

Profile size:

L:19,6 mm * A: 19,7 mm

PCB width:

17 mm

Instalação:

Montagem em superfície

Material:

AL6063+PC/PMMA

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodizado/Pintura

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, PMMA Diffuser, End Cap

Compatible Accessories System

010 End Cap

010 Cover

Aplicação do perfil de alumínio HL-BAPL010

Surface-mount linear lighting

Mounted on the surface, the channel sits as a slim line that lights the area in front of it.

Dot-Free Diffused Glow
6063-T5 Premium Aluminum
Supporting precise field cutting or factory pre-cuts.

Esse perfil HL-BAPL010 é o canal de led para parede embutida que você está procurando?
Entre em contato conosco hoje mesmo e nós o ajudaremos como pudermos!

Obtenha uma cotação agora

Perguntas frequentes

Talvez você também queira saber as informações ao comprar em grandes quantidades ou personalizar canais de luz LED.

Can I order samples before placing a bulk order?

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.

Do you offer custom cutting to my specified lengths?

Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.

What certifications do your profiles hold?

European market: CE & ROHS certified. North American market: UL certified.

What material are the profiles made of, and what diffuser options are available?

Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.

How do I check if my LED strip fits your profile?

Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.

What accessories come with the profiles?

Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
