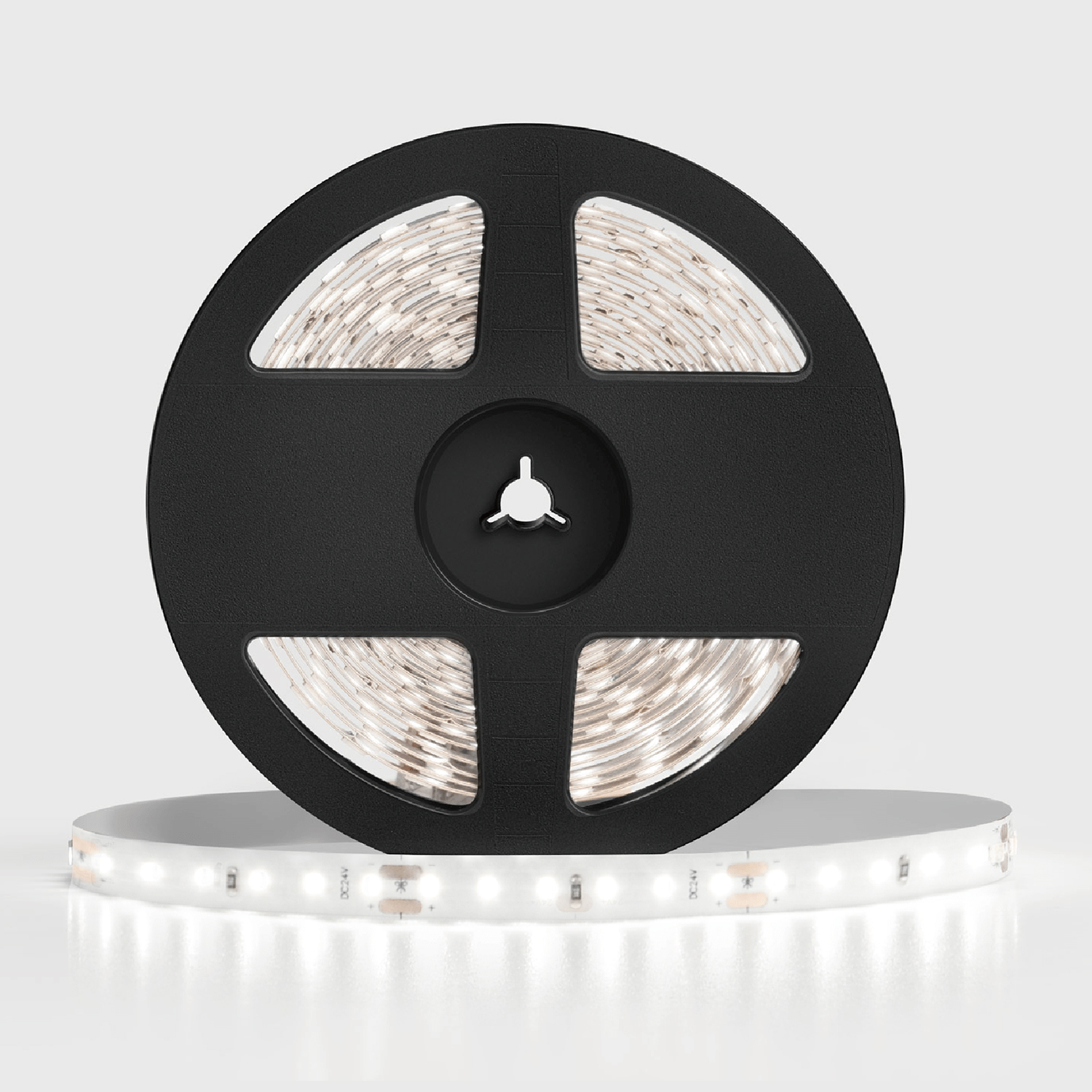

What is a 2216 Strip Light?
The 2216 LED is a common specification for surface-mount LEDs (SMD LEDs). The “2216” in its name typically represents the package size (2.2mm in length × 1.6mm in width), making it a small-sized surface-mount LED. It is widely used in applications such as LED strips, decorative lighting, and backlighting.
Product List for 2216 SMD
| Model | SMD Model | CCT(K) | CRI | LED NO. (Per meter) | PCB Breedte (mm) | Spanning | Vermogen (W/M) | Helderheid (LM/M) @3000k | Lichtrendement (LM/W) @3000k | Snijgrootte mm | Spec (PDF) |
| HL-R120W2216/10 | 2216 | 2700K/3000K/4000K/6500K | 90 | 120 | 10 mm | 24V | 9.6W | 750 | 81 | 24V: 50mm | HL-R120W2216/10 |
| HL-R180W2216/10 | 2216 | 2700K/3000K/4000K/6500K | 90 | 180 | 10 mm | 24V | 14.4W | 1123 | 81 | 24V:33.33mm | HL-R180W2216/10 |
| HL-R240W2216/5 | 2216 | 2700K/3000K/4000K/6500K | 90 | 240 | 5mm | 24V | 10W | 890 | 89 | 24V: 25mm | HL-R240W2216/5 |
| HL-R240W2216/10 | 2216 | 2700K/3000K/4000K/6500K | 90 | 240 | 10 mm | 24V | 19.2W | 1500 | 81 | 24V: 25mm | HL-R240W2216/10 |
| HL-R300W2216/10 | 2216 | 2700K/3000K/4000K/6500K | 90 | 300 | 10 mm | 24V | 20W | 1700 | 85 | 24V:20mm | HL-R300W2216/10 |
| HL-R420W2216/10 | 2216 | 2700K/3000K/4000K/6500K | 90 | 420 | 10 mm | 24V | 24W | 2050 | 85 | 24V:14.28mm | HL-R420W2216/10 |
Features and Applications of 2216 LED Chips
Consider using this if you need to provide more context on why you do what you do.
Compact Size
Small dimensions (2.2mm × 1.6mm) make it great for tight spaces, allowing high-density designs (like 120 to 300 lights per meter). This flexibility is perfect for narrow lighting areas, such as cabinets and display cases.
Ideal Uses
Perfect for high-density light strips, narrow spaces, backlighting for signs, and safe low-voltage lighting in homes and businesses.
High Efficiency and Brightness
Each 2216 LED provides between 5 to 15 lumens, leading to bright light strips (3,000 to 6,000 lumens per meter). They come in various color temperatures, including warm white and cool white, and options for high color accuracy when needed.
Heat Management and Lifespan
These LEDs generate minimal heat and can last between 30,000 to 50,000 hours. Their sturdy design also makes them resistant to vibrations and impacts.
Low Power Usage
Each LED uses only 0.06W-0.1W, making them energy-efficient and suitable for continuous use. They work with low-voltage drivers (12V or 24V DC) for added safety.
Color Consistency and Beam Spread
Color differences are kept minimal, ensuring uniformity across strips. The beam angle is wide (120° to 160°) for better light distribution.
