Black LED Strip Light Channel HL-BAPL001 12mm | Premium Storage Lighting

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Modelo: HL-BAPL001

Profile size:W:23.1mm * H: 8.9mm

PCB width: 12 mm

Installation:Recessed Mount

REQUEST A BULK QUOTE Download PDF Spec

1-Year Warranty | CE & RoHS Certified.

Wholesale Pricing Available Upon Request

os tamanhos de BAPL001

Especificações técnicas

Modelo:

HL-BAPL001

Profile size:

L: 23,1 mm * A: 8,9 mm

PCB width:

12 mm

Instalação:

Montagem embutida

Material:

AL6063+PC/PMMA

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodizado/Pintura

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

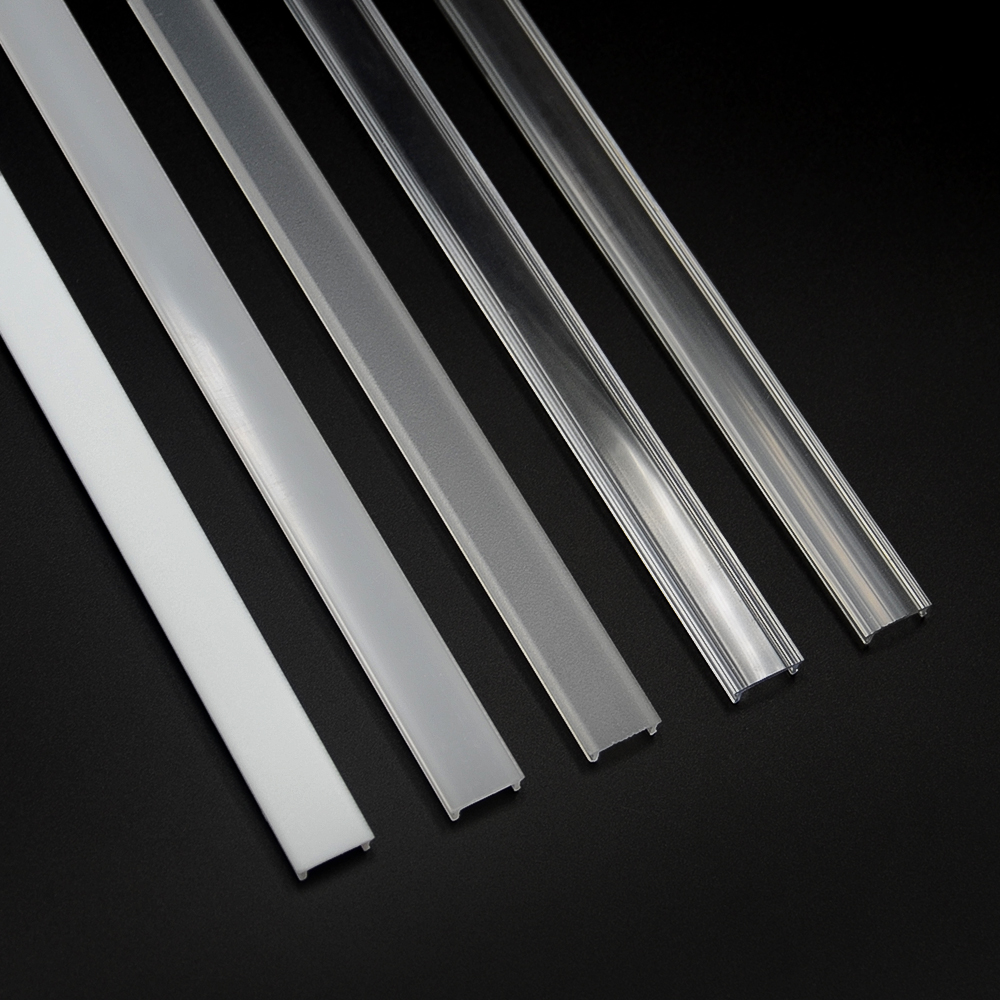

PC Diffuser, PMMA Diffuser, Silicone Diffuser, End Cap, Clip

Compatible Accessories System

001 Cover

001 Cover

001 End Cap

001 End Cap

002/004 Plastic Clips

002/004 Plastic Clips

A imagem do aplicativo HL-BAPL001

Dubai’s premium storage rooms

City:

Nas salas de armazenamento premium de Dubai - onde a demanda por LED aumenta - esse canal de luz de faixa de LED preto, HL-BAPL001, se destaca. Sua largura de 12 mm se ajusta a espaços apertados, enquanto o comprimento máximo de 4 m cobre áreas extensas sem problemas. O alumínio AL6063 aumenta a dissipação de calor, prolongando a vida útil, e a tampa da extremidade sem parafusos simplifica a instalação. Os difusores importados emitem uma luz uniforme e suave, ideal para exibir itens armazenados. Uma das principais opções para clientes B2B nesse mercado em expansão.


  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.
Fabricante de perfis de LED

Wholesale/purchasing process

Pronto para integrar esse perfil - HL-BAPL001 em seu projeto? Confira nosso guia de aquisição abaixo.

Esse perfil HL-BAPL001 é o canal de luz de faixa de led preto que você está procurando?
Entre em contato conosco hoje mesmo e nós o ajudaremos como pudermos!

Fabricação de perfis de LED Helian
Fabricação de perfis de LED Helian

Perguntas frequentes

Talvez você também queira saber as informações ao comprar em grandes quantidades ou personalizar canais de luz LED.

Our standard warehouse stocking lengths are 1.0m, 2.0m, and 2.5m. For large-scale architectural projects, we provide professional precise factory-cutting services. You can submit your detailed shop drawings to our engineering team to get pre-cut profiles at specific lengths or 45-degree mitered angles to reduce on-site installer labor.
All Helian linear channels are extruded from architectural-grade 6063-T5 aluminum alloy with an anodized surface treatment. This structural configuration offers high thermal conductivity, successfully serving as a heavy-duty heat sink. It efficiently dissipates heat generated by high-density flexible or rigid LED strips up to 15W/m, preventing lumen depreciation and extending the LED lifespan over 50,000 hours.
We strictly use premium, UV-stabilized Polycarbonate (PC) or optical PolyMethyl Methacrylate (PMMA) from Tier-1 global raw material suppliers. Our frosted/opal covers ensure up to 85% light transmittance, and our specialized clear optical lenses exceed 90% transmittance. The raw materials are UV-protected, ensuring the diffuser will not yellow, crack, or turn brittle during long-term continuous operation in commercial lighting indoor environments.
By default, each standard packaging unit includes 2 end caps (1 blank, 1 with a wire hole) and 2 standard metal mounting clips per meter. For specific structural mounting methods—such as suspended spring clips, drywall mud-in components, or linear continuous connectors—please consult our project specialists. To guarantee optimal performance, please check the "Lighting Source Width" parameter listed in our specifications table to ensure your LED strip's outer PCB fits perfectly inside the inner aluminum track.
