Hangend LED-profiel

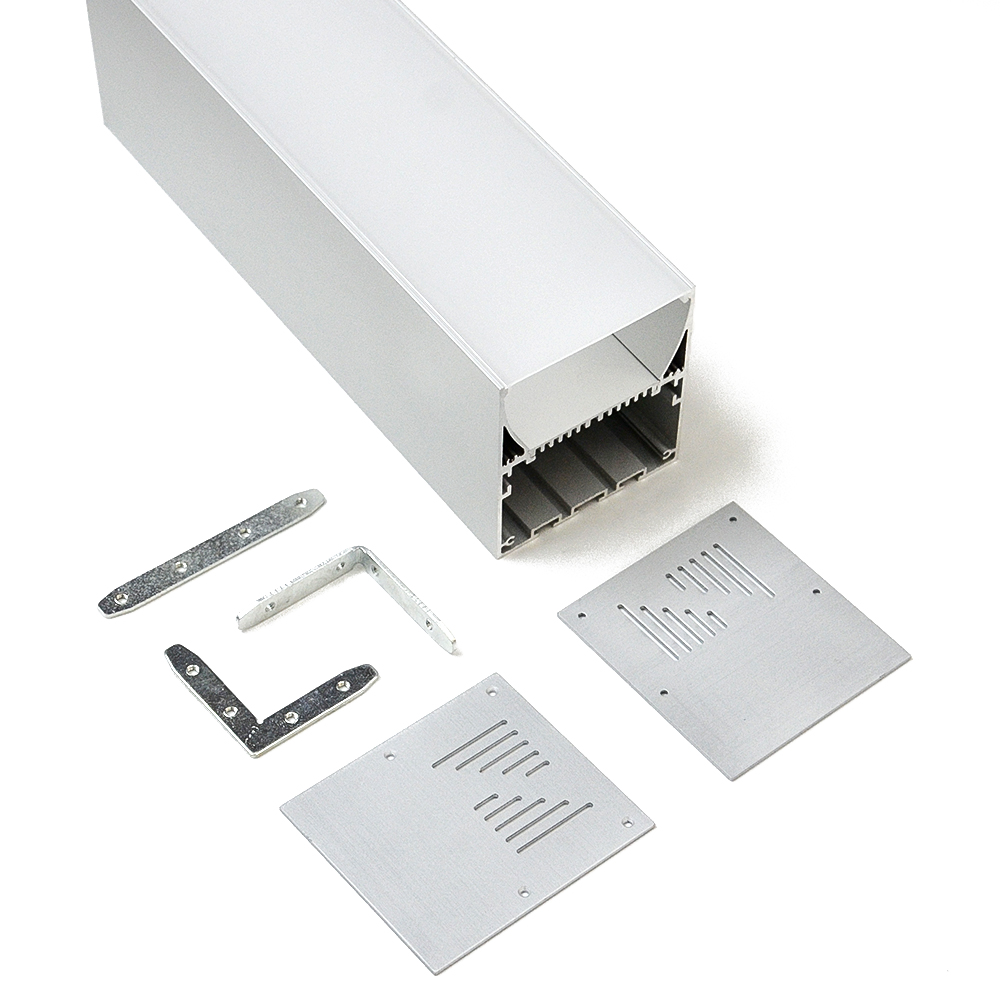

Suspended Linear LED Profile 75×83.5mm – Aluminum Channel HL-A007

Name: Suspended Linear LED Profile 75×83.5mm - Aluminum Channel HL-A007
Brand: Helian LED-verlichting
SKU: HL-A007

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Model: HL-A007

Profile size:W:75mm * H: 83.5mm

PCB width: 50 mm

Installation:Suspended Mount, Surface Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

Technische specificaties

Model:

HL-A007

Profile size:

B: 75 mm * H: 83,5 mm

PCB width:

50 mm

Installatie:

Hangende montage, opbouwmontage

Materiaal:

AL6063+PC

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Geanodiseerd/beschilderd

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, End Cap, Suspended Rope, Connector

Compatible Accessories System

055 Cover

M8 Clip

Suspended Rope HL-DS006

HL-A007 End Cap

Suspended linear lighting

Hung on suspension cables, the channel becomes the line of light itself, floating below the ceiling.

Dot-Free Diffused Glow
6063-T5 Premium Aluminum
Supporting precise field cutting or factory pre-cuts.

Is this HL-A007 profile the Suspended Linear LED Profile you are looking for?
Neem vandaag nog contact met ons op en we helpen je hoe dan ook!

Vraag nu een offerte aan

FAQs

Misschien wilt u ook de informatie weten wanneer u in bulk inkoopt of LED lichtkanalen op maat maakt.

Can I order samples before placing a bulk order?

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.

Do you offer custom cutting to my specified lengths?

Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.

What certifications do your profiles hold?

European market: CE & ROHS certified. North American market: UL certified.

What material are the profiles made of, and what diffuser options are available?

Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.

How do I check if my LED strip fits your profile?

Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.

What accessories come with the profiles?

Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
