HL-BAPL002s

Uw keuken upgraden met de top keuken LED aluminium profiel opties HL-BAPL002S

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Model: HL-BAPL002s

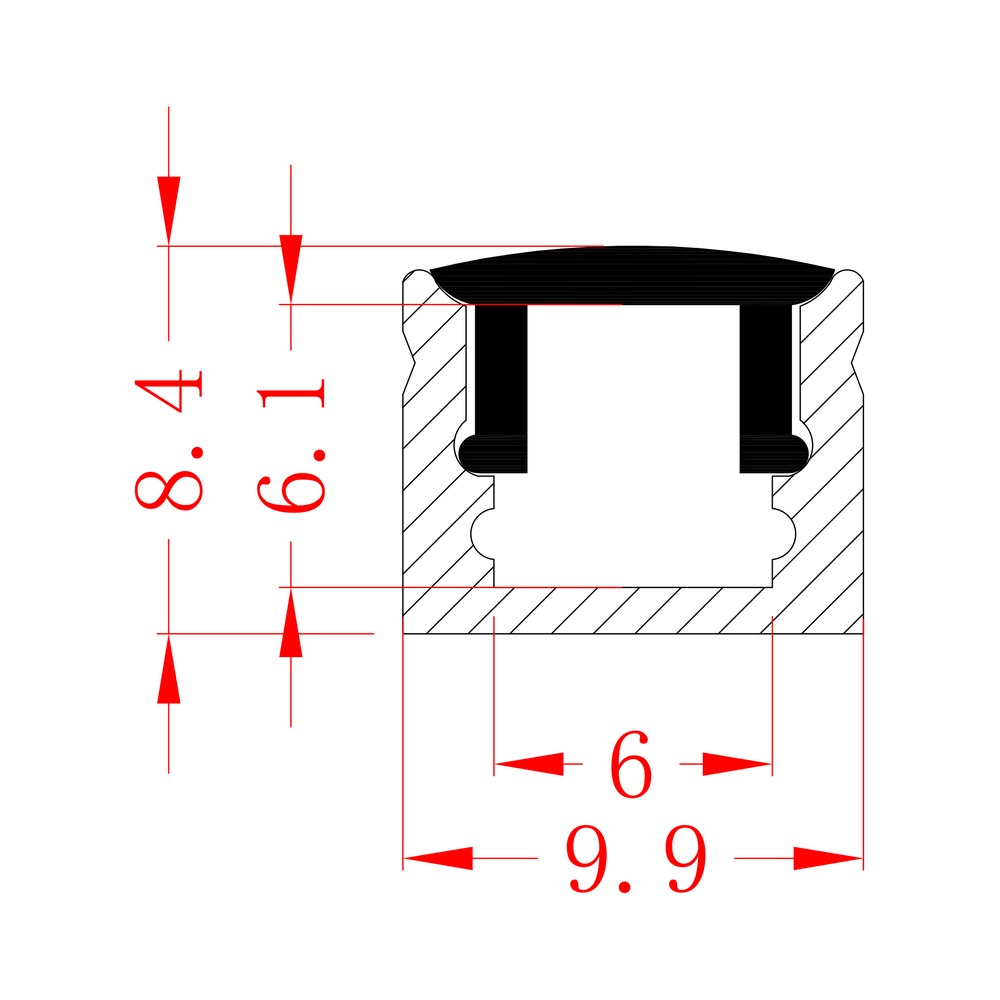

Profile size:W:9.9mm * H: 8.4mm

PCB width: 6 mm

Installation:Surface Mount, Recessed Mount

REQUEST A BULK QUOTE Download PDF Spec

1-Year Warranty | CE & RoHS Certified.

Wholesale Pricing Available Upon Request

Technische specificaties

Model:

HL-BAPL002s

Profile size:

B:9.9mm * H: 8.4mm

PCB width:

6 mm

Installatie:

Opbouwmontage, Verzonken montage

Materiaal:

AL6063+PC/PMMA

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Geanodiseerd/beschilderd

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, PMMA Diffuser, End Cap, Clip

Compatible Accessories System

002s Cover

002s Cover

BAPL002S Stainless Steel Clip

BAPL002S Stainless Steel Clip

002S End Cap

002S End Cap

City:

In de gezellige huizen van Milaan blinkt HL-BAPL002S uit als eersteklas ledstrip onder kastverlichting. De 6 mm ultradunne breedte past naadloos op boekenplanken, met AL6063 aluminium dat zorgt voor eersteklas warmteafvoer voor langdurig gebruik. Geïmporteerde diffusors werpen een gelijkmatig, zacht licht dat de ruggen van boeken benadrukt. Schroefloze eindkappen vereenvoudigen de installatie - ideaal voor B2B-klanten die huiseigenaren bedienen die strakke, functionele oplossingen nodig hebben.


  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.
LED profiel fabrikant

Wholesale/purchasing process

Ready to integrate this profile – HL-BAPL002s into your project? Check our procurement guide below.

Is dit HL-BAPL002s profiel de ledstrip onderkastverlichting die je zoekt?
Neem vandaag nog contact met ons op en we helpen je hoe dan ook!

Helian LED profielen vervaardiging
Helian LED profielen vervaardiging

FAQs

Misschien wilt u ook de informatie weten wanneer u in bulk inkoopt of LED lichtkanalen op maat maakt.

Our standard warehouse stocking lengths are 1.0m, 2.0m, and 2.5m. For large-scale architectural projects, we provide professional precise factory-cutting services. You can submit your detailed shop drawings to our engineering team to get pre-cut profiles at specific lengths or 45-degree mitered angles to reduce on-site installer labor.
All Helian linear channels are extruded from architectural-grade 6063-T5 aluminum alloy with an anodized surface treatment. This structural configuration offers high thermal conductivity, successfully serving as a heavy-duty heat sink. It efficiently dissipates heat generated by high-density flexible or rigid LED strips up to 15W/m, preventing lumen depreciation and extending the LED lifespan over 50,000 hours.
We strictly use premium, UV-stabilized Polycarbonate (PC) or optical PolyMethyl Methacrylate (PMMA) from Tier-1 global raw material suppliers. Our frosted/opal covers ensure up to 85% light transmittance, and our specialized clear optical lenses exceed 90% transmittance. The raw materials are UV-protected, ensuring the diffuser will not yellow, crack, or turn brittle during long-term continuous operation in commercial lighting indoor environments.
By default, each standard packaging unit includes 2 end caps (1 blank, 1 with a wire hole) and 2 standard metal mounting clips per meter. For specific structural mounting methods—such as suspended spring clips, drywall mud-in components, or linear continuous connectors—please consult our project specialists. To guarantee optimal performance, please check the "Lighting Source Width" parameter listed in our specifications table to ensure your LED strip's outer PCB fits perfectly inside the inner aluminum track.
