قم بترقية مطبخك مع أفضل خيارات الألومنيوم LED للمطبخ HL-BAPL002S

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

الموديل: HL-BAPLL002s

Profile size:W:9.9mm * H: 8.4mm

PCB width: 6 mm

Installation:Surface Mount, Recessed Mount

REQUEST A BULK QUOTE Download PDF Spec

1-Year Warranty | CE & RoHS Certified.

Wholesale Pricing Available Upon Request

المواصفات الفنية

الموديل:

HL-BAPL002s

Profile size:

العرض: 9.9 مم * الارتفاع: 8.4 مم

PCB width:

6 مم

التركيب:

التركيب السطحي، التركيب الغائر

المادة:

AL6063+PC/PMMA

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

مؤكسد/طلاء بأكسيد الألومنيوم

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, PMMA Diffuser, End Cap, Clip

Compatible Accessories System

002s Cover

002s Cover

BAPL002S Stainless Steel Clip

BAPL002S Stainless Steel Clip

002S End Cap

002S End Cap

City:

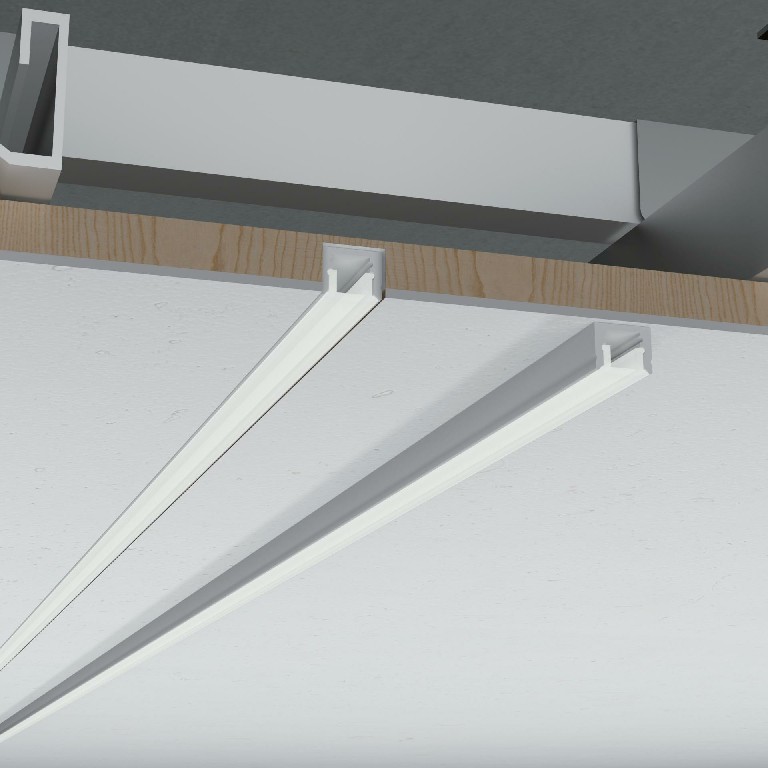

في منازل ميلانو المريحة، يتفوق HL-BAPL002S كشريط إضاءة LED ممتاز تحت الخزانة. يتناسب عرضه الرفيع للغاية الذي يبلغ 6 مم بسلاسة مع أرفف الكتب، مع ألومنيوم AL6063 الذي يضمن تبديد الحرارة من الدرجة الأولى للاستخدام طويل الأمد. تلقي ناشرات الإضاءة المستوردة ضوءًا موحدًا وناعمًا يسلط الضوء على أعمدة الكتب. تعمل الأغطية الطرفية الخالية من البراغي على تبسيط عملية التركيب - وهي مثالية لعملاء الأعمال التجارية الذين يخدمون أصحاب المنازل الذين يحتاجون إلى حلول أنيقة وعملية.


  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.
الشركة المصنعة للملف الشخصي لمصابيح LED

Wholesale/purchasing process

هل أنت مستعد لدمج هذا الملف الشخصي - HL-BAPL002s في مشروعك؟ راجع دليل المشتريات أدناه.

هل هذا الملف الشخصي HL-BAPLL002s هو شريط الإضاءة تحت الخزانة الذي تبحث عنه؟
اتصل بنا اليوم، وسنساعدك بكل ما نستطيع!

Helian تصنيع ملامح LED Helian
Helian تصنيع ملامح LED Helian

الأسئلة الشائعة

ربما ترغب أيضًا في معرفة المعلومات عند الشراء بكميات كبيرة أو تخصيص قنوات إضاءة LED.

Our standard warehouse stocking lengths are 1.0m, 2.0m, and 2.5m. For large-scale architectural projects, we provide professional precise factory-cutting services. You can submit your detailed shop drawings to our engineering team to get pre-cut profiles at specific lengths or 45-degree mitered angles to reduce on-site installer labor.
All Helian linear channels are extruded from architectural-grade 6063-T5 aluminum alloy with an anodized surface treatment. This structural configuration offers high thermal conductivity, successfully serving as a heavy-duty heat sink. It efficiently dissipates heat generated by high-density flexible or rigid LED strips up to 15W/m, preventing lumen depreciation and extending the LED lifespan over 50,000 hours.
We strictly use premium, UV-stabilized Polycarbonate (PC) or optical PolyMethyl Methacrylate (PMMA) from Tier-1 global raw material suppliers. Our frosted/opal covers ensure up to 85% light transmittance, and our specialized clear optical lenses exceed 90% transmittance. The raw materials are UV-protected, ensuring the diffuser will not yellow, crack, or turn brittle during long-term continuous operation in commercial lighting indoor environments.
By default, each standard packaging unit includes 2 end caps (1 blank, 1 with a wire hole) and 2 standard metal mounting clips per meter. For specific structural mounting methods—such as suspended spring clips, drywall mud-in components, or linear continuous connectors—please consult our project specialists. To guarantee optimal performance, please check the "Lighting Source Width" parameter listed in our specifications table to ensure your LED strip's outer PCB fits perfectly inside the inner aluminum track.
