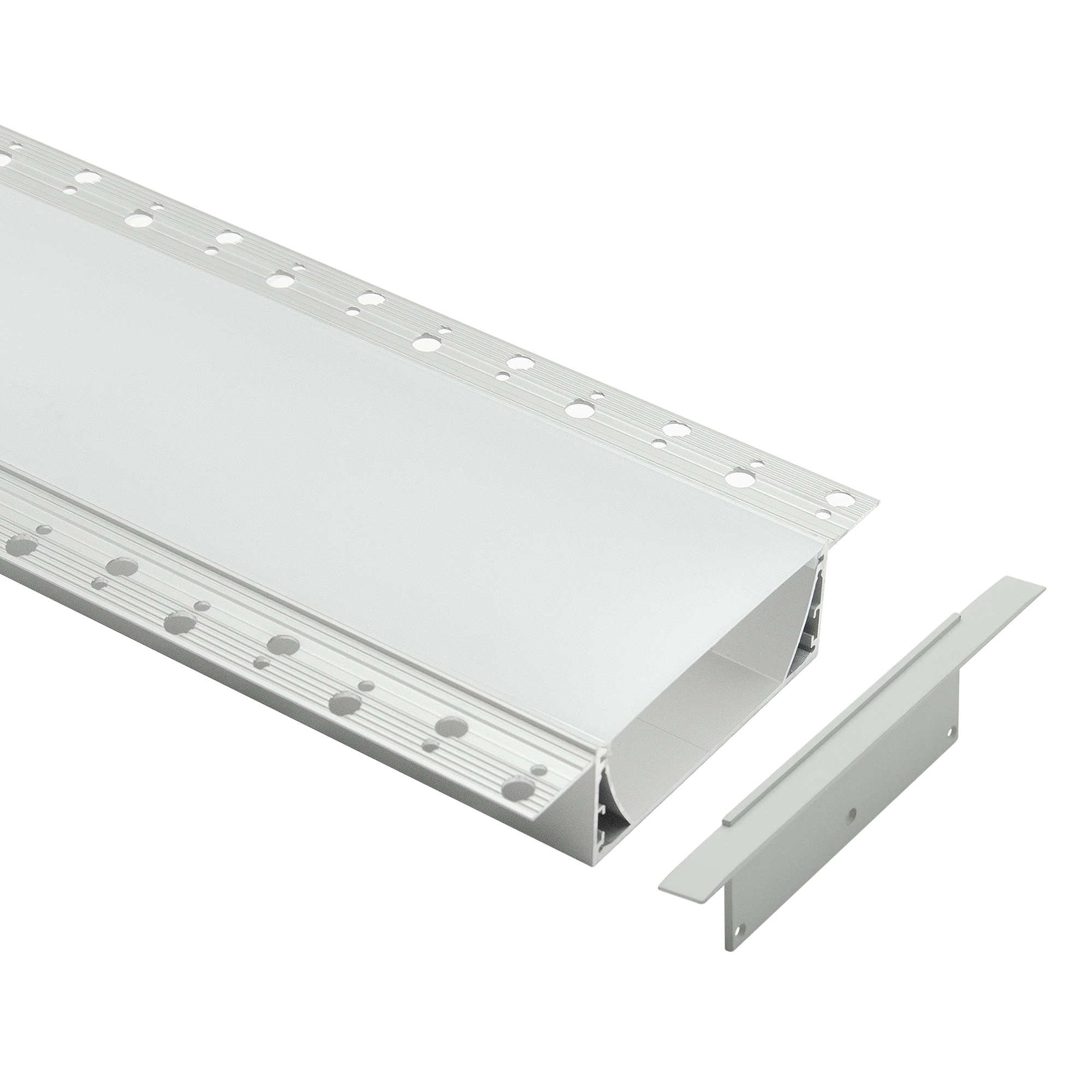

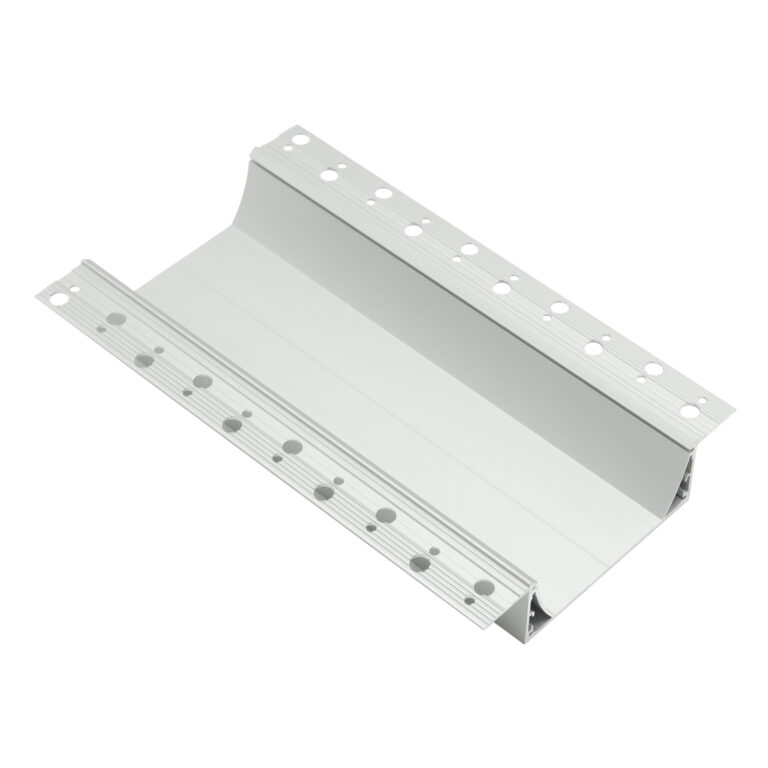

HL-A051 LED Drywall Kanaal | Gips In Restaurant Verlichting

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Model: HL-A051

Profile size:W:37mm * H: 150mm

PCB width: 64 mm

Installation:Recessed Mount, Wall Mount / Plaster

REQUEST A BULK QUOTE Download PDF Spec

1-Year Warranty | CE & RoHS Certified.

Wholesale Pricing Available Upon Request

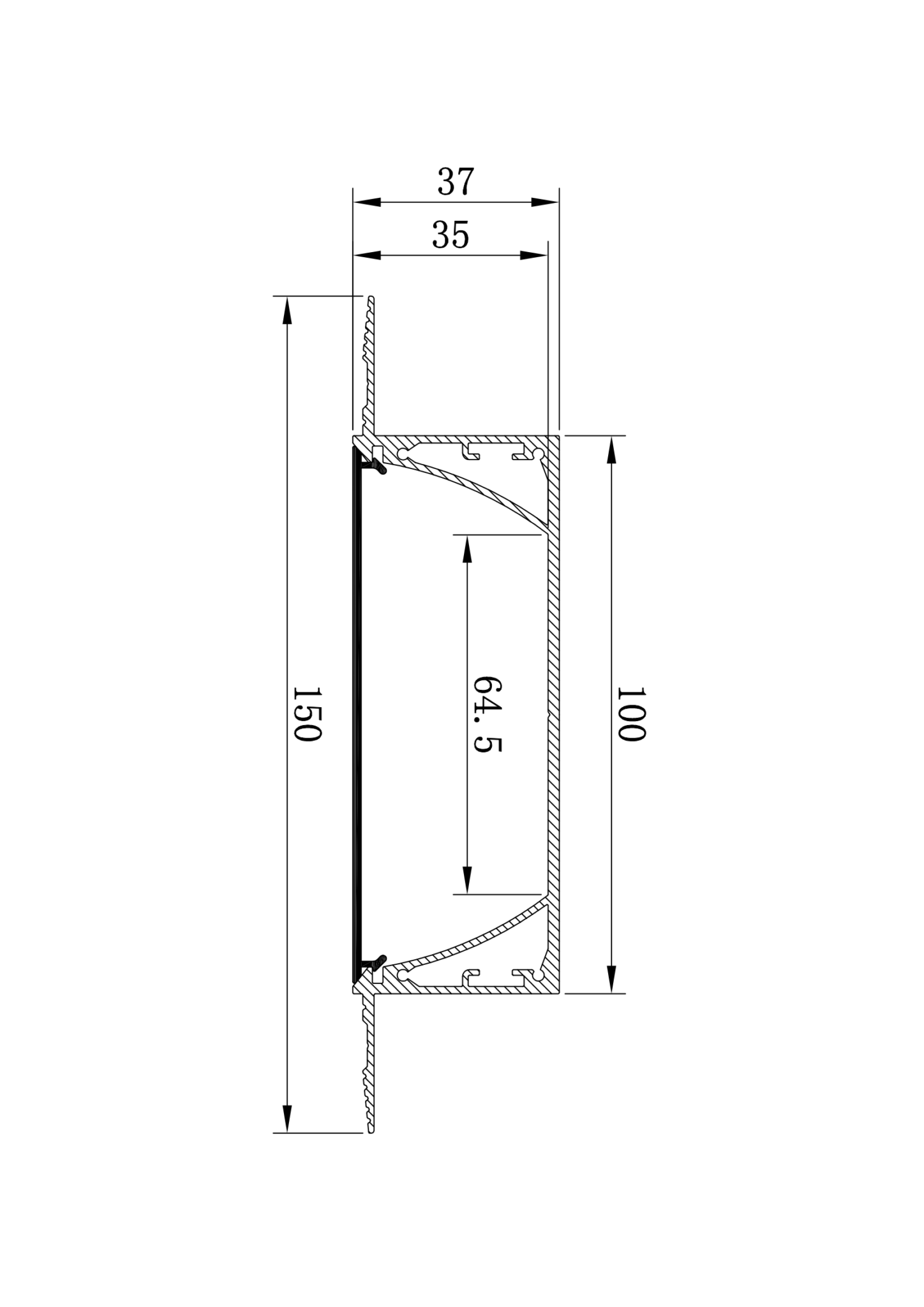

A051 Externe afmetingen

Technische specificaties

Model:

HL-A051

Profile size:

B: 37mm * H: 150mm

PCB width:

64 mm

Installatie:

Inbouwmontage, Wandmontage / Gips

Materiaal:

AL6063+PC

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Geanodiseerd/beschilderd

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, End Cap

Compatible Accessories System

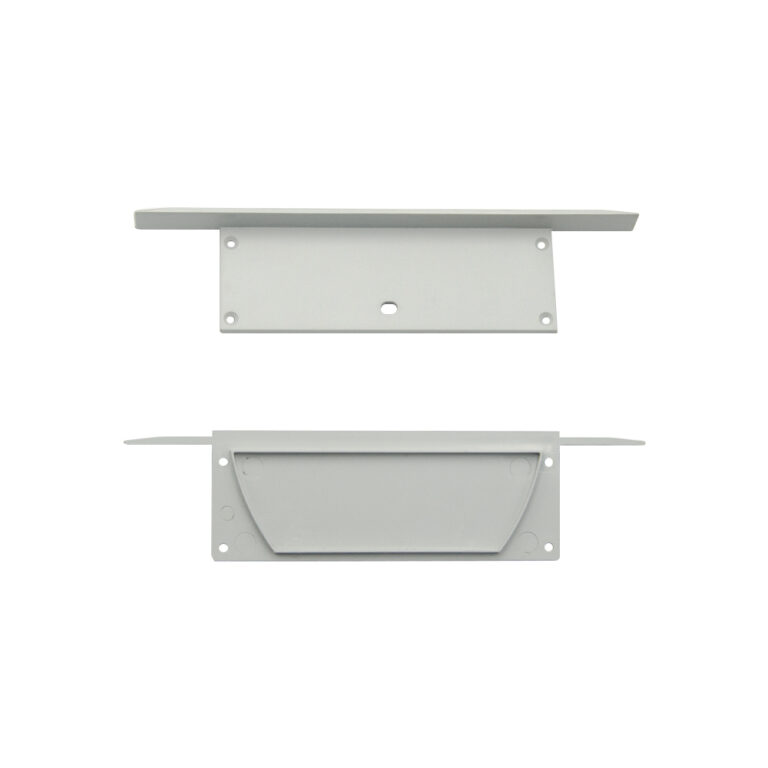

HL-A051 eindkap

HL-A051 eindkap

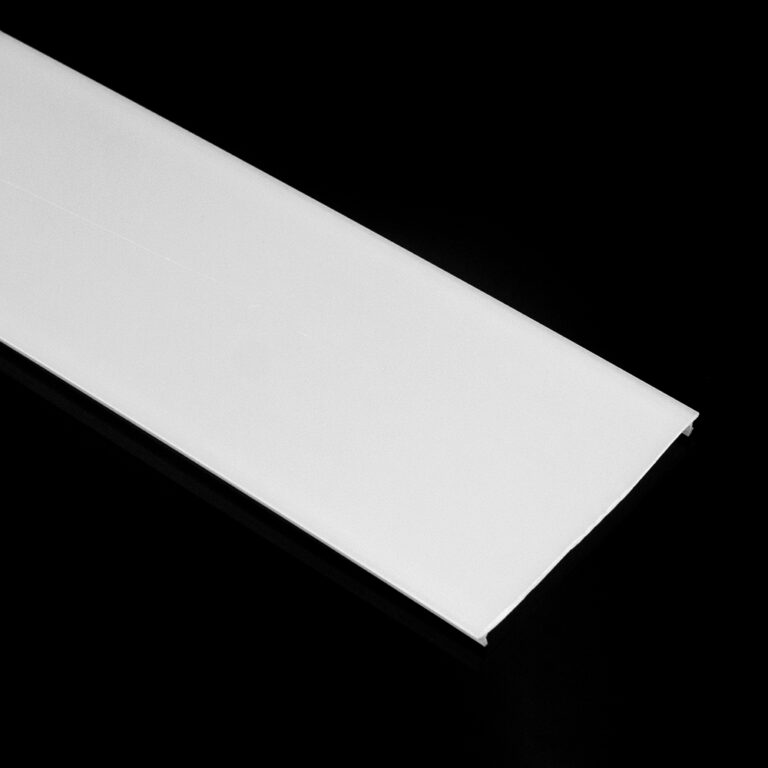

A049 cover

A049 cover

HL-A051 Toepassingsbeeld

Louvre Decorative Arts Wing, Paris Wide Recessed Lighting

City: Paris

A museum wing using the HL-A051 extra-wide recessed profile (64 mm source, plastic end caps, opal cover A049, AL 6063 anodised silver, 4 m stock) along gallery walls and vitrine corridors. Artefact-safe even wash with no hot spots; conservator approved levels for sensitive textiles. 720 m installed; reopened on schedule.


  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.
LED profiel fabrikant

Wholesale/purchasing process

Klaar om dit profiel - HL-A051 te integreren in je project? Bekijk onze aankoopgids hieronder.

Is dit HL-A051 profiel de gipsplaatgoot die je zoekt?
Neem vandaag nog contact met ons op en we helpen je hoe dan ook!

Helian LED profielen vervaardiging
Helian LED profielen vervaardiging

FAQs

Misschien wilt u ook de informatie weten wanneer u in bulk inkoopt of LED lichtkanalen op maat maakt.

Our standard warehouse stocking lengths are 1.0m, 2.0m, and 2.5m. For large-scale architectural projects, we provide professional precise factory-cutting services. You can submit your detailed shop drawings to our engineering team to get pre-cut profiles at specific lengths or 45-degree mitered angles to reduce on-site installer labor.
All Helian linear channels are extruded from architectural-grade 6063-T5 aluminum alloy with an anodized surface treatment. This structural configuration offers high thermal conductivity, successfully serving as a heavy-duty heat sink. It efficiently dissipates heat generated by high-density flexible or rigid LED strips up to 15W/m, preventing lumen depreciation and extending the LED lifespan over 50,000 hours.
We strictly use premium, UV-stabilized Polycarbonate (PC) or optical PolyMethyl Methacrylate (PMMA) from Tier-1 global raw material suppliers. Our frosted/opal covers ensure up to 85% light transmittance, and our specialized clear optical lenses exceed 90% transmittance. The raw materials are UV-protected, ensuring the diffuser will not yellow, crack, or turn brittle during long-term continuous operation in commercial lighting indoor environments.
By default, each standard packaging unit includes 2 end caps (1 blank, 1 with a wire hole) and 2 standard metal mounting clips per meter. For specific structural mounting methods—such as suspended spring clips, drywall mud-in components, or linear continuous connectors—please consult our project specialists. To guarantee optimal performance, please check the "Lighting Source Width" parameter listed in our specifications table to ensure your LED strip's outer PCB fits perfectly inside the inner aluminum track.
