HL-BAPL002 Trimless Mud-in Recessed LED Profile

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Model: HL-BAPL002L

Profile size:W:17mm * H: 13.7mm

PCB width: 12 mm

Installation:Surface Mount, Recessed Mount

REQUEST A BULK QUOTE Download PDF Spec

5-Year Warranty | CE & RoHS Certified.

Wholesale Pricing Available Upon Request

HL-BAPL002L Aluminum Profile Application

HL-BAPL002L Hotel Guest Room Lighting Solution

High-end hospitality commercial lighting requires seamless integration into guest room architectural elements to establish a tranquil guest experience. To achieve a completely flush appearance, this recessed installation leverages specialized screwless end caps that drastically accelerate on-site assembly workflows. An imported PMMA diffuser softens the linear output, delivering uniform, glare-free illumination that enhances spatial warmth without exposing visible hotspots or hardware. This application demonstrates how precision-engineered linear profiles resolve intricate mounting challenges in guest room configurations while upgrading overall visual comfort.

  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.
BAPL002L External Dimensions

Technical Specifications

Model:

HL-BAPL002L

Profile size:

W:17mm * H: 13.7mm

PCB width:

12 mm

Installation:

Surface Mount, Recessed Mount

Material:

AL6063+PMMA

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodized/Painting

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PMMA Diffuser, End Cap, Clip

Compatible Accessories System

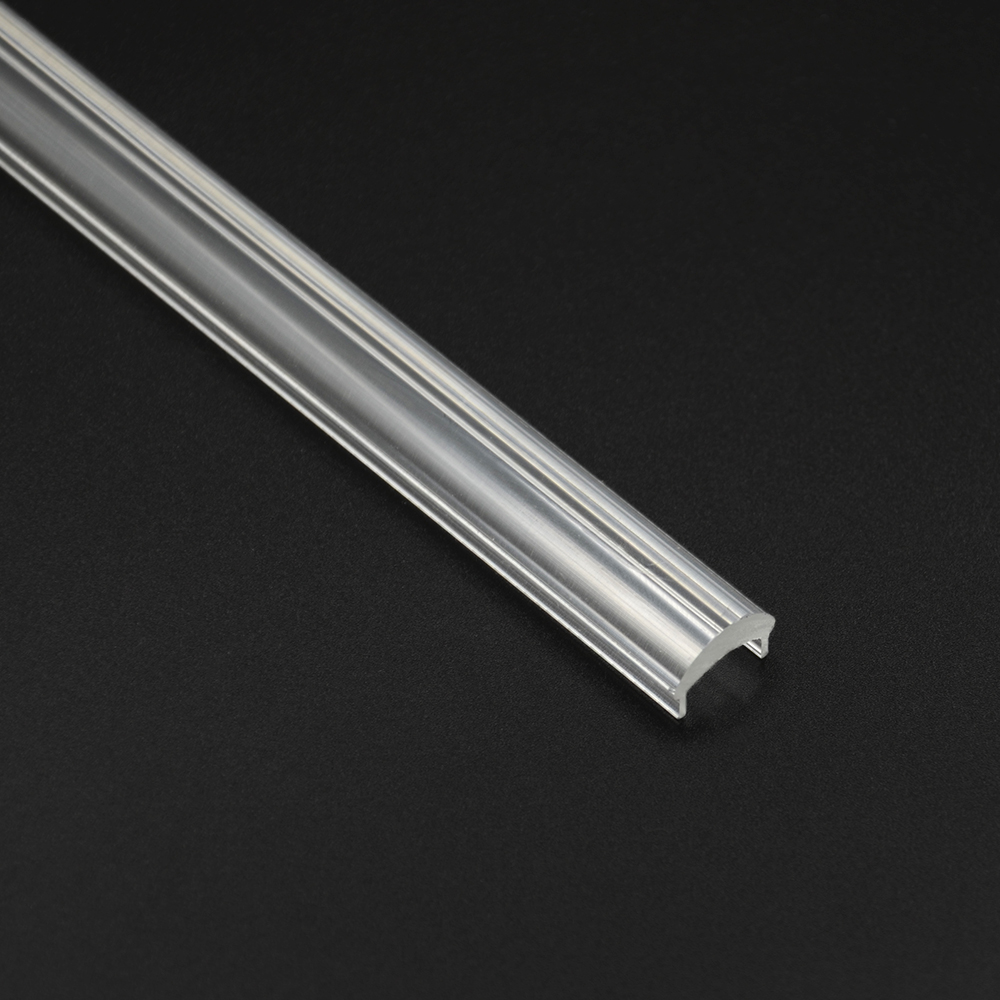

002L cover

002L cover

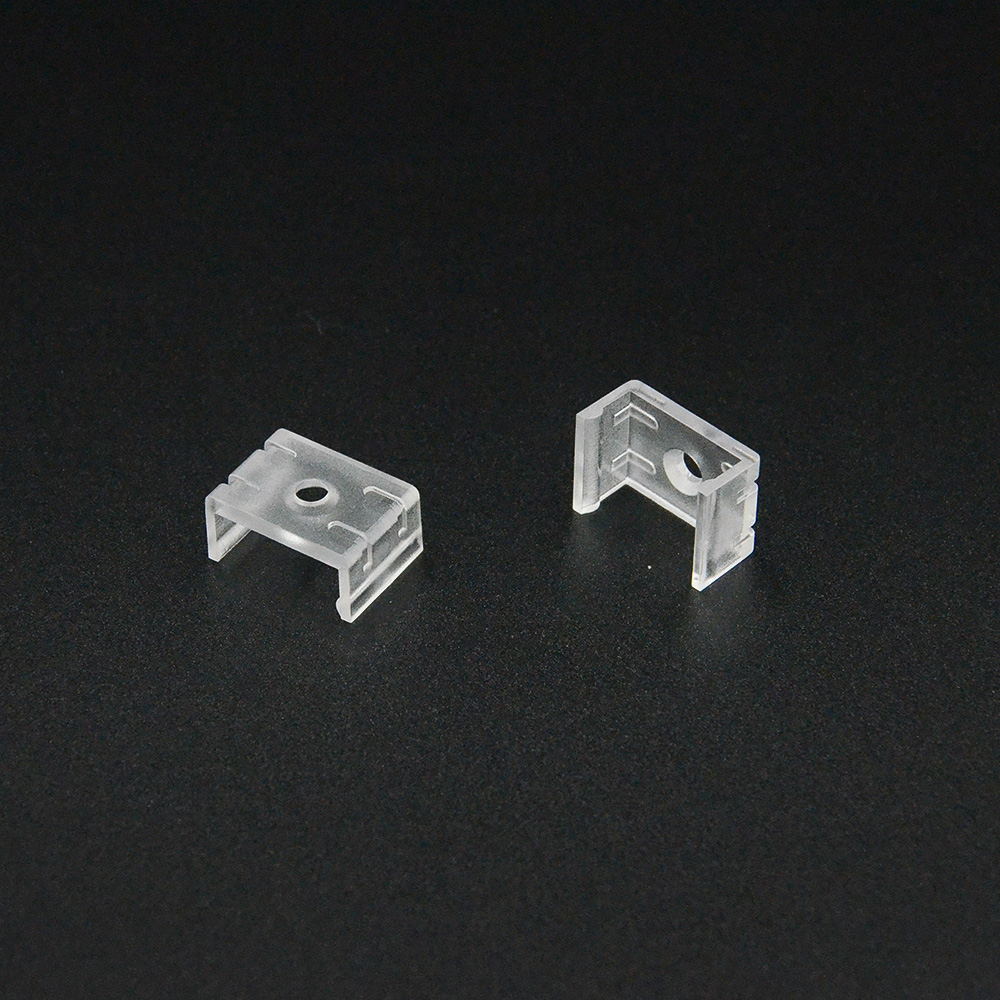

002/004 Plastic Clips

002/004 Plastic Clips

LED profile manufacturer

Wholesale/purchasing process

Ready to integrate this profile – HL-BAPL002L into your project? Check our procurement guide below.

01

Consult customer service

Provide 24-hour online customer service.

02

Confirm demand

Please sync the model/sku/quantity/customization requirements of the products you need to customer service, we will solve all the problems for you.

03

Order

After determining your needs, our customer service staff will assist you in placing your order, so there is absolutely nothing to worry about.

04

Provide delivery

We have the appropriate shipping channels, but of course you can also specify your own shipping service.

05

Delivery

You will soon receive the products you have purchased.

06

Checkout

Support T/T, Paypal, Credit Card, Banker’s Acceptance, etc.

Is this HL-BAPL002L profile the Mud-in Recessed LED Profile you are looking for?
Contact us today, and we will help you however we can!

Get a quote now
Helian LED profiles manufacture
Helian LED profiles manufacture

FAQs

Perhaps you would also like to know the information when purchasing in bulk or customizing LED light channels.

Our standard warehouse stocking lengths are 1.0m, 2.0m, and 2.5m. For large-scale architectural projects, we provide professional precise factory-cutting services. You can submit your detailed shop drawings to our engineering team to get pre-cut profiles at specific lengths or 45-degree mitered angles to reduce on-site installer labor.
All Helian linear channels are extruded from architectural-grade 6063-T5 aluminum alloy with an anodized surface treatment. This structural configuration offers high thermal conductivity, successfully serving as a heavy-duty heat sink. It efficiently dissipates heat generated by high-density flexible or rigid LED strips up to 15W/m, preventing lumen depreciation and extending the LED lifespan over 50,000 hours.
We strictly use premium, UV-stabilized Polycarbonate (PC) or optical PolyMethyl Methacrylate (PMMA) from Tier-1 global raw material suppliers. Our frosted/opal covers ensure up to 85% light transmittance, and our specialized clear optical lenses exceed 90% transmittance. The raw materials are UV-protected, ensuring the diffuser will not yellow, crack, or turn brittle during long-term continuous operation in commercial lighting indoor environments.
By default, each standard packaging unit includes 2 end caps (1 blank, 1 with a wire hole) and 2 standard metal mounting clips per meter. For specific structural mounting methods—such as suspended spring clips, drywall mud-in components, or linear continuous connectors—please consult our project specialists. To guarantee optimal performance, please check the "Lighting Source Width" parameter listed in our specifications table to ensure your LED strip's outer PCB fits perfectly inside the inner aluminum track.
