Wall Aluminum LED Channel HL-BAPL040L | 13mm for Commercial Lighting

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Model: HL-BAPL040L

Profile size:W:48.6mm * H: 17.8mm

PCB width: 13 mm

Installation:Surface Mount

REQUEST A BULK QUOTE Download PDF Spec

1-Year Warranty | CE & RoHS Certified.

Wholesale Pricing Available Upon Request

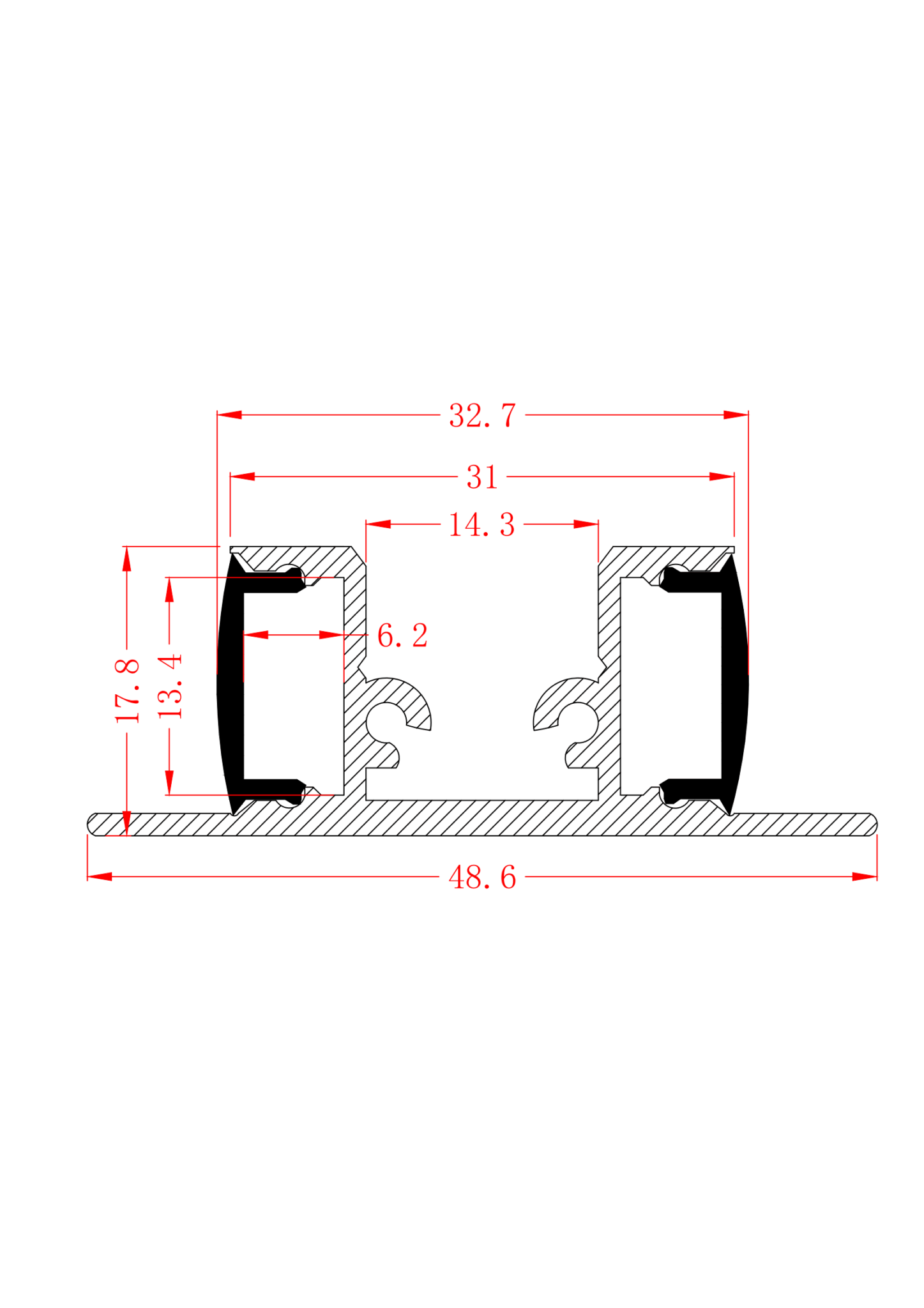

BAPL040L External Dimensions

Technical Specifications

Model:

HL-BAPL040L

Profile size:

W:48.6mm * H: 17.8mm

PCB width:

13 mm

Installation:

Surface Mount

Material:

AL6063+PC/PMMA

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodized/Painting

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

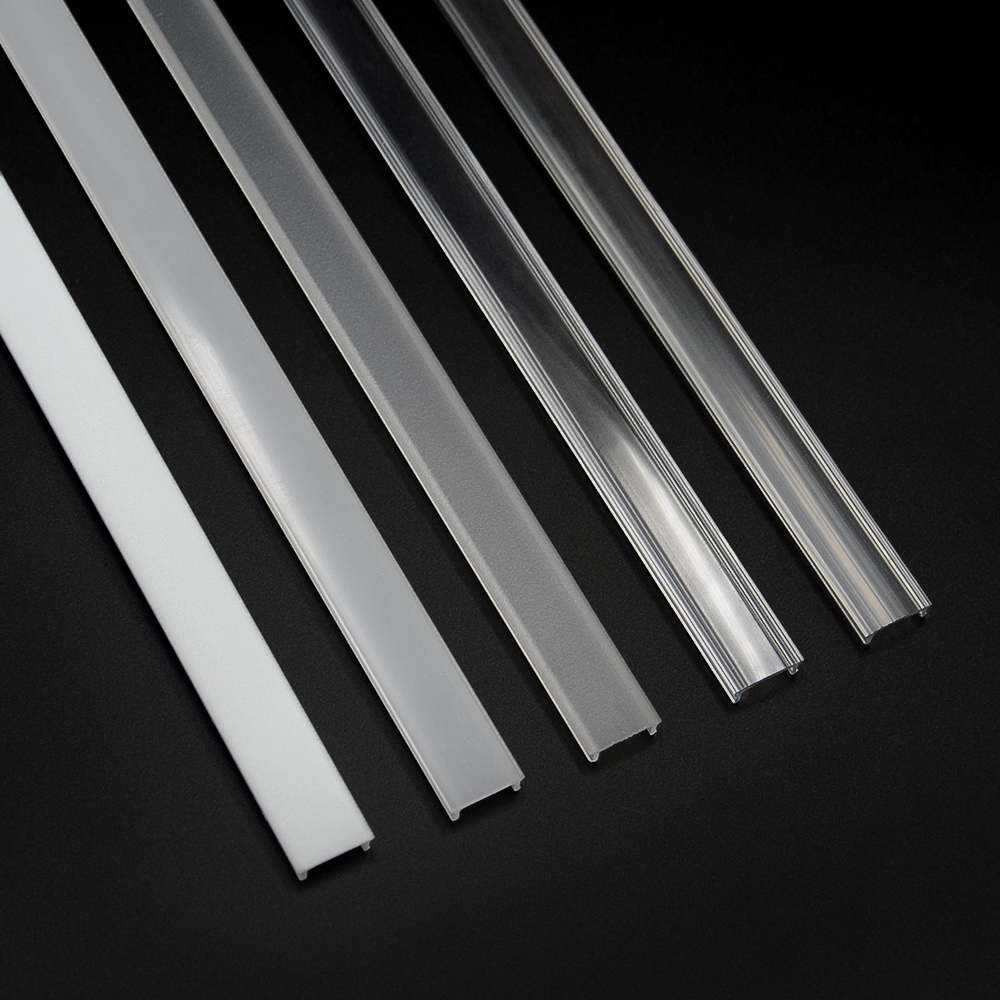

PC Diffuser, PMMA Diffuser, End Cap, Clip

Compatible Accessories System

040L clip

040L clip

001 Cover

001 Cover

040 End Cap

040 End Cap

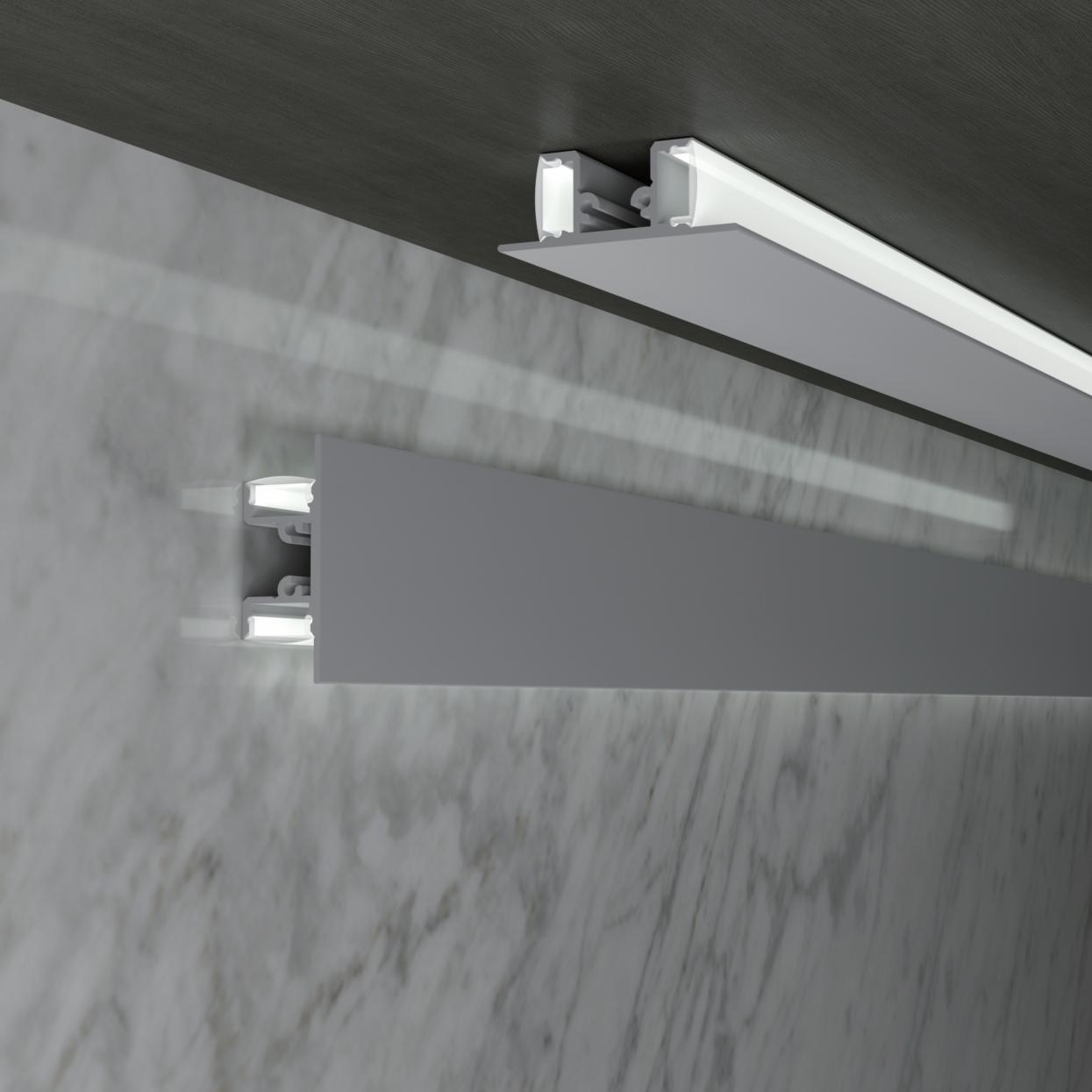

HL-BAPL040L Application

City:

In Singapore’s thriving commercial lighting market (growing 6.3% annually), the HL-BAPL040L wall aluminum led channel excels in office building elevator lobbies and corridors. Its AL6063 aluminum ensures superior heat dissipation for all-day operation, while the 13mm lighting source and imported PC/PMMA diffuser emit uniform, glare-free light—enhancing workplace visibility. Screwless closed end caps and plastic clip installation simplify mounting for facility contractors, and its sharp industrial design complements modern commercial interiors. As Singapore’s offices upgrade to efficient lighting, this channel merges durability, functionality, and sleekness—ideal for B2B buyers.

Case Detail
  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.
LED profile manufacturer

Wholesale/purchasing process

Ready to integrate this profile – HL-BAPL040L into your project? Check our procurement guide below.

01

Consult customer service

Provide 24-hour online customer service.

02

Confirm demand

Please sync the model/sku/quantity/customization requirements of the products you need to customer service, we will solve all the problems for you.

03

Order

After determining your needs, our customer service staff will assist you in placing your order, so there is absolutely nothing to worry about.

04

Provide delivery

We have the appropriate shipping channels, but of course you can also specify your own shipping service.

05

Delivery

You will soon receive the products you have purchased.

06

Checkout

Support T/T, Paypal, Credit Card, Banker’s Acceptance, etc.

Is this HL-BAPL040L profile the wall aluminum led channel you are looking for?
Contact us today, and we will help you however we can!

Get a quote now
Helian LED profiles manufacture
Helian LED profiles manufacture

FAQs

Perhaps you would also like to know the information when purchasing in bulk or customizing LED light channels.

Our standard warehouse stocking lengths are 1.0m, 2.0m, and 2.5m. For large-scale architectural projects, we provide professional precise factory-cutting services. You can submit your detailed shop drawings to our engineering team to get pre-cut profiles at specific lengths or 45-degree mitered angles to reduce on-site installer labor.
All Helian linear channels are extruded from architectural-grade 6063-T5 aluminum alloy with an anodized surface treatment. This structural configuration offers high thermal conductivity, successfully serving as a heavy-duty heat sink. It efficiently dissipates heat generated by high-density flexible or rigid LED strips up to 15W/m, preventing lumen depreciation and extending the LED lifespan over 50,000 hours.
We strictly use premium, UV-stabilized Polycarbonate (PC) or optical PolyMethyl Methacrylate (PMMA) from Tier-1 global raw material suppliers. Our frosted/opal covers ensure up to 85% light transmittance, and our specialized clear optical lenses exceed 90% transmittance. The raw materials are UV-protected, ensuring the diffuser will not yellow, crack, or turn brittle during long-term continuous operation in commercial lighting indoor environments.
By default, each standard packaging unit includes 2 end caps (1 blank, 1 with a wire hole) and 2 standard metal mounting clips per meter. For specific structural mounting methods—such as suspended spring clips, drywall mud-in components, or linear continuous connectors—please consult our project specialists. To guarantee optimal performance, please check the "Lighting Source Width" parameter listed in our specifications table to ensure your LED strip's outer PCB fits perfectly inside the inner aluminum track.
