Position :
HL-A059

HL-A059 Aluminum LED Ceiling Profiles, also for display lighting

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Model: HL-A059

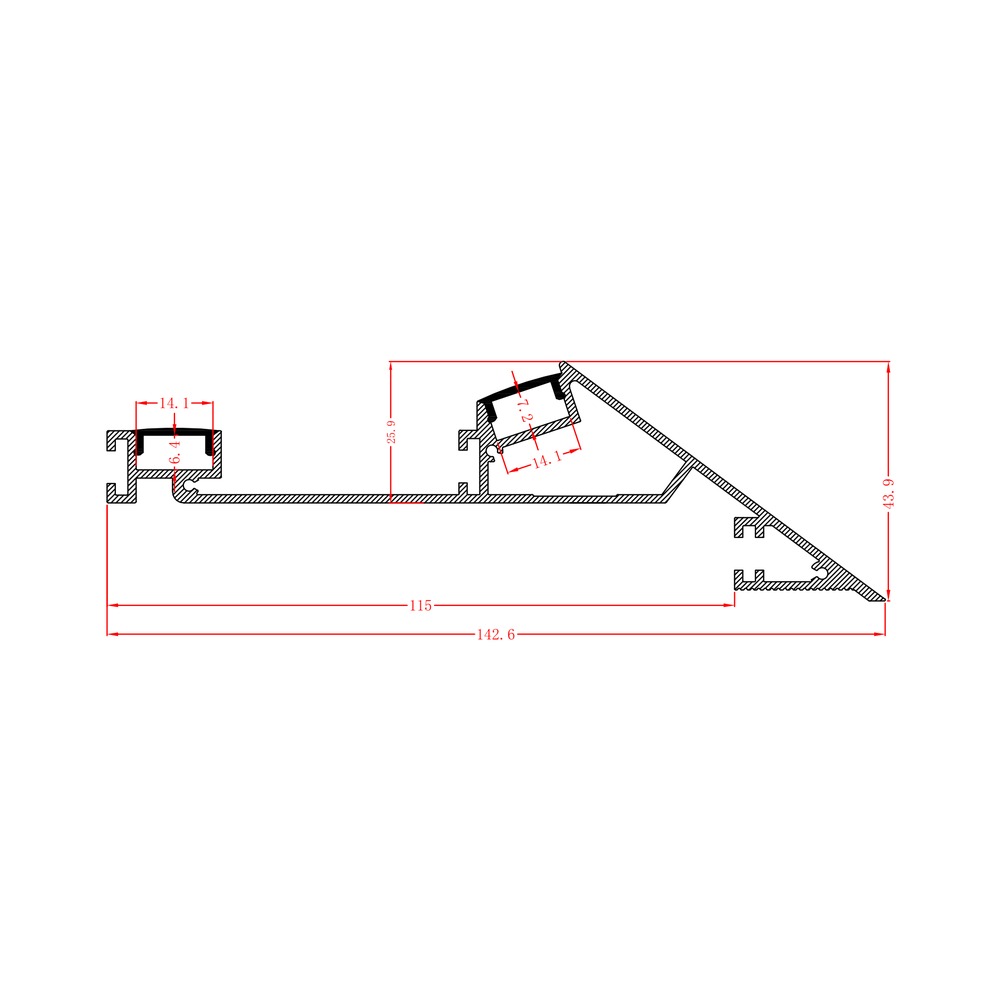

Profile size:W:142.6mm * H: 43.9mm

PCB width: 14 mm

Installation:Ceiling Mount

REQUEST A BULK QUOTE Download PDF Spec

1-Year Warranty | CE & RoHS Certified.

Wholesale Pricing Available Upon Request

  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.

Technical Specifications

Model:

HL-A059

Profile size:

W:142.6mm * H: 43.9mm

PCB width:

14 mm

Installation:

Ceiling Mount

Material:

AL6063+PC/PMMA

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodized/Painting

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, PMMA Diffuser, End Cap

Compatible Accessories System

HL-A059-end cap

HL-A059-end cap

001 Cover

001 Cover

LED profile manufacturer

Wholesale/purchasing process

Ready to integrate this profile – HL-A059 into your project? Check our procurement guide below.

01

Consult customer service

Provide 24-hour online customer service.

02

Confirm demand

Please sync the model/sku/quantity/customization requirements of the products you need to customer service, we will solve all the problems for you.

03

Order

After determining your needs, our customer service staff will assist you in placing your order, so there is absolutely nothing to worry about.

04

Provide delivery

We have the appropriate shipping channels, but of course you can also specify your own shipping service.

05

Delivery

You will soon receive the products you have purchased.

06

Checkout

Support T/T, Paypal, Credit Card, Banker’s Acceptance, etc.

Is this HL-A059 profile the you are looking for?
Contact us today, and we will help you however we can!

Get a quote now
Helian LED profiles manufacture
Helian LED profiles manufacture

FAQs

Perhaps you would also like to know the information when purchasing in bulk or customizing LED light channels.

Our standard warehouse stocking lengths are 1.0m, 2.0m, and 2.5m. For large-scale architectural projects, we provide professional precise factory-cutting services. You can submit your detailed shop drawings to our engineering team to get pre-cut profiles at specific lengths or 45-degree mitered angles to reduce on-site installer labor.
All Helian linear channels are extruded from architectural-grade 6063-T5 aluminum alloy with an anodized surface treatment. This structural configuration offers high thermal conductivity, successfully serving as a heavy-duty heat sink. It efficiently dissipates heat generated by high-density flexible or rigid LED strips up to 15W/m, preventing lumen depreciation and extending the LED lifespan over 50,000 hours.
We strictly use premium, UV-stabilized Polycarbonate (PC) or optical PolyMethyl Methacrylate (PMMA) from Tier-1 global raw material suppliers. Our frosted/opal covers ensure up to 85% light transmittance, and our specialized clear optical lenses exceed 90% transmittance. The raw materials are UV-protected, ensuring the diffuser will not yellow, crack, or turn brittle during long-term continuous operation in commercial lighting indoor environments.
By default, each standard packaging unit includes 2 end caps (1 blank, 1 with a wire hole) and 2 standard metal mounting clips per meter. For specific structural mounting methods—such as suspended spring clips, drywall mud-in components, or linear continuous connectors—please consult our project specialists. To guarantee optimal performance, please check the "Lighting Source Width" parameter listed in our specifications table to ensure your LED strip's outer PCB fits perfectly inside the inner aluminum track.
