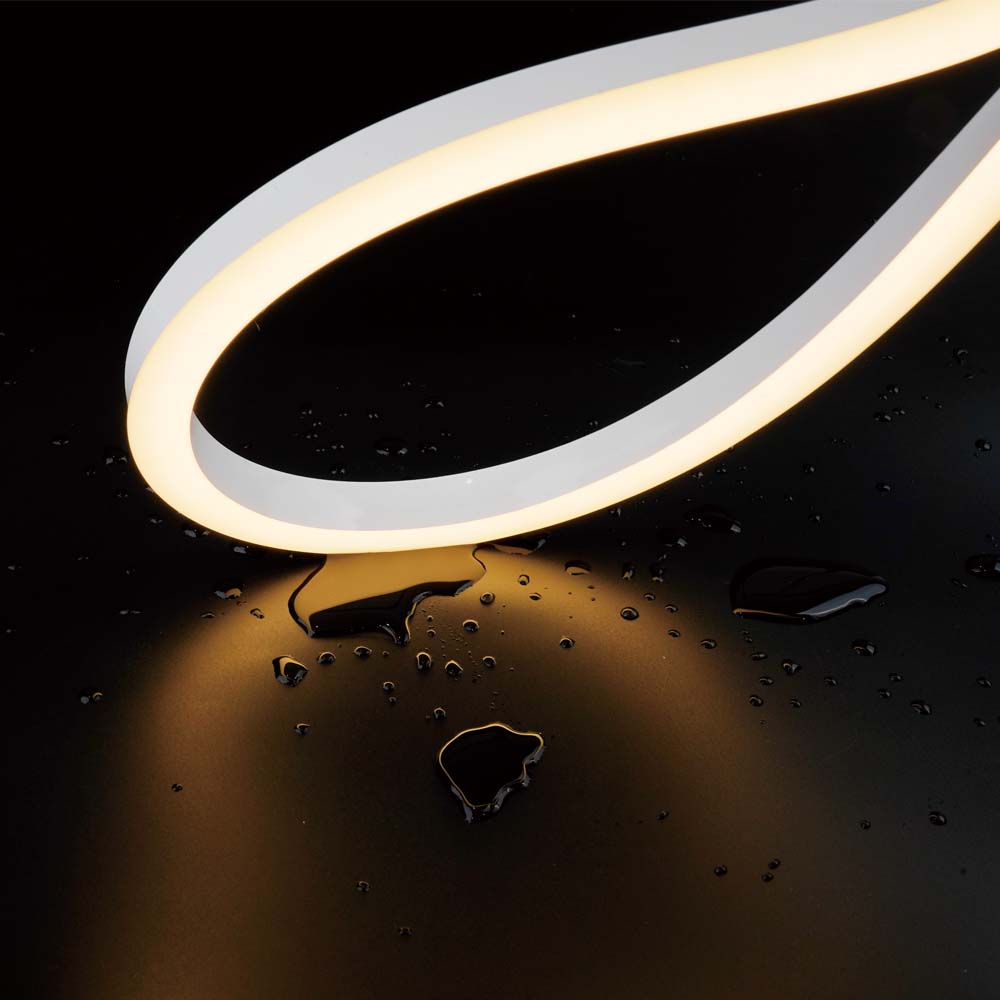

NS1617 Side Bend Silicone Neon Flex — IP68, 24V Constant Voltage
DC24V
5w/m, 10w/m, 15w/m
Ra90
IP68
Product Detail
– Side / horizontal bend — follows curves, waves and lettering a top-bend strip cannot.
– 16x17mm silicone profile, 200mm bend diameter; light exits from the side (side view).
– 24V constant voltage, cuttable every 50mm, pairs with common 24V supplies.
– IP68 waterproof, CRI >=90, full white + colour + RGB / RGBW range.
– Spot-free side emission ideal for cove, edge and signage lighting.
Technical Specifications
| Voltage: | DC24V | LED PIN Temperature: | Max. 65℃ |
| Working Temperature: | -25℃~ 60℃ | CRI: | Ra90 |
| Power: | 5w/m, 10w/m, 15w/m | LM/W: | Efficacy@4000K, 64.8LM/W, 62.3LM/W, 59.4LM/W |
| Min Ambient Temperature: | -25°C | Max Ambient Temperature: | 55℃, 45℃, 35℃ |
Silicone Neon Light Strip HL-NS1617V24IP68-Cxx Series:
| NO. | Model | CCT(K) | CCT Range | Cut (mm) | CRI | Voltage | Power | Lm | Max Run |
|---|---|---|---|---|---|---|---|---|---|
| 1 | HL-NS1617V24IP68-C18 | 1800±150K | — | 50 | ＞90 | DC24V | 5, 10, 15 | 225, 430, 612 | 12, 8, 6 |
| 2 | HL-NS1617V24IP68-C21 | 2100±150K | — | 50 | ＞90 | DC24V | 5, 10, 15 | 251, 480, 686 | 12, 8, 6 |
| 3 | HL-NS1617V24IP68-C24 | 2400±150K | — | 50 | ＞90 | DC24V | 5, 10, 15 | 272, 520, 743 | 12, 8, 6 |
| 4 | HL-NS1617V24IP68-C27 | 2700±150K | — | 50 | ＞90 | DC24V | 5, 10, 15 | 293, 557, 794 | 12, 8, 6 |
| 5 | HL-NS1617V24IP68-C30 | 3000±150K | — | 50 | ＞90 | DC24V | 5, 10, 15 | 300, 572, 815 | 12, 8, 6 |
| 6 | HL-NS1617V24IP68-C35 | 3500±200K | — | 50 | ＞90 | DC24V | 5, 10, 15 | 301, 573, 821 | 12, 8, 6 |
| 7 | HL-NS1617V24IP68-C40 | 4000+400K -200K | — | 50 | ＞90 | DC24V | 5, 10, 15 | 324, 623, 891 | 12, 8, 6 |
| 8 | HL-NS1617V24IP68-C50 | 5000+500K -300K | — | 50 | ＞90 | DC24V | 5, 10, 15 | 306, 591, 849 | 12, 8, 6 |
| 9 | HL-NS1617V24IP68-C65 | 6500±500K | — | 50 | ＞90 | DC24V | 5, 10, 15 | 297, 578, 830 | 12, 8, 6 |
| 10 | HL-NS1617V24IP68-Cr | Red | — | 50 | — | DC24V | 5, 10, 15 | 131, 258, 384 | 16, 10, 8 |
| 11 | HL-NS1617V24IP68-Cg | Green | — | 50 | — | DC24V | 5, 10, 15 | 403, 660, 863 | 10, 7, 5 |
| 12 | HL-NS1617V24IP68-Cb | Blue | — | 50 | — | DC24V | 5, 10, 15 | 78, 138, 197 | 12, 8, 6 |
| 13 | HL-NS1617V24IP68-Cy | Yellow | — | 50 | — | DC24V | 5, 10, 15 | 101, 199, 290 | 16, 10, 8 |
| 14 | HL-NS1617V24IP68-Co | Orange | — | 50 | — | DC24V | 5, 10, 15 | 112, 237, 365 | 16, 10, 8 |
| 15 | HL-NS1617V24IP68-Cp | Pink | — | 50 | — | DC24V | 5, 10, 15 | 288, 540, 797 | 12, 8, 6 |
| 16 | HL-NS1617V24IP68-Ca | 2700±150 / 6500±500 / 2700+6500 | — | 62.5 | ＞90 | DC24V | 7.5, 7.5, 15 | 386, 419, 800 | 5 |
| 17 | HL-NS1617V24IP68-Crgb | R/G/B/RGB | — | 62.5 | — | DC24V | 3.3, 3.3, 3.3, 10 | 60, 168, 36, 270 | 5 |
| 18 | HL-NS1617V24IP68-Crgbwx | R/G/B/W(2700K/3000K/4000K/6500K)/RGBW | — | 62.5 | ＞80 | DC24V | 3.75 3.75, 3.75, 3.75, 15 | 61 154, 47, 179, 435 | 5 |
| 19 | HL-NS1617V24IP68-Crgbx-UCS512CL-8P | R/G/B/ W：4000±300K/RGBW | — | 125 | ＞80 | DC24V | 5, 5, 5, 5, 15 | 39 103, 30, 127, 299 | 8 |
Accessories
| Product Name | Description | Model No | Picture |
|---|---|---|---|
| Installation profiles | 1M/pcs PC profiles(L1000*W20*H22.5mm) + 3 screw | HL-NT1617-PC |  |
| Installation clip | 1M/pcs PC clip(L20*W20*H22.5mm) + 1screw | HL-NT1617-MPC | — |
| IP68 one-piece end cap, 2/3/4/5 cores single color | one-piece end cap +1x 4M SJOW2*18AWG，OD:7.4MM，Core wire: Red and black (front/bottom exit) with wire exiting from one end. | HL-NT1617-IEC2/3/4/5 |  |
| IP68 one-piece end cap, 2/3/4/5 cores single color | one-piece end cap +1x 8M SJOW2*18AWG，OD:7.4MM，Core wire: Red and black (front/bottom exit) with wire exiting from one end. | HL-NT1617-IEC2/3/4/5 |  |
| IP68 one-piece end cap, 2/3/4/5 cores single color | one-piece end cap +1x 8M SJOW2*18AWG，OD:7.4MM，Core wires: Red and black (front/bottom exit) with wires exiting from both ends. | HL-NT1617-IEC2/3/4/5 |  |
| IP68 Black rubber thread, 2/3/4/5 cores single color | 1M SJOW2*18AWG，OD:7.4MM，Core wire: Red and black | HL-NT1615-BRC2/3/4/5 |  |
| Scissors | 1pcs | HL-S-1 |  |
Installation
Below is a brief guide to installing neon lights. For detailed installation instructions for the , please download our specification sheet.
Tools & Preparation
Scissors / Cutter
Step-by-Step Guide
Step 1: Plan & Measure
Determine the installation path and required length according to the design. Avoid sharp bends during installation (Min. bending diameter > 6cm).
Step 2: Clean the Surface
Clean the mounting surface with alcohol to remove dust and grease, ensuring strong adhesion.
Step 3: Cut & Connect
Cut the strip at the designated cut marks. Use waterproof connectors to connect the power supply, paying attention to the polarity (Red wire is positive, black is negative).
Step 4: Fix & Dissipate Heat
Indoor Dry Area: Peel and stick using the 3M backing. Outdoor/Wet Area: Must be fixed with aluminum profiles and clips for heat dissipation and protection.
Step 5: Controller Debugging
After connecting the power, perform a test. Check RGB colors and the responsiveness of the remote control or APP.
