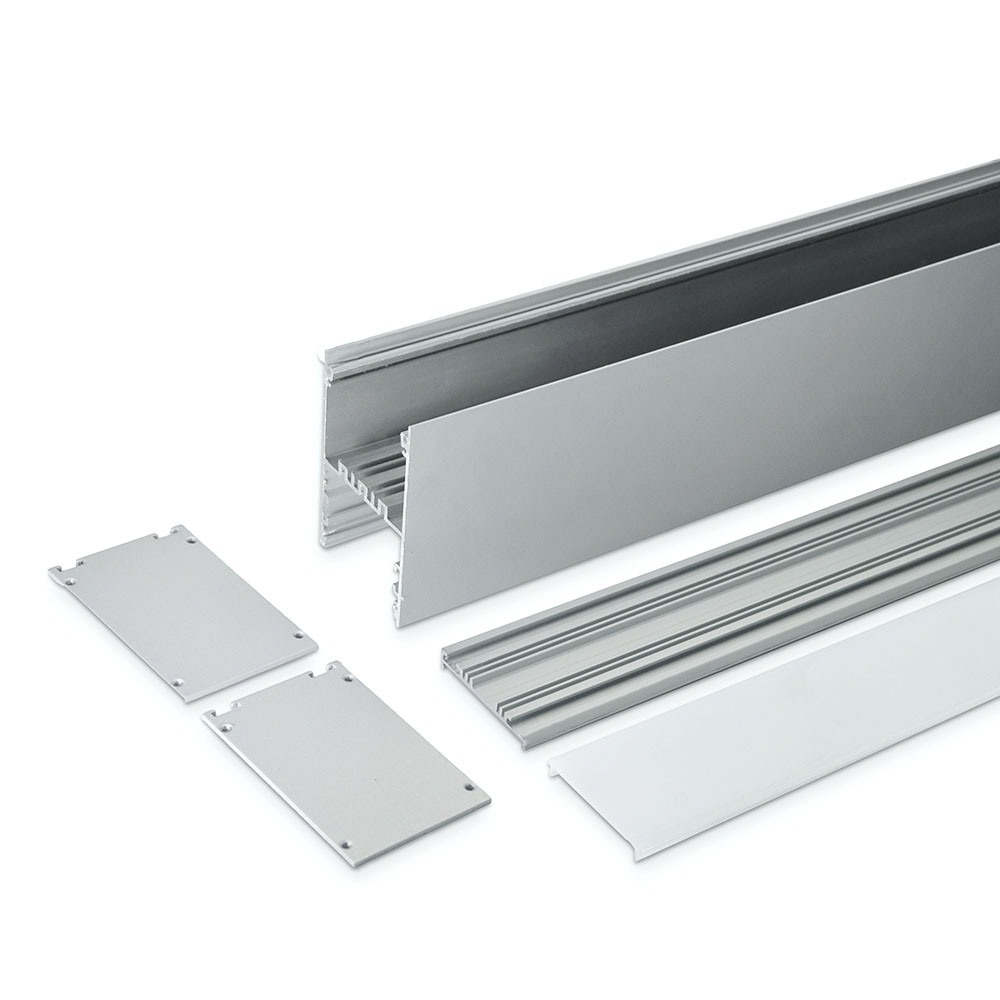

HL-A046-1 Led Up And Down Angle Aluminum Profiles | AL6063 | 48mm Light Source
⚡ Quick Turnaround: 5-7 Days for Custom Lengths
100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.
Wholesale Pricing Available Upon Request
Technical Specifications
Model:
HL-A046-1

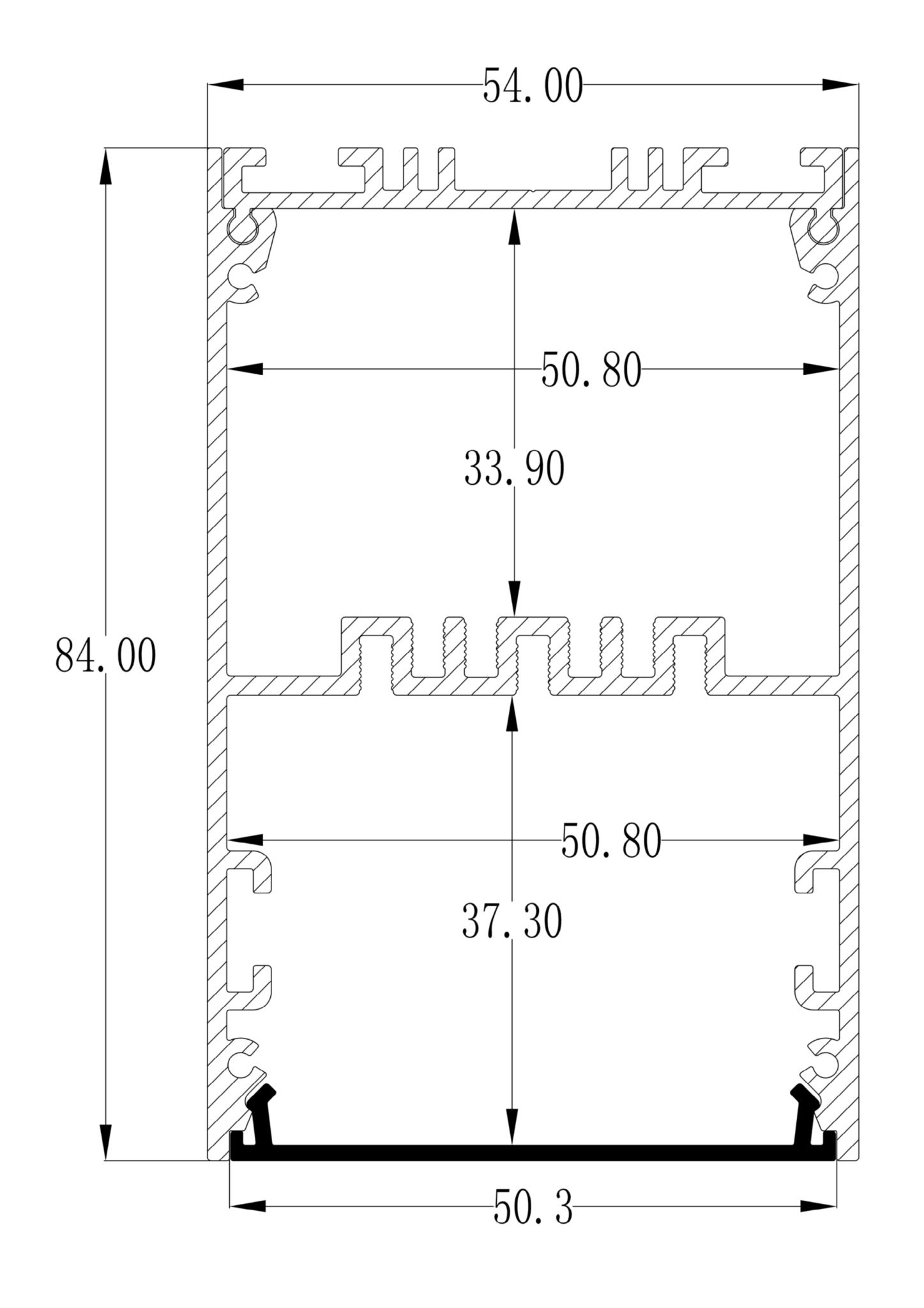

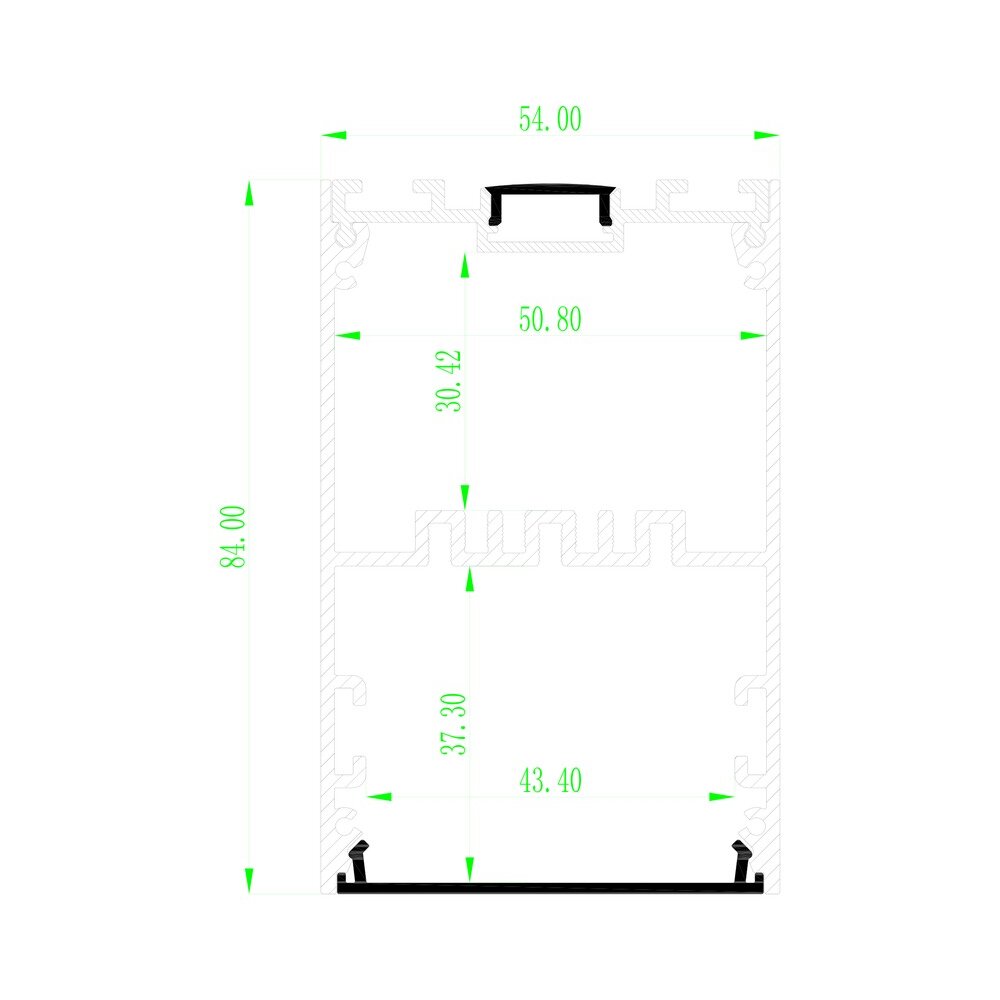

Profile size:
W:54mm * H: 84mm
PCB width:
48 mm
Installation:
Suspended Mount
Material:
AL6063+PC/Aluminum Cover
IP Rating (Profile):
IP20 / IP44 (Depends on strip used)
Surface:
Anodized/Painting
Standard Length:
1m / 2m / 3m / 4m
Compatible Accessories :
PC Diffuser, End Cap, Suspended Rope, Connector
Compatible Accessories System

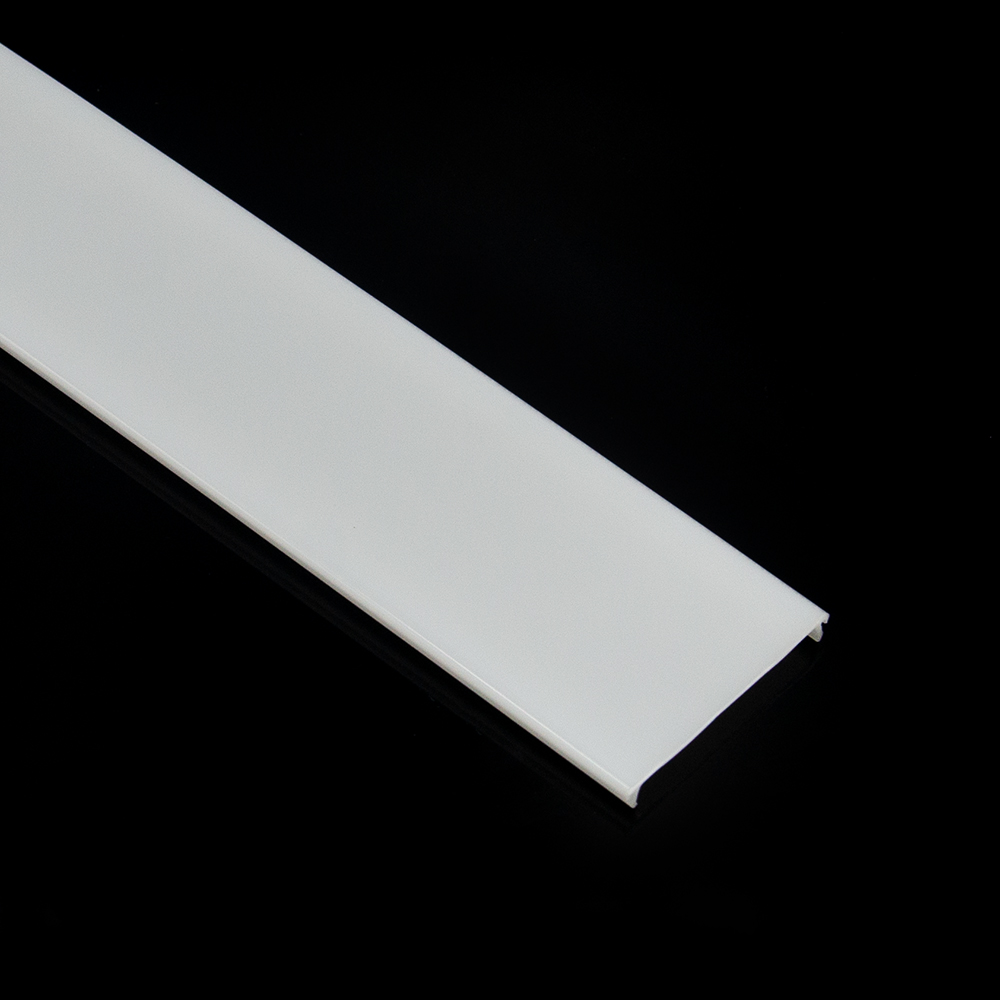

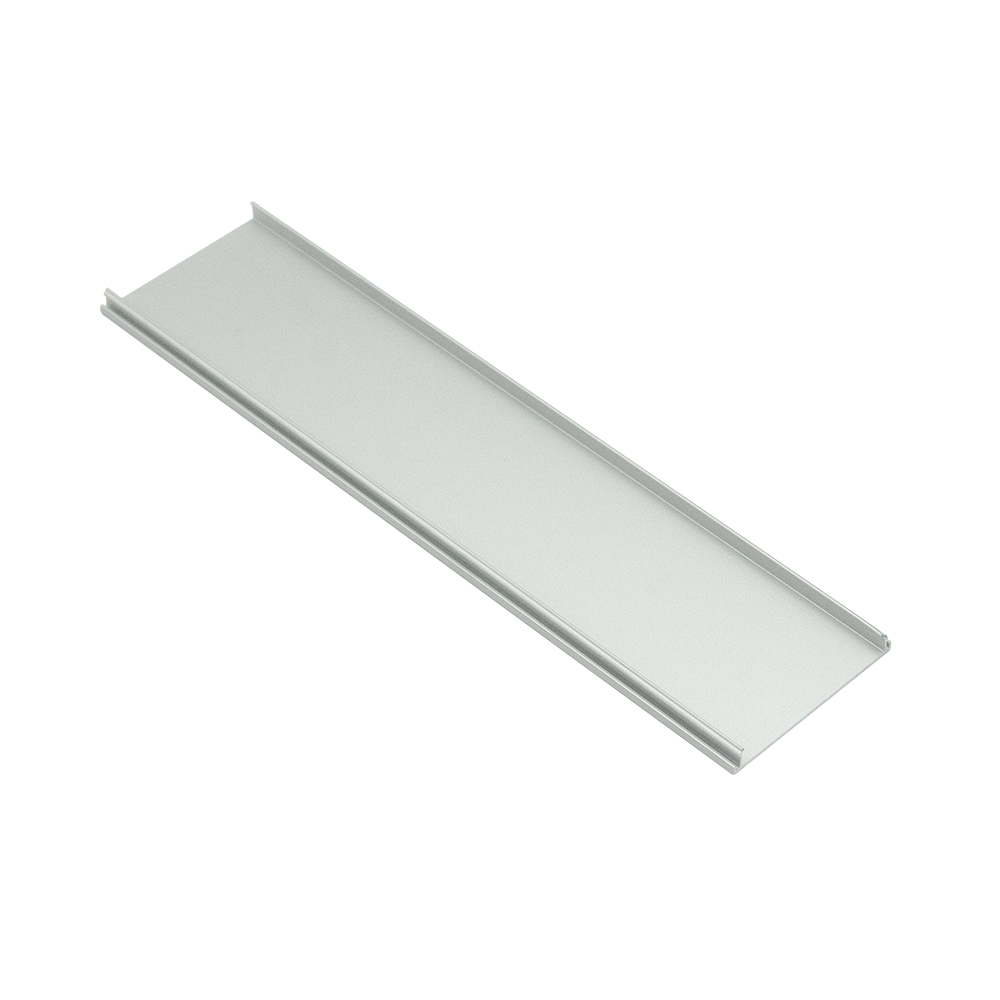

A046 Cover

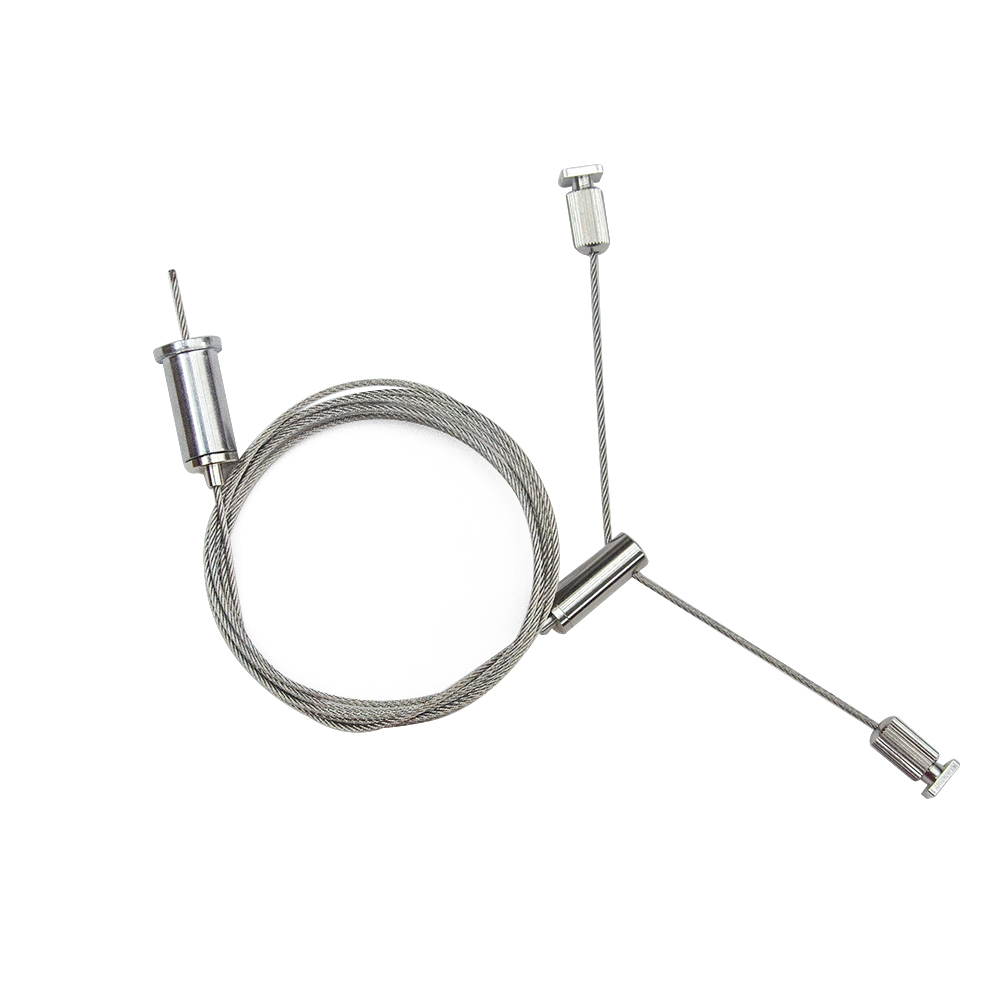

Suspended Rope HL-DS008
HL-A046-1 End Cap
Melbourne Central Department Store, Wide Lighting
City: Melbourne
A department store using the HL-A046 wide profile (48 mm source) with PC or aluminium cover options — diffuse PC for aisles, specular aluminium for the escalator void. AL 6063 body, aluminium end caps, 4 m stock. 980 m installed; 14 m gap-free runs, escalator-void feature photographed for the annual report.
Wholesale/purchasing process
Ready to integrate this profile – HL-A046-1 into your project? Check our procurement guide below.
Consult customer service
Provide 24-hour online customer service.
Confirm demand
Please sync the model/sku/quantity/customization requirements of the products you need to customer service, we will solve all the problems for you.
Order
After determining your needs, our customer service staff will assist you in placing your order, so there is absolutely nothing to worry about.
Provide delivery
We have the appropriate shipping channels, but of course you can also specify your own shipping service.
Delivery
You will soon receive the products you have purchased.
Checkout
Support T/T, Paypal, Credit Card, Banker’s Acceptance, etc.
FAQs
Perhaps you would also like to know the information when purchasing in bulk or customizing LED light channels.
