HL-2814A

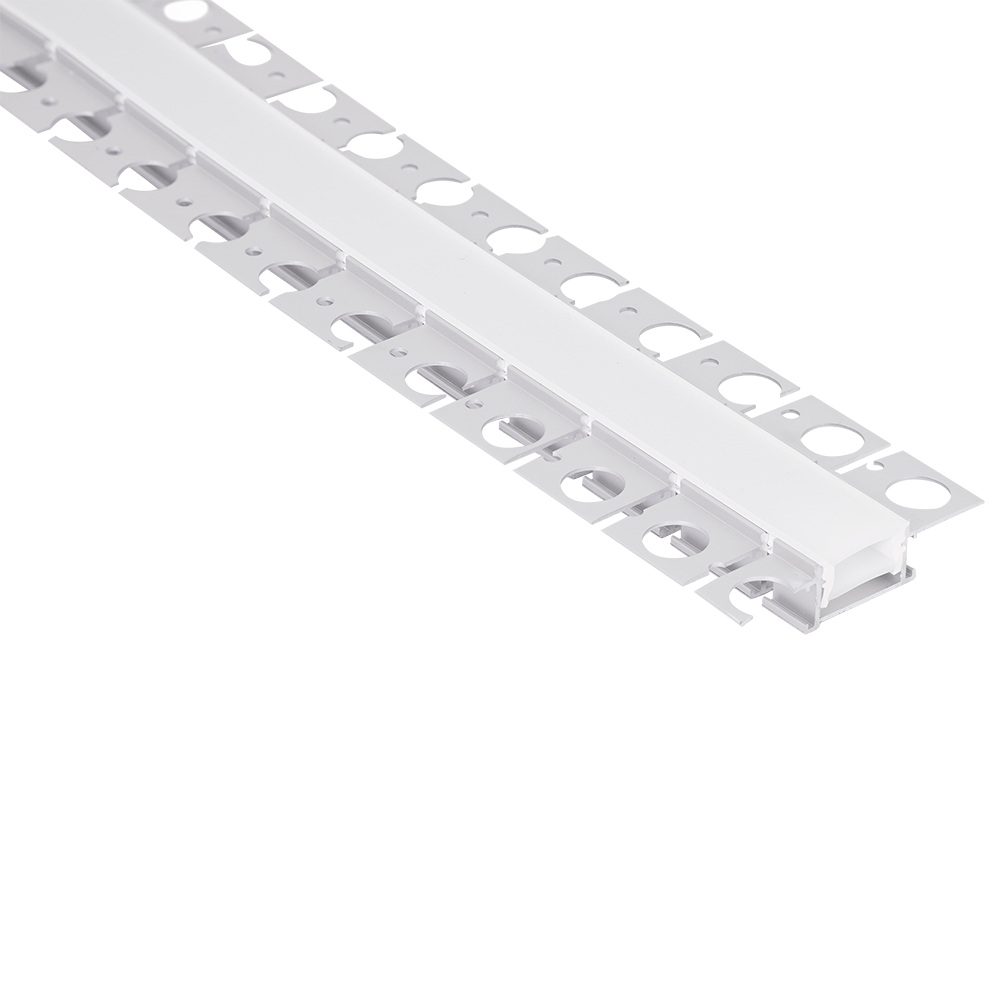

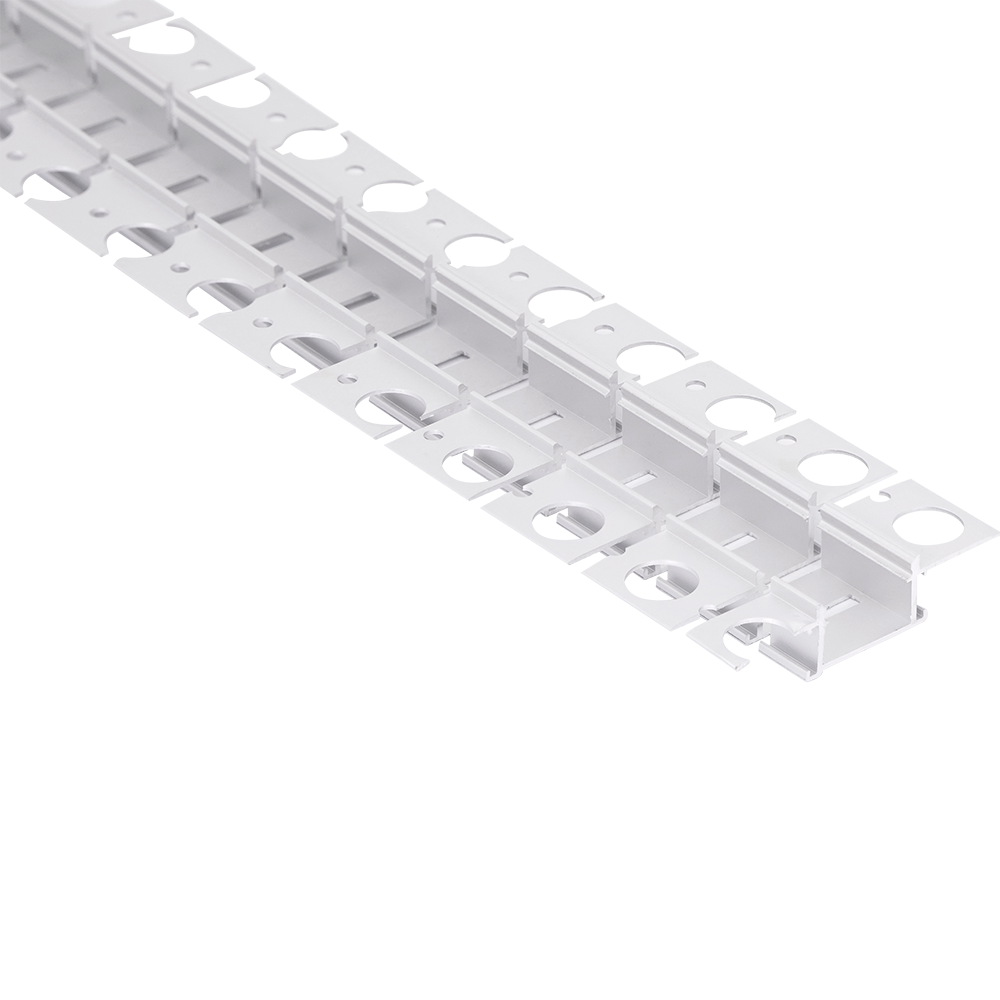

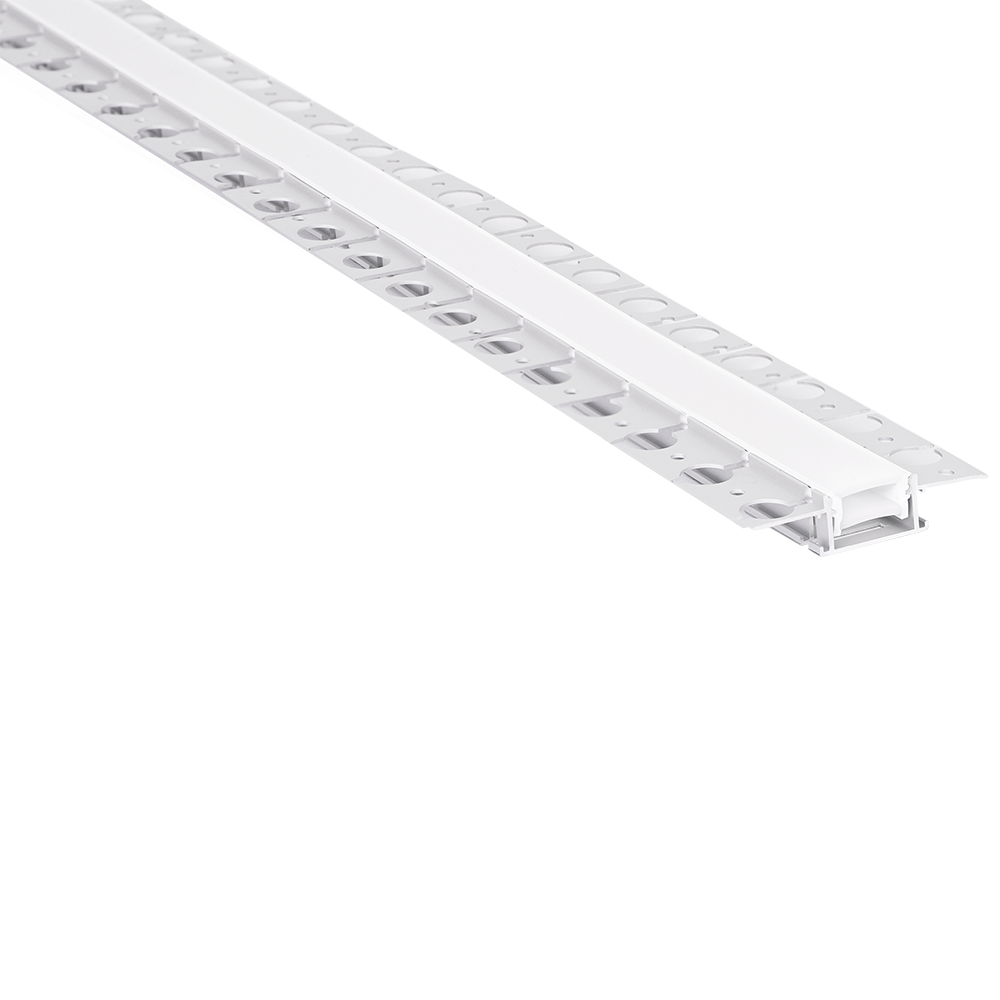

Flexible Aluminium LED Profile HL-2814A, 20mm Width, 4M Length, Easy Installation for Business Spaces

🔵 Project Base: 15-25 Days Flexible Production

Model: HL-2814A

Profile size:W:61mm * H: 14mm

PCB width: 20 mm

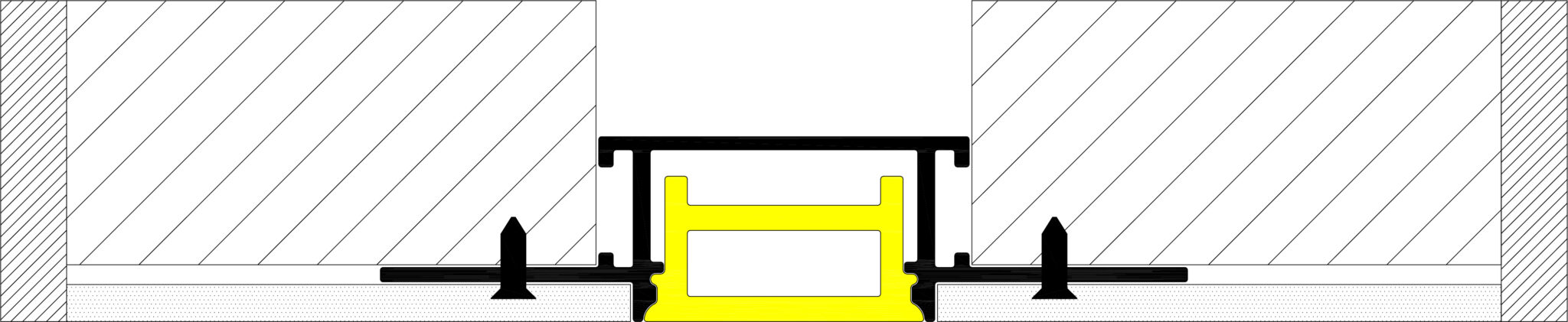

Installation:Recessed Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

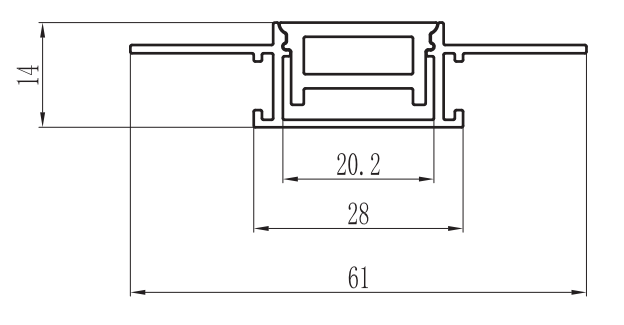

2814A Dimension drawing

Technical Specifications

Model:

HL-2814A

Profile size:

W:61mm * H: 14mm

PCB width:

20 mm

Installation:

Recessed Mount

Material:

AL6063-T5+Silicone

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodized

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

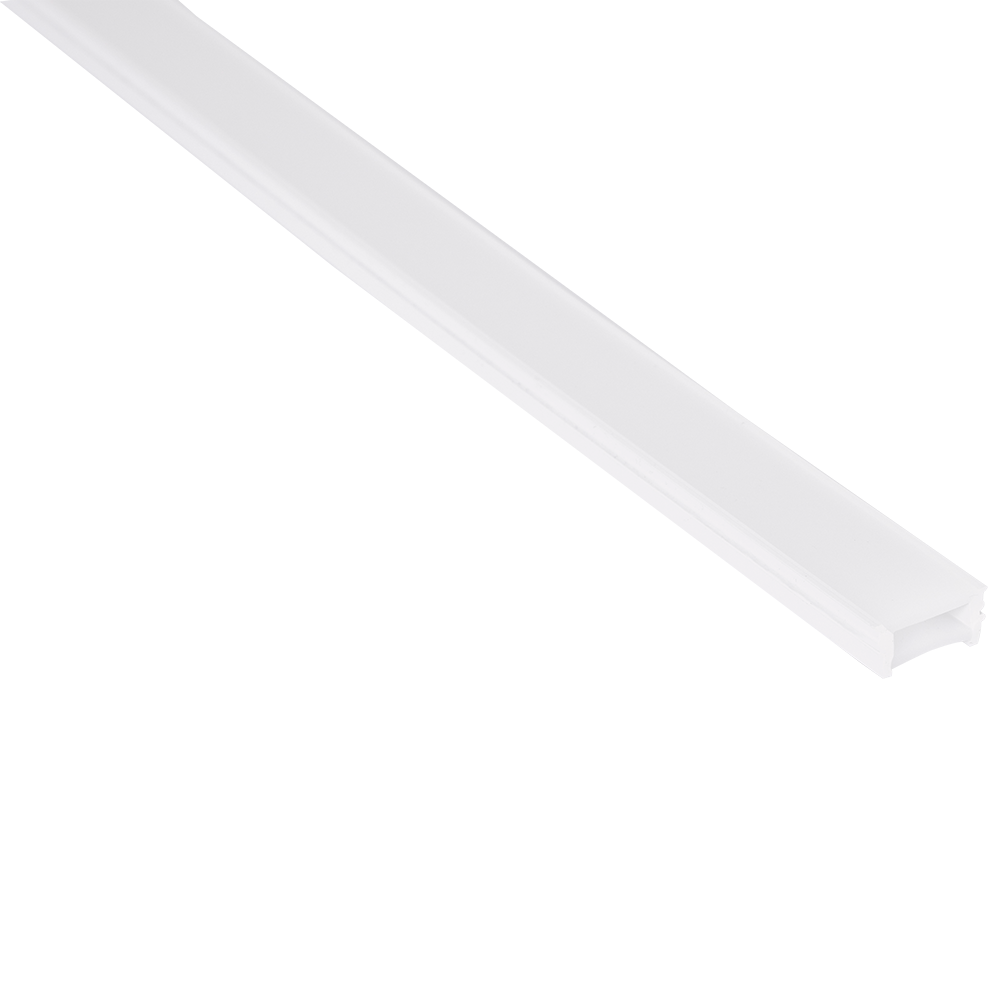

Silicone Diffuser

Compatible Accessories System

Silicone Cover

Silicone Cover

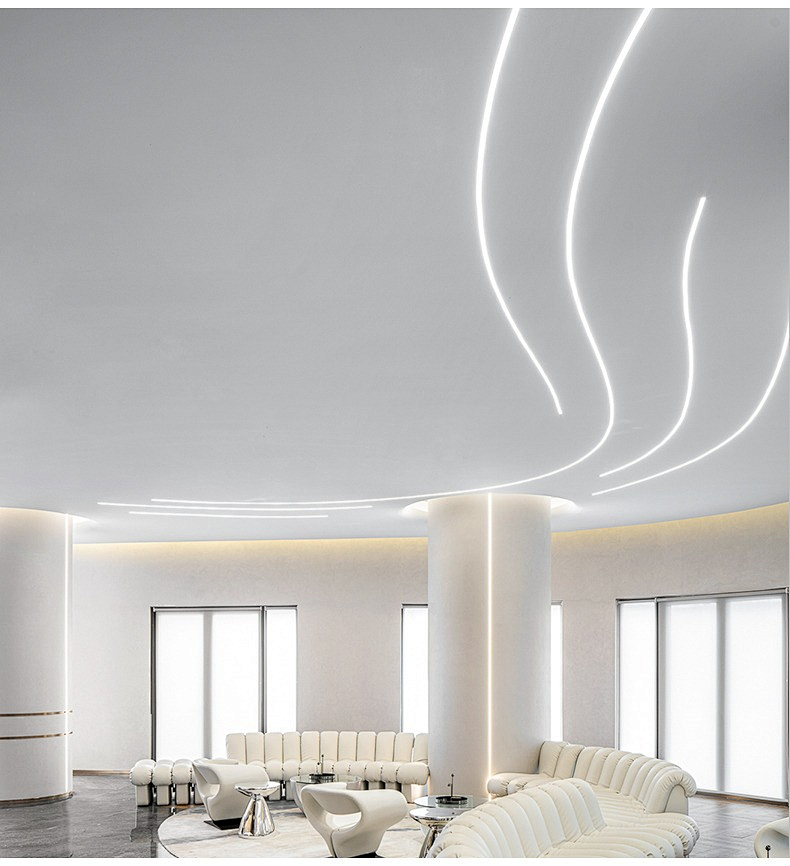

HL-2814A Application Scenarios

Flexible curved-surface lighting

It bends to follow a curve or an undulating surface, holding an even line through the turn.

  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.

Is this HL-2814A profile the flexible aluminium led profile you are looking for?
Contact us today, and we will help you however we can!

Get a quote now
Helian LED profiles manufacture
Helian LED profiles manufacture

FAQs

Perhaps you would also like to know the information when purchasing in bulk or customizing LED light channels.

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.
Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.
European market: CE & ROHS certified. North American market: UL certified.
Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.
Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.
Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
