Position :
HL-A014

Ceiling LED Strip Channel with Suspended Installation HL-A014

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Model: HL-A014

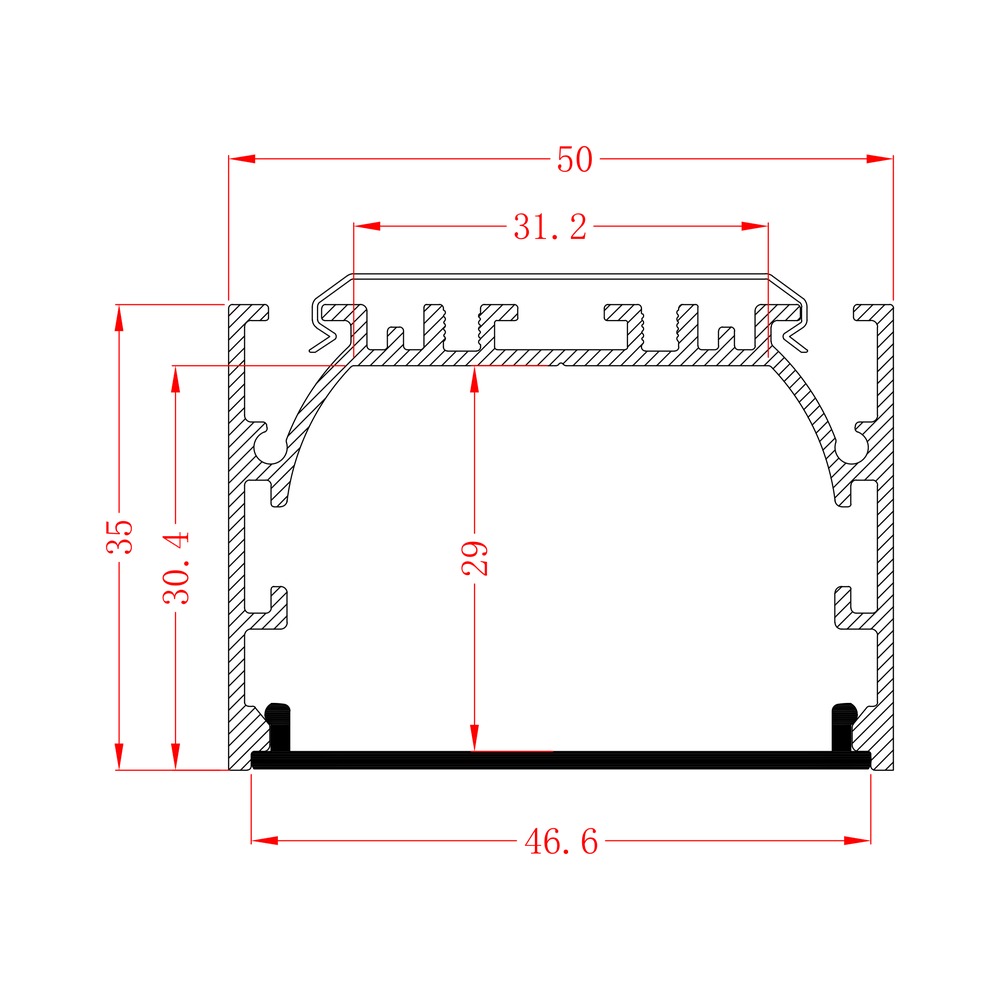

Profile size:W:50mm * H: 35mm

PCB width: 31 mm

Installation:Ceiling Mount, Suspended Mount, Surface Mount

REQUEST A BULK QUOTE Download PDF Spec

1-Year Warranty | CE & RoHS Certified.

Wholesale Pricing Available Upon Request

Technical Specifications

Model:

HL-A014

Profile size:

W:50mm * H: 35mm

PCB width:

31 mm

Installation:

Ceiling Mount, Suspended Mount, Surface Mount

Material:

AL6063+PC

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodized/Painting

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, End Cap, Clip, Suspended Rope, Connector

Compatible Accessories System

HL-A014 End Cap

HL-A014 End Cap

051 cover

051 cover

M1 clip

M1 clip

Suspended Rope HL-DS004

Suspended Rope HL-DS004

Arts District Creative Hub, Los Angeles Wide Suspended Lighting

City: Los Angeles

A 600 m² studio/gallery using the HL-A014 wide suspended profile with 31 mm source width and dual suspended/surface mounting. AL 6063 anodised silver, PC/PMMA covers, 4 m stock. 410 m installed; gallery wall-wash illuminance met first photometric check.

Case Detail
  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.
LED profile manufacturer

Wholesale/purchasing process

Ready to integrate this profile – HL-A014 into your project? Check our procurement guide below.

01

Consult customer service

Provide 24-hour online customer service.

02

Confirm demand

Please sync the model/sku/quantity/customization requirements of the products you need to customer service, we will solve all the problems for you.

03

Order

After determining your needs, our customer service staff will assist you in placing your order, so there is absolutely nothing to worry about.

04

Provide delivery

We have the appropriate shipping channels, but of course you can also specify your own shipping service.

05

Delivery

You will soon receive the products you have purchased.

06

Checkout

Support T/T, Paypal, Credit Card, Banker’s Acceptance, etc.

Is this HL-A014 profile the you are looking for?
Contact us today, and we will help you however we can!

Get a quote now
Helian LED profiles manufacture
Helian LED profiles manufacture

FAQs

Perhaps you would also like to know the information when purchasing in bulk or customizing LED light channels.

Our standard warehouse stocking lengths are 1.0m, 2.0m, and 2.5m. For large-scale architectural projects, we provide professional precise factory-cutting services. You can submit your detailed shop drawings to our engineering team to get pre-cut profiles at specific lengths or 45-degree mitered angles to reduce on-site installer labor.
All Helian linear channels are extruded from architectural-grade 6063-T5 aluminum alloy with an anodized surface treatment. This structural configuration offers high thermal conductivity, successfully serving as a heavy-duty heat sink. It efficiently dissipates heat generated by high-density flexible or rigid LED strips up to 15W/m, preventing lumen depreciation and extending the LED lifespan over 50,000 hours.
We strictly use premium, UV-stabilized Polycarbonate (PC) or optical PolyMethyl Methacrylate (PMMA) from Tier-1 global raw material suppliers. Our frosted/opal covers ensure up to 85% light transmittance, and our specialized clear optical lenses exceed 90% transmittance. The raw materials are UV-protected, ensuring the diffuser will not yellow, crack, or turn brittle during long-term continuous operation in commercial lighting indoor environments.
By default, each standard packaging unit includes 2 end caps (1 blank, 1 with a wire hole) and 2 standard metal mounting clips per meter. For specific structural mounting methods—such as suspended spring clips, drywall mud-in components, or linear continuous connectors—please consult our project specialists. To guarantee optimal performance, please check the "Lighting Source Width" parameter listed in our specifications table to ensure your LED strip's outer PCB fits perfectly inside the inner aluminum track.
