Profilé LED suspendu

Modern Aluminum Suspended Lamp Ceiling LED Linear Slim Profile – 35×35mm, Black

Name: Modern Aluminum Suspended Lamp Ceiling LED Linear Slim Profile - 35×35mm, Black
Brand: Éclairage LED Helian
SKU: HL-A034
Availability: InStock

🟢 In Stock & Ready for Rapid Dispatch (Standard Qty)

Modèle : HL-A034

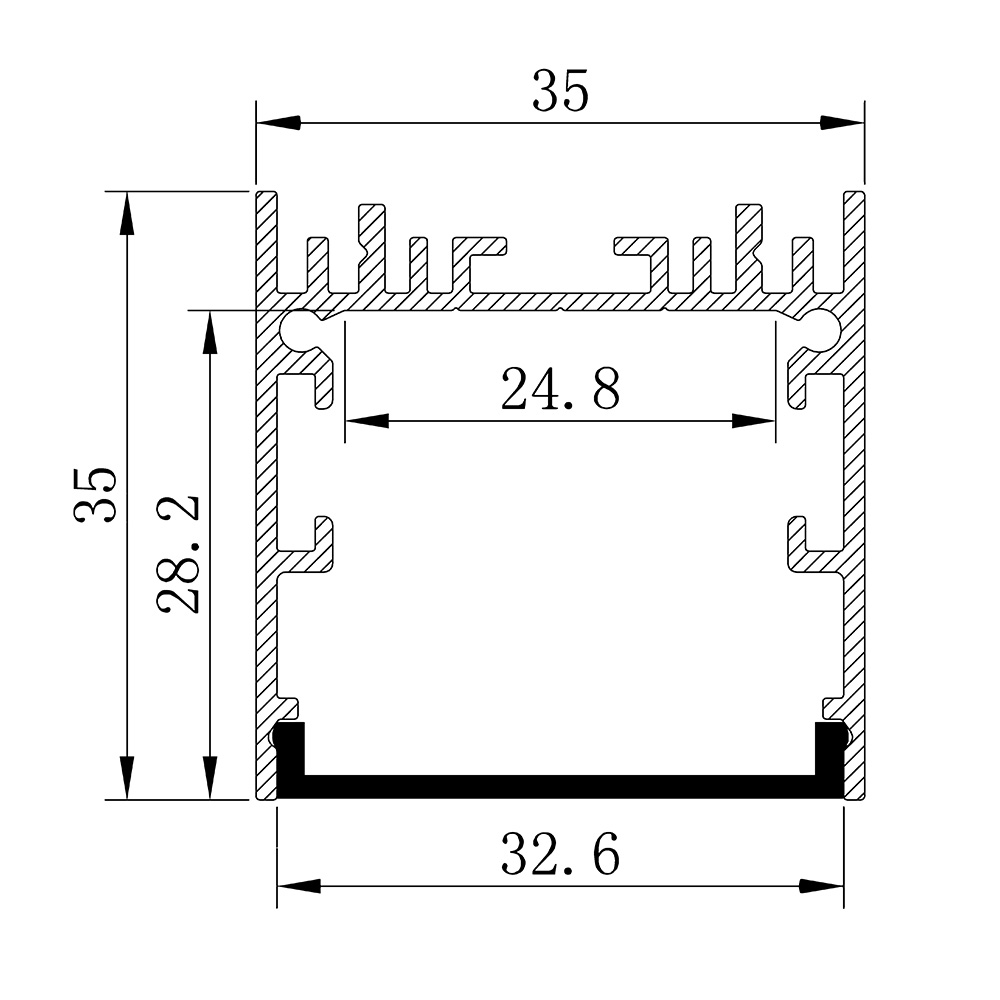

Profile size:W:35mm * H: 35mm

PCB width: 24 mm

Installation:Suspended Mount, Surface Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

Spécifications techniques

Modèle :

HL-A034

Profile size:

L:35mm * H : 35mm

PCB width:

24 mm

Installation :

Montage suspendu, montage en surface

Matériau :

AL6063+PC/PMMA

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodisé/peinture

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, PMMA Diffuser, End Cap, Clip, Suspended Rope, Connector

Compatible Accessories System

017 Cover

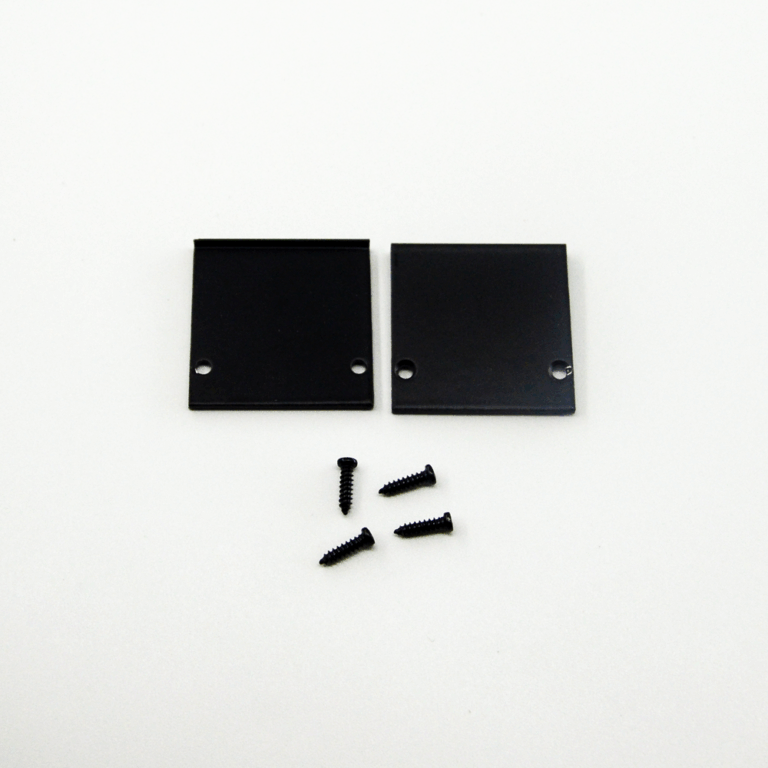

HL-A034 End Cap

A033 Clip

Suspended Rope HL-DS004

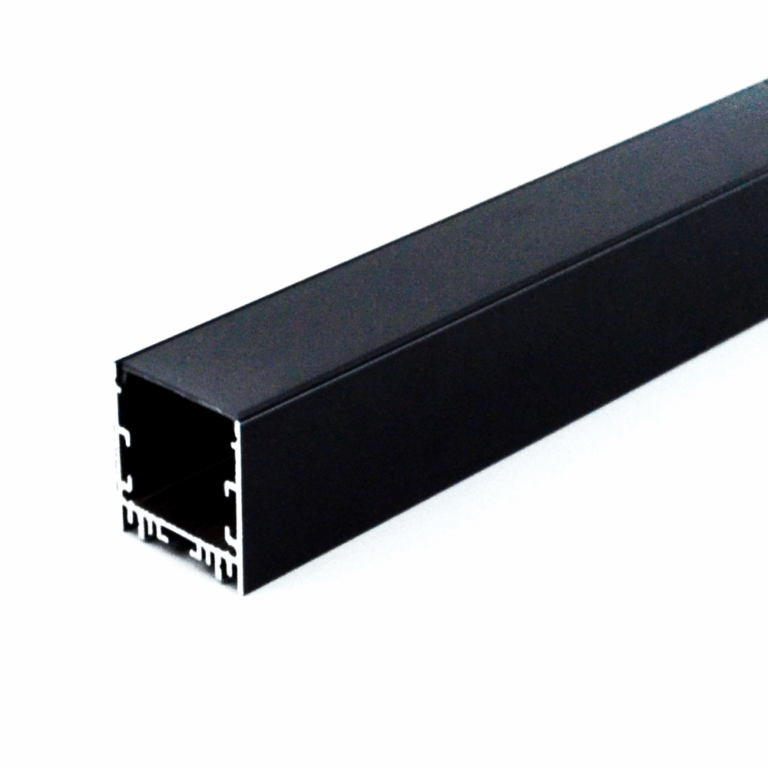

Black profile lighting

Black anodizing lets the channel vanish against dark surfaces, leaving just the light.

Dot-Free Diffused Glow
6063-T5 Premium Aluminum
Supporting precise field cutting or factory pre-cuts.

Le profil HL-A034 est-il le canal led noir que vous recherchez ?
Contactez-nous dès aujourd'hui et nous vous aiderons du mieux que nous pouvons !

Demander un devis

FAQ

Peut-être souhaitez-vous également connaître ces informations lors de l'achat en gros ou de la personnalisation des canaux lumineux LED.

Can I order samples before placing a bulk order?

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.

Do you offer custom cutting to my specified lengths?

Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.

What certifications do your profiles hold?

European market: CE & ROHS certified. North American market: UL certified.

What material are the profiles made of, and what diffuser options are available?

Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.

How do I check if my LED strip fits your profile?

Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.

What accessories come with the profiles?

Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
