R20 COB LED Strip Series — Seamless, Dot-Free Indoor Lighting in 12V & 24V
PCB Width
4mm
Power
5w
CRI
＞90
LED Quantity
480LEDs
Product Detail

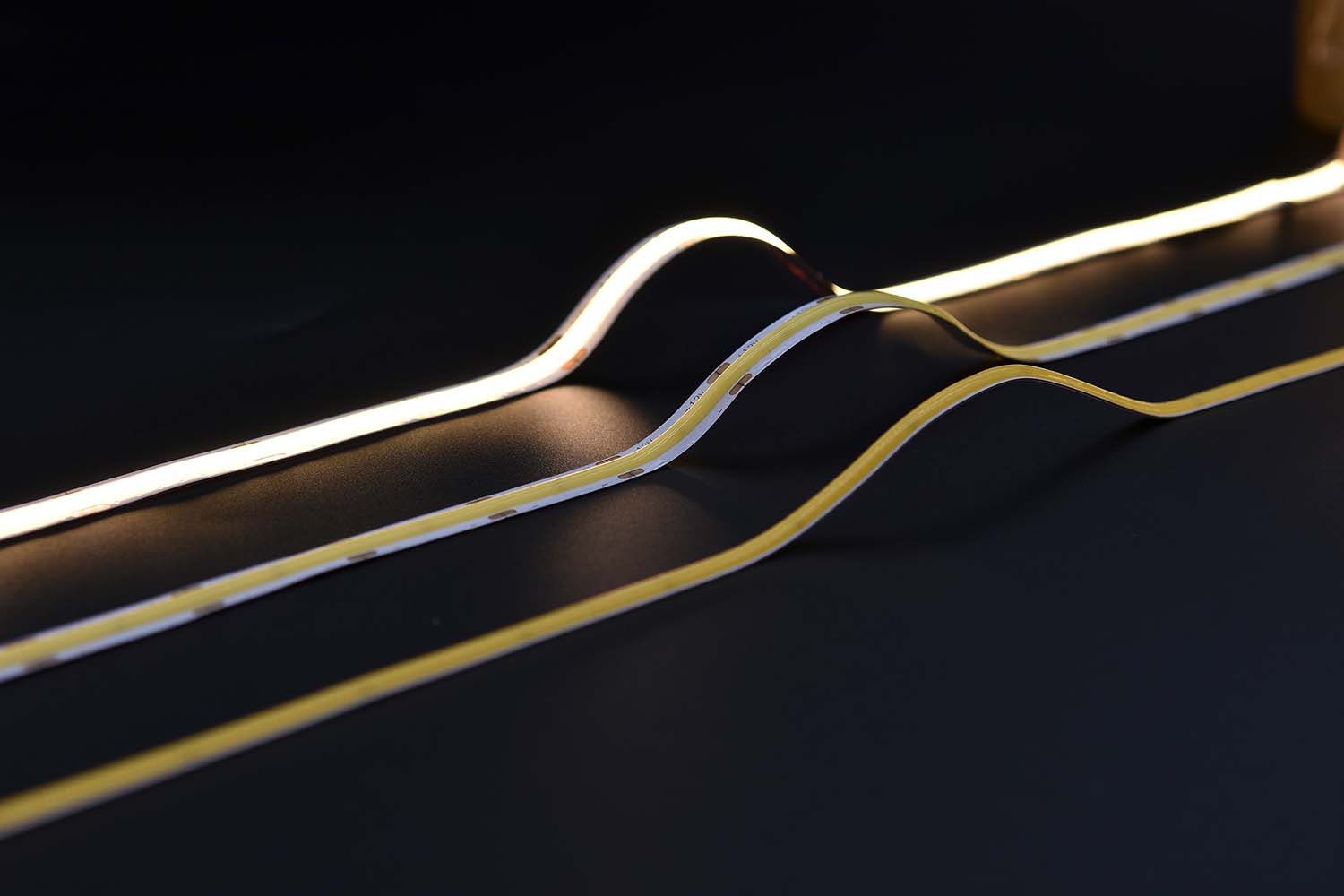

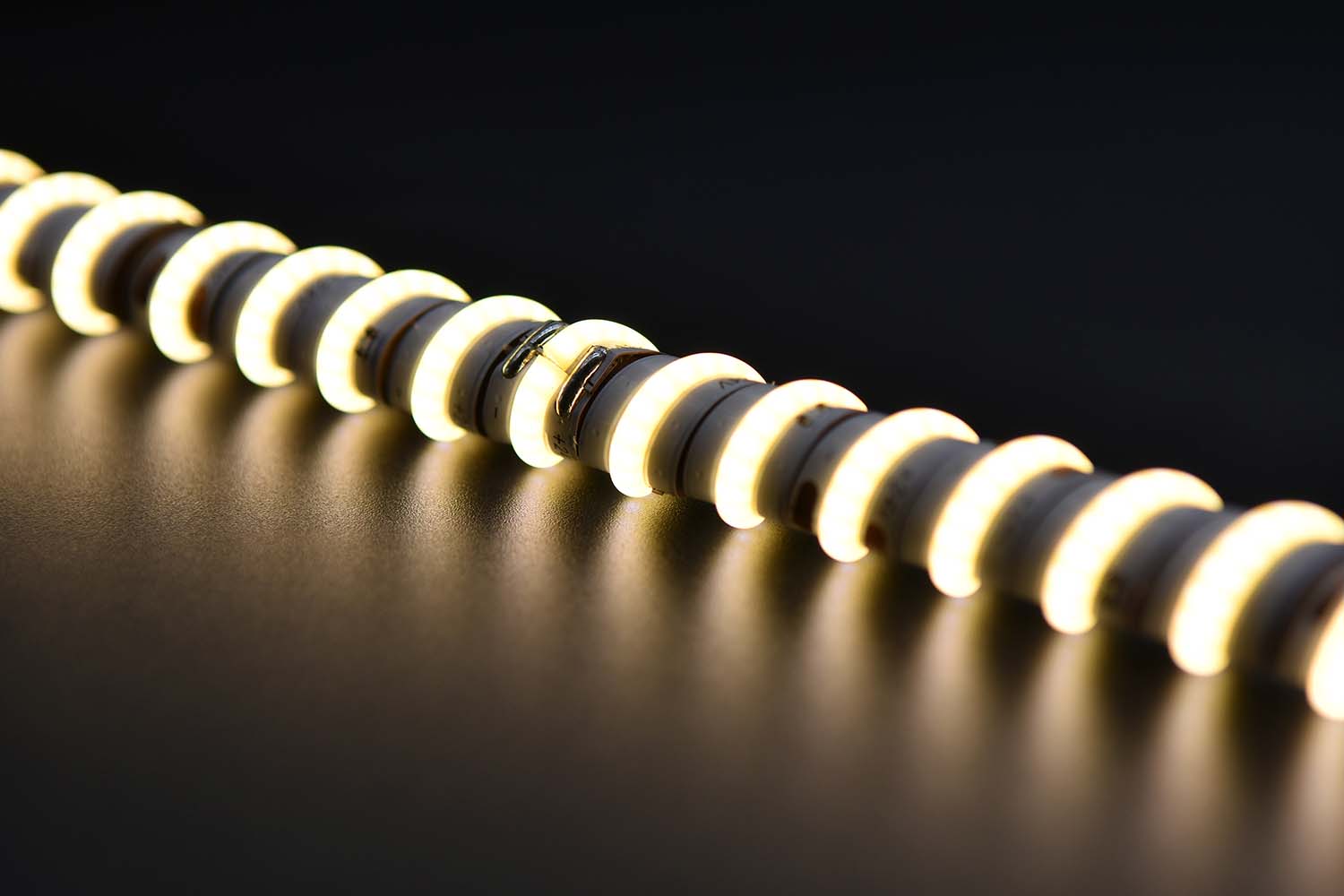

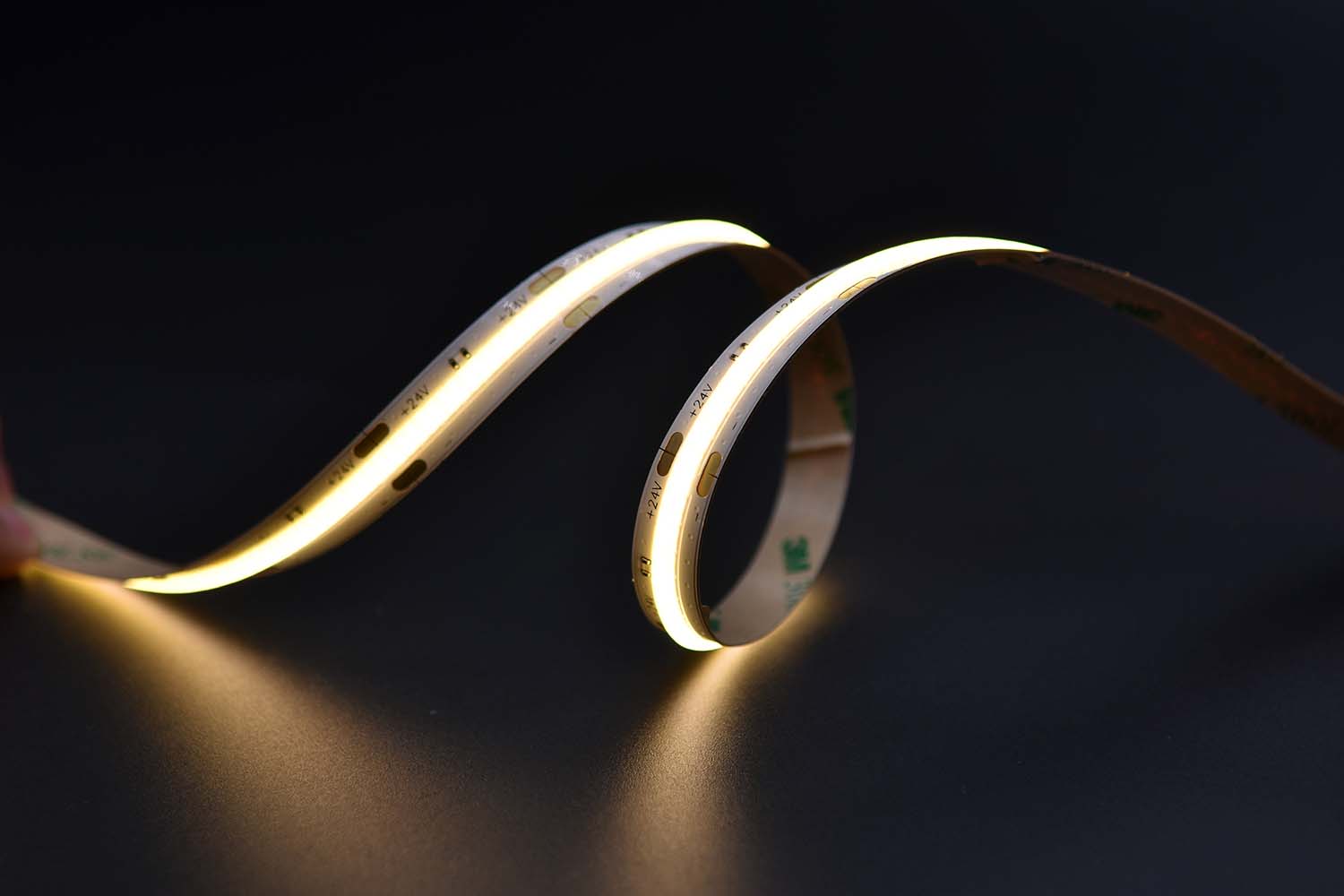

– Dot-free, seamless light — high-density COB chips deliver no spot, no shadow, soft 180° light.
– Flexible density — 480, 512 or 576 LEDs/m on 4–10 mm PCBs to match your brightness and profile.
– 12 V or 24 V — pick the low-voltage system you already run.
– CRI 90+ white — fixed 2700–6500 K, plus a tunable CCT model (WW+W) for warm-to-cool control.

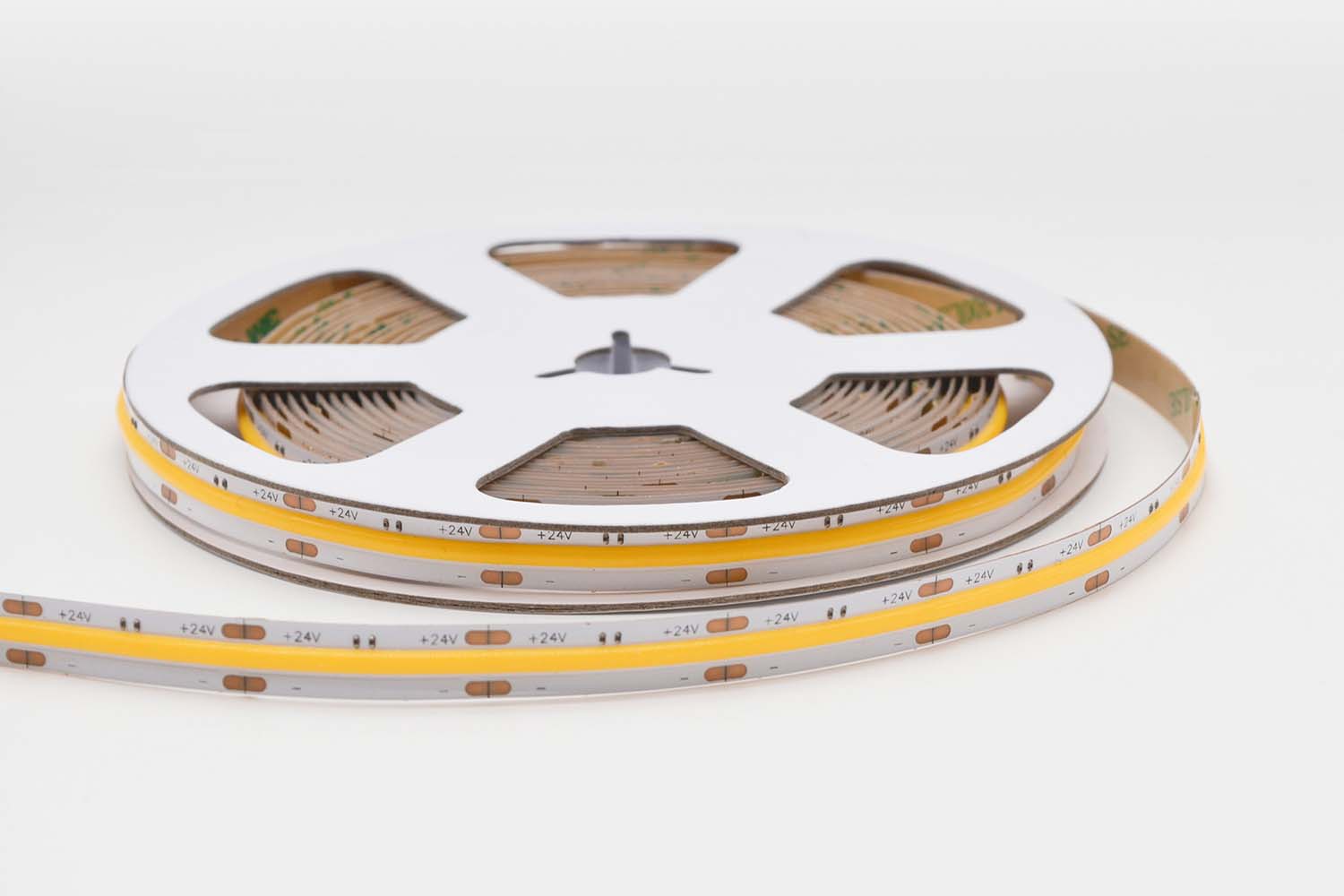

– Cut & weld — trim at 25–50 mm marked segments; 5 m per reel.
– Built to last — IP20 indoor, 50,000-hour lifetime, antistatic MIL-STD-883 (HBM level 2).
Technical Specifications
| Model: | HL-R20Q480/5W/4 | PCB Width: | 4mm |
| Input Voltage: | 12V | LED Quantity: | 480LEDs |
| SDCM: | IP Rating: | IP20 | |
| Power: | 5w | CRI: | ＞90 |
| Cut Size: | 25mm | Working Temperature: | -25℃ ~ +45℃ |
| Beam Angle: | 180° | Warranty: | 3 years |
| Working Hour: |
LED COB Strips HL-R20Q480/5W/4 Series:
5 models available
| Model | CCT / Color | CRI | LEDs/m | PCB (mm) | Voltage (V) | Power (W/m) | Wavelength (nm) | Lm/m @3000K | Cut (mm) | Specification |
|---|---|---|---|---|---|---|---|---|---|---|
| HL-R20Q480/5W/4 | 2700K/3000K/4000K/6500K | ＞90 | 480 | 4mm | 12V/24V | 5 | — | 519 | 12V:25mm/24V:50mm | 📄 HL-R20Q480-5W-4-12V.pdf |
| HL-R20Q480/XW/8 | 2700K/3000K/4000K/6500K | ＞90 | 480 | 8mm | 12V/24V | 5, 10, 15 | — | 519, 1029, 1527 | 12V:25mm/24V:50mm | 📄 HL-R20Q480-XW-8-12V.pdf |
| HL-R20Q480/XW/10 | 2700K/3000K/4000K/6500K | ＞90 | 480 | 10mm | 12V/24V | 5, 10, 15 | — | 519, 1029, 1527 | 12V:25mm/24V:50mm | 📄 HL-R20Q480-XW-10-24V.pdf |
| HL-R20Q512/XW/8 | 2700K/3000K/4000K/6500K | ＞90 | 512 | 8mm | 24V | 5, 10, 15 | — | 519, 1029, 1527 | 24V:31.25mm | 📄 HL-R20Q512-XW-8-24V.pdf |
| HL-R20Q512/XW/10 | 2700K/3000K/4000K/6500K | ＞90 | 512 | 10mm | 24V | 5, 10, 15 | — | 519, 1029, 1527 | 24V:31.25mm | 📄 HL-R20Q512-XW-10-24V.pdf |
Accessories
6 accessories available
| Model | Product Name | Description | Picture |
|---|---|---|---|
| HL-20Q48Vx-Cx-+ type | PCB Width: 8mm/10mm option with one color, Voltage：24V Available to the item with 480 leds |  | |
| HL-20Q24Vx-Cx-L type | PCB Width: 8mm/10mm option with one color, Voltage：24V Available to the item with 480 leds |  | |
| HL-20Q35Vx-Cx-T type | PCB Width: 8mm/10mm option with one color, Voltage：24V Available to the item with 480 leds |  | |
| Connector | PCB Width: 8mm/10mm option with one color, Voltage：24V Available to the item with 480 leds |  | |
| Connector with Lines | PCB Width: 8mm/10mm option with one color, one side with 15CM 20#red and black lines |  | |
| Connector with Lines | PCB Width: 8mm/10mm Single color optional 15CM 20# red and black wire in the middle, connectors at both ends |  |
