HL-ST20V24-Cxx PLUS 10

10 mm COB LED Strip PLUS — DC24V IP65 Silicone, Single-Color, Tunable White, RGB, Digital RGB

Model: HL-ST20V24-Cxx PLUS 10
Voltage

DC24V

SDCM

＜5

CRI

＞90

IP Rating

IP65

Specification
purchase price

Product Detail

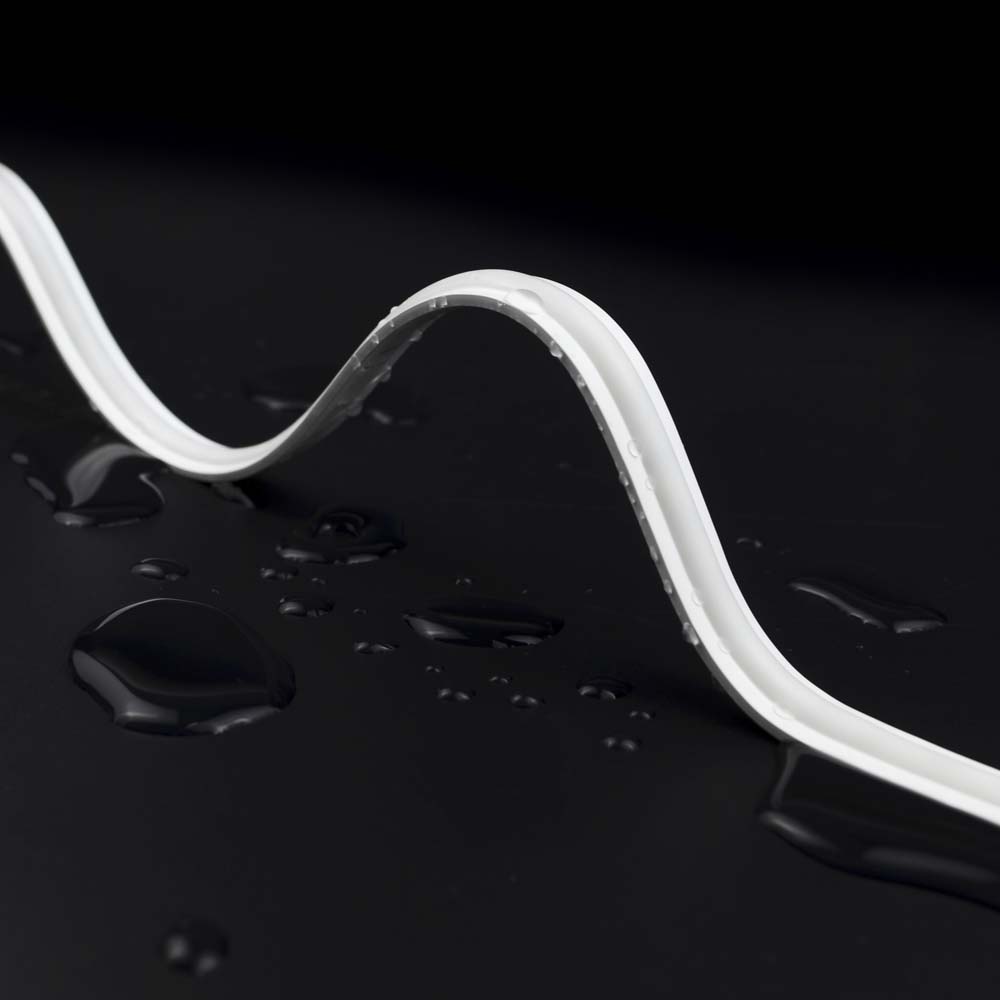

– The 10 mm COB LED Strip PLUS is a versatile waterproof COB LED strip inside a food-grade silicone sleeve (IP65).

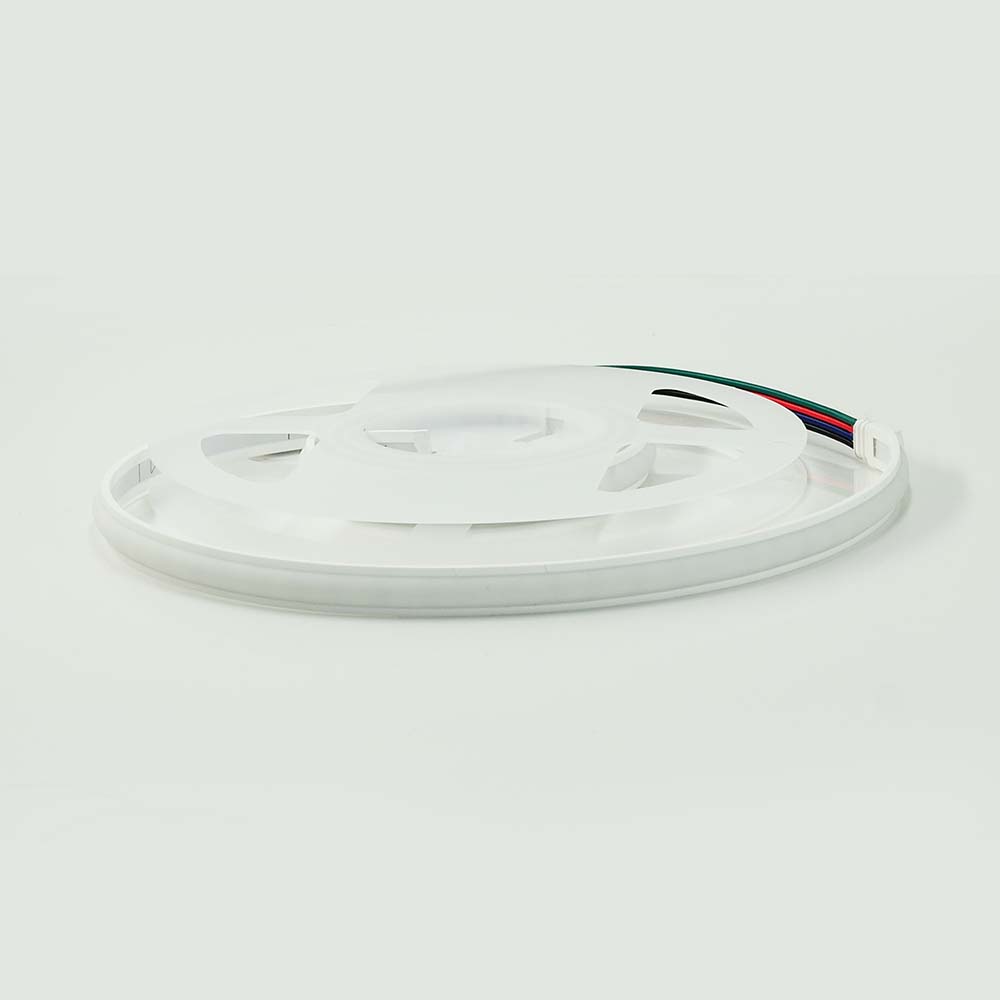

– The 24 V DC reel covers four product versions in one spec: Single-Color, Dual-White tunable white, RGB and 5 V Digital RGB with SPI UCS1903 driver.

– CRI 90+, 3-Step MacAdam One Bin, LM-80 verified, 25 mm cut interval, 5 m max run, -20 to +50 °C working temperature, 3-year warranty.

РIdeal for ambient cove lighting, bar displays, signage letters and themed event d̩cor that needs color-changing on a moisture-resistant reel.

Technical Specifications

Model: HL-ST20V24-Cxx PLUS 10Width:10±0.2 mm
Voltage:DC24VUV Protection:Yes
SDCM: ＜5IP Rating:IP65
Power: 5w,10wCRI: ＞90
Unit Length: 24V:25mmWorking Temperature:-20℃ ~ +50℃
Certification:LM-80Warranty:3 years
Weight:78g/M

LED COB Strips HL-ST20V24-Cxx PLUS 10 Series:

16 models available
ModelCCT (K)CRISDCMWidth (mm)Voltage (V)Power (W/m)Lumen (lm/m)Eff. (lm/W)Cutting (mm)Max Run (m)
HL-ST20V24-C24-PLUS102400K＞90＜510mm24V5W, 10W409, 815 81.9, 81.5 24V:25mm5M
HL-ST20V24-C27-PLUS102700K＞90＜510mm24V5W, 10W423, 822 84.6, 82.2 24V:25mm5M
HL-ST20V24-C30-PLUS103000K＞90＜510mm24V5W, 10W422, 829 84.4, 82.9 24V:25mm5M
HL-ST20V24-C35-PLUS103500K＞90＜510mm24V5W, 10W476, 918 95.2, 91.8 24V:25mm5M
HL-ST20V24-C40-PLUS104000K＞90＜510mm24V5W, 10W439, 866 87.9, 86.6 24V:25mm5M
HL-ST20V24-C50-PLUS105000K＞90＜510mm24V5W, 10W443, 869 88.5, 86.9 24V:25mm5M
HL-ST20V24-C65-PLUS106500K＞90＜510mm24V5W, 10W453, 886 90.6, 88.6 24V:25mm5M
HL-ST20V24-Cr-PLUS10Red——10mm24V5W, 10W146, 308 29.2, 30.8 24V:25mm5M
HL-ST20V24-Cg-PLUS10Green ——10mm24V5W, 10W413, 707 82.6, 70.7 24V:25mm5M
HL-ST20V24-Cb-PLUS10Blue——10mm24V5W, 10W70, 137 14.0, 13.7 24V:25mm5M
HL-ST20V24-Cy-PLUS10Yellow ——10mm24V5W, 10W106, 226 21.2, 22.6 24V:25mm5M
HL-ST20V24-Co-PLUS10Orange——10mm24V5W, 10W128, 278 25.6, 27.8 24V:25mm5M
HL-ST20V24-Cp-PLUS10Pink——10mm24V5W, 10W287, 567 57.4, 56.7 24V:25mm5M
HL-ST20V24-Ca-PLUS102700K/6500K CCT＞90＜510mm24V10W826 82.6 24V:83.3mm5M
HL-ST20V24-Crgb-PLUS10RGB——10mm24V10W26826.824V:25mm5M
HL-ST20V5-Crgb-UCS1903-PLUS10RGB——8mm5V8W87.310.95V:10mm2M
Showing 8 of 16 models

Accessories

7 accessories available
ModelProduct NameDescriptionPicture
HL-ST20P10-MCClip1 clip, L14xW12.3xH5mm+ 1 screwClip
HL-ST20P10-C1IP65 integrated end cap, 2 cores, single colorintegrated end cap + 1*20AWG/20CM black and red lines ( positive out only), outgoing line at one endIP65 integrated end cap, 2 cores, single color
HL-ST20P10-C2IP65 integrated end cap, 2 cores, single colorintegrated end cap + 1*20AWG/20CM black and red lines ( positive out only), outgoing line at two ends IP65 integrated end cap, 2 cores, single color
HL-ST20P10-C3IP65, integrated end cap, 3 cores, CCT/ colorfulintegrated end cap + 1*20AWG/20CM brown white yellow 3 lines ( positive out only), outgoing line at one end IP65, integrated end cap, 3 cores, CCT/ colorful
HL-ST20P10-C4IP65, integrated end cap, 3 cores, CCT/ colorfulintegrated end cap + 1*20AWG/20CM brown white yellow 3 lines ( positive out only), outgoing line at two endsIP65, integrated end cap, 3 cores, CCT/ colorful
HL-ST20P10-C5IP65, integrated end cap, 4 cores, RGBintegrated end cap + 1*20AWG/20CM black blue red and green 4 lines ( positive out only), outgoing line at one endIP65, integrated end cap, 4 cores, RGB
HL-ST20P10-C6IP65, integrated end cap, 4 cores, RGBintegrated end cap + 1*20AWG/20CM black blue red and green 4 lines ( positive out only), outgoing line at two endsIP65, integrated end cap, 4 cores, RGB
Showing 4 of 7 accessories
