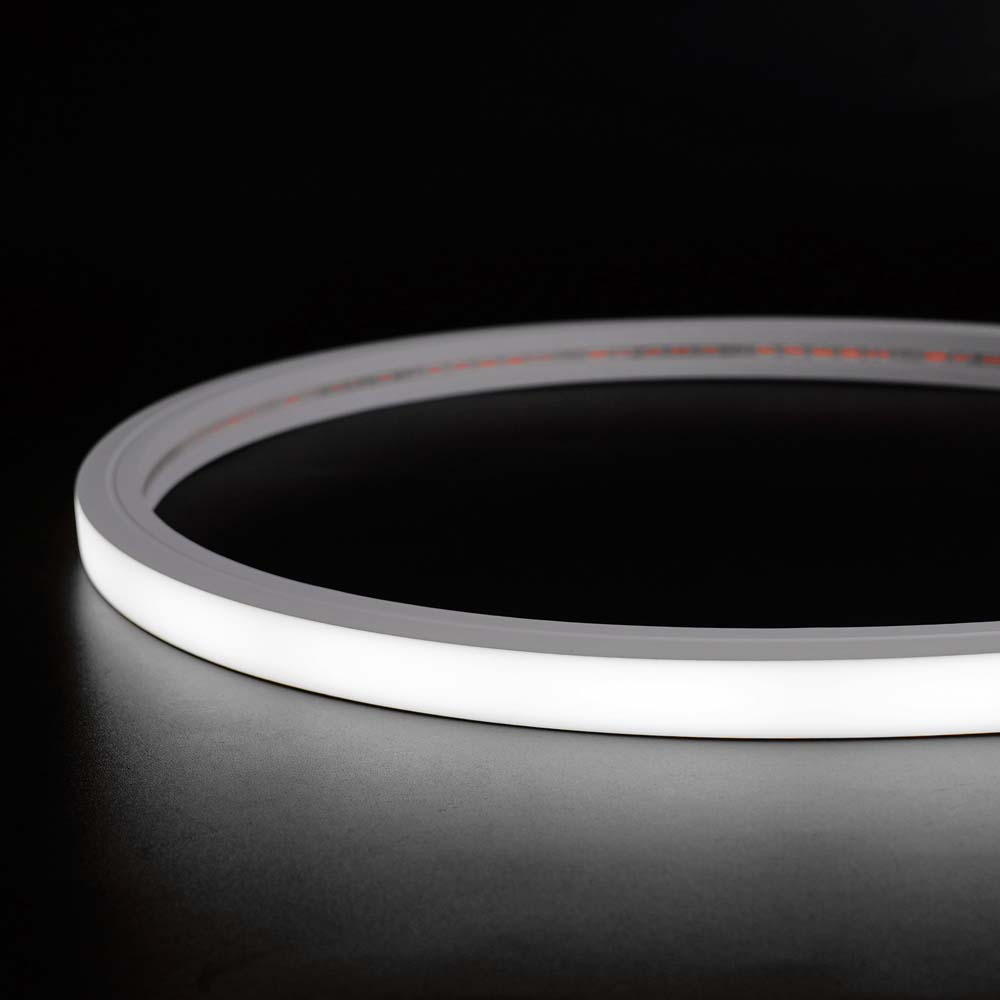

HL-NT1615AC 16×15mm Silicone LED Neon Flex — Top bend, AC 110V/230V IP67
AC230V
12w/m
Ra90
IP67
Product Detail
– It is made of Dow Chemical SILASTIC™ ET-7021 silicone rubber, which provides high transparency and high strength.
– AC230V(220-240V universal), vertical bending, positive out of the outlet;
– Bending diameter of 200mm, section size: 16mm * 15mm / (W * H), IP67 waterproof rating;
– Resistant to yellowing, UV, salt and alkali, high temperature, uniform light emission, no light spot, can be shaped into different modelling shapes, suitable for indoor and outdoor lighting;
– Unique plug design, the plug can be quickly and easily installed to meet the needs of different lengths, no need to solder wires and waterproof treatment;
– 3 years warranty, working life ≥30000 hours;
Technical Specifications
| Voltage: | AC230V | LED PIN Temperature: | Max. 65℃ |
| Working Temperature: | -25℃~ 45℃ | CRI: | Ra90 |
| Power: | 12w/m | LM/W: | Efficacy@4000K, 57LM/W |
| Min Ambient Temperature: | -25°C | Max Ambient Temperature: | 60℃ |
Silicone Neon Light Strip HL-NT1615AC Series:
| NO. | Model | CCT(K) | CCT Range | Cut (mm) | CRI | Voltage | Power | Lm | Max Run |
|---|---|---|---|---|---|---|---|---|---|
| 1 | HL-NT1615AC230-C18 | 1800±100K | — | 100mm | ＞90 | AC230 | 12w | 476 | 30M |
| 2 | HL-NT1615AC230-C24 | 2400±150K | — | 100mm | ＞90 | AC230 | 12w | 599 | 30M |
| 3 | HL-NT1615AC230-C27 | 2700±150K | — | 100mm | ＞90 | AC230 | 12w | 644 | 30M |
| 4 | HL-NT1615AC230-C30 | 3000±150K | — | 100mm | ＞90 | AC230 | 12w | 665 | 30M |
| 5 | HL-NT1615AC230-C35 | 3500±200K | — | 100mm | ＞90 | AC230 | 12w | 693 | 30M |
| 6 | HL-NT1615AC230-C40 | 4000±300K | — | 100mm | ＞90 | AC230 | 12w | 684 | 30M |
| 7 | HL-NT1615AC230-C50 | 5000±400K | — | 100mm | ＞90 | AC230 | 12w | 689 | 30M |
| 8 | HL-NT1615AC230-C65 | 6500±400K | — | 100mm | ＞90 | AC230 | 12w | 689 | 30M |
Accessories
| Product Name | Description | Model No | Picture |
|---|---|---|---|
| Aluminium profiles | 1m/pcs Aluminium profile(W18.1*H18.9*L1000mm) | HL-NT1615-AP(V1) |  |
| flexible profile | 1m/pcs flexible profile(W17.5*H16.6*L1000mm) | HL-NT1615-CAP |  |
| mounting clip | 1 clip(20.5*17.6*20mm)+ 1 screw | HL-NT1615-MC |  |
| Stainless Steel Clip | 1 Stainless Steel Clip(16.8*12.6*20mm)+ 1 screw | HL-NT1615-SMC |  |
| fuse box | Assembled header outlet（L1600mm）+plug | HL-NT1615-FU |  |
| scissors | 1 handle | HL-S-1 |  |
Installation
Below is a brief guide to installing neon lights. For detailed installation instructions for the , please download our specification sheet.
Tools & Preparation
Scissors / Cutter
Step-by-Step Guide
Step 1: Plan & Measure
Determine the installation path and required length according to the design. Avoid sharp bends during installation (Min. bending diameter > 6cm).
Step 2: Clean the Surface
Clean the mounting surface with alcohol to remove dust and grease, ensuring strong adhesion.
Step 3: Cut & Connect
Cut the strip at the designated cut marks. Use waterproof connectors to connect the power supply, paying attention to the polarity (Red wire is positive, black is negative).
Step 4: Fix & Dissipate Heat
Indoor Dry Area: Peel and stick using the 3M backing. Outdoor/Wet Area: Must be fixed with aluminum profiles and clips for heat dissipation and protection.
Step 5: Controller Debugging
After connecting the power, perform a test. Check RGB colors and the responsiveness of the remote control or APP.
