HL-A088

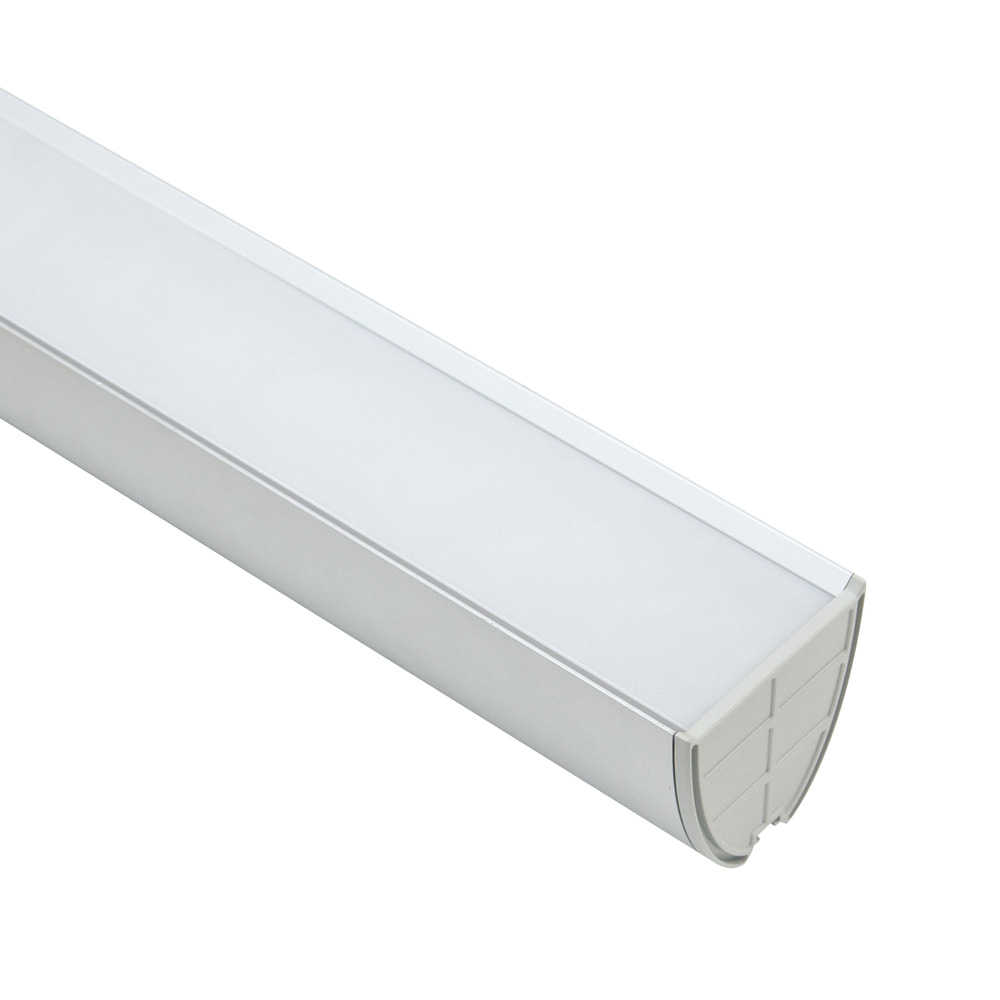

Deep Hanging LED Profile 80×76.6mm – Aluminum Channel HL-A088

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Model: HL-A088

Profile size:W:80mm * H: 76.6mm

PCB width: 40mm

Installation:Suspended Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

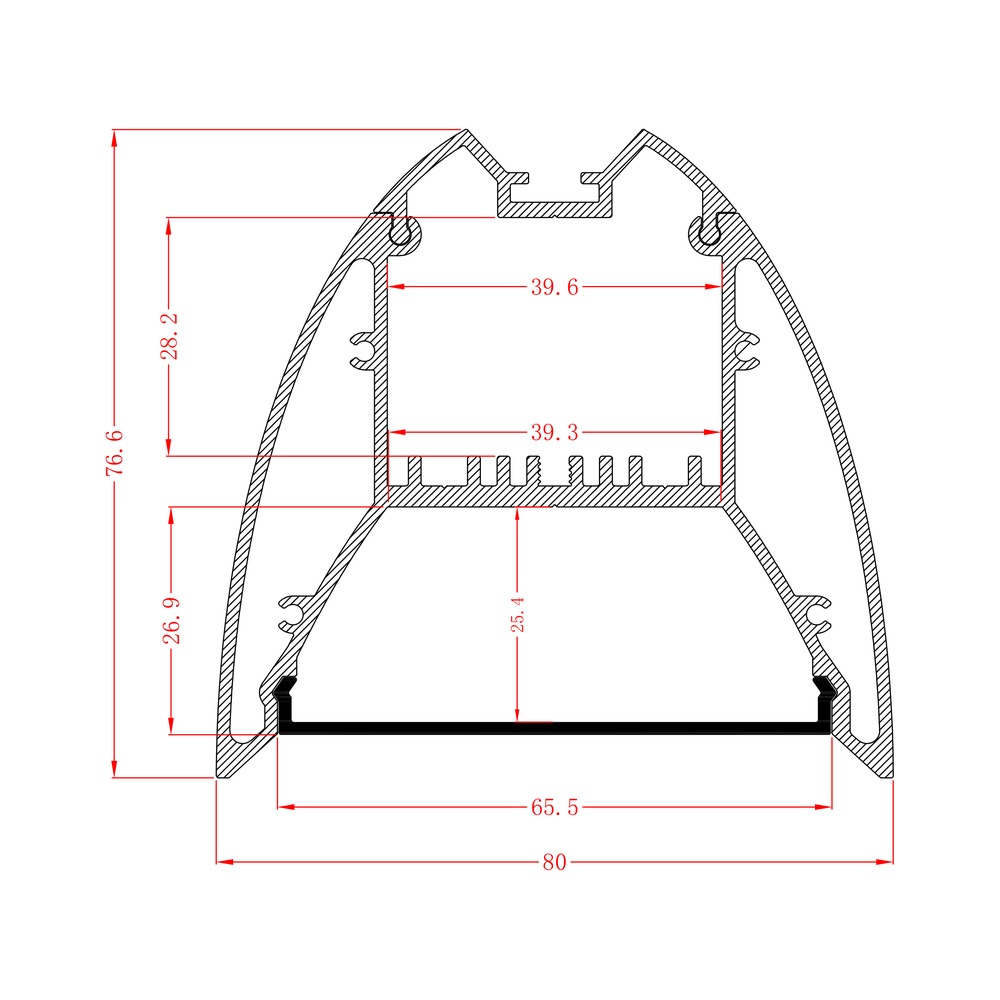

HL-A088 dimension drawing - 80×76.6mm LED profile cross-section and dimensions

Technical Specifications

Model:

HL-A088

Profile size:

W:80mm * H: 76.6mm

PCB width:

40mm

Installation:

Suspended Mount

Material:

Aluminum 6063 +PC

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodized/Painting

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, End Cap, Suspended Rope

Compatible Accessories System

A088 Cover

A088 Cover

HL-A088 END CAP

HL-A088 END CAP

Suspended Rope HL-DS004

Suspended Rope HL-DS004

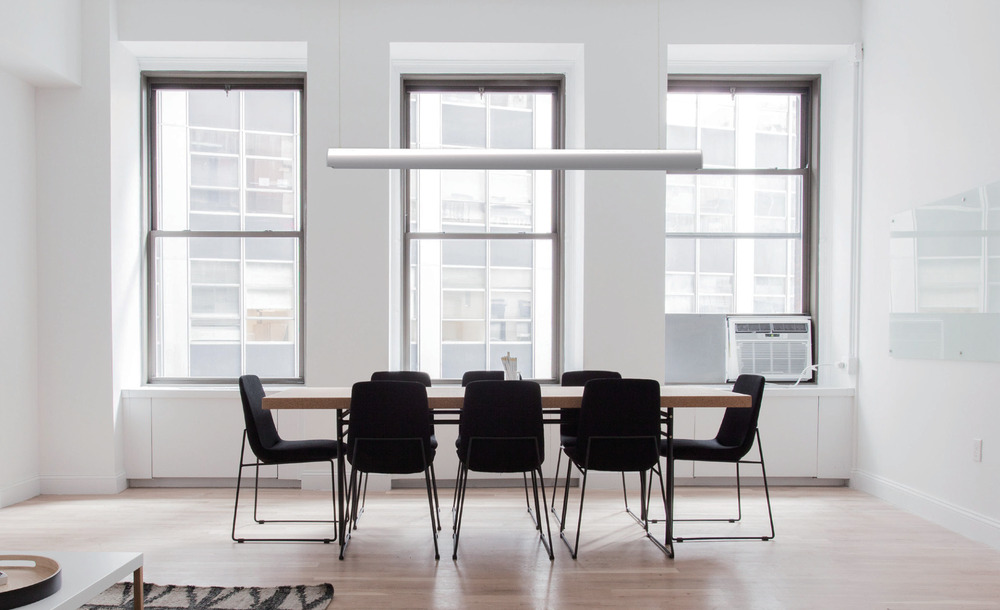

Deep hanging LED profile HL-A088 - installed application example

Wide-body linear lighting

A wide body takes a high-output strip and turns it into primary lighting.

  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.

Is this HL-A088 profile the deep hanging LED profile you are looking for?
Contact us today, and we will help you however we can!

Get a quote now
Helian LED profiles manufacture
Helian LED profiles manufacture

FAQs

Perhaps you would also like to know the information when purchasing in bulk or customizing LED light channels.

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.
Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.
European market: CE & ROHS certified. North American market: UL certified.
Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.
Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.
Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
