HL-A090

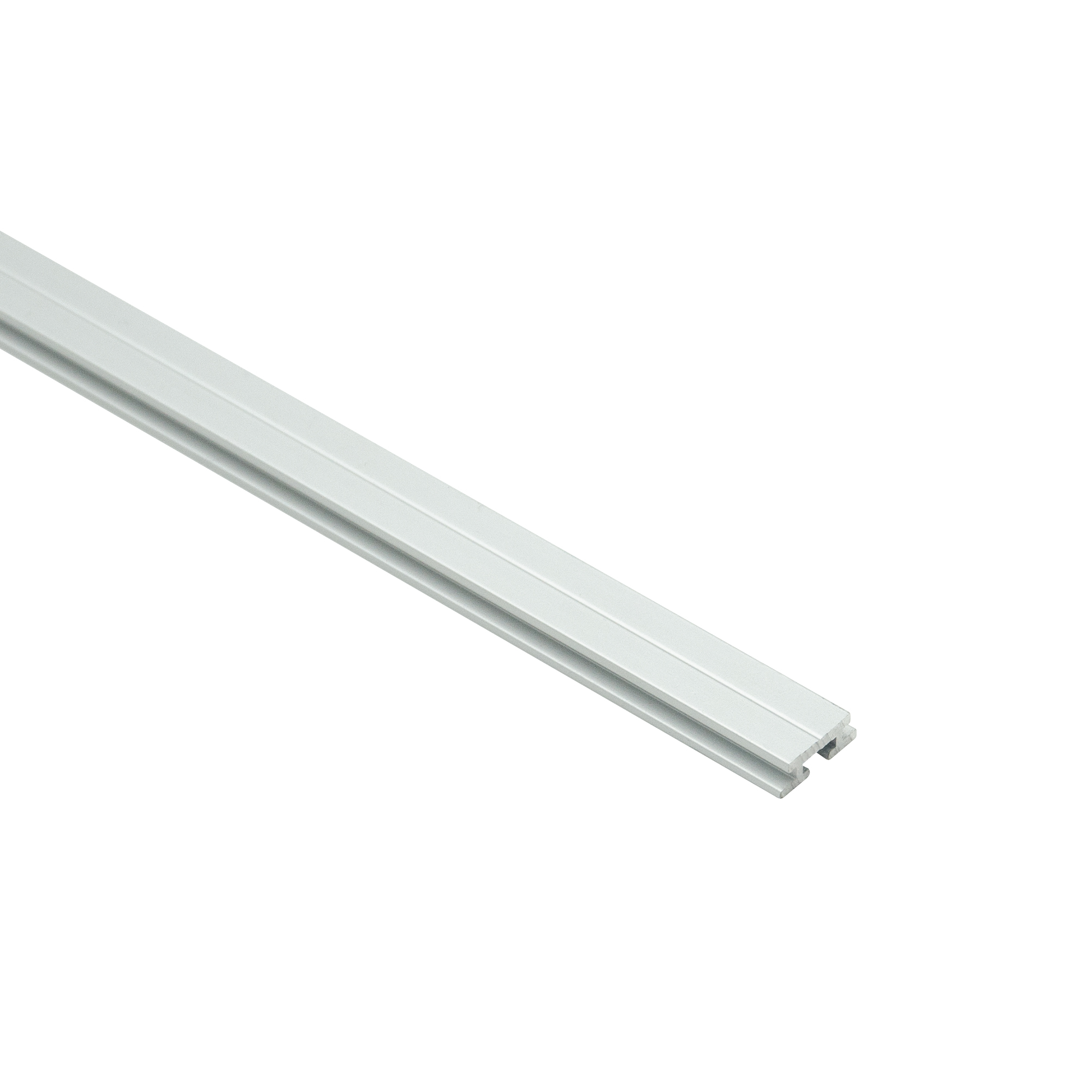

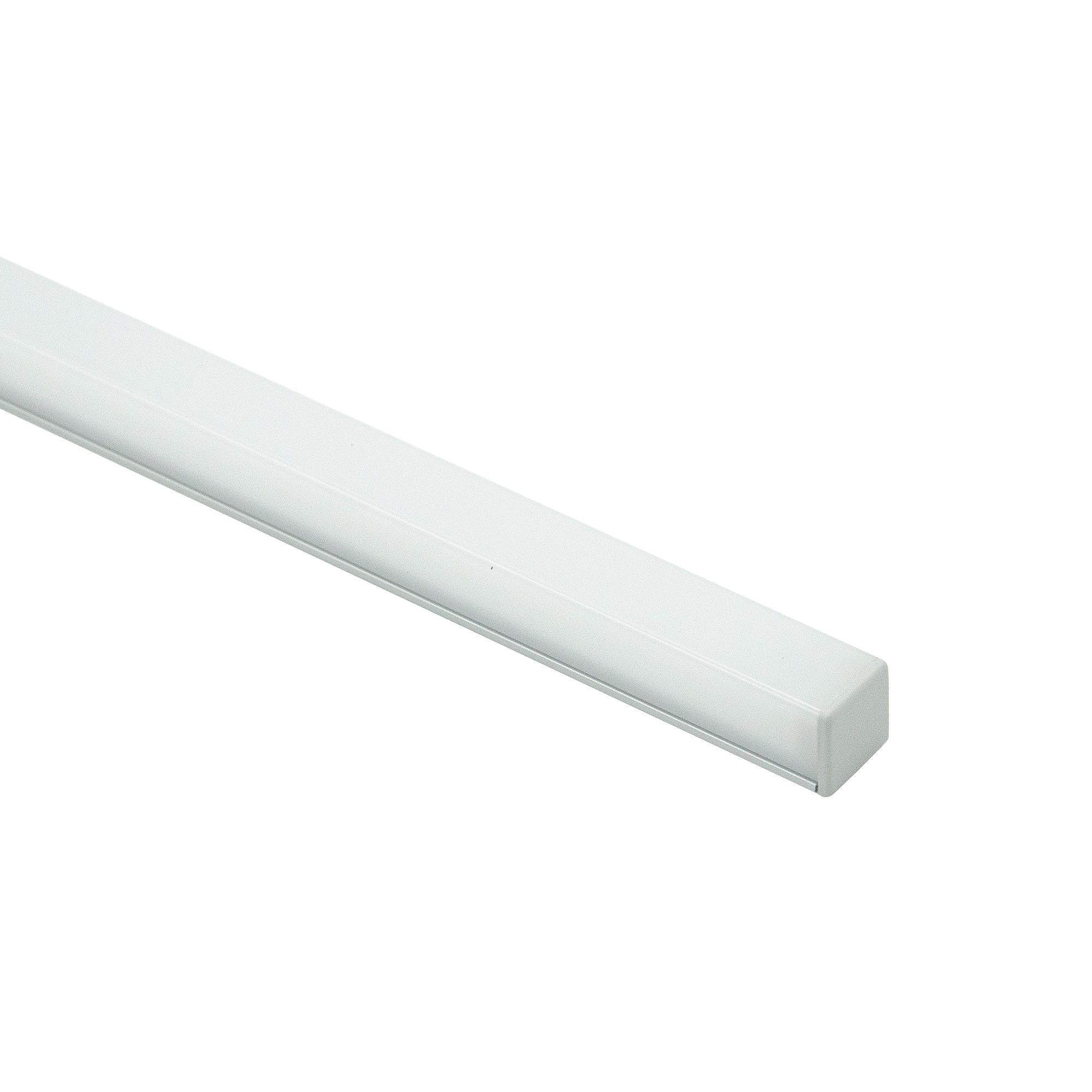

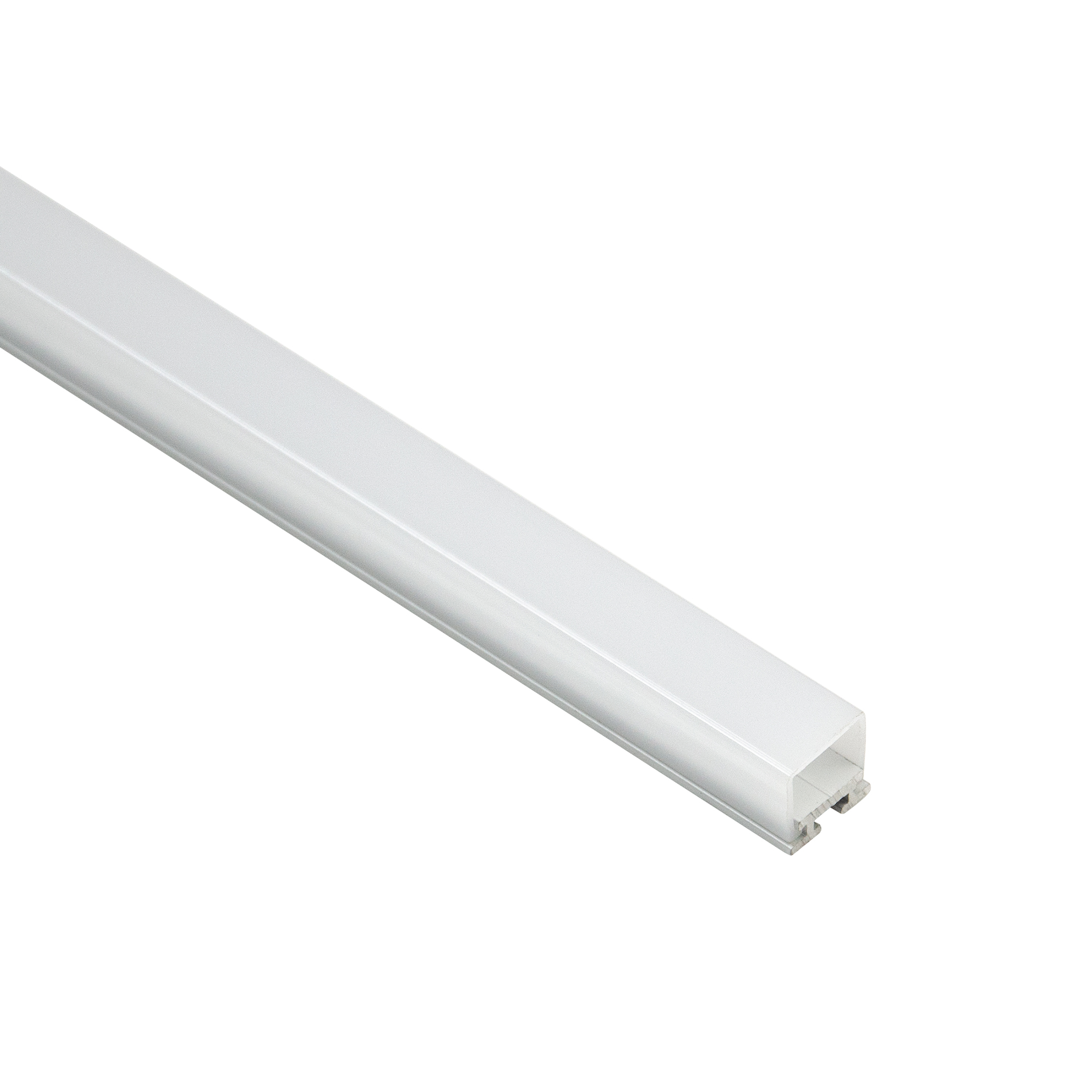

10mm LED Channel HL-A090 – Mini Ultra-Thin LED Cabinet Channel, Suspended Installation

🟢 In Stock & Ready for Rapid Dispatch (Standard Qty)

Model: HL-A090

Profile size:W:12mm * H: 12mm

PCB width: 10 mm

Installation:Suspended Mount, Surface Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

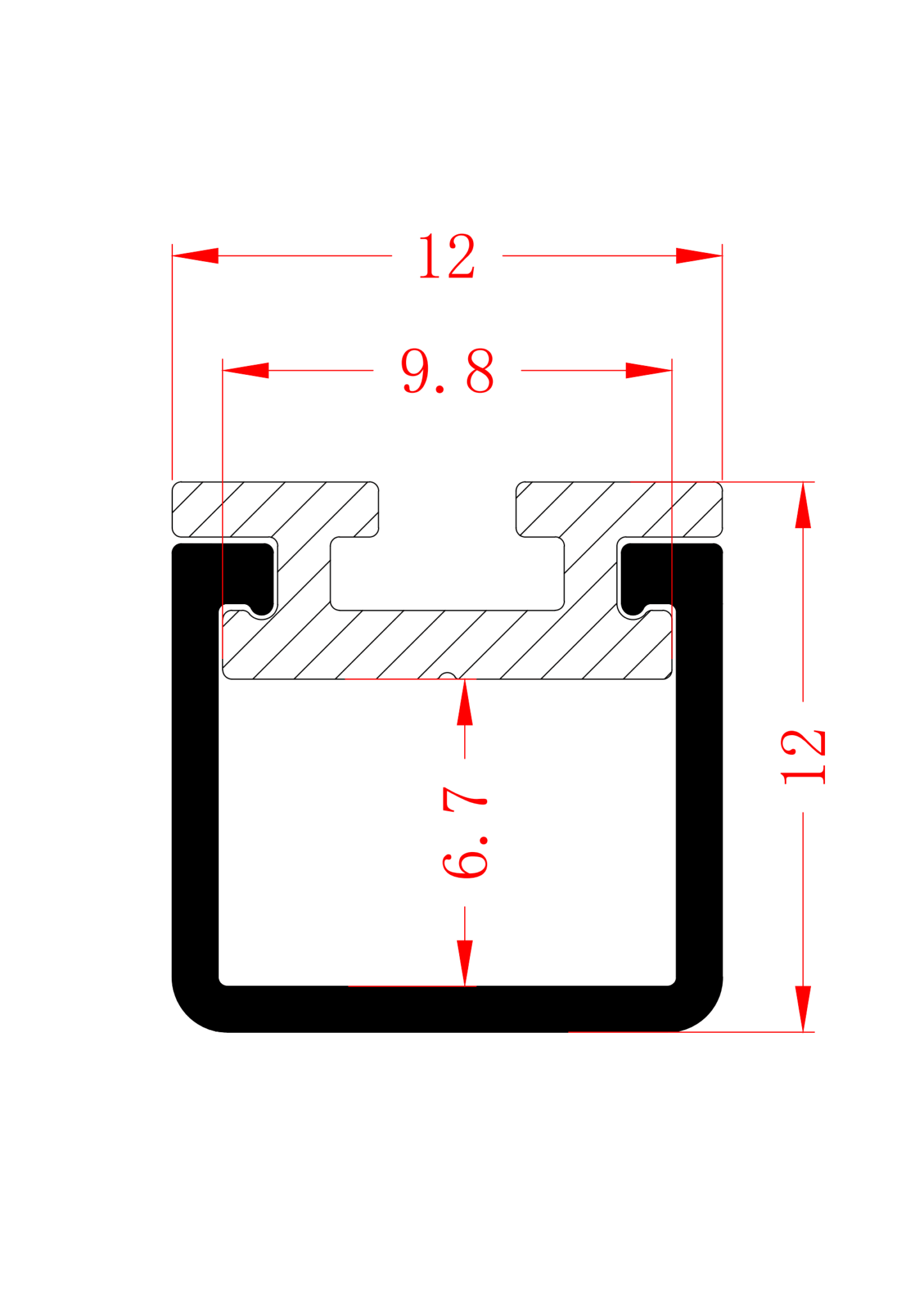

A090 Dimension drawing

Technical Specifications

Model:

HL-A090

Profile size:

W:12mm * H: 12mm

PCB width:

10 mm

Installation:

Suspended Mount, Surface Mount

Material:

AL6063+PC

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodized/Painting

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, End Cap, Suspended Rope

Compatible Accessories System

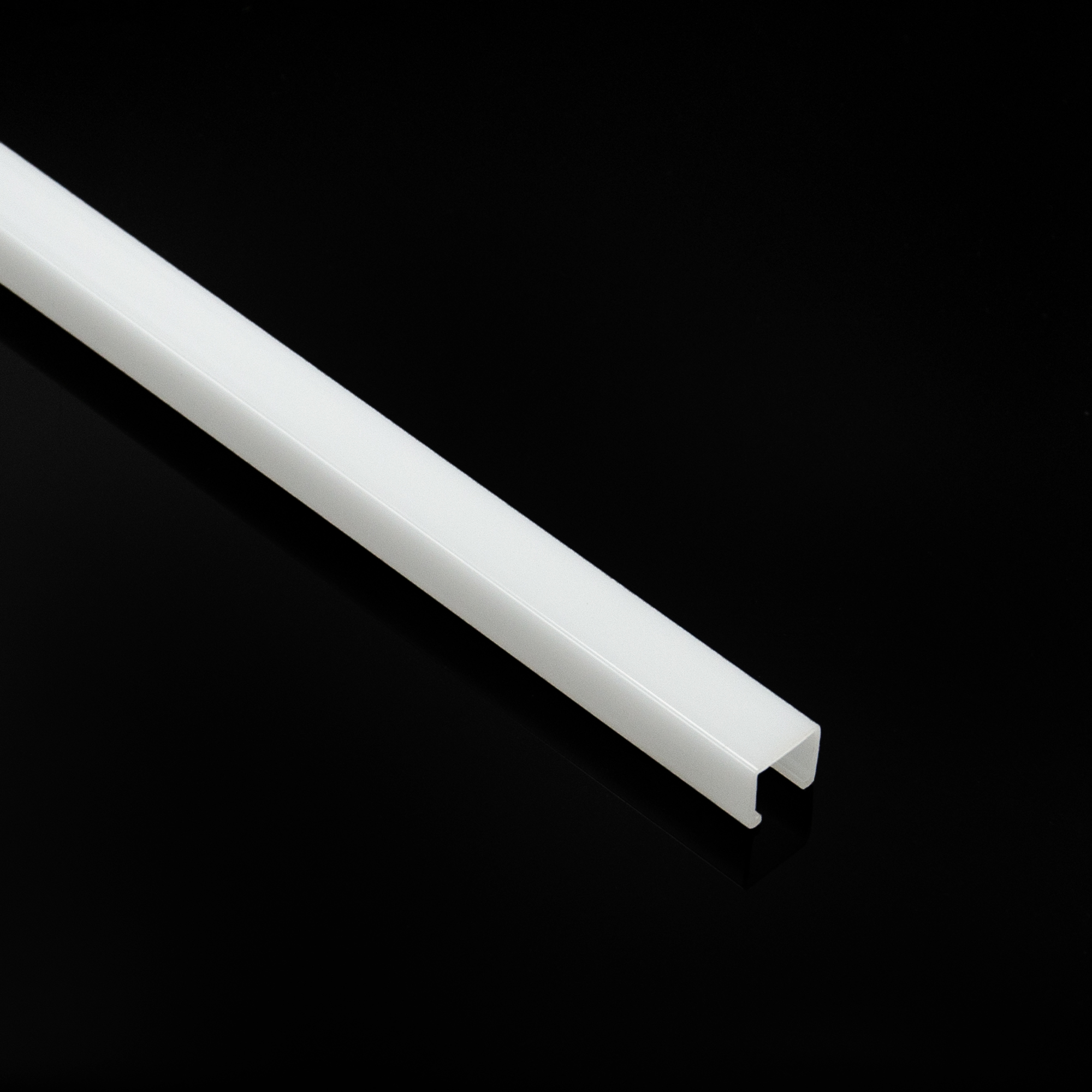

A090 Cover

A090 Cover

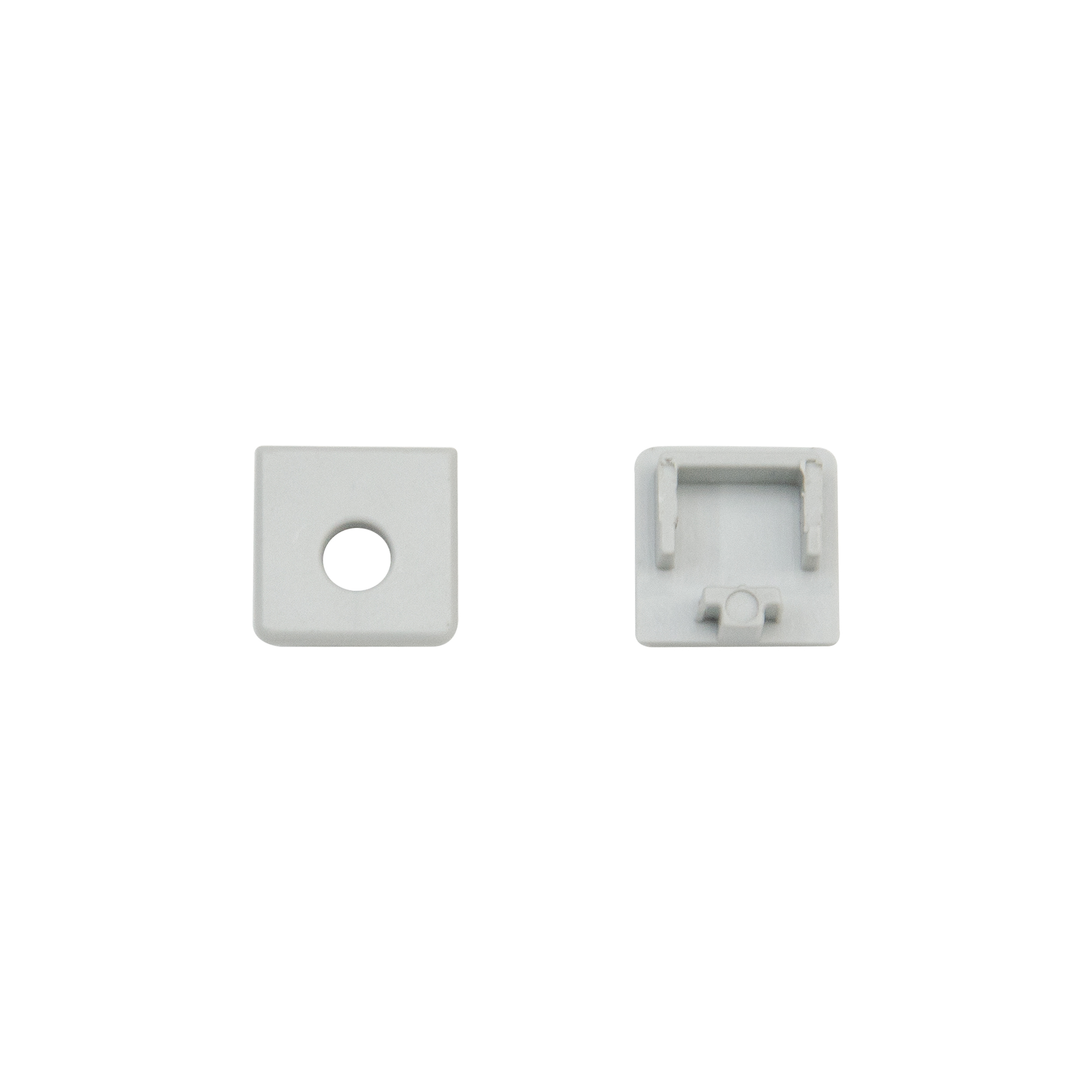

HL-A090 End Cap

HL-A090 End Cap

Suspended Rope HL-DS011

Suspended Rope HL-DS011

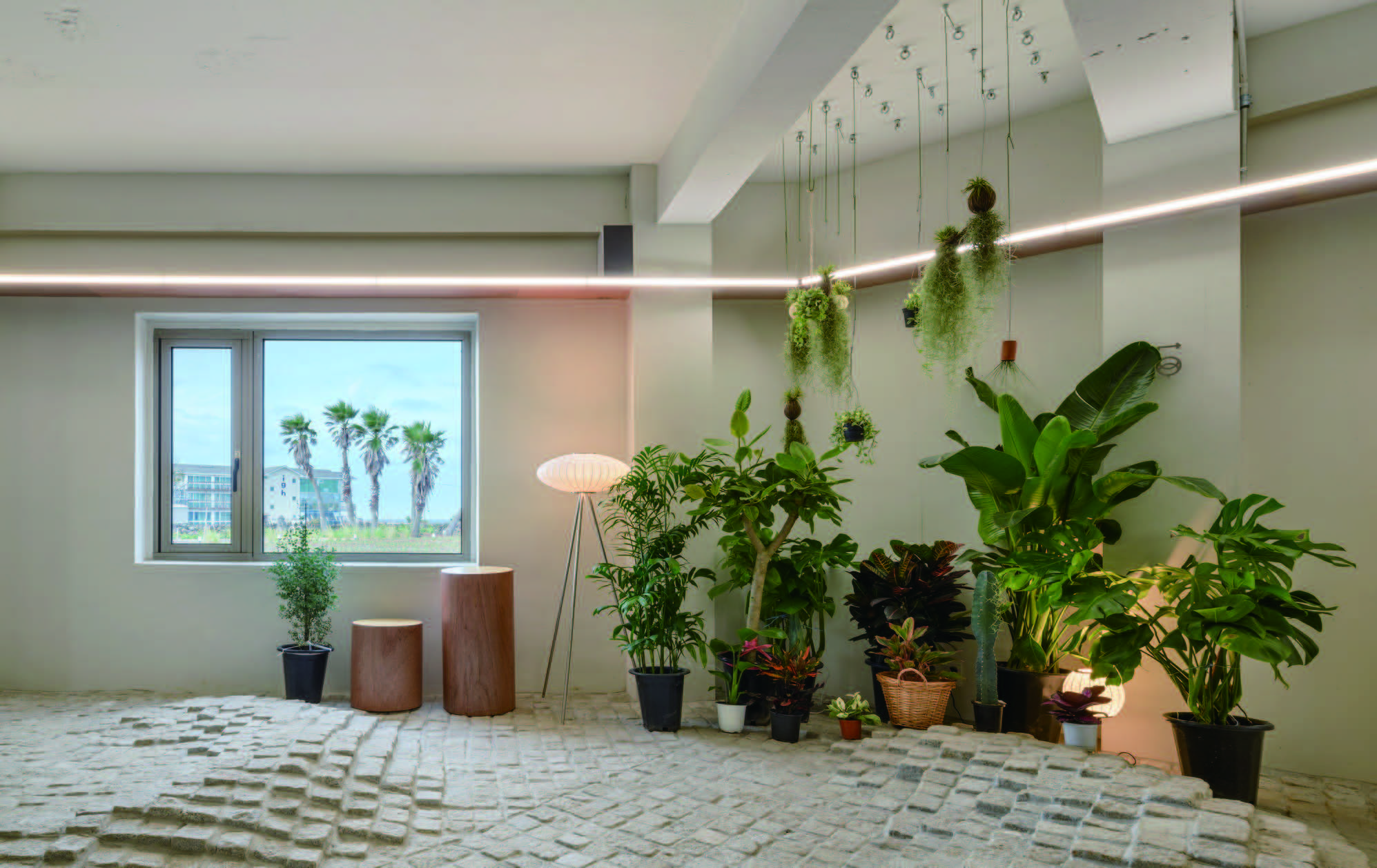

HL-A090 Application

Mini profile lighting

Small enough to tuck into a tight detail, it reads as a hairline of light.

  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.

Is this HL-A090 profile the mini ultra-thin led cabinet channel you are looking for?
Contact us today, and we will help you however we can!

Get a quote now
Helian LED profiles manufacture
Helian LED profiles manufacture

FAQs

Perhaps you would also like to know the information when purchasing in bulk or customizing LED light channels.

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.
Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.
European market: CE & ROHS certified. North American market: UL certified.
Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.
Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.
Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
