Canal LED étanche de haute qualité, adaptable à l'éclairage extérieur ou à l'éclairage de la salle de bain

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Modèle : HL-BAPL070-F

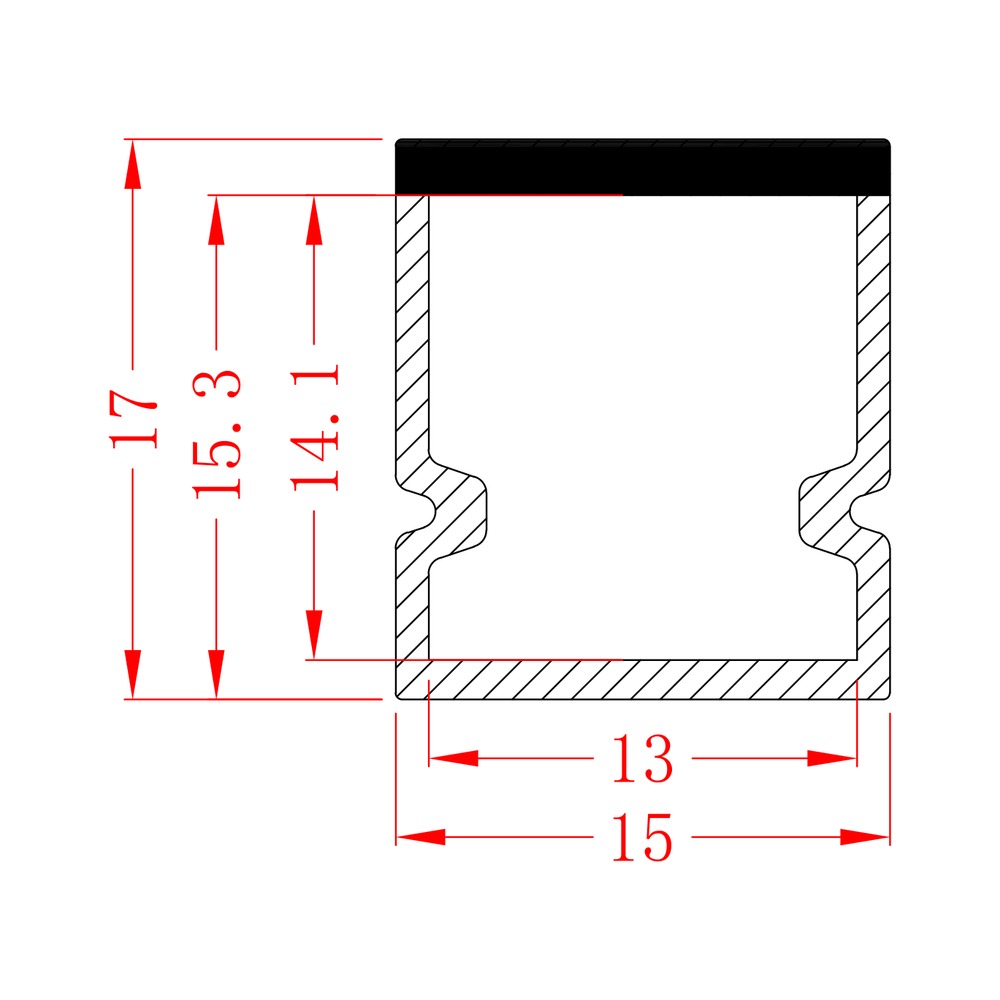

Profile size:W:15mm * H: 17mm

PCB width: 13 mm

Installation:Surface Mount, Recessed Mount, Waterproof

REQUEST A BULK QUOTE Download PDF Spec

1-Year Warranty | CE & RoHS Certified.

Wholesale Pricing Available Upon Request

Spécifications techniques

Modèle :

HL-BAPL070-F

Profile size:

L:15mm * H : 17mm

PCB width:

13 mm

Installation :

Montage en surface, montage encastré, étanche

Matériau :

PC

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodisé/peinture

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, End Cap, Clip

Compatible Accessories System

BAPL070-F Clip

BAPL070-F Clip

070-F End Cap

070-F End Cap

French Scenic Zone Uses HL-BAPL070-F Waterproof LED Channels for Trail & Pavilion Lighting

City:

A professional scenic area management firm in France selects HL-BAPL070-F waterproof LED channels to light mountain hiking trails and rest pavilions. Its IP67 waterproof structure reliably withstands frequent rainfall and heavy morning dew in mountainous outdoor settings. The imported PC diffuser delivers evenly distributed soft light to brighten walkways without harsh glare for tourists. Screwless sealed end caps simplify mounting on stone retaining walls and wooden railings. Its sleek sharp industrial silhouette integrates naturally with surrounding nature, greatly boosting night-time travel safety and elevating visitors’ overall sightseeing experience.


  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.
Fabricant de profilés LED

Wholesale/purchasing process

Prêt à intégrer ce profilé - HL-BAPL070-F dans votre projet ? Consultez notre guide d'achat ci-dessous.

Ce profil HL-BAPL070-F est-il le canal LED étanche que vous recherchez ?
Contactez-nous dès aujourd'hui et nous vous aiderons du mieux que nous pouvons !

Fabrication de profilés LED Helian
Fabrication de profilés LED Helian

FAQ

Peut-être souhaitez-vous également connaître ces informations lors de l'achat en gros ou de la personnalisation des canaux lumineux LED.

Our standard warehouse stocking lengths are 1.0m, 2.0m, and 2.5m. For large-scale architectural projects, we provide professional precise factory-cutting services. You can submit your detailed shop drawings to our engineering team to get pre-cut profiles at specific lengths or 45-degree mitered angles to reduce on-site installer labor.
All Helian linear channels are extruded from architectural-grade 6063-T5 aluminum alloy with an anodized surface treatment. This structural configuration offers high thermal conductivity, successfully serving as a heavy-duty heat sink. It efficiently dissipates heat generated by high-density flexible or rigid LED strips up to 15W/m, preventing lumen depreciation and extending the LED lifespan over 50,000 hours.
We strictly use premium, UV-stabilized Polycarbonate (PC) or optical PolyMethyl Methacrylate (PMMA) from Tier-1 global raw material suppliers. Our frosted/opal covers ensure up to 85% light transmittance, and our specialized clear optical lenses exceed 90% transmittance. The raw materials are UV-protected, ensuring the diffuser will not yellow, crack, or turn brittle during long-term continuous operation in commercial lighting indoor environments.
By default, each standard packaging unit includes 2 end caps (1 blank, 1 with a wire hole) and 2 standard metal mounting clips per meter. For specific structural mounting methods—such as suspended spring clips, drywall mud-in components, or linear continuous connectors—please consult our project specialists. To guarantee optimal performance, please check the "Lighting Source Width" parameter listed in our specifications table to ensure your LED strip's outer PCB fits perfectly inside the inner aluminum track.
