Canal LED mural HL-A010 | Source 5mm | AL6063 pour l'éclairage médical

Name: Canal LED mural HL-A010 | Source 5mm | AL6063 pour l'éclairage médical
Brand: Éclairage LED Helian
SKU: HL-A010
Availability: InStock

🟢 In Stock & Ready for Rapid Dispatch (Standard Qty)

Modèle : HL-A010

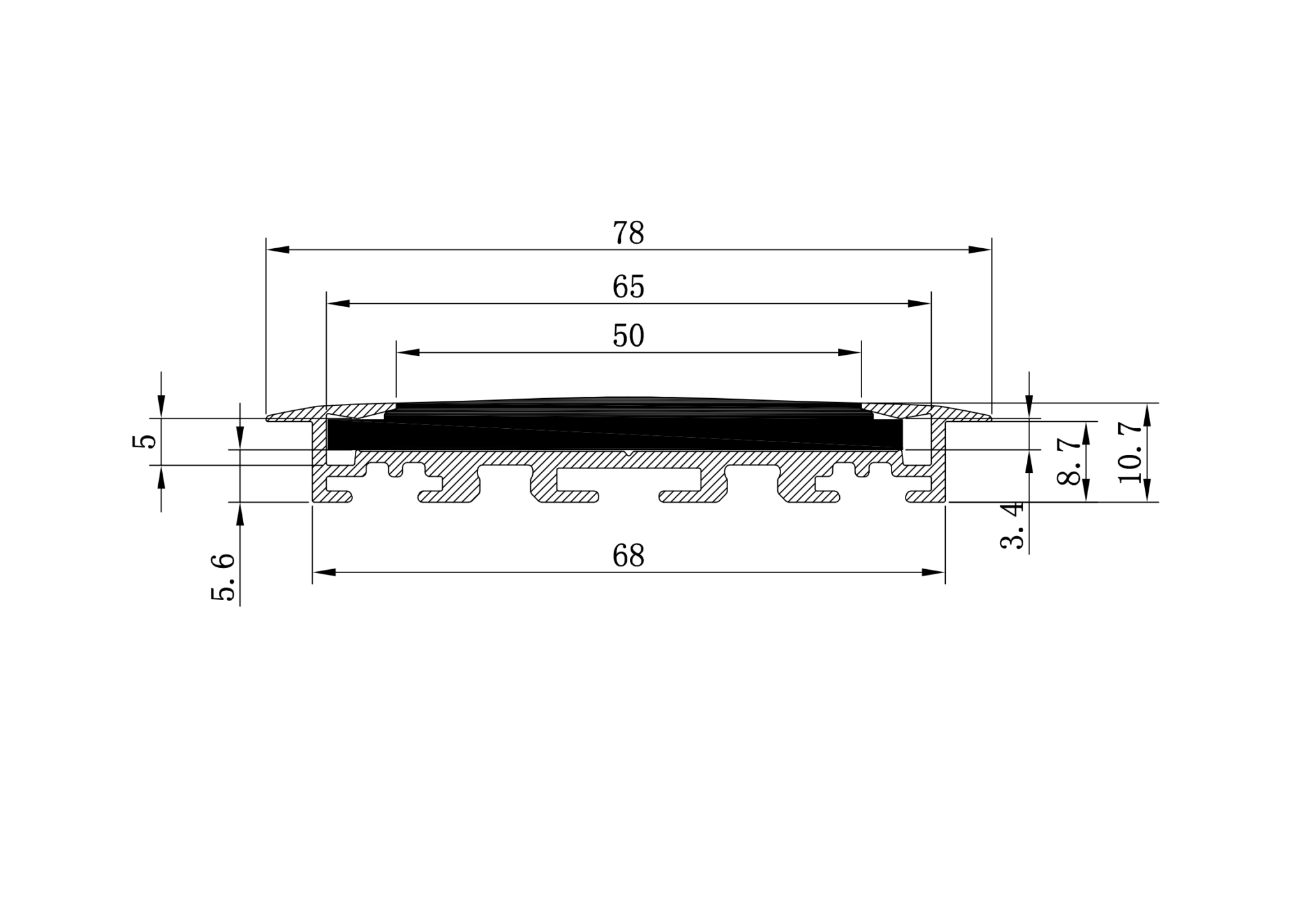

Profile size:W:78mm * H: 10.7mm

PCB width: 5 mm

Installation:Recessed Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

Spécifications techniques

Modèle :

HL-A010

Profile size:

W:78mm * H: 10.7mm

PCB width:

5 mm

Installation :

Montage encastré

Matériau :

AL6063+PC

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodisé/peinture

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, End Cap, Clip

Compatible Accessories System

A010cover

HL-A010 End Cap

BAPL042-01 Clip

Recessed linear lighting

Recessed into the surface, the channel disappears and leaves only a clean line of light.

Dot-Free Diffused Glow
6063-T5 Premium Aluminum
Supporting precise field cutting or factory pre-cuts.

Ce profil HL-A010 est-il le canal LED mural que vous recherchez ?
Contactez-nous dès aujourd'hui et nous vous aiderons du mieux que nous pouvons !

Demander un devis

FAQ

Peut-être souhaitez-vous également connaître ces informations lors de l'achat en gros ou de la personnalisation des canaux lumineux LED.

Can I order samples before placing a bulk order?

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.

Do you offer custom cutting to my specified lengths?

Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.

What certifications do your profiles hold?

European market: CE & ROHS certified. North American market: UL certified.

What material are the profiles made of, and what diffuser options are available?

Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.

How do I check if my LED strip fits your profile?

Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.

What accessories come with the profiles?

Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
