| Model: | HL-UA046-L12 |
| Luminous Flux(4000K): | 4500lm@50w / 3600lm@40w / 2700lm@30w |
| Correlated Color Temperature: | 2700K / 3500K / 4500K / 5500K / 6500K |

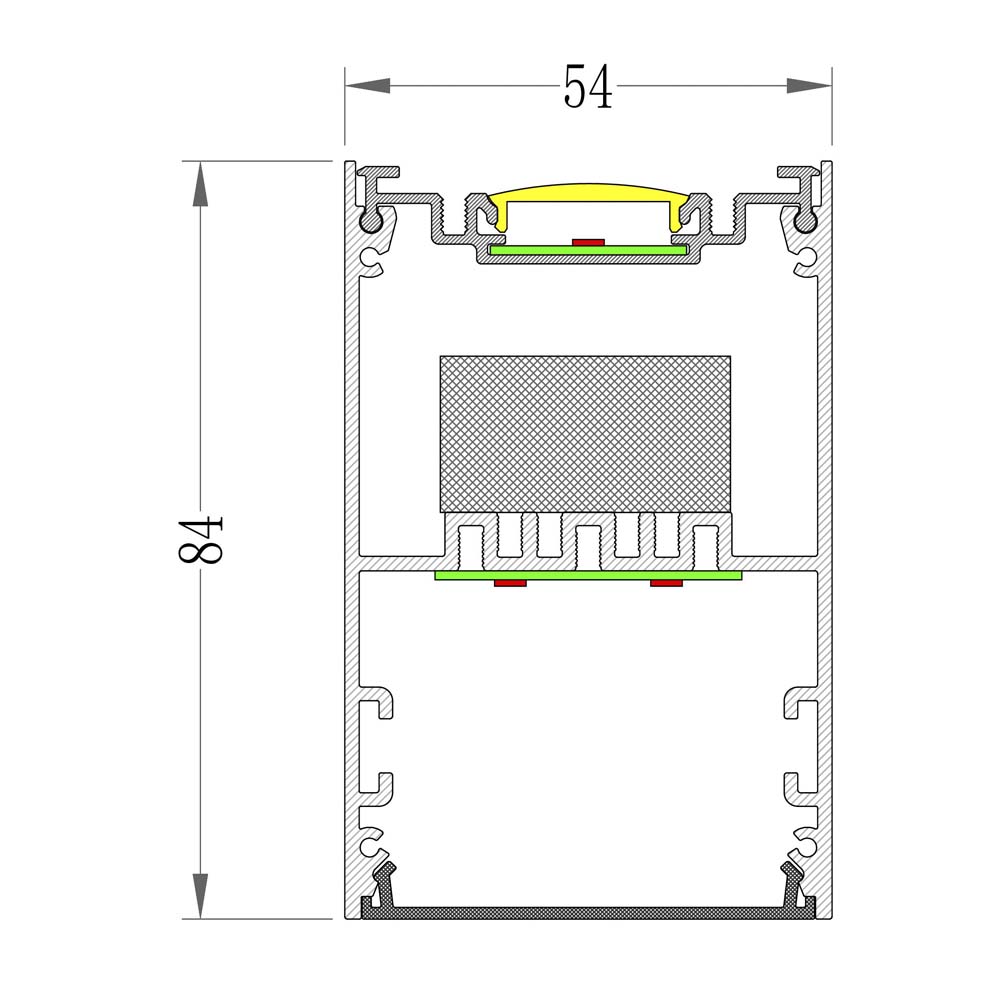

| Size: | L1200*W54*H84mm |
| Nominal Power: | 30W / 40W / 50W |
Technical Specifications
| Model | HL-UA046-L12 | Beam Angle | 120° |
| Dimension | L1200*W54*H84 mm(customizable) | CCT | 2700K –Â 6500K (switchable) |
| Power | 30W / 40W / 50W | Light Distribution Ratio | 70%Down+30%Up
/ 90%Down+10%Up / 100%Down |
| Luminous Flux (@4500K) | 2700lm / 3600lm / 4500lm | Housing Color | White / Black / Silver |
| Input Voltage | AC220-240V | Material | Extruded Aluminum Alloy |
| Protection Grade | IP40 | Certification | CE, RoHS |
| CRI | ＞80 | Warranty | 3 Years |
| Model: | HL-UA046-L12 | Material: | AL6063+PC/PMMA |
| Product Dimension: | L1200*W54*H84mm | Power: | 30W / 40W / 50W |
| Luminous Flux: | 4500lm@50w / 3600lm@40w / 2700lm@30w | Luminous Efficacy: | |
| Color Temperature: | 2700K / 3500K / 4500K / 5500K / 6500K | Beam Angle: | 120° |
| Voltage: | AC220-240V | Working Temperature: | \ |
| CRI: | \ | LED Chip: | \ |
| IP Degree: | IP40 | Power Factor: | \ |
| Certification: | CE, RoHS | OEM/ODM: | Support |
Download
Product Description
-Extruded aluminum housing with excellent heat dissipation, perfectly matching open-plan
interior space design.

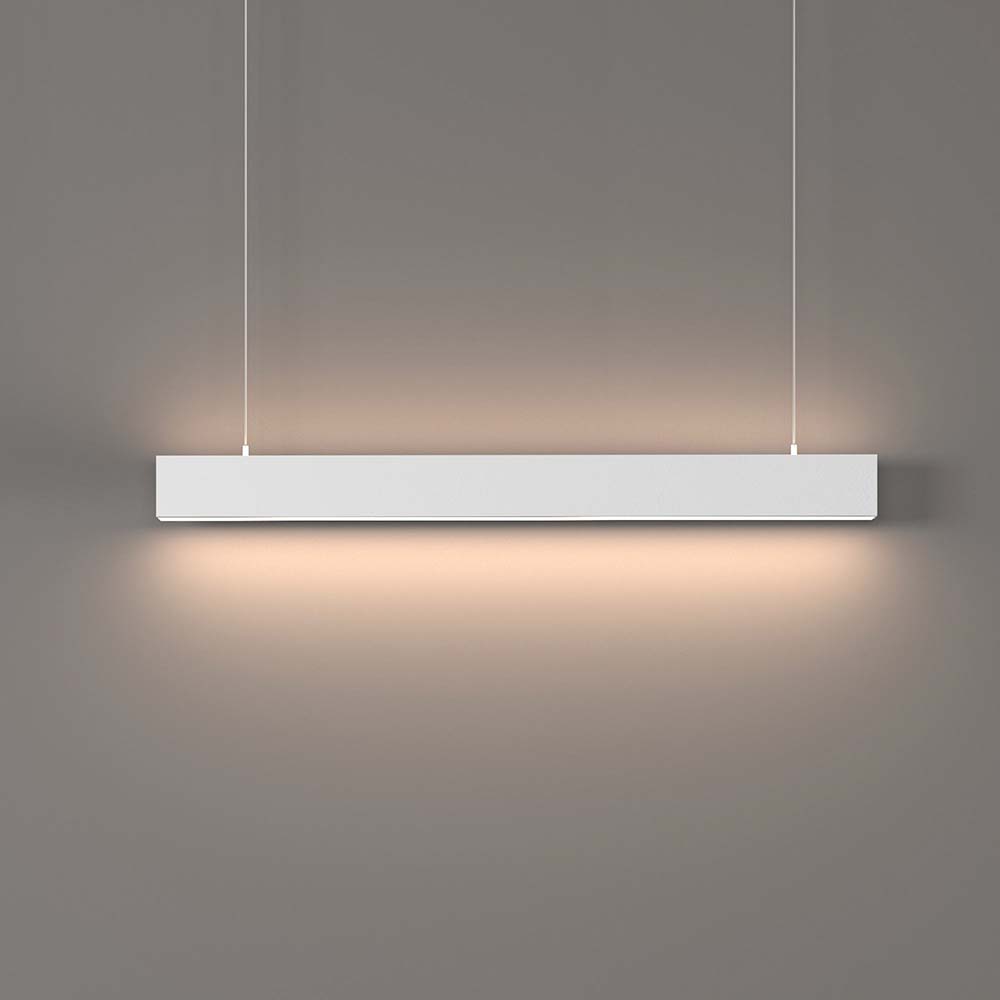

-Three lighting distribution modes optional: 70% downward light + 30% upward light, 90%
downward light + 10% upward light, 100% pure downward light.
-Switchable CCT: 2700K/3500K/4500K/5500K/6500K.

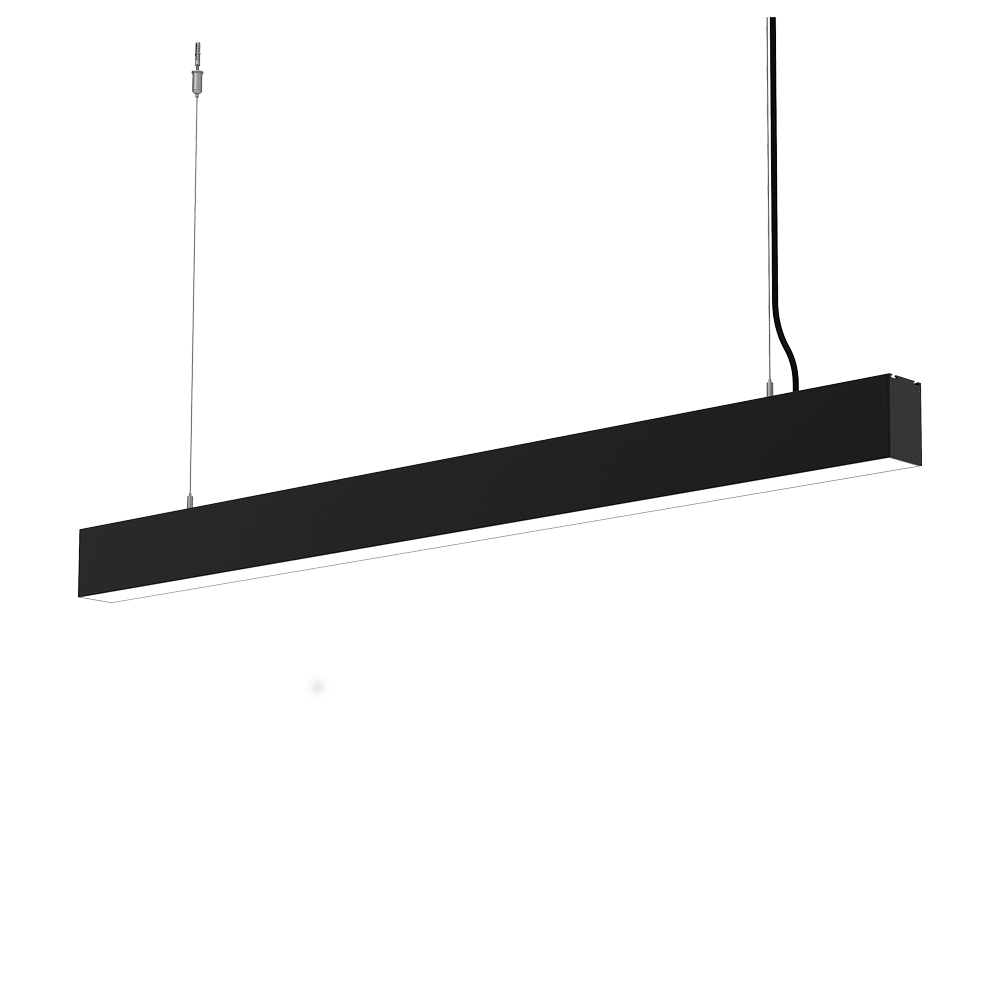

-Easy to install with dedicated suspension accessories, enabling quick pendant mounting.

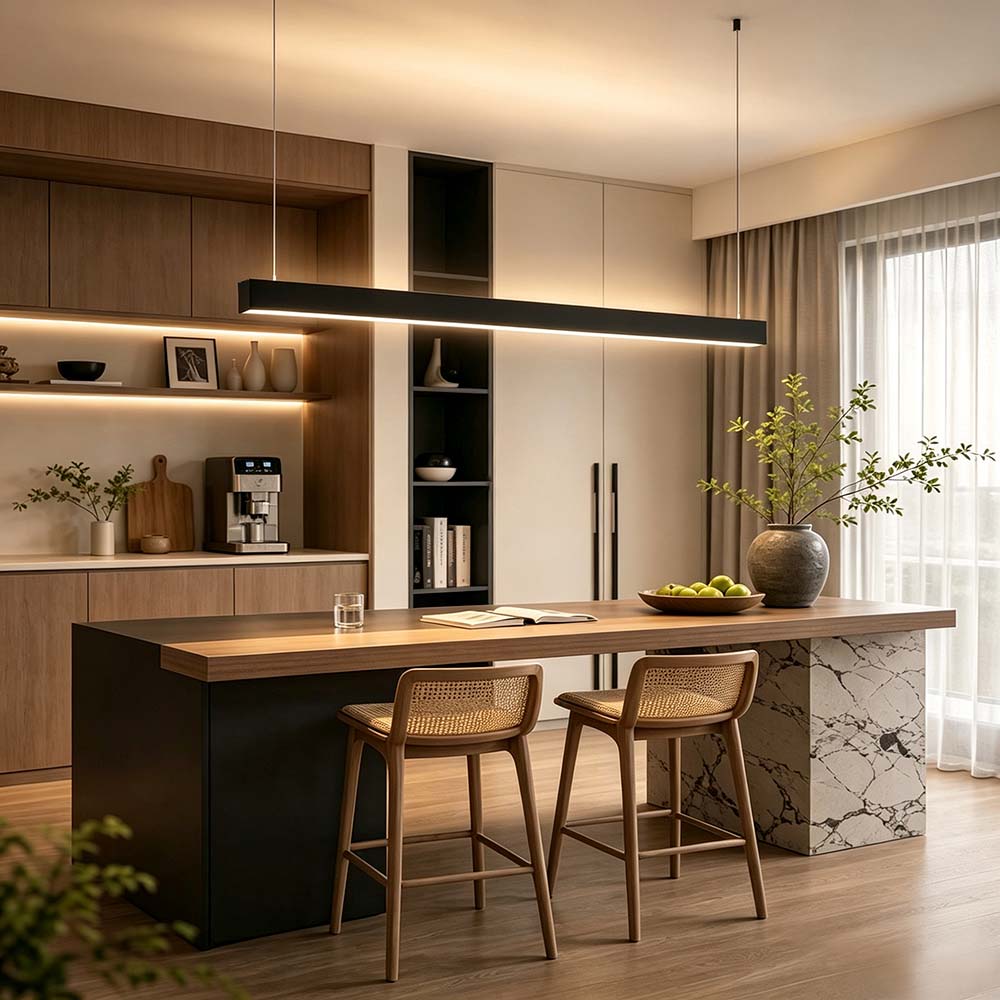

-Wide application: offices, meeting rooms, supermarkets, schools, residential lighting and
other indoor occasions.
Detailed Specification
LED Light Images – HL-UA046-L12
On the right side is the catalog for the LED light – HL-UA046-L12. The catalog mainly contains all kinds of fittings (profiles, covers, etc.) and effect pictures of the lamp. It clearly shows some details of the product. I hope it will be helpful to you!
