Position :

Vertieft

LED-Wandkanal HL-A011 | 5mm Quelle | AL6063 für Wohnzimmerbeleuchtung

Name: LED-Wandkanal HL-A011 | 5mm Quelle | AL6063 für Wohnzimmerbeleuchtung
Brand: Helian LED-Beleuchtung
SKU: HL-A011
Availability: InStock

🟢 In Stock & Ready for Rapid Dispatch (Standard Qty)

Modell: HL-A011

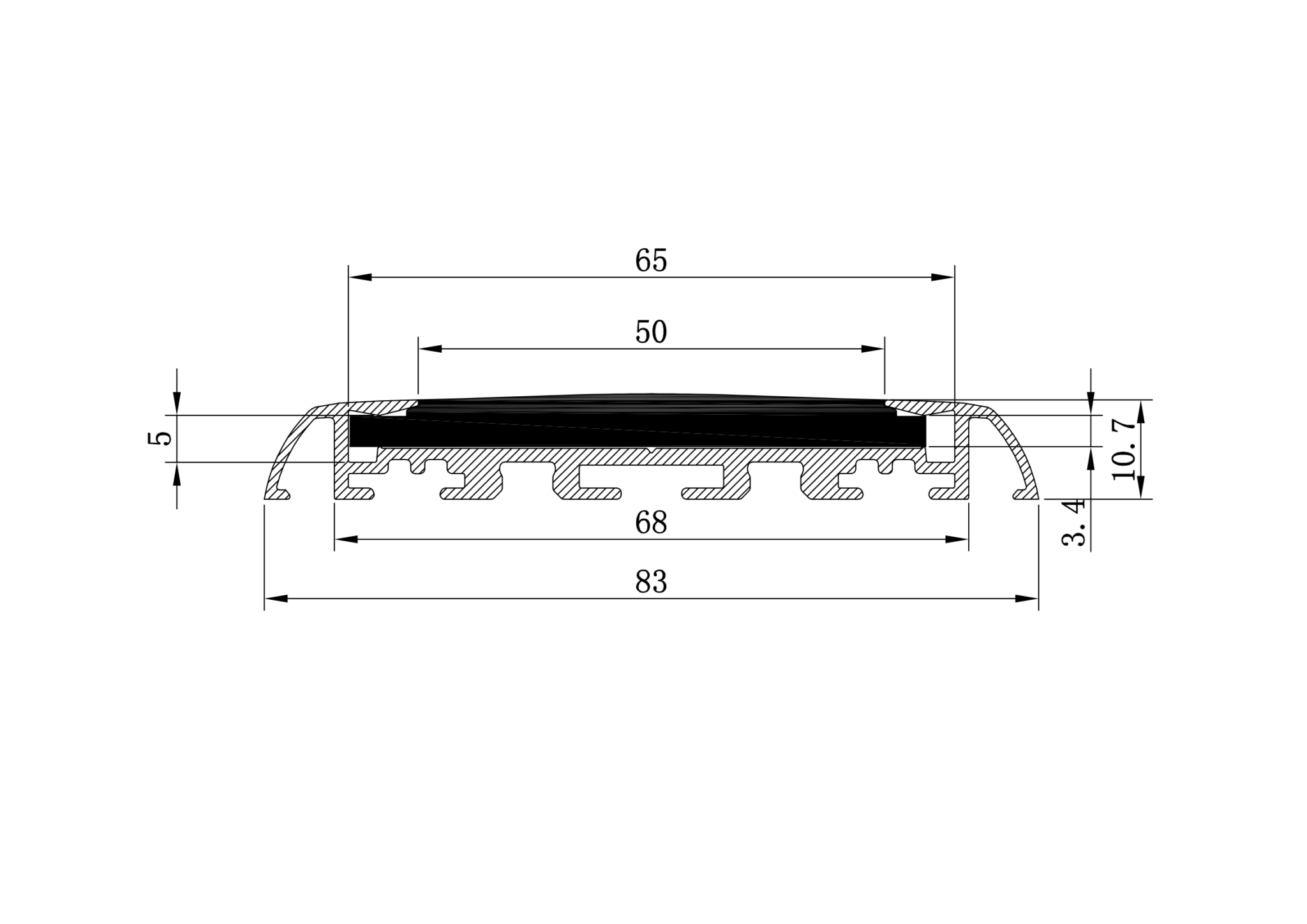

Profile size:W:83mm * H: 10.7mm

PCB width: 5 mm

Installation:Recessed Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

Technische Daten

Modell:

HL-A011

Profile size:

W:83mm * H: 10.7mm

PCB width:

5 mm

Einbau:

Versenkte Montage

Material:

AL6063+PC

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Eloxiert/Malerei

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, PMMA Diffuser, End Cap, Clip

Compatible Accessories System

A010cover

A011 Clip

HL-A011 End Cap

Recessed linear lighting

Recessed into the surface, the channel disappears and leaves only a clean line of light.

Dot-Free Diffused Glow
6063-T5 Premium Aluminum
Supporting precise field cutting or factory pre-cuts.

Ist dieses HL-A011 Profil der Led-Wandkanal, den Sie suchen?
Nehmen Sie noch heute Kontakt mit uns auf, und wir helfen Ihnen, wo wir nur können!

Jetzt ein Angebot einholen

Helian LED-Profile Herstellung

FAQs

Vielleicht möchten Sie auch die Informationen für den Großeinkauf oder die individuelle Gestaltung von LED-Lichtkanälen kennen.

Can I order samples before placing a bulk order?

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.

Do you offer custom cutting to my specified lengths?

Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.

What certifications do your profiles hold?

European market: CE & ROHS certified. North American market: UL certified.

What material are the profiles made of, and what diffuser options are available?

Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.

How do I check if my LED strip fits your profile?

Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.

What accessories come with the profiles?

Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
