LED-Eck-Profile

Black Anodized Aluminum Corner Profile 16×16mm for Under-Cabinet LED

Name: Black Anodized Aluminum Corner Profile 16×16mm for Under-Cabinet LED
Brand: Helian LED-Beleuchtung
SKU: HL-BAPL005
Availability: InStock

🟢 In Stock & Ready for Rapid Dispatch (Standard Qty)

Modell: HL-BAPL005

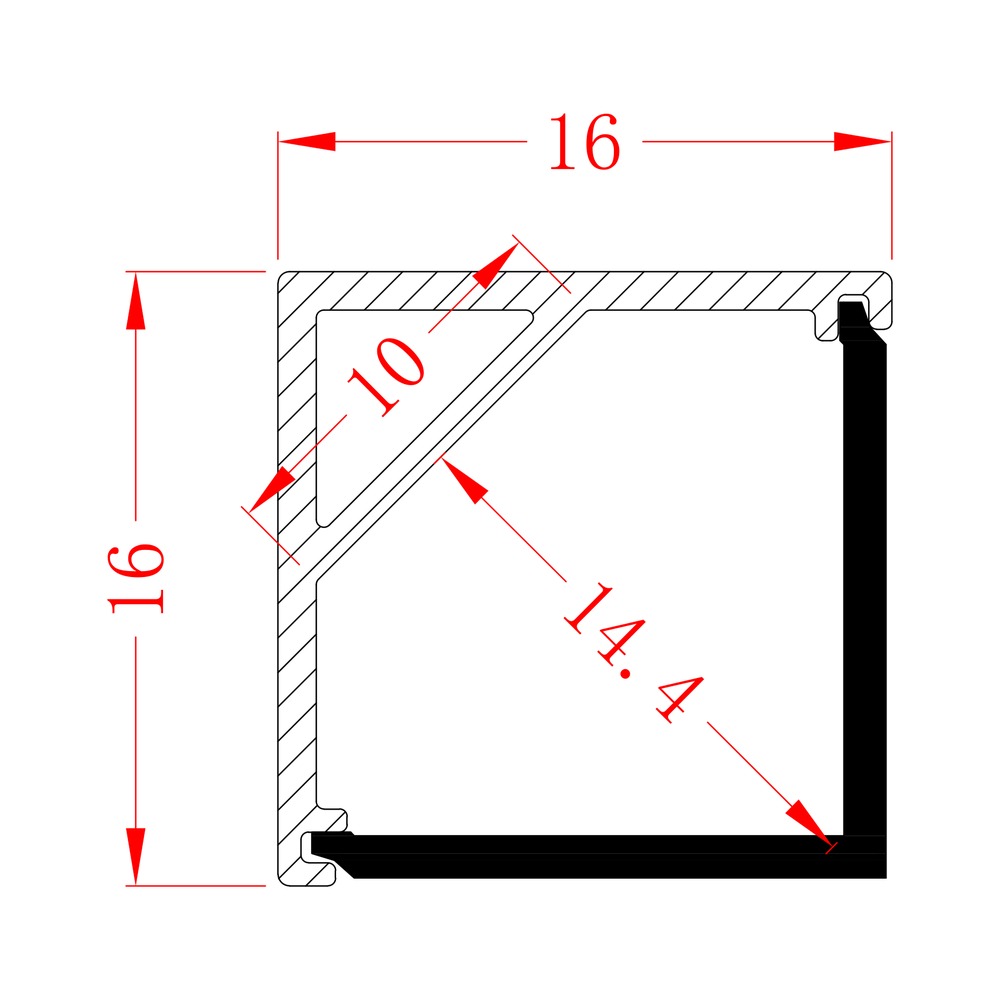

Profile size:W:16mm * H: 16mm

PCB width: 10 mm

Installation:Corner Profiles

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

Technische Daten

Modell:

HL-BAPL005

Profile size:

B:16mm * H: 16mm

PCB width:

10 mm

Einbau:

Corner Profiles

Material:

AL6063+PC/PMMA

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Eloxiert/Malerei

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, PMMA Diffuser, End Cap, Clip

Compatible Accessories System

005 Cover

005 End Cap

005/006 Stainless Steel Clips

Black profile lighting

Black anodizing lets the channel vanish against dark surfaces, leaving just the light.

Dot-Free Diffused Glow
6063-T5 Premium Aluminum
Supporting precise field cutting or factory pre-cuts.

Is this HL-BAPL005 profile the corner aluminium profile you are looking for?
Nehmen Sie noch heute Kontakt mit uns auf, und wir helfen Ihnen, wo wir nur können!

Jetzt ein Angebot einholen

Helian LED-Profile Herstellung

FAQs

Vielleicht möchten Sie auch die Informationen für den Großeinkauf oder die individuelle Gestaltung von LED-Lichtkanälen kennen.

Can I order samples before placing a bulk order?

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.

Do you offer custom cutting to my specified lengths?

Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.

What certifications do your profiles hold?

European market: CE & ROHS certified. North American market: UL certified.

What material are the profiles made of, and what diffuser options are available?

Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.

How do I check if my LED strip fits your profile?

Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.

What accessories come with the profiles?

Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
