How to Choose the Right IP Rating for Outdoor LED Profiles

An aluminum profile carries no IP rating out of the box — the rating belongs to the assembled system. What IP65, IP66 and IP67 each cover, the four seals that decide it, and why most outdoor failures are not ingress failures.

Helian LEDOct 27, 20267 min read
Technical review by Weili Wu, Engineering Lead·English copy review by Evan Ding

An aluminum profile carries no IP rating out of the box. The rating belongs to the assembled system: extrusion, cover, end caps, sealant and strip together. IP65 is the practical minimum for anything rained on directly. Where water collects sets the number, not how exposed the wall looks.

Most specifications skip that distinction. It is why outdoor fixtures fail while every part on the purchase order was individually rated.

What do the two digits tell you?

The IP code comes from IEC 60529. The first digit covers solids, the second covers liquids. For LED profiles the first digit is always 6, so dust-tight is a given. The decision sits entirely in the second digit.

RatingLiquid protectionWhere it belongsWhere it fails
IP44Splashing waterSheltered outdoor: under a canopy, arcade, soffitDirect rain, wind-driven spray
IP65Low-pressure water jets from any directionExposed walls, facades, patios. The outdoor baselineStanding water, pooled drainage, immersion
IP66Powerful water jetsWash-down zones, storm-exposed sites, coastal facadesImmersion
IP67Temporary immersion, 1 m for 30 minutesGround level, step lights, fountain edges, flood-prone recessesContinuous immersion
IP68Continuous immersion, depth set by the makerPools, water features, submerged architectural lightingDepth beyond the maker's stated limit

Most specifiers skip two of these. IP66 sits between 65 and 67, and it suits a facade taking driven rain or periodic washing. It is stricter on jet pressure without the immersion requirement. Specifiers often over-specify IP44 into sheltered positions where it was adequate.

The profile is not waterproof on its own

Procurement documents usually get this wrong.

An extrusion is an open channel. Clip a diffuser in and a seam still runs along both sides, where the cover slides into the groove. That seam is a capillary path, not a seal. End caps often arrive with cable holes. Cut ends expose the strip. Aluminum resists corrosion, but corrosion resistance and ingress prevention are different properties.

Industry guidance is explicit where it exists. The profile alone is not waterproof; it needs a sealant to reach a reliable IP65 or better. The logic runs both ways. One under-rated component compromises the whole assembly, however good the rest of it is.

So the honest framing for a specification is this:

The IP rating is a property of the finished luminaire. The profile is one of five parts that decide it, and the only one that cannot be sealed at the factory.

In the trade, "waterproof profile" means a profile designed to seal: gasketed groove, closed end caps, cable gland provision. It does not mean the profile arrives at IP67.

Which four seals decide the rating?

Every wet-area failure traces back to one of four joints. This list follows the order they usually fail.

Seal pointWhat goes wrongWhat fixes it
Cover-to-channel seamWater wicks along the groove by capillary actionNeutral-cure silicone bead along the groove before the cover is seated
End capsCaps with cable holes let water straight in; friction caps leak under pressureClosed caps, or glanded caps, plus sealant around the cap edge and the cable exit
Cable entryThe single most common leak point on any outdoor fixtureCable gland sized to the cable (PG7/PG9/PG11), plus sealant under the gland nut
Field cutsEvery cut end exposes the PCB and its padsSeal at once with silicone end caps and a bead over the cut face

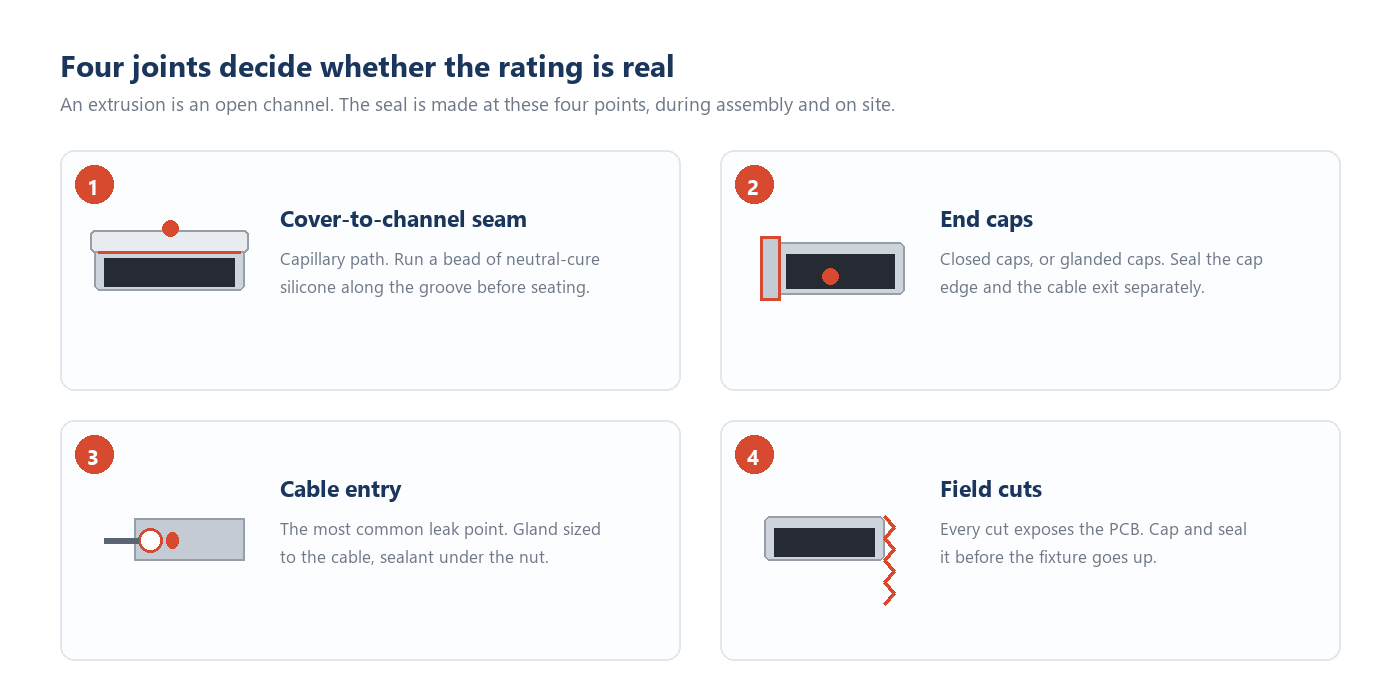

Diagram of four sealing points on an outdoor LED profile: cover seam, end cap, cable entry and field cut
Four joints, in the order they usually fail.

Two notes are easy to miss. Silicone sealant has to be neutral-cure. The acetic-cure grades used for glazing corrode the copper traces and the aluminum. Sealant also needs to cure before the fixture is energized and before it sees rain. Allow 24 hours. Shortcuts here stay invisible until the following season.

Why most outdoor failures are not IP failures

An IP rating tests two things: solids and liquids, under defined laboratory conditions. It does not test ultraviolet exposure, salt spray, thermal cycling or condensation. A fixture can hold its IP65 through every test and still degrade in two years outdoors.

Four failure modes sit outside the rating.

Drainage. Water that can run off does not need excluding. Fit a drip loop before the cable entry. Angle the body so water sheds away from the seam. That run survives conditions which would defeat a better-sealed but flat-mounted fixture.

Condensation. A sealed chamber cycling between day and night temperatures pulls moisture out of the trapped air. It condenses on the coldest surface, usually the aluminum, and sits there. A hydrophobic breather or a desiccant sachet in the junction box does more than another bead of silicone.

UV. The rating says nothing about it. Covers degrade, gaskets harden, and the seam that was tight in year one opens in year four. That is why the cover material matters as much as the seal. See our note on PC versus PMMA covers.

Salt and chemicals. Standard ingress tests use fresh water. Coastal and industrial sites need a marine-grade approach even when the IP number is high. Chloride attack is a corrosion problem, not an ingress problem.

What we supply, and what we do not claim

We publish 11 profiles designed for outdoor and wet-area use. They share three structural features: a gasketed or tight-fitting cover groove, closed end caps, and provision for a cable entry. Dimensions appear here because the section is what constrains the sealing options.

ModelInner widthOuter W × H (mm)MountingCover
HL-BAPL067-F8 mm10.3 × 10.3cornerPMMA
HL-BAPL065-F9 mm11.4 × 12.2surfacePMMA
HL-BAPL066-F10 mm12.3 × 10surfacePMMA
HL-BAPL068-F10 mm16 × 16surfacePC
HL-BAPL071-F10 mm17.1 × 15.4surfacePC
HL-BAPL069-F11 mm17 × 14surfacePC
HL-BAPL070-F13 mm15 × 17surfacePC
HL-3030F19 mm30 × 30cornernone
HL-BAPL06825 mm40 × 61suspendedPC
HL-A0418 mm94 × 45.6suspendednone
HL-A08161 mm75 × 60.4suspendedPC
HL-BAPL067-F corner LED profile, 10.3 by 10.3 mm, the smallest body in the wet-area group
HL-BAPL067-F — 10.3 × 10.3 mm, the smallest section in the wet-area group.

Six of the eleven carry a PC cover and three carry PMMA. That follows the outdoor logic above. Use PC where impact or UV-stabilized performance matters, and PMMA on the small bodies where clarity is the point.

HL-BAPL068-F surface mounted LED profile, 16 by 16 mm, with closed end caps
HL-BAPL068-F — 16 × 16 mm, with closed end caps and a PC cover.
Large suspended LED profile HL-A081, 75 by 60.4 mm, in the wet-area group
HL-A081 — 75 × 60.4 mm, the largest body in the group.

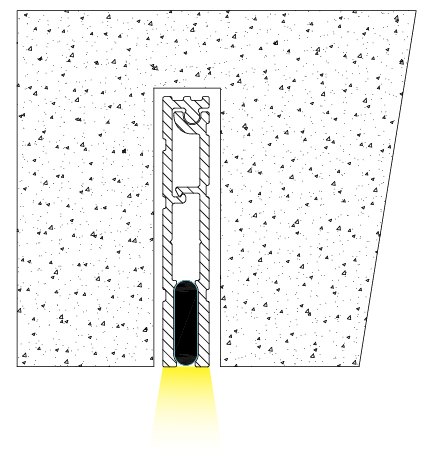

Section diagram of an LED profile recessed into a concrete slab with a narrow slot
Section: recessed into concrete. The slot is the only path in — and the only place to seal.

We do not claim an IP rating for these profiles. The assembled fixture and the site work establish it, and quoting a number for an unassembled extrusion would misrepresent what we have tested. Our published IP68 certificate covers the LED neon range, tested to EN 60529: HL-NT1615V24IP68 and the related NS and NV models. It does not extend to aluminum profiles. That scope sits on the certificates page, not in inference.

Should you specify IP68?

Usually not, and the reasons are physical, not commercial.

IP68 needs a fully sealed chamber, by potting or compression glands. That adds weight, makes field servicing difficult, and traps heat around the strip. A sealed chamber cannot convect, so it runs hotter. A hotter strip loses output faster. The higher rating can shorten life if nobody re-checks the thermal side.

IP68 belongs underwater. For a wall that takes rain, IP65 with correct seals and drainage beats a badly installed IP68. In both cases the failure mode is the joint, not the number.

FAQ

Is an aluminum LED profile waterproof by itself?

No. An extrusion is an open channel: the cover groove is a capillary seam, and end caps often have cable holes. Water resistance comes when the cover, caps and cable entry seal during assembly. The profile is designed to be sealed. It does not arrive sealed.

Do I need IP65 or IP67 for a patio?

IP65 if the run sits under a roof line, a soffit or a canopy and water cannot pool. IP67 if the profile sits at or near ground level, in a recess that collects water, or beside a water feature. Standing water decides it, not how exposed the position looks.

Can I upgrade a standard profile to IP65 with silicone?

Sometimes, but not reliably. It depends on whether the cover groove holds a bead, whether closed end caps exist for that section, and whether there is cable-gland provision. A profile without those stays a sheltered-area product.

Does a higher IP rating mean a longer service life?

No. The rating covers ingress of solids and liquids under laboratory conditions. It says nothing about UV, salt spray, thermal cycling or condensation, and those degrade most outdoor fixtures. Drainage, cover material and heat management matter as much as the number.

Do your profiles come with an IP rating?

No. We supply 11 profiles designed to be sealed for outdoor and wet-area use, with gasketed grooves, closed caps and cable-entry provision. The assembled fixture and the site sealing establish the rating. So we specify the section and the sealing method, not a number for the extrusion alone.
