Canal de LED para parede HL-BAPL062, 27 mm para iluminação de armários de cozinha

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Modelo: HL-BAPL062

Profile size:W:32.7mm * H: 85mm

PCB width: 27 mm

Installation:Surface Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

BAPL062 Dimensões externas

Especificações técnicas

Modelo:

HL-BAPL062

Profile size:

L:32,7mm * A: 85mm

PCB width:

27 mm

Instalação:

Montagem em superfície

Material:

AL6063+PC

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodizado/Pintura

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, End Cap

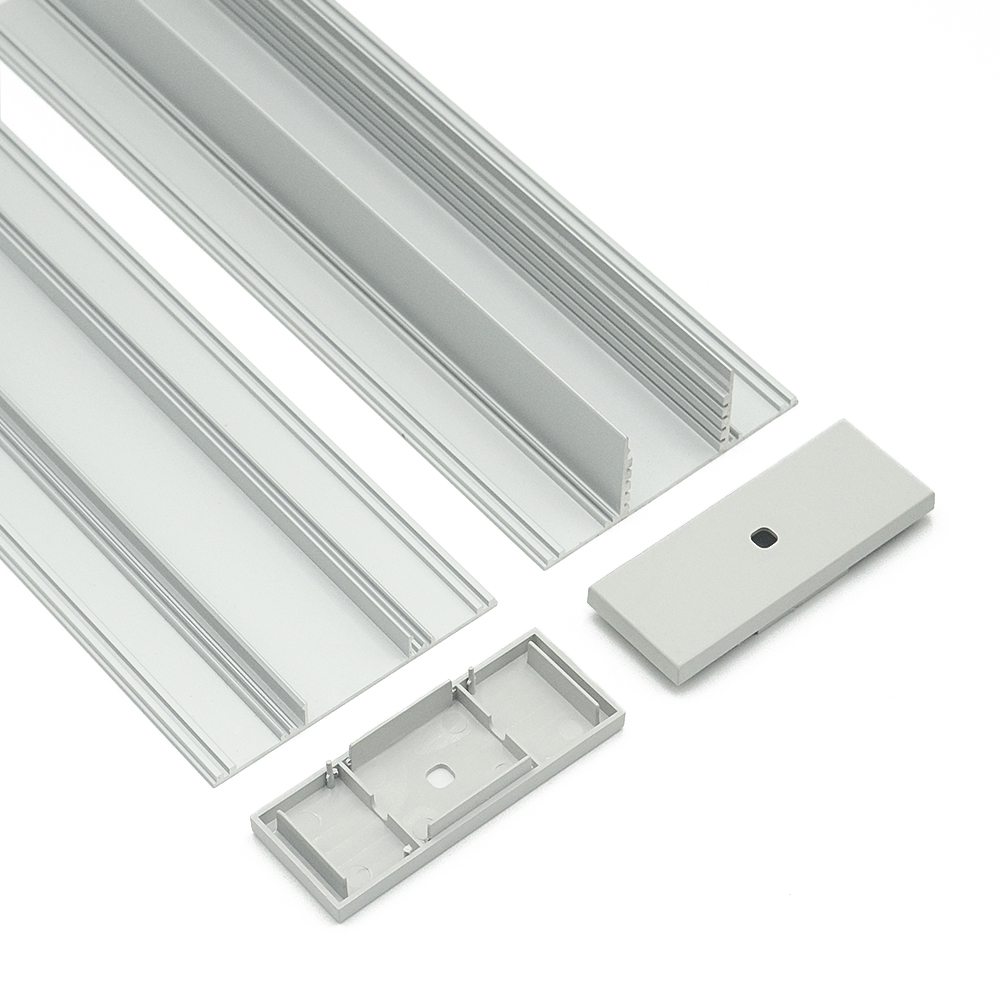

Compatible Accessories System

062 Cover

062 Cover

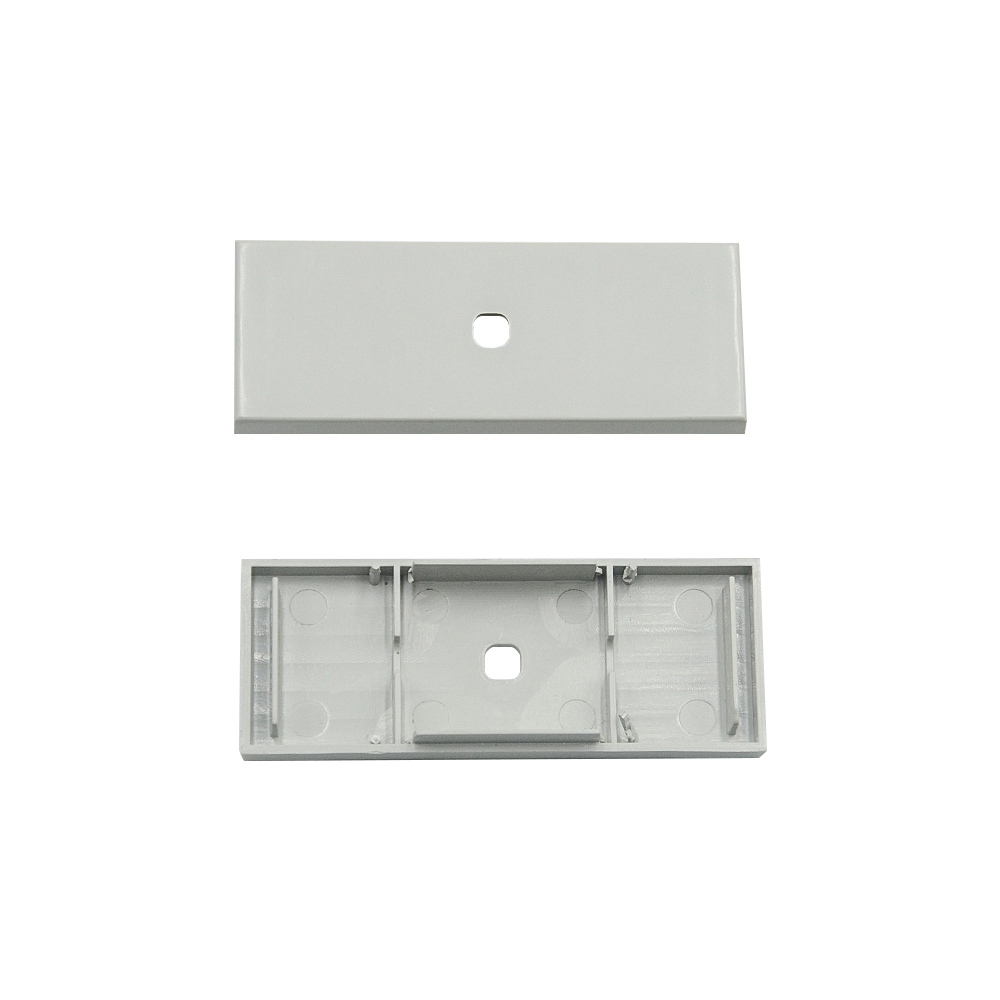

062 End Cap

062 End Cap

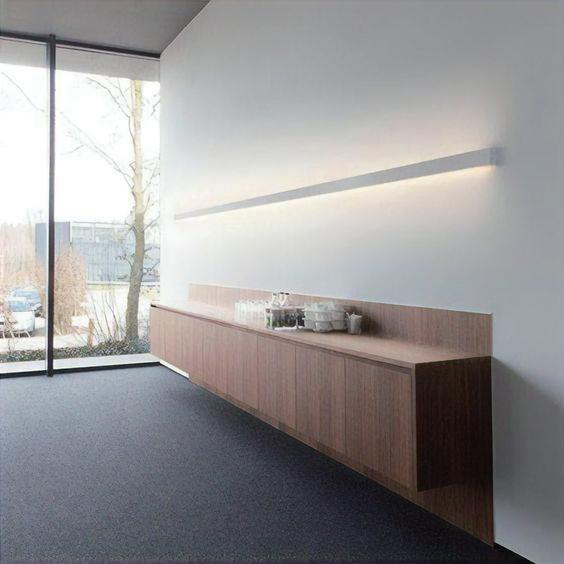

Aplicativo HL-BAPL62

Mitte Office Reception Lighting

City: Berlin, Germany

First impressions happen at reception. The HL-BAPL062 washed a Berlin office’s long wooden desk and window perimeter with a professional, even light that made visitors feel met. Twelve metres of seamless run — visitor surveys rated the reception 4.7/5.


  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.
Fabricante de perfis de LED

Wholesale/purchasing process

Pronto para integrar esse perfil - HL-BAPL062 em seu projeto? Confira nosso guia de aquisição abaixo.

Esse perfil HL-BAPL062 é o canal de led para parede que você está procurando?
Entre em contato conosco hoje mesmo e nós o ajudaremos como pudermos!

Fabricação de perfis de LED Helian
Fabricação de perfis de LED Helian

Perguntas frequentes

Talvez você também queira saber as informações ao comprar em grandes quantidades ou personalizar canais de luz LED.

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.
Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.
European market: CE & ROHS certified. North American market: UL certified.
Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

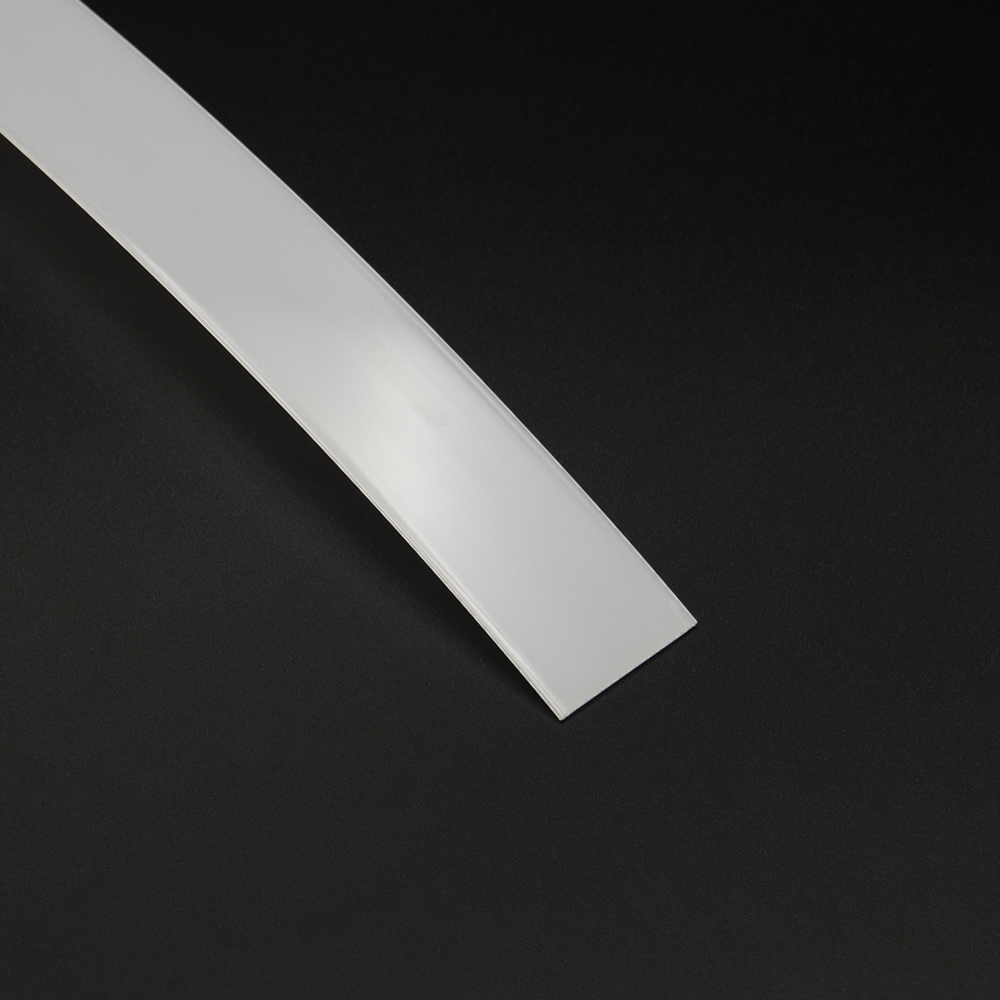

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.
Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.
Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
