LED-Streifen Wandschiene HL-BAPL018 | 32mm Quelle für Wohnzimmerbeleuchtung

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Modell: HL-BAPL018

Profile size:W:35.2mm * H: 34.9mm

PCB width: 8 mm

Installation:Surface Mount, Recessed Mount

REQUEST A BULK QUOTE Download PDF Spec

1-Year Warranty | CE & RoHS Certified.

Wholesale Pricing Available Upon Request

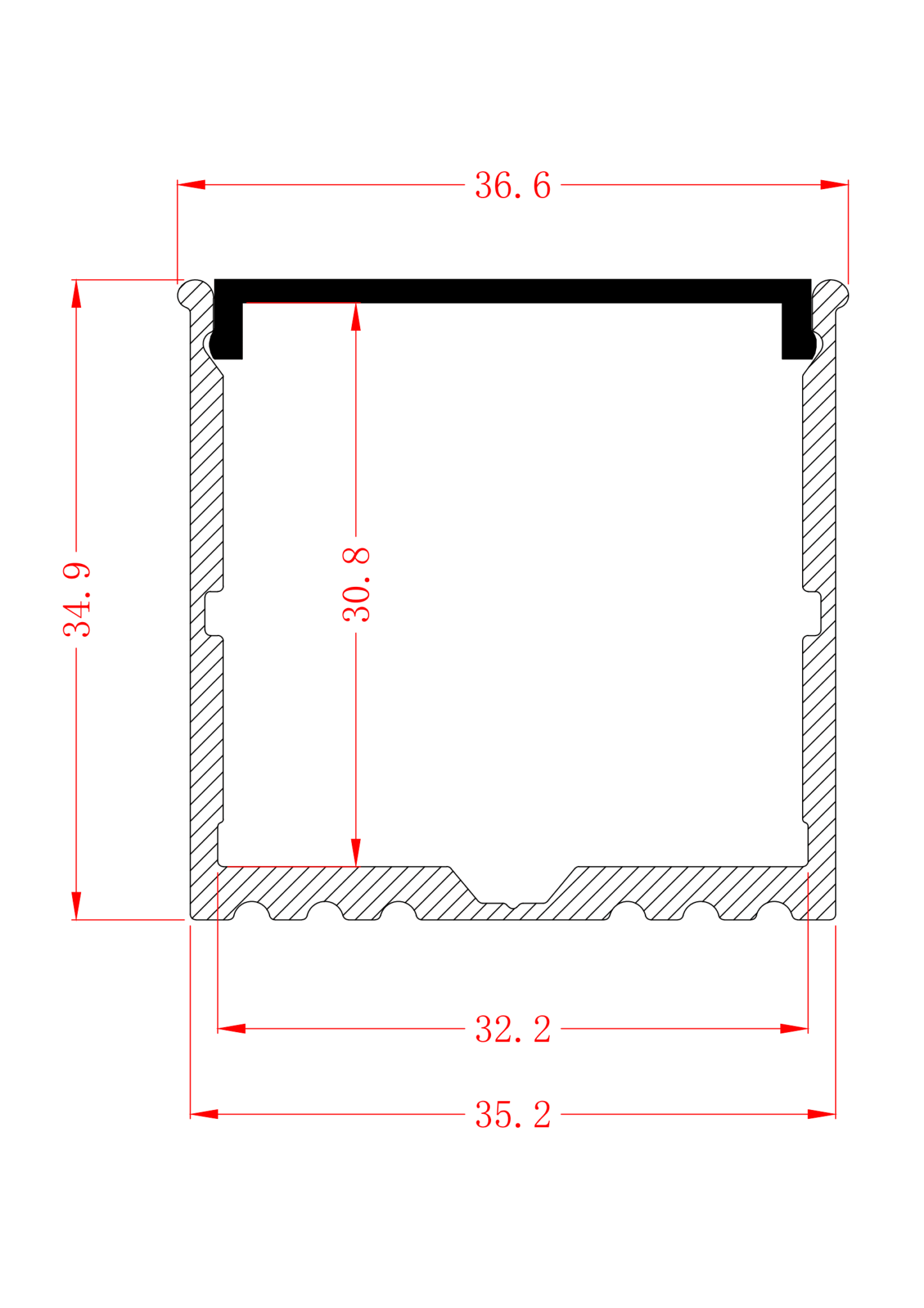

BAPL018 Äußere Abmessungen

Technische Daten

Modell:

HL-BAPL018

Profile size:

B:35,2mm * H: 34,9mm

PCB width:

8 mm

Einbau:

Aufputzmontage, Unterputzmontage

Material:

AL6063+PC/PMMA

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Eloxiert/Malerei

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, PMMA Diffuser, End Cap

Compatible Accessories System

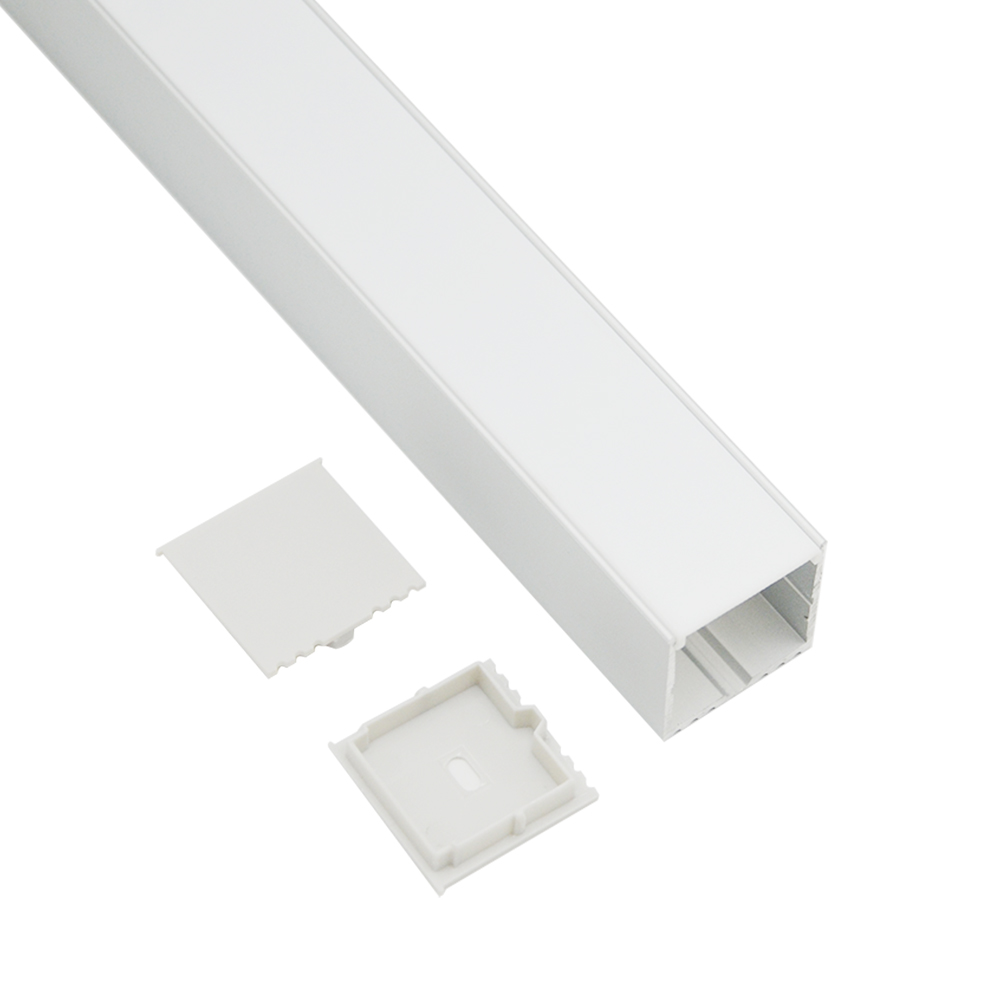

018 End Cap

018 End Cap

017 cover

017 cover

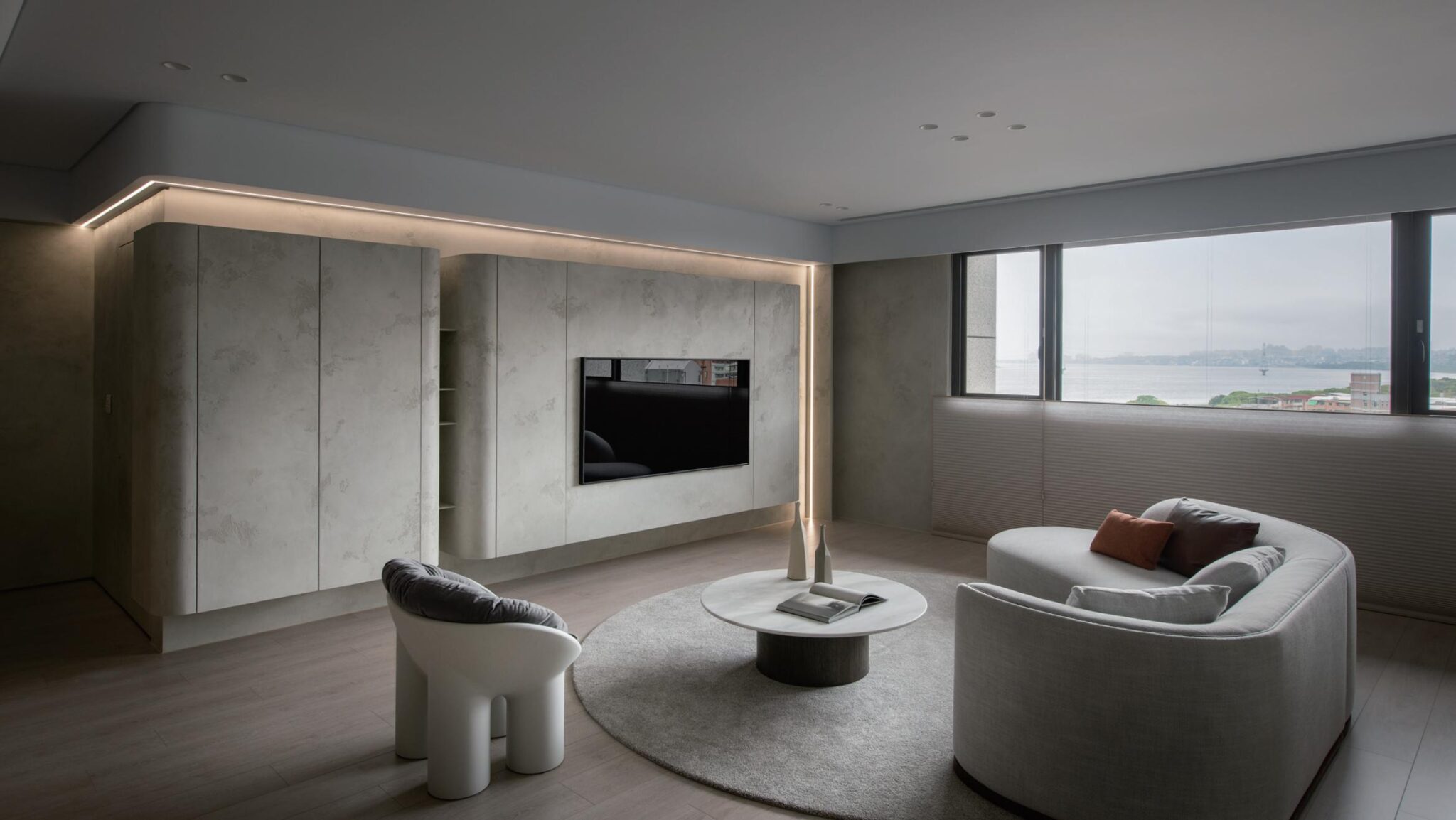

HL-BAPL018 Anwendung

City:

Auf dem florierenden New Yorker Markt für hochwertige Wohnraumbeleuchtung (mit einem jährlichen Wachstum von 6,5%) hebt die HL-BAPL018 **LED-Wandleiste** die Ästhetik des Wohnzimmers hervor - ideal für die Akzentuierung von TV-Hintergründen oder Deckenvouten. Ihr AL6063-Aluminium gewährleistet eine hervorragende Wärmeableitung für eine lange LED-Lebensdauer, während die 32-mm-Lichtquelle und der importierte PC/PMMA-Diffusor ein gleichmäßiges, weiches Umgebungslicht erzeugen. Die schraubenlosen Endkappen und die werkzeuglose Installation vereinfachen die Einrichtung für Innenausstatter. Da die Hausbesitzer in New York eine moderne Beleuchtung bevorzugen, bietet diese Stromschiene eine Kombination aus Langlebigkeit, schlankem Design und Funktionalität, um die Marktnachfrage zu erfüllen.


  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.
Hersteller von LED-Profilen

Wholesale/purchasing process

Sind Sie bereit, dieses Profil - HL-BAPL002 - in Ihr Projekt zu integrieren? Sehen Sie sich unseren Beschaffungsleitfaden unten an.

Ist dieses HL-BAPL018-Profil die LED-Wandschiene, die Sie suchen?
Nehmen Sie noch heute Kontakt mit uns auf, und wir helfen Ihnen, wo wir nur können!

Helian LED-Profile Herstellung
Helian LED-Profile Herstellung

FAQs

Vielleicht möchten Sie auch die Informationen für den Großeinkauf oder die individuelle Gestaltung von LED-Lichtkanälen kennen.

Our standard warehouse stocking lengths are 1.0m, 2.0m, and 2.5m. For large-scale architectural projects, we provide professional precise factory-cutting services. You can submit your detailed shop drawings to our engineering team to get pre-cut profiles at specific lengths or 45-degree mitered angles to reduce on-site installer labor.
All Helian linear channels are extruded from architectural-grade 6063-T5 aluminum alloy with an anodized surface treatment. This structural configuration offers high thermal conductivity, successfully serving as a heavy-duty heat sink. It efficiently dissipates heat generated by high-density flexible or rigid LED strips up to 15W/m, preventing lumen depreciation and extending the LED lifespan over 50,000 hours.

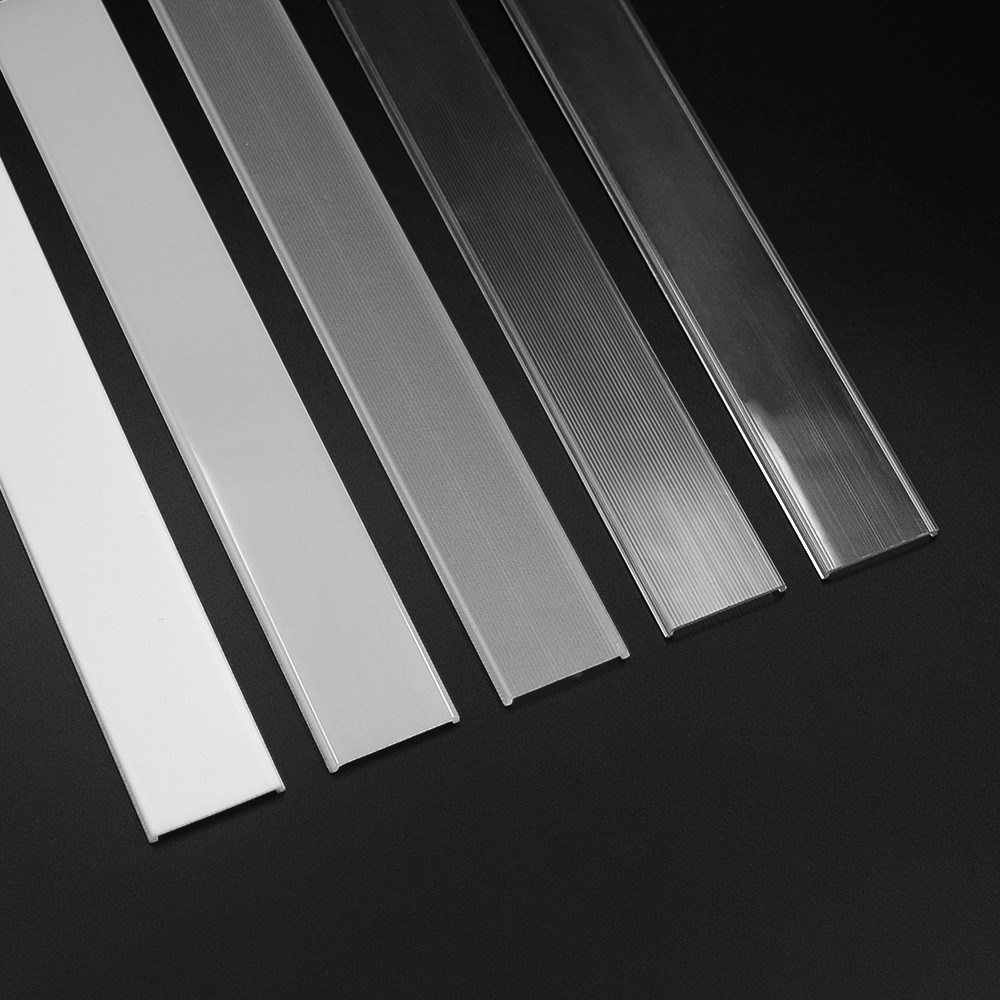

We strictly use premium, UV-stabilized Polycarbonate (PC) or optical PolyMethyl Methacrylate (PMMA) from Tier-1 global raw material suppliers. Our frosted/opal covers ensure up to 85% light transmittance, and our specialized clear optical lenses exceed 90% transmittance. The raw materials are UV-protected, ensuring the diffuser will not yellow, crack, or turn brittle during long-term continuous operation in commercial lighting indoor environments.
By default, each standard packaging unit includes 2 end caps (1 blank, 1 with a wire hole) and 2 standard metal mounting clips per meter. For specific structural mounting methods—such as suspended spring clips, drywall mud-in components, or linear continuous connectors—please consult our project specialists. To guarantee optimal performance, please check the "Lighting Source Width" parameter listed in our specifications table to ensure your LED strip's outer PCB fits perfectly inside the inner aluminum track.
