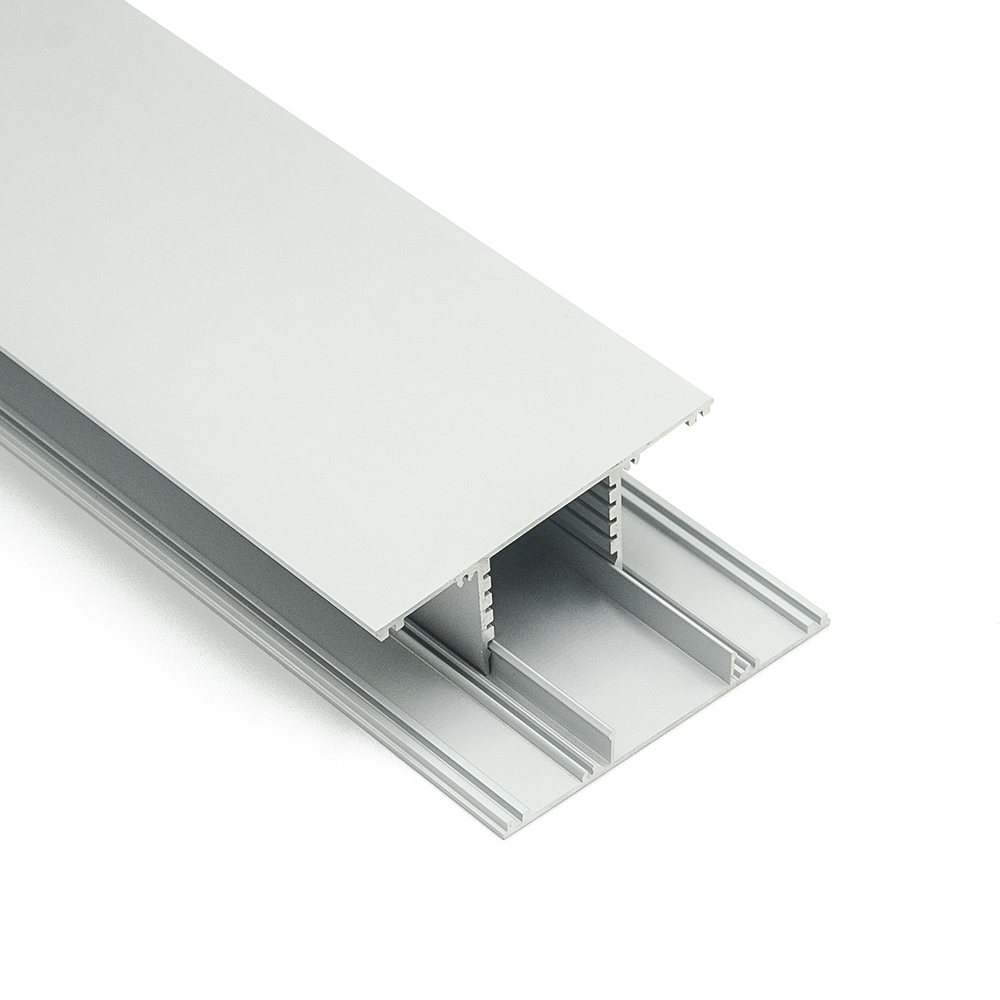

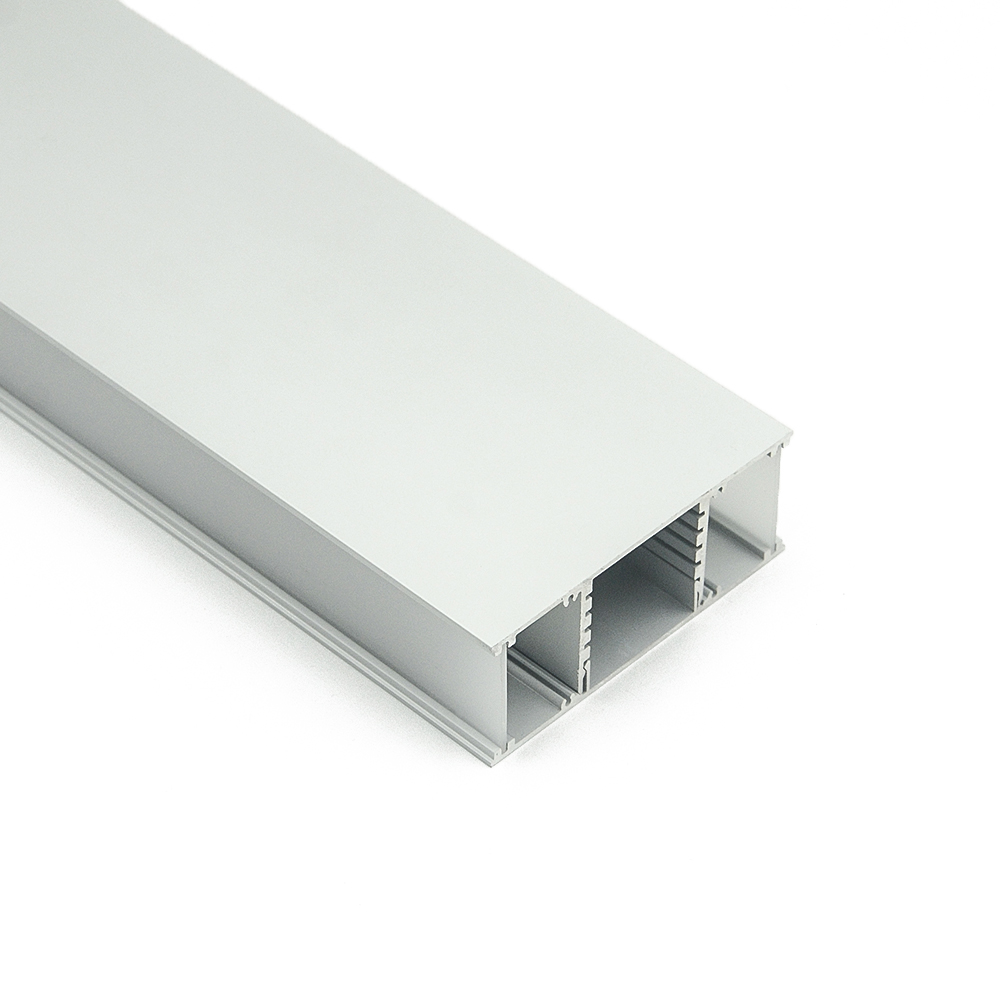

HL-BAPL062 Aluminum bi-directional LED profile | 27mm | Hotel & KTV Decor

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Modell: HL-BAPL062

Profile size:W:32.7mm * H: 85mm

PCB width: 27 mm

Installation:Surface Mount

REQUEST A BULK QUOTE Download PDF Spec

1-Year Warranty | CE & RoHS Certified.

Wholesale Pricing Available Upon Request

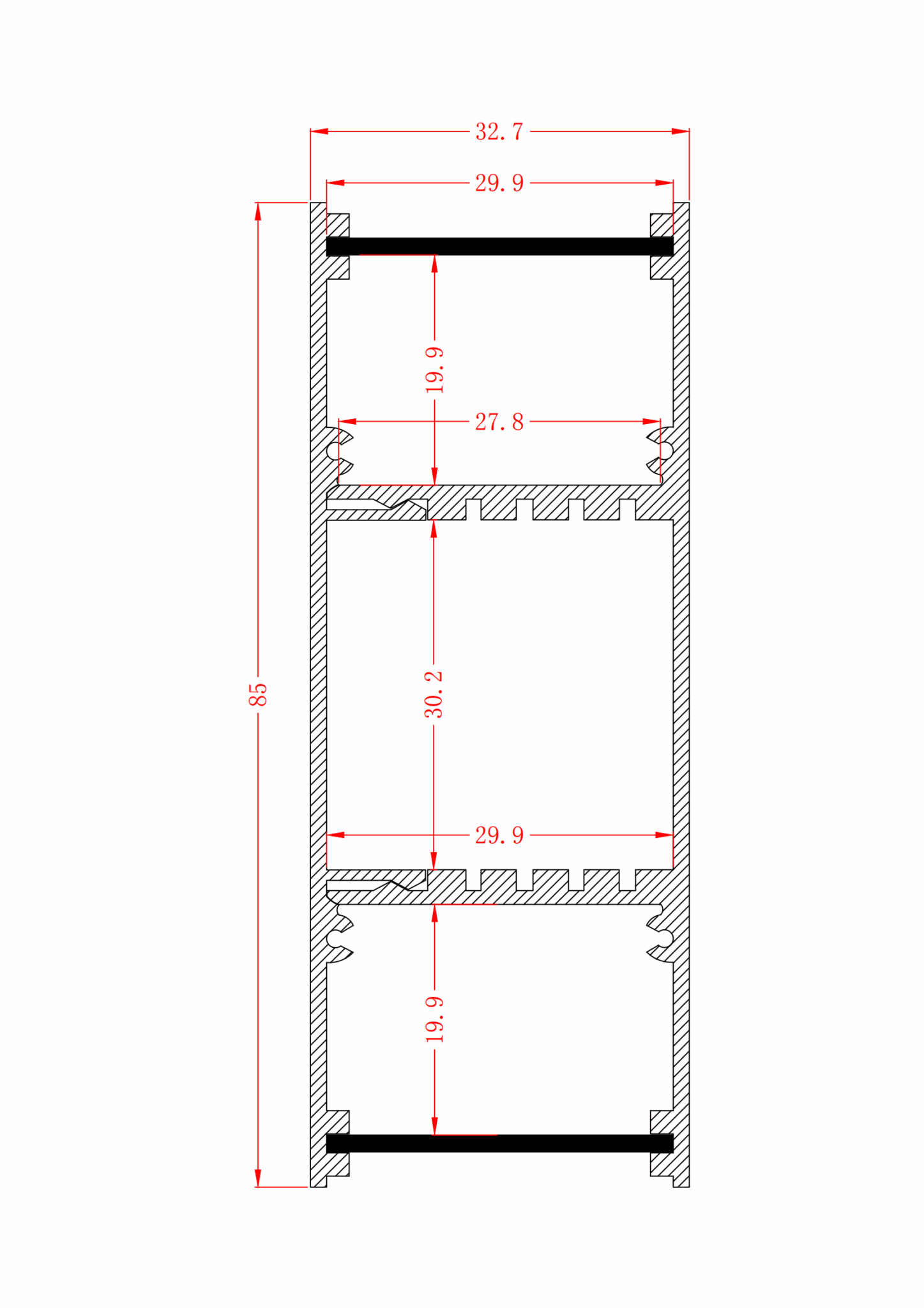

BAPL062 Äußere Abmessungen

Technische Daten

Modell:

HL-BAPL062

Profile size:

B:32,7mm * H: 85mm

PCB width:

27 mm

Einbau:

Oberflächenmontage

Material:

AL6063+PC

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Eloxiert/Malerei

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, End Cap

Compatible Accessories System

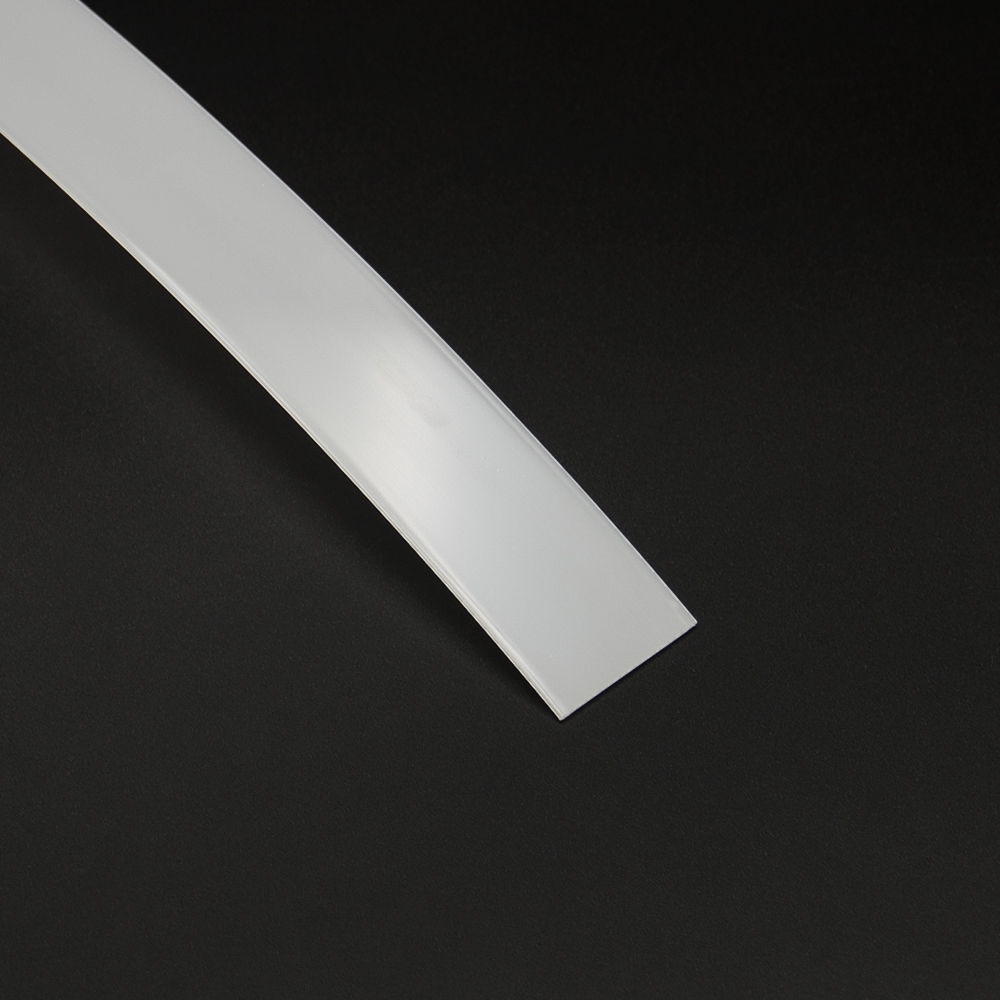

062 cover

062 cover

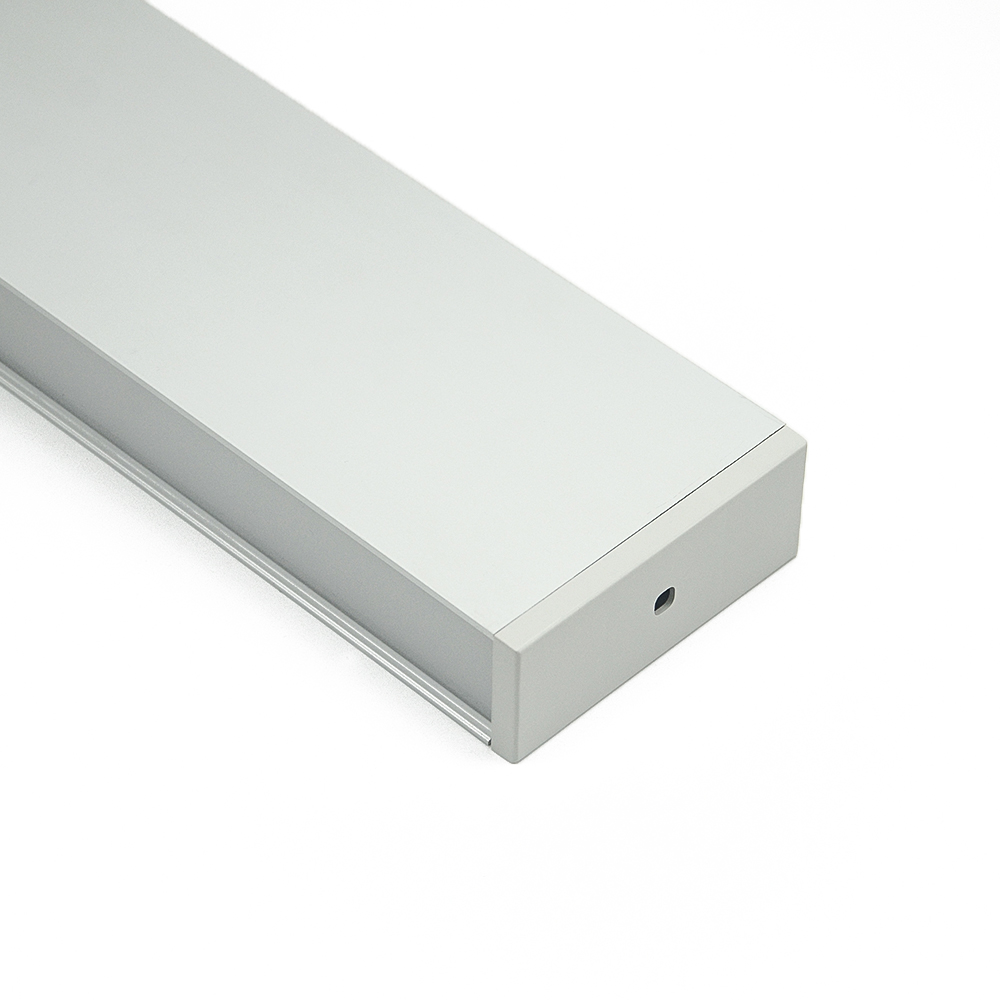

062 End Cap

062 End Cap

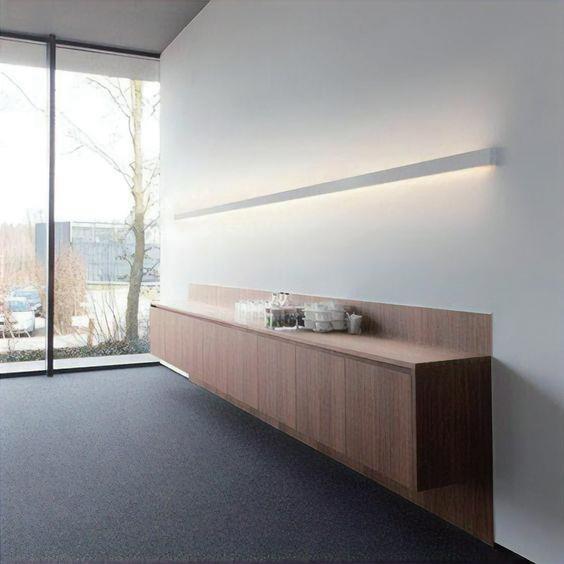

HL-BAPL062 Anwendung

City:

Auf dem boomenden Markt für Hoteldekoration in Dubai erstrahlt das **Aluminium bi-direktionale LED-Profil** HL-BAPL062 in den Fluren von Luxushotels. Sein AL6063-Aluminium gewährleistet eine erstklassige Wärmeableitung für den 24/7-Betrieb, während der importierte PC-Diffusor ein gleichmäßiges, weiches Licht abgibt, das die Atmosphäre verbessert. Die Lichtbreite von 27 mm passt perfekt zu den Abmessungen des Korridors, und die maximale Länge von 4 m deckt lange Strecken nahtlos ab. Die schraubenlosen, geschlossenen Endkappen ermöglichen eine schnelle Installation - ideal für die Renovierung von Hotels - und machen die Leuchte zur ersten Wahl für Kunden im Gastgewerbe, die sowohl Stil als auch Effizienz suchen.


  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.
Hersteller von LED-Profilen

Wholesale/purchasing process

Sind Sie bereit, dieses Profil - HL-BAPL002 - in Ihr Projekt zu integrieren? Sehen Sie sich unseren Beschaffungsleitfaden unten an.

Ist dieses HL-BAPL062 Profil das bi-direktionale LED-Profil aus Aluminium, das Sie suchen?
Nehmen Sie noch heute Kontakt mit uns auf, und wir helfen Ihnen, wo wir nur können!

Helian LED-Profile Herstellung
Helian LED-Profile Herstellung

FAQs

Vielleicht möchten Sie auch die Informationen für den Großeinkauf oder die individuelle Gestaltung von LED-Lichtkanälen kennen.

Our standard warehouse stocking lengths are 1.0m, 2.0m, and 2.5m. For large-scale architectural projects, we provide professional precise factory-cutting services. You can submit your detailed shop drawings to our engineering team to get pre-cut profiles at specific lengths or 45-degree mitered angles to reduce on-site installer labor.
All Helian linear channels are extruded from architectural-grade 6063-T5 aluminum alloy with an anodized surface treatment. This structural configuration offers high thermal conductivity, successfully serving as a heavy-duty heat sink. It efficiently dissipates heat generated by high-density flexible or rigid LED strips up to 15W/m, preventing lumen depreciation and extending the LED lifespan over 50,000 hours.
We strictly use premium, UV-stabilized Polycarbonate (PC) or optical PolyMethyl Methacrylate (PMMA) from Tier-1 global raw material suppliers. Our frosted/opal covers ensure up to 85% light transmittance, and our specialized clear optical lenses exceed 90% transmittance. The raw materials are UV-protected, ensuring the diffuser will not yellow, crack, or turn brittle during long-term continuous operation in commercial lighting indoor environments.
By default, each standard packaging unit includes 2 end caps (1 blank, 1 with a wire hole) and 2 standard metal mounting clips per meter. For specific structural mounting methods—such as suspended spring clips, drywall mud-in components, or linear continuous connectors—please consult our project specialists. To guarantee optimal performance, please check the "Lighting Source Width" parameter listed in our specifications table to ensure your LED strip's outer PCB fits perfectly inside the inner aluminum track.
