HL-BAPL021

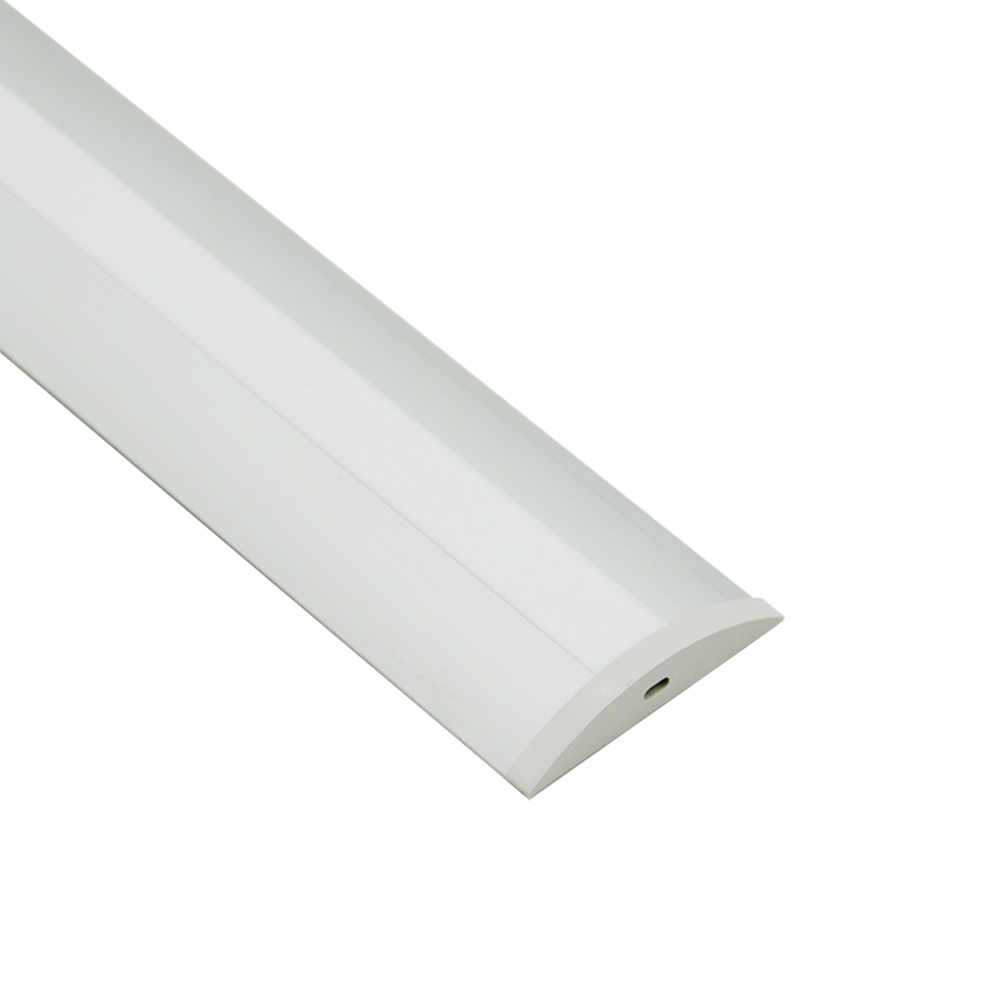

Настенный светодиодный канал HL-BAPL021 | 12 мм для освещения общественных мест

🟢 In Stock & Ready for Rapid Dispatch (Standard Qty)

Модель: HL-BAPL021

Profile size:W: 55.9mm * H: 10mm

PCB width: 12 mm

Installation:Surface Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

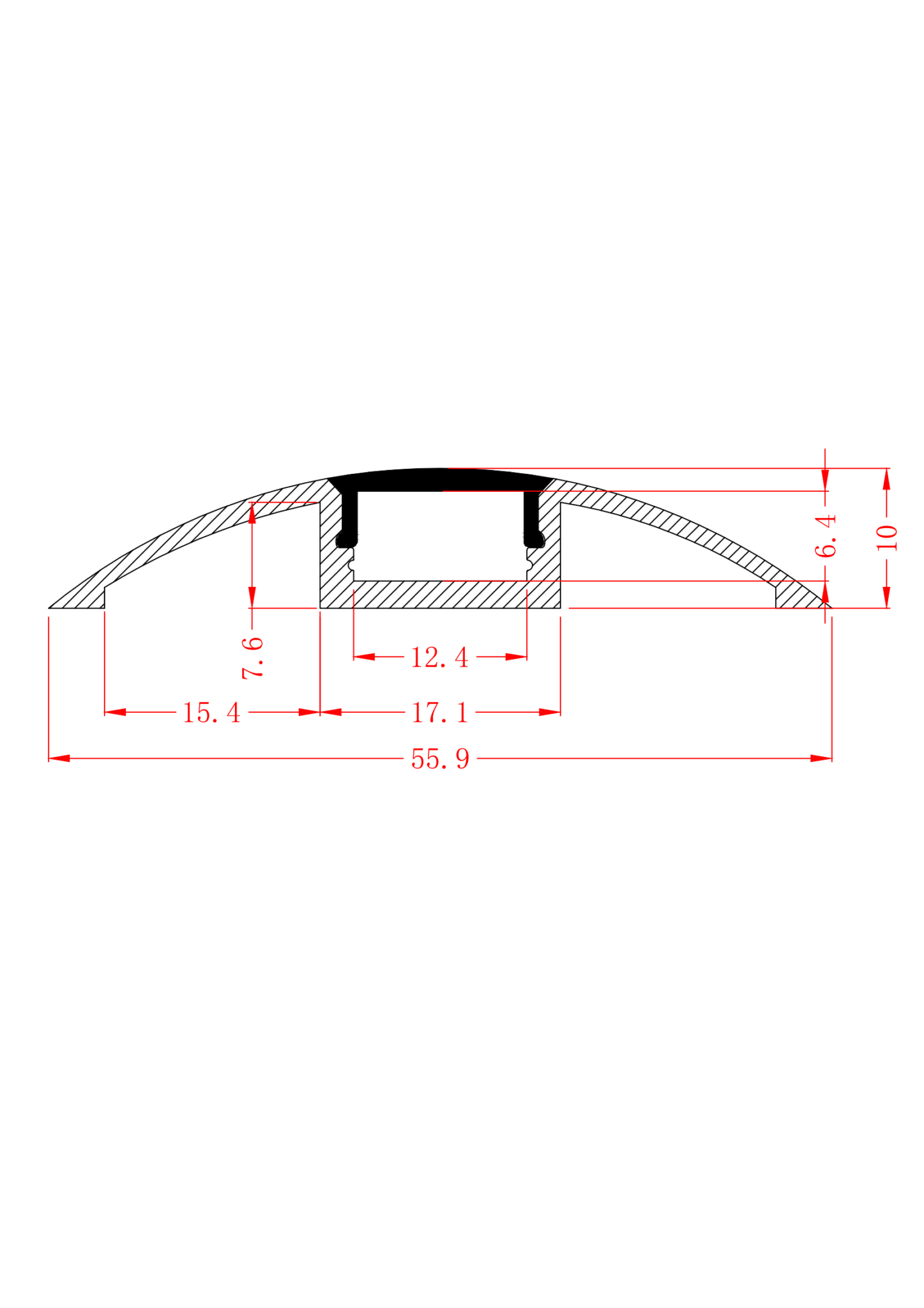

BAPL021 Dimension drawing

Технические характеристики

Модель:

HL-BAPL021

Profile size:

Ш: 55,9 мм * В: 10 мм

PCB width:

12 мм

Установка:

Монтаж на поверхность

Материал:

AL6063+PC/PMMA

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Анодирование/окрашивание

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, PMMA Diffuser, End Cap, Clip

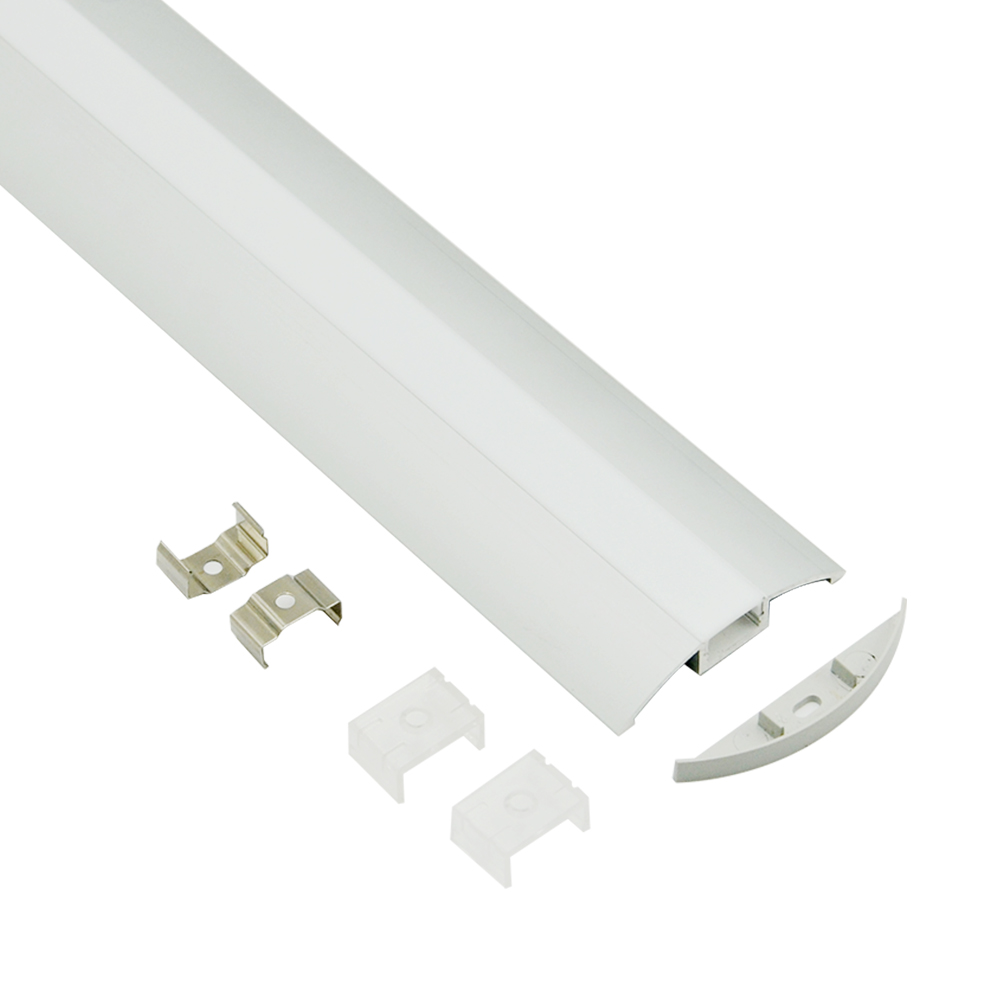

Compatible Accessories System

001 Cover

001 Cover

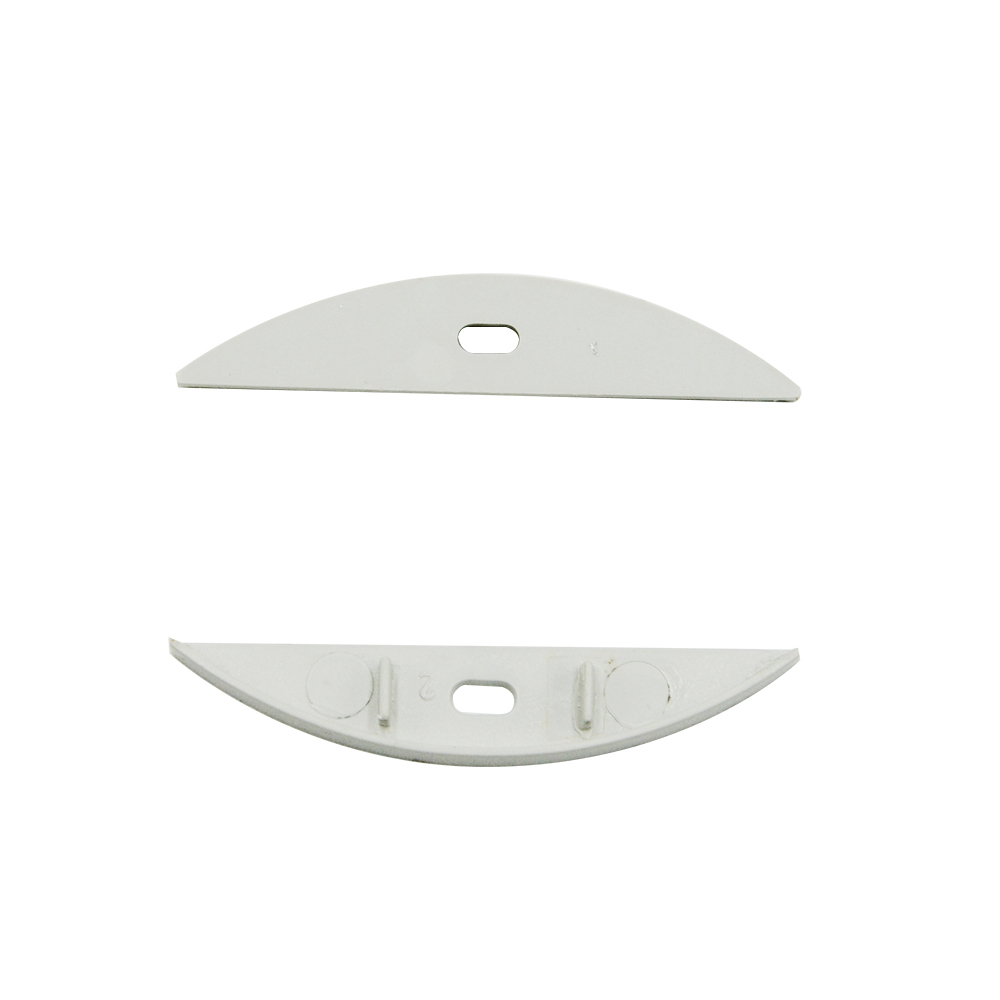

021 End Cap

021 End Cap

002/004 Plastic Clips

002/004 Plastic Clips

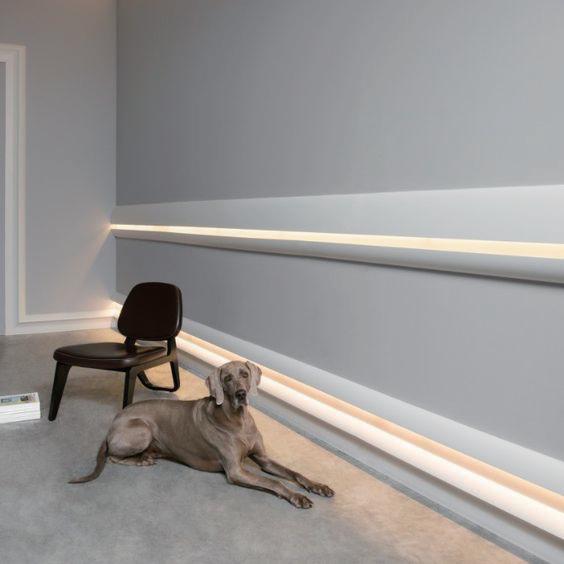

HL-BAPL021 Приложение

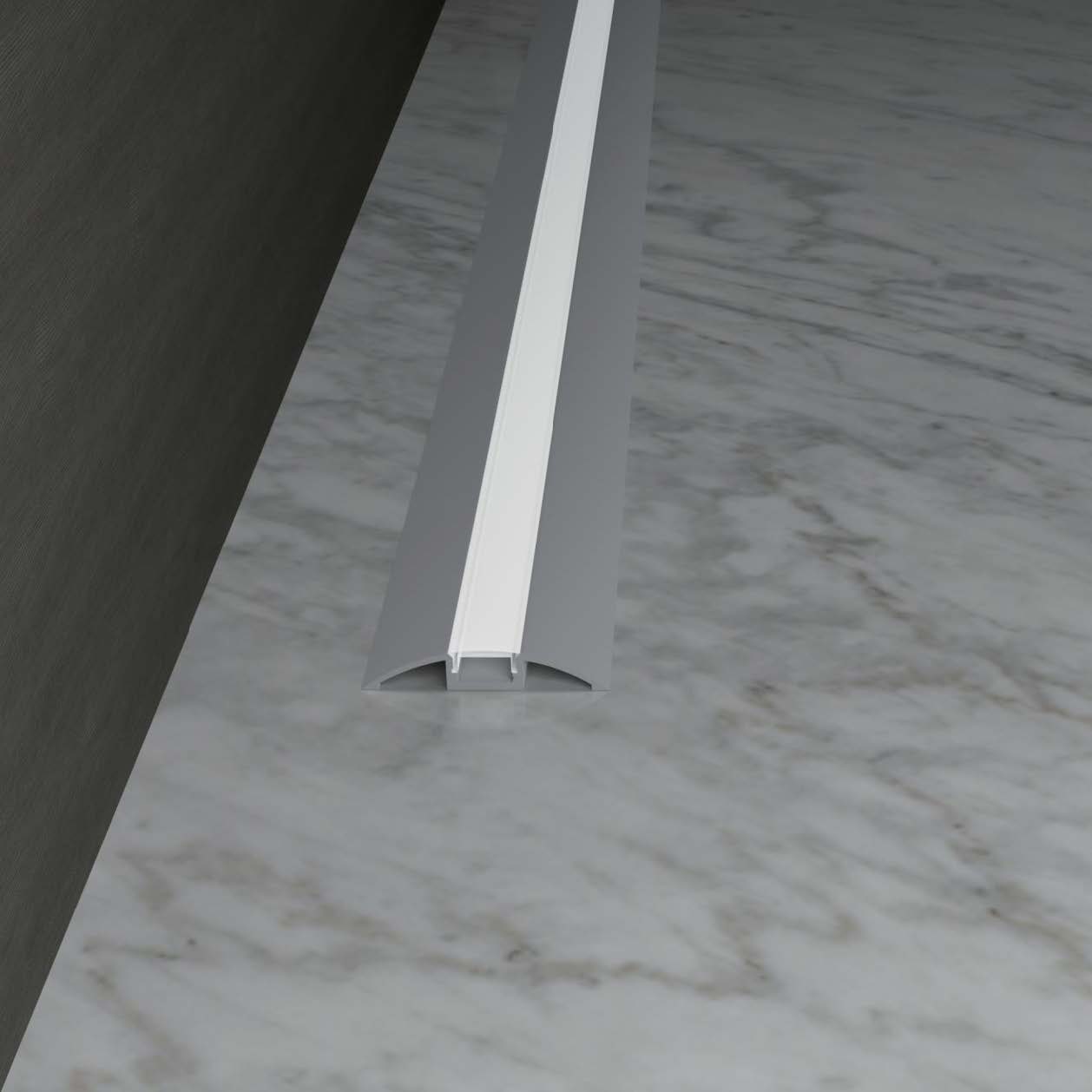

Surface-mount linear lighting

Mounted on the surface, the channel sits as a slim line that lights the area in front of it.

  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.

Является ли этот профиль HL-BAPL021 тем самым настенным светодиодным каналом, который вы ищете?
Свяжитесь с нами сегодня, и мы поможем вам всем, чем сможем!

Получить цитату сейчас
Производство светодиодных профилей Helian
Производство светодиодных профилей Helian

Вопросы и ответы

Возможно, вы также захотите узнать эту информацию при покупке оптом или изготовлении на заказ светодиодных световых каналов.

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.
Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.
European market: CE & ROHS certified. North American market: UL certified.
Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

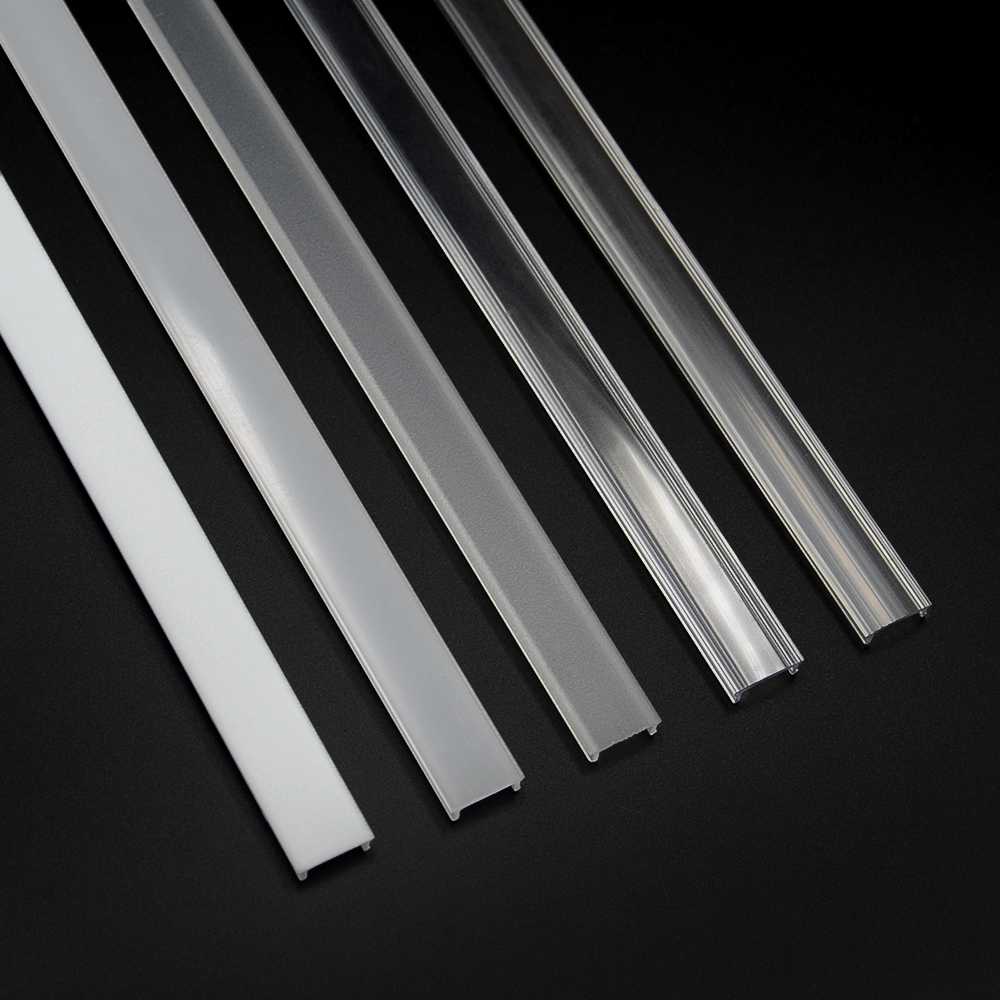

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.
Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.
Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
