Положение :
HL-BAPL064C

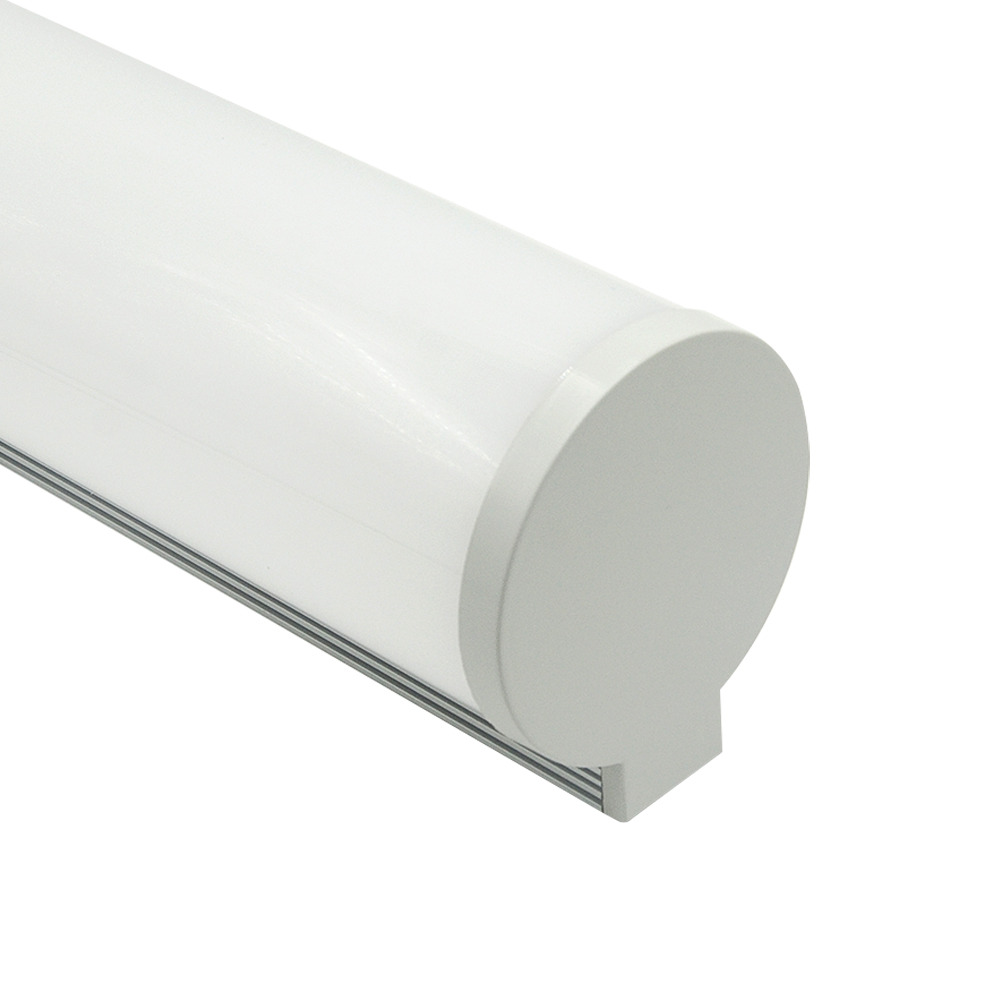

Round Tall LED Profile Ø116mm – HL-BAPL064C

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Model: HL-BAPL064C

Profile size:W:35mm * H: 23mm(φ100）

PCB width: 24mm

Installation:Suspended Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

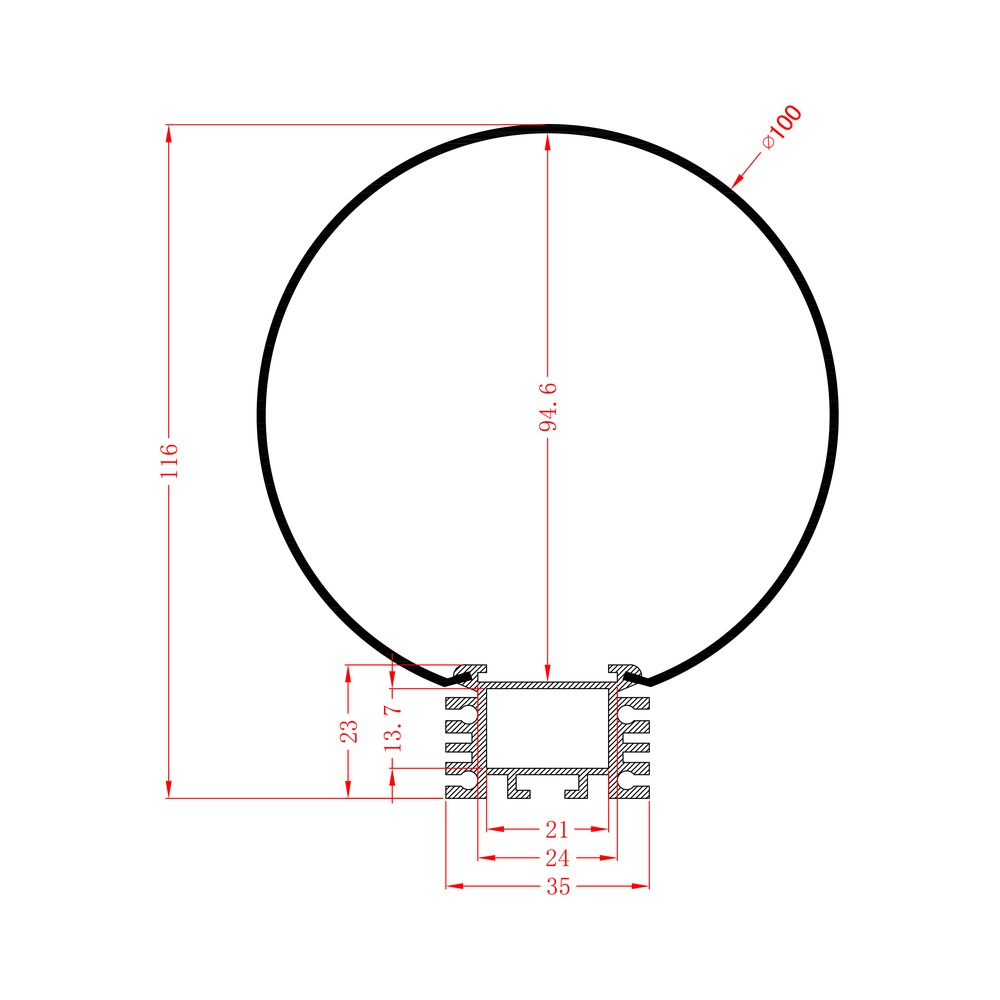

HL-BAPL064C dimension drawing - 216×116mm LED profile cross-section and dimensions

Технические характеристики

Модель:

HL-BAPL064C

Profile size:

W:35mm * H: 23mm(φ100）

PCB width:

24mm

Установка:

Подвесное крепление

Материал:

Алюминий 6063 +PC

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Анодирование/окрашивание

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, End Cap, Clip

Compatible Accessories System

069-A Cover

069-A Cover

069A End Cap

069A End Cap

Suspended Rope HL-DS004

Suspended Rope HL-DS004

Spring Clip

Spring Clip

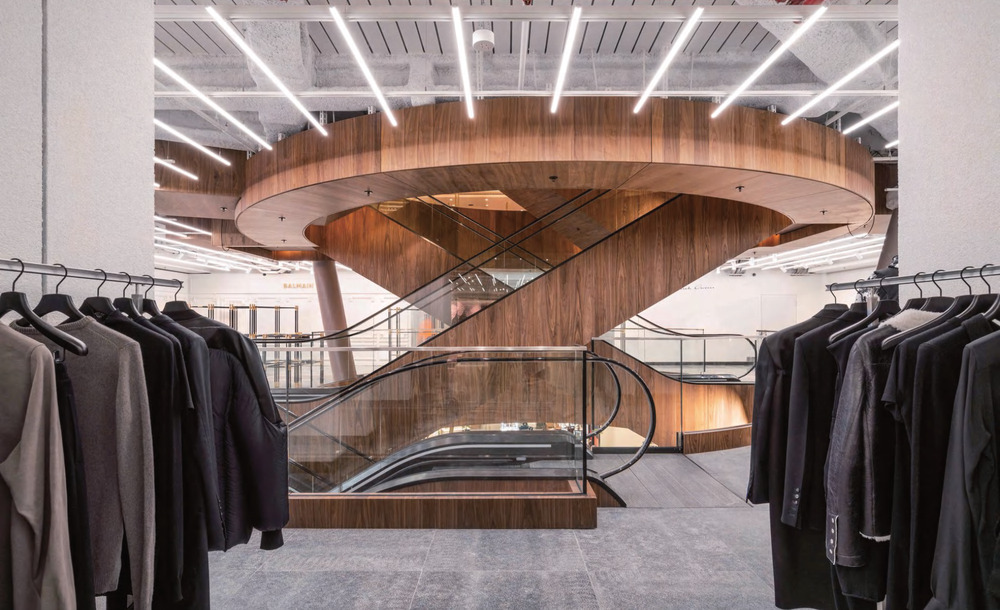

Round tall LED profile HL-BAPL064C - installed application example

Wide-body linear lighting

A wide body takes a high-output strip and turns it into primary lighting.

  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.

Is this HL-BAPL064C profile the round tall LED profile you are looking for?
Свяжитесь с нами сегодня, и мы поможем вам всем, чем сможем!

Получить цитату сейчас
Производство светодиодных профилей Helian
Производство светодиодных профилей Helian

Вопросы и ответы

Возможно, вы также захотите узнать эту информацию при покупке оптом или изготовлении на заказ светодиодных световых каналов.

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.
Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.
European market: CE & ROHS certified. North American market: UL certified.
Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.
Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.
Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
