HL-BAPL064B

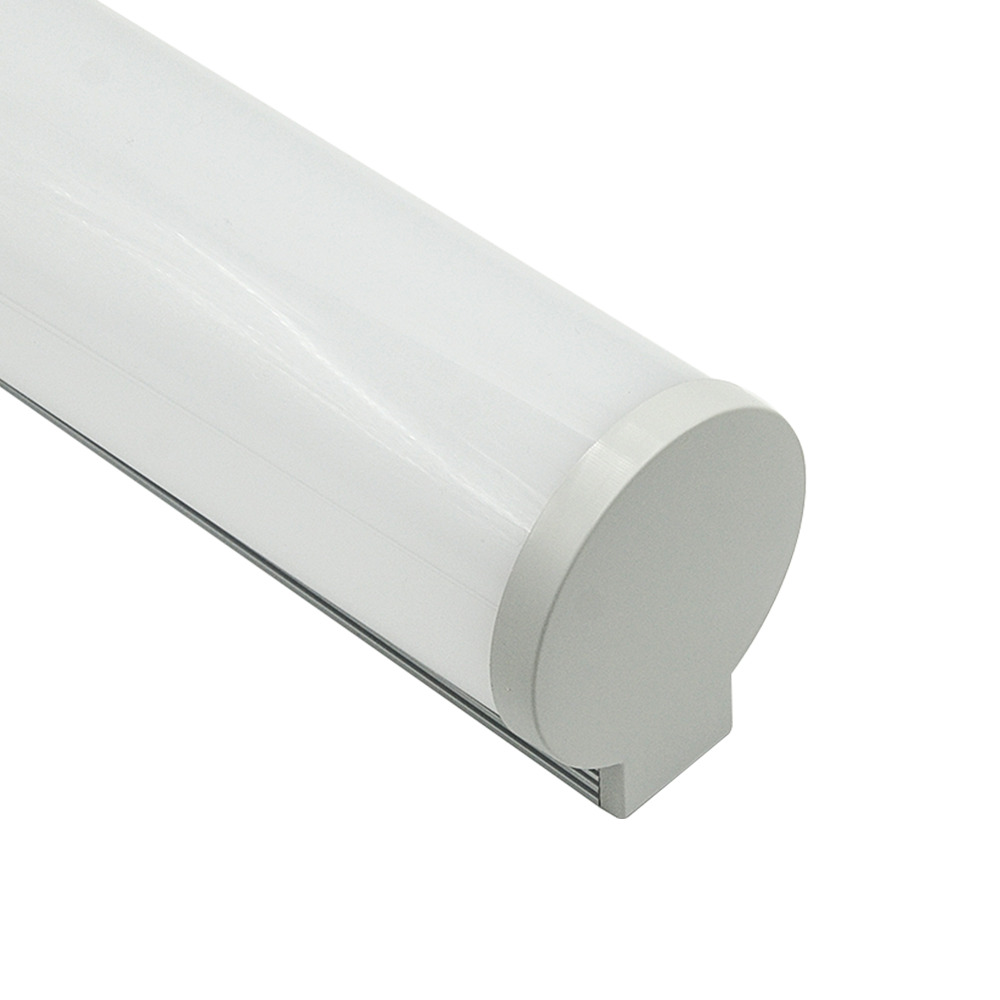

Round Deep LED Profile – Aluminum Channel HL-BAPL064B

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Model: HL-BAPL064B

Profile size:W:35mm * H: 96mm（φ100）

PCB width: 24mm

Installation:Suspended Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

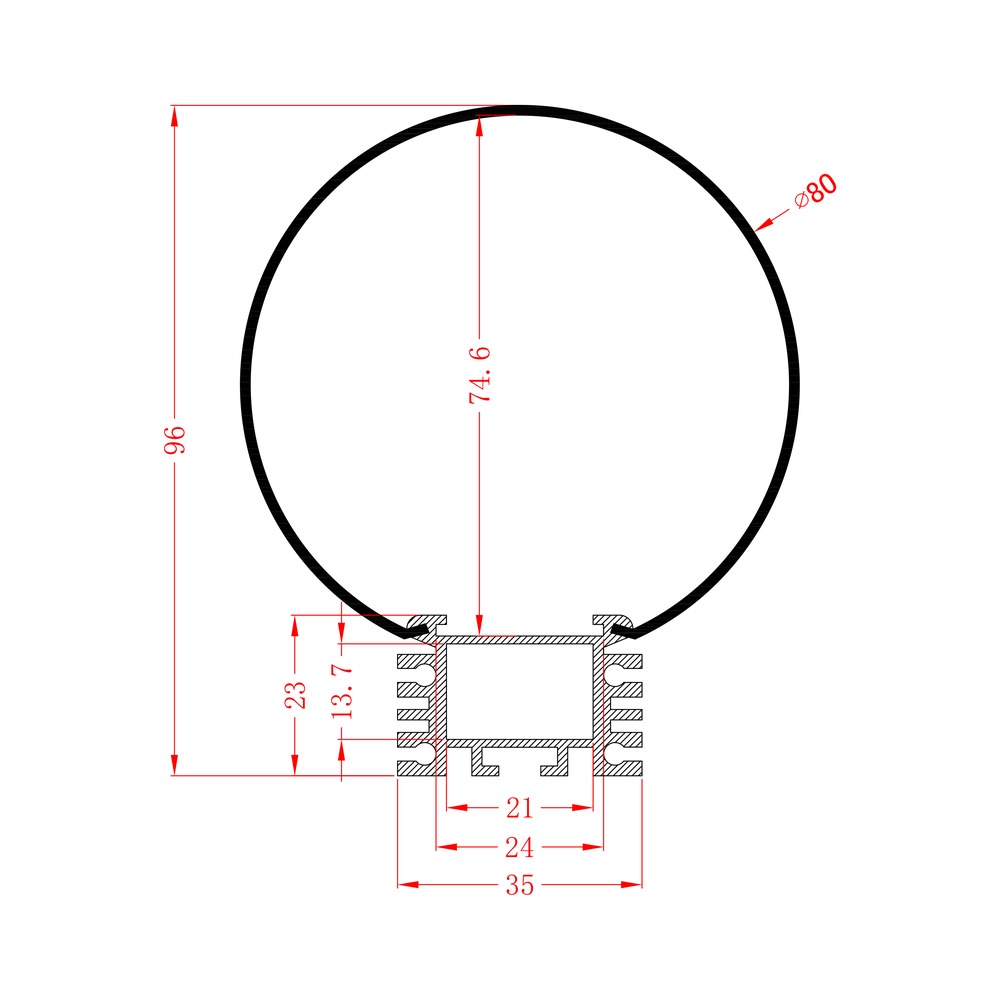

HL-BAPL064B dimension drawing - 35×96mm LED profile cross-section and dimensions

Технические характеристики

Модель:

HL-BAPL064B

Profile size:

W:35mm * H: 96mm（φ100）

PCB width:

24mm

Установка:

Подвесное крепление

Материал:

Алюминий 6063 +PC

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Анодирование/окрашивание

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, End Cap, Clip, Suspended Rope

Compatible Accessories System

064B End Cap

064B End Cap

064-A Cover

064-A Cover

Furring Strips

Furring Strips

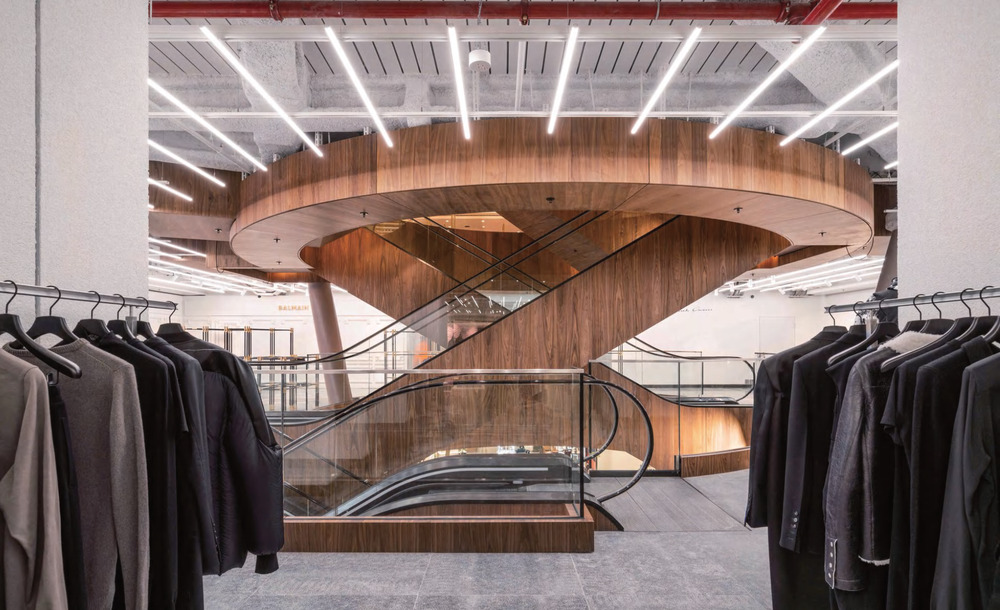

Round deep LED profile HL-BAPL064B - installed application example

Suspended linear lighting

Hung on suspension cables, the channel becomes the line of light itself, floating below the ceiling.

  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.

Is this HL-BAPL064B profile the round deep LED profile you are looking for?
Свяжитесь с нами сегодня, и мы поможем вам всем, чем сможем!

Получить цитату сейчас
Производство светодиодных профилей Helian
Производство светодиодных профилей Helian

Вопросы и ответы

Возможно, вы также захотите узнать эту информацию при покупке оптом или изготовлении на заказ светодиодных световых каналов.

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.
Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.
European market: CE & ROHS certified. North American market: UL certified.
Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.
Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.
Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
