Положение :
HL-A002

Потолочный светодиодный профиль - HL-A002 Алюминиевый канал

🟢 In Stock & Ready for Rapid Dispatch (Standard Qty)

Модель: HL-A002

Profile size:W:139.5mm * H: 17.7mm

PCB width: max 13mm/ max 7mm

Installation:Recessed Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

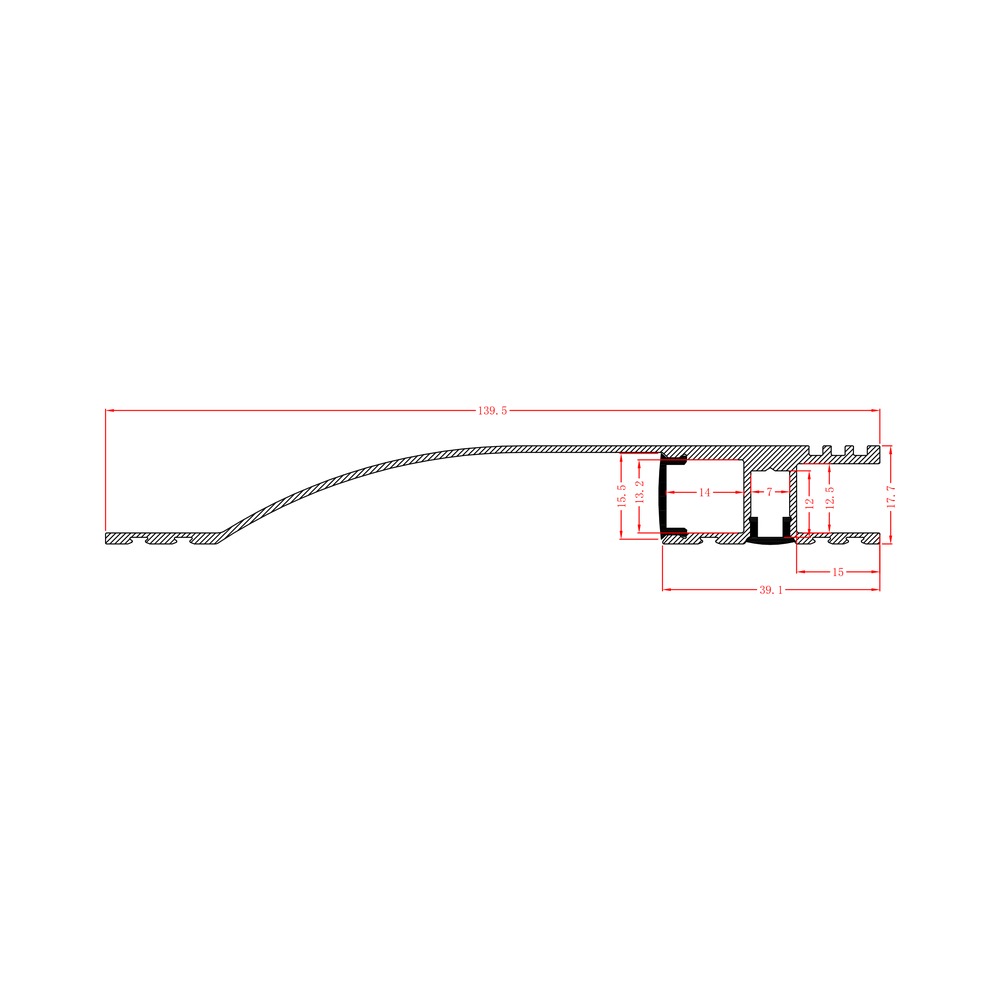

A002 Dimension drawing

Технические характеристики

Модель:

HL-A002

Profile size:

Ш:139.5 мм * В: 17.7 мм

PCB width:

макс 13 мм/ макс 7 мм

Установка:

Встраиваемый монтаж

Материал:

AL6063+PC/PMMA

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Анодирование/окрашивание

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, PMMA Diffuser

Compatible Accessories System

001 Cover

001 Cover

002s Cover

002s Cover

Светодиодный профильный потолочный светильник - применение HL-A002

Recessed linear lighting

Recessed into the surface, the channel disappears and leaves only a clean line of light.

  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.

Is this HL-A002 profile the LED Profile Lighting Ceiling you are looking for?
Свяжитесь с нами сегодня, и мы поможем вам всем, чем сможем!

Получить цитату сейчас
Производство светодиодных профилей Helian
Производство светодиодных профилей Helian

Вопросы и ответы

Возможно, вы также захотите узнать эту информацию при покупке оптом или изготовлении на заказ светодиодных световых каналов.

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.
Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.
European market: CE & ROHS certified. North American market: UL certified.
Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.
Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.
Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
