Положение :
HL-BAPL034

HL-BAPL034 LED Lens Profile with Clear PMMA Optics

🟢 In Stock & Ready for Rapid Dispatch (Standard Qty)

Модель: HL-BAPL034

Profile size:W:19.6mm * H: 17.8mm

PCB width: 16 mm

Installation:Surface Mount, Recessed Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

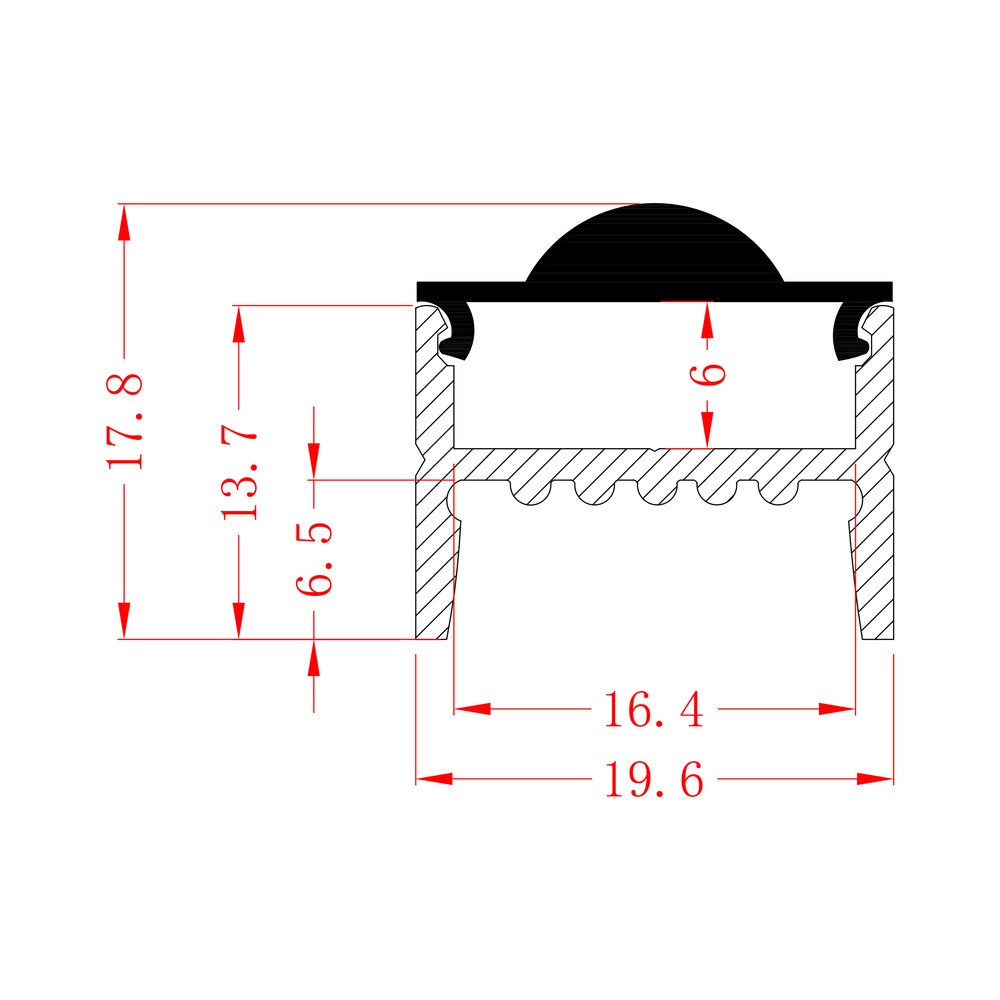

BAPL034 Dimension drawing

Технические характеристики

Модель:

HL-BAPL034

Profile size:

Ш: 19,6 мм * В: 17,8 мм

PCB width:

16 мм

Установка:

Поверхностный монтаж, встраиваемый монтаж

Материал:

AL6063+PMMA

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Анодирование/окрашивание

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PMMA Diffuser, End Cap, Clip

Compatible Accessories System

012 Cover

012 Cover

025 Plastic Clip

025 Plastic Clip

034 End Cap

034 End Cap

HL-BAPL034 Применение алюминиевого профиля

Lens-profile lighting

The lens controls the beam for crisp, focused output along the full run.

  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.

Является ли этот профиль HL-BAPL034 тем профилем светодиодной линзы, который вы ищете?
Свяжитесь с нами сегодня, и мы поможем вам всем, чем сможем!

Получить цитату сейчас
Производство светодиодных профилей Helian
Производство светодиодных профилей Helian

Вопросы и ответы

Возможно, вы также захотите узнать эту информацию при покупке оптом или изготовлении на заказ светодиодных световых каналов.

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.
Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.
European market: CE & ROHS certified. North American market: UL certified.
Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.
Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.
Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
