HL-1213A1

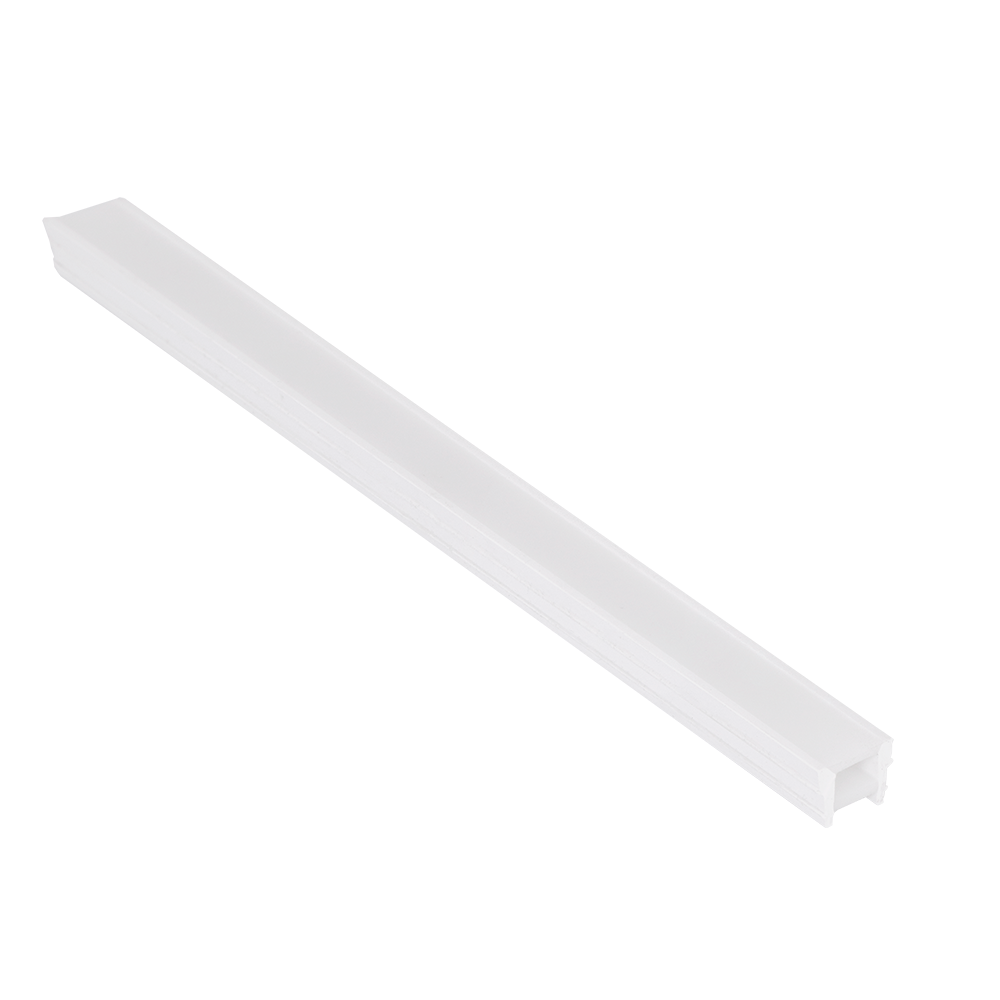

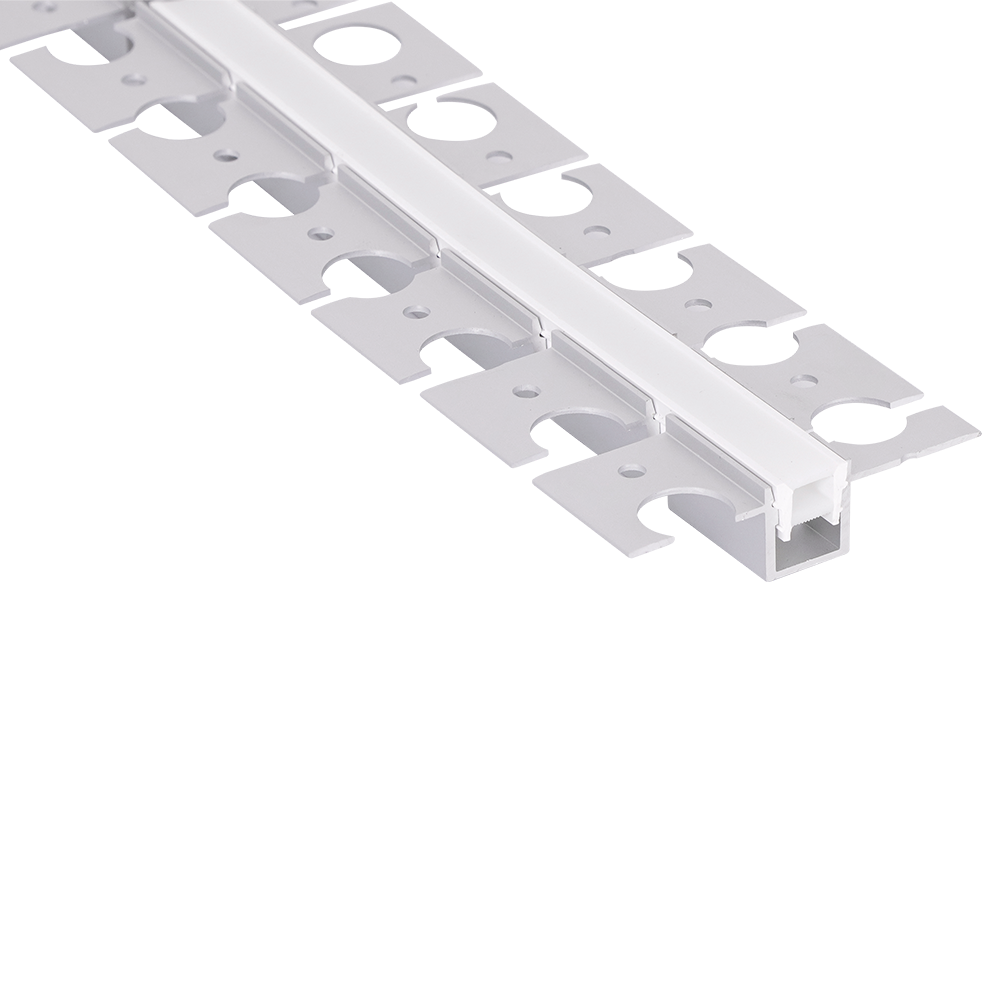

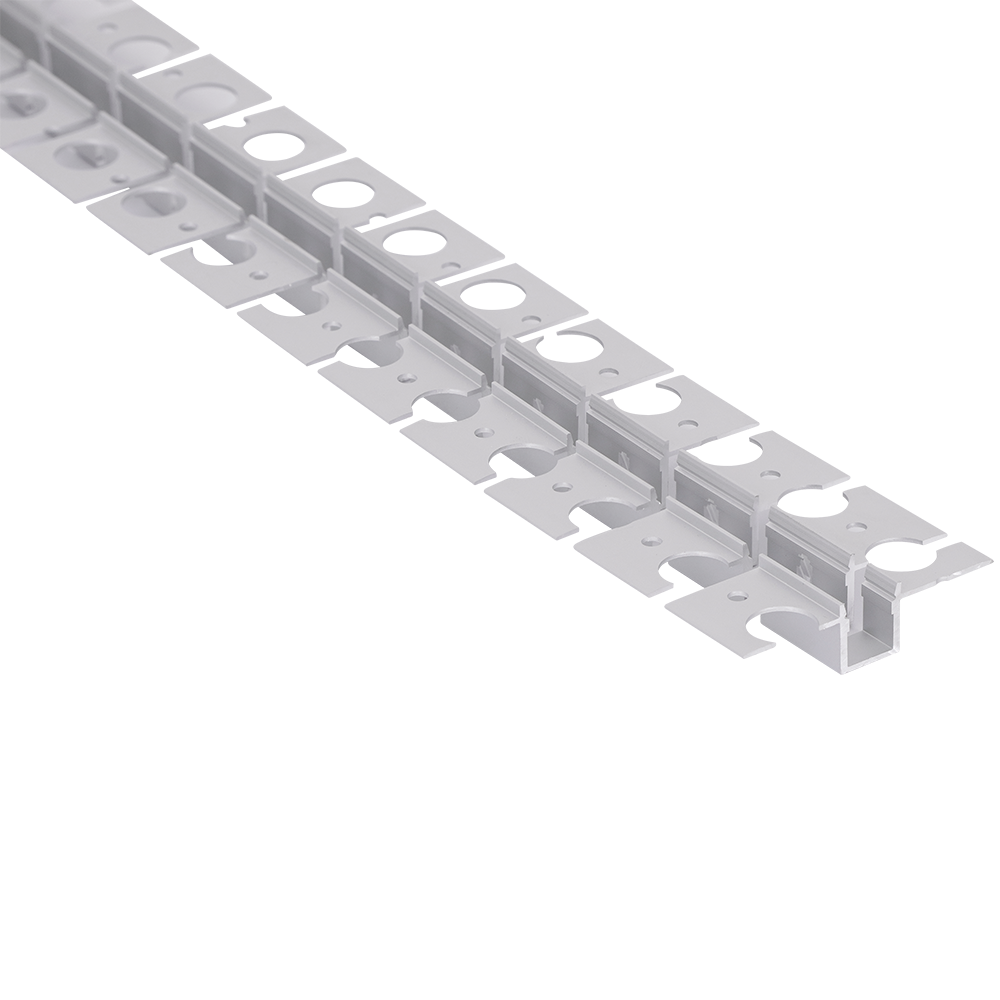

Кабинетный светодиодный профиль HL-1213A1, ширина 9 мм, длина 4 м, простая установка для офисов и конференц-залов

🔵 Project Base: 15-25 Days Flexible Production

Модель: HL-1213A1

Profile size:W:52.3mm * H: 13.5mm

PCB width: 9 mm

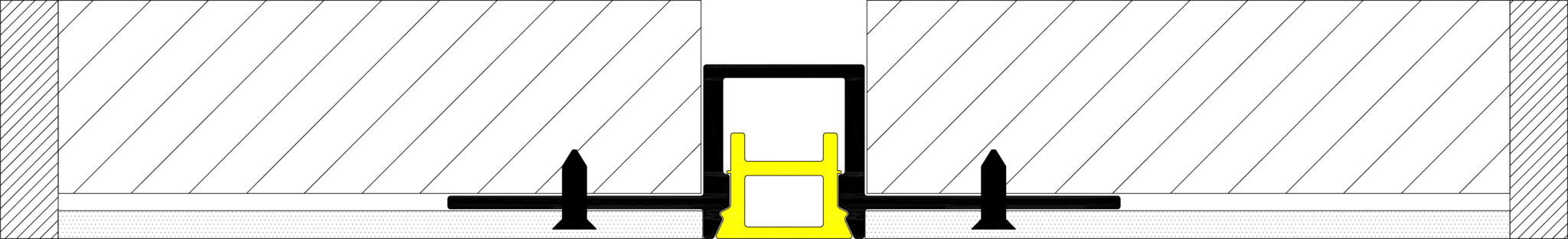

Installation:Recessed Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

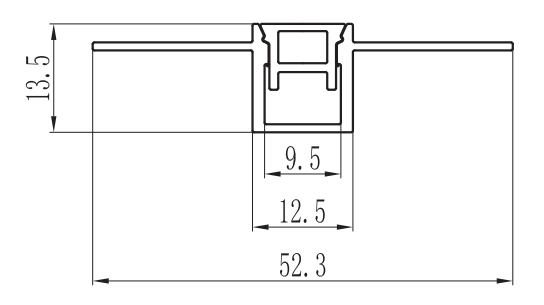

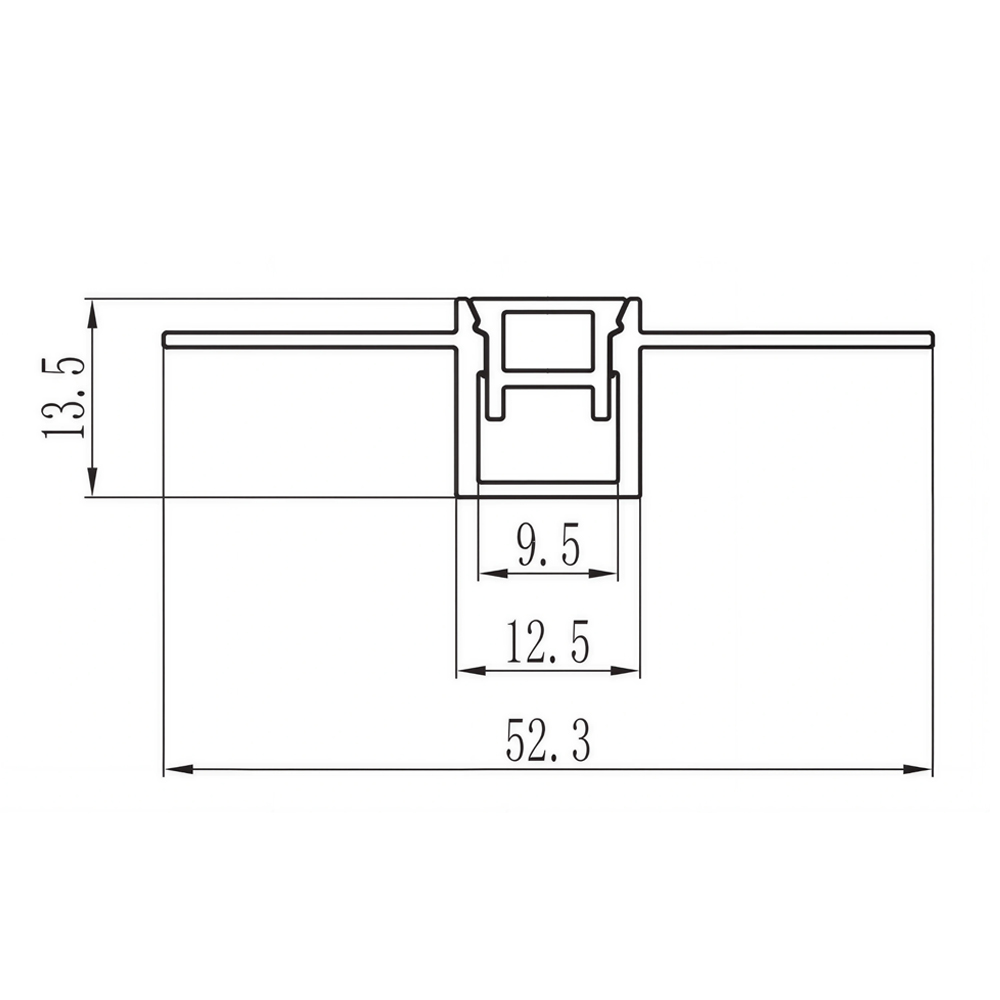

1213A1 Dimension drawing

Технические характеристики

Модель:

HL-1213A1

Profile size:

W:52.3mm * H: 13.5mm

PCB width:

9 мм

Установка:

Встраиваемый монтаж

Материал:

AL6063-T5+силикон

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Анодированный

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

Silicone Diffuser

Compatible Accessories System

Silicone Cover

Silicone Cover

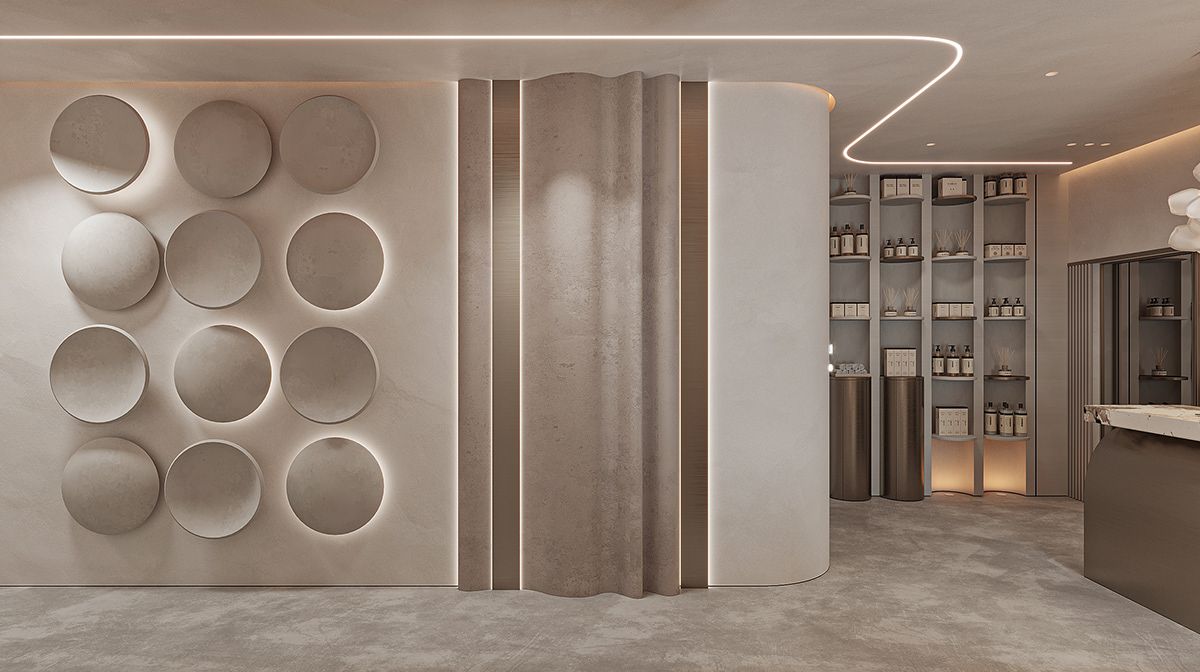

Сценарии применения HL-1213A1

Flexible curved-surface lighting

It bends to follow a curve or an undulating surface, holding an even line through the turn.

  • Dot-Free Diffused Glow
  • 6063-T5 Premium Aluminum
  • Supporting precise field cutting or factory pre-cuts.

Является ли этот профиль HL-1213A1 тем гибким светодиодным профилем, который вы ищете?
Свяжитесь с нами сегодня, и мы поможем вам всем, чем сможем!

Получить цитату сейчас
Производство светодиодных профилей Helian
Производство светодиодных профилей Helian

Вопросы и ответы

Возможно, вы также захотите узнать эту информацию при покупке оптом или изготовлении на заказ светодиодных световых каналов.

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.
Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.
European market: CE & ROHS certified. North American market: UL certified.
Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.
Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.
Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
