Perfiles LED de montaje en superficie

HL-A070

LED Channel Wall HL-A070 | 8mm Source | for Meeting Rooms

Name: LED Channel Wall HL-A070 | 8mm Source | for Meeting Rooms
Brand: Helian Iluminación LED
SKU: HL-A070

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Modelo: HL-A070

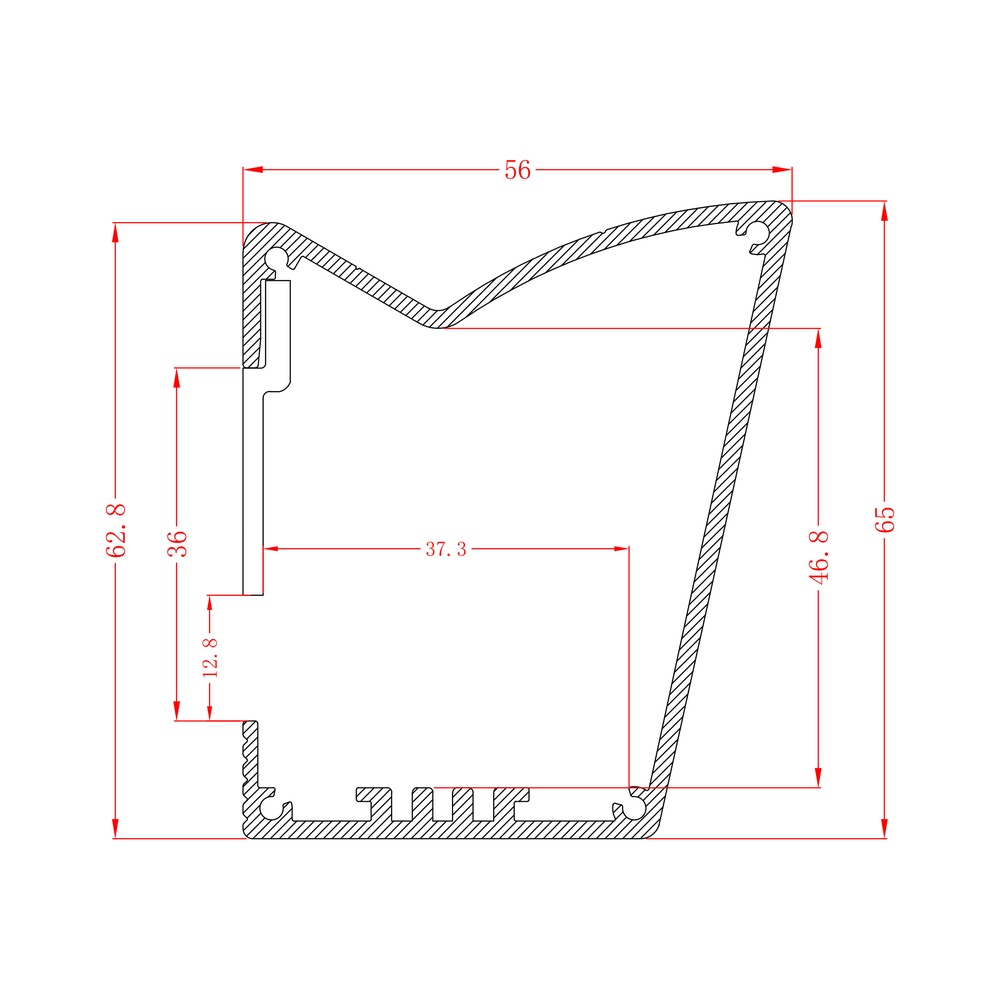

Profile size:W:56mm * H: 65mm

PCB width: 15mm

Installation:Surface Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

Especificaciones técnicas

Modelo:

HL-A070

Profile size:

W:56mm * H: 65mm

PCB width:

15 mm

Instalación:

Montaje en superficie

Material:

AL6063

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodizado/Pintura

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

Tapa final, Clip

Compatible Accessories System

HL-A070 End Cap

BAPL044A-01 Clip

Surface-mount linear lighting

Mounted on the surface, the channel sits as a slim line that lights the area in front of it.

Dot-Free Diffused Glow
6063-T5 Premium Aluminum
Supporting precise field cutting or factory pre-cuts.

¿Es este perfil HL-A070 el canal led de pared que está buscando?
Póngase en contacto con nosotros hoy mismo y le ayudaremos en todo lo que podamos.

Solicitar presupuesto

Preguntas frecuentes

Quizá también le interese conocer la información a la hora de comprar al por mayor o de personalizar los canales de luz LED.

Can I order samples before placing a bulk order?

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.

Do you offer custom cutting to my specified lengths?

Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.

What certifications do your profiles hold?

European market: CE & ROHS certified. North American market: UL certified.

What material are the profiles made of, and what diffuser options are available?

Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.

How do I check if my LED strip fits your profile?

Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.

What accessories come with the profiles?

Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
