HL-CA010-L10 Ultra-Thin Recessed LED Linear Light: Features & Installation

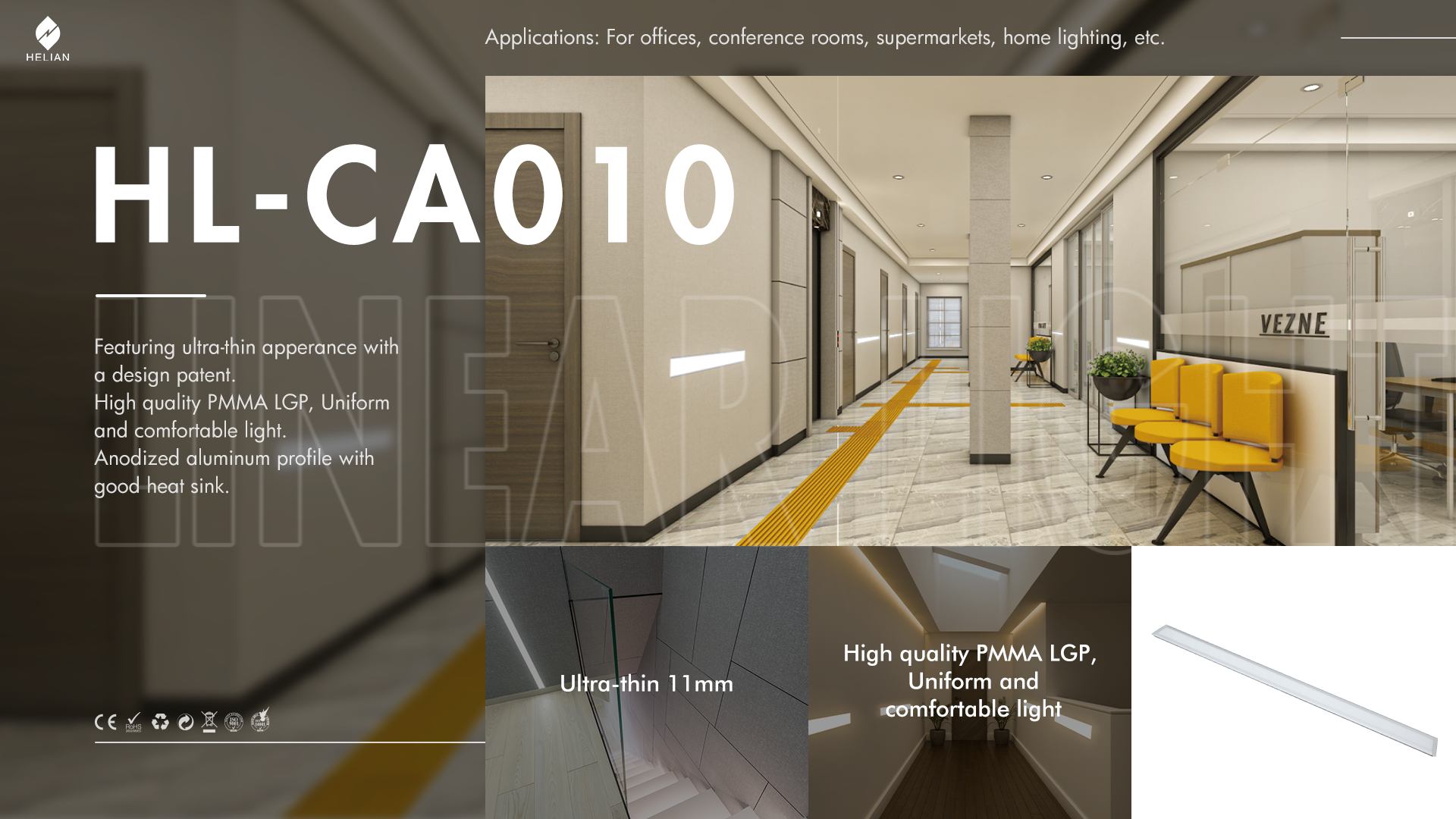

إن HELIAN HL-CA010-L10 is a patented, ultra-thin commercial linear luminaire designed for seamless integration into modern office ceilings, conference rooms, and upscale retail environments. Featuring a remarkably slim 11mm profile and high-quality PMMA Light Guide Plate (LGP) technology, it delivers exceptionally uniform, glare-free, and comfortable illumination without visible hot spots.
المواصفات الفنية
| المعلمة | Specifications |
| Model & Dimensions | HL-CA01010-L10 |
| Aesthetic Feature | Patented Ultra-Thin Appearance |
| Optical System | High-Quality PMMA LGP |
| Power & Output | 12W |
| CCT & CRI | 2700K – 6500K (Tunable White) |
| Housing & Heat Sink | Anodized Aluminum Profile |
| Voltage & Protection | AC 100-240V |
| الضمان | 3 Years |
Quick Recessed Installation Guide
As demonstrated in the video, the low-profile design allows for efficient flush-mount or recessed installation. Follow these primary architectural installation steps:
- Safety First: Ensure the main AC power supply is completely turned off before proceeding.
- Ceiling Preparation & Cutout: Prepare the ceiling surface and verify the mounting cutout distance according to the fixture dimensions.
- Clip Securing: Attach the designated mounting clips onto the anodized aluminum profile.
- Flush Mounting: Insert the ultra-thin luminaire smoothly up into the ceiling cutout until the spring clips lock firmly over the surface for a secure, clean finish. Connect power to test the uniform light output.
B2B Packaging & Logistics Data
To guarantee perfect anodized profile finishes upon arrival at European project sites, all products feature protective packaging:
- Protective Packing: Individual high-density Pearly Cotton (EPE) wrapping.
- Inner Box Dimensions: 1070*128*58 mm
- Master Carton Dimensions: 1085*527*189 (12 PCS/Carton)
The HELIAN HL-CA010-L10 is a patented, ultra-thin commercial linear luminaire designed for seamless integration into modern office ceilings, conference rooms, and upscale retail environments
. Featuring a remarkably slim 11mm profile and high-quality PMMA Light Guide Plate (LGP) technology, it delivers exceptionally uniform, glare-free, and comfortable illumination without visible hot spots
.
📐 Looking for Custom Dimensions or IES Files?
HELIAN provides scalable customizable lengths and professional lighting simulations for architects worldwide.
