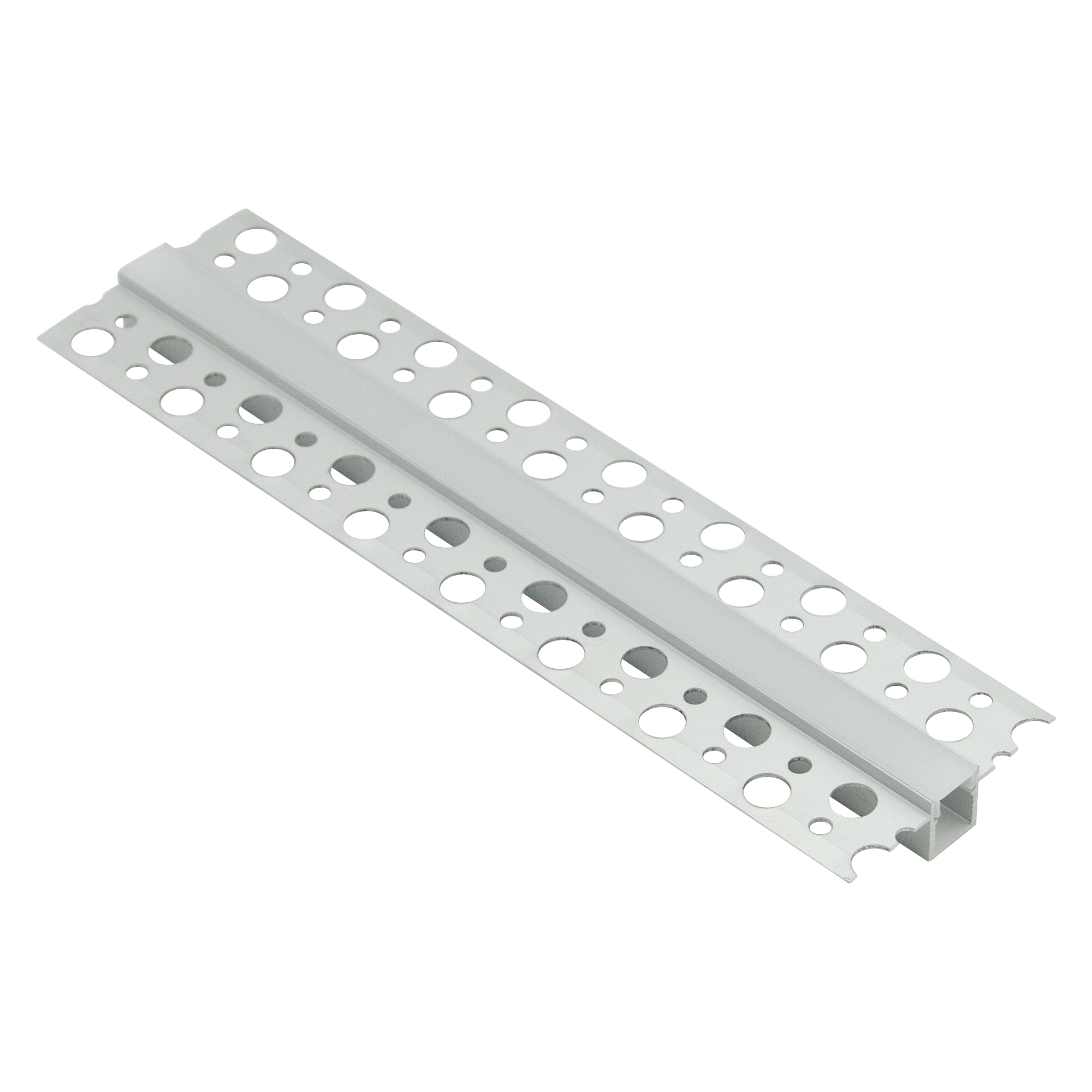

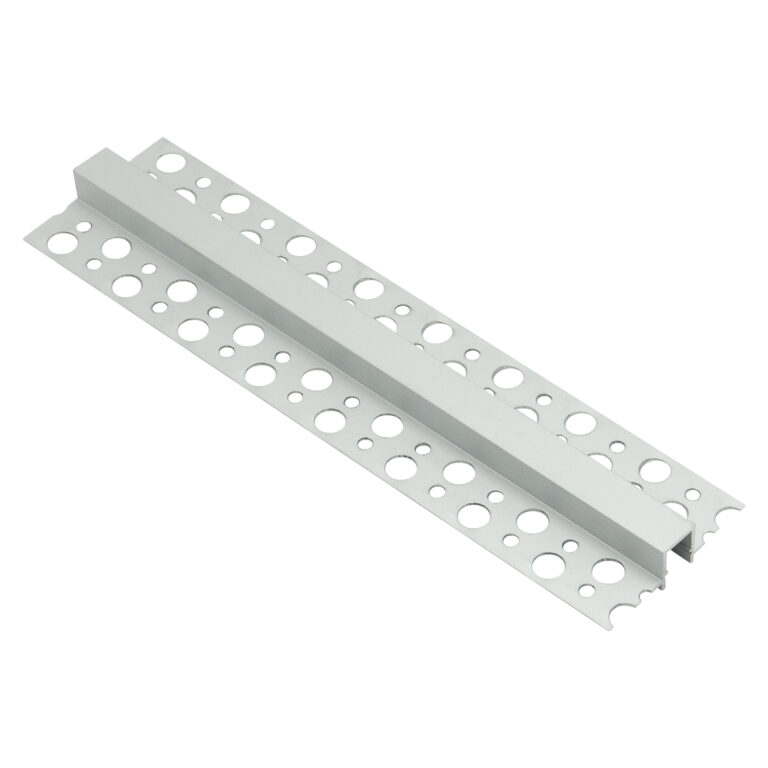

HL-A076 Drywall LED Strip Channel | Plaster-In Home Kitchen Lighting

Name: HL-A076 Drywall LED Strip Channel | Plaster-In Home Kitchen Lighting
Brand: إضاءة Helian LED
SKU: HL-A076

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

الموديل: HL-A076 HL-A076

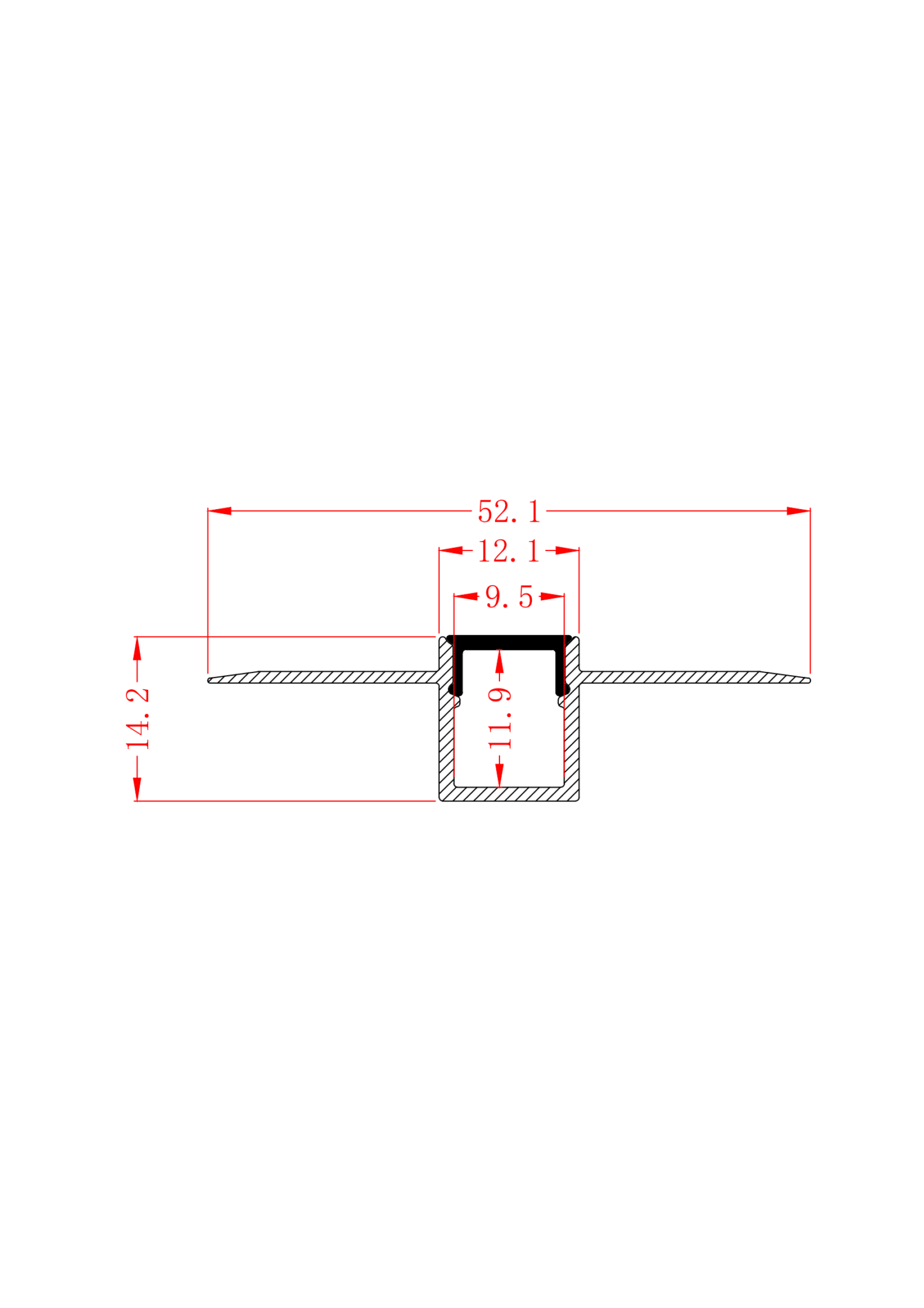

Profile size:W:52.1mm * H: 14.2mm

PCB width: 9 mm

Installation:Recessed Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

المواصفات الفنية

الموديل:

HL-A076

Profile size:

العرض: 52.1 مم * الارتفاع: 14.2 مم

PCB width:

9 مم

التركيب:

التركيب الغائر

المادة:

AL6063+PC

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

مؤكسد/طلاء بأكسيد الألومنيوم

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, End Cap

Compatible Accessories System

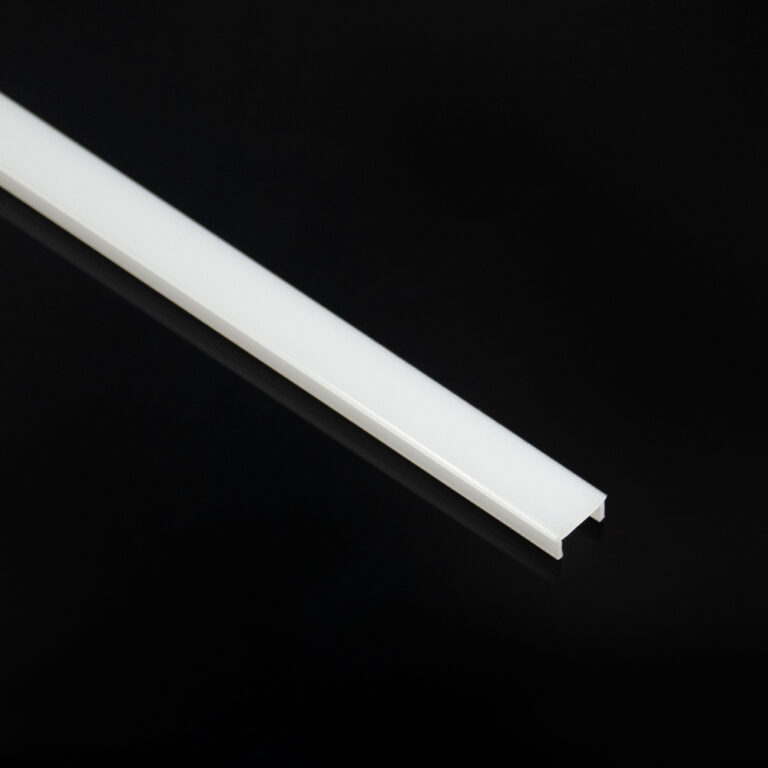

A076 Cover

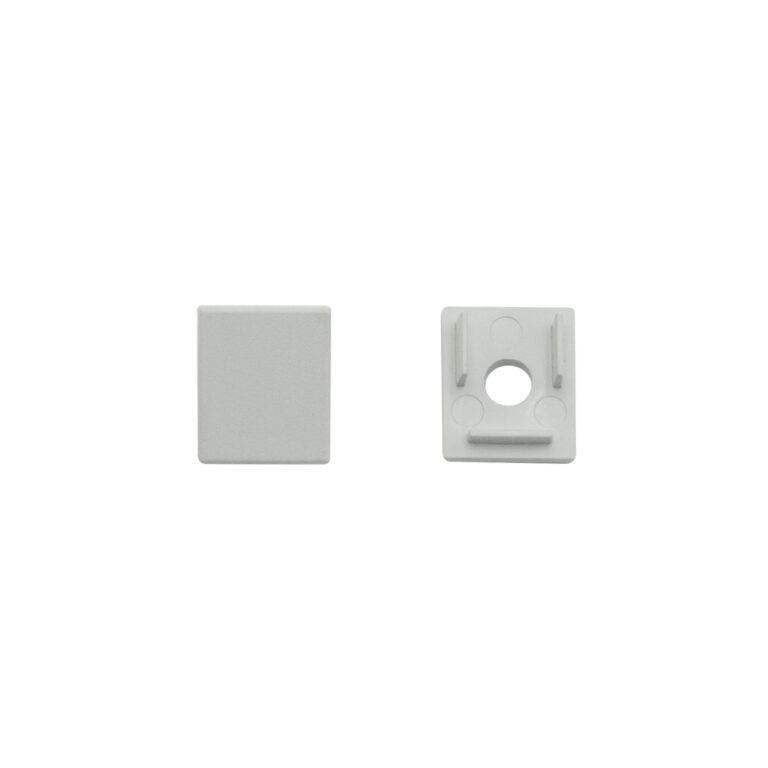

HL-A076,A077 End Cap

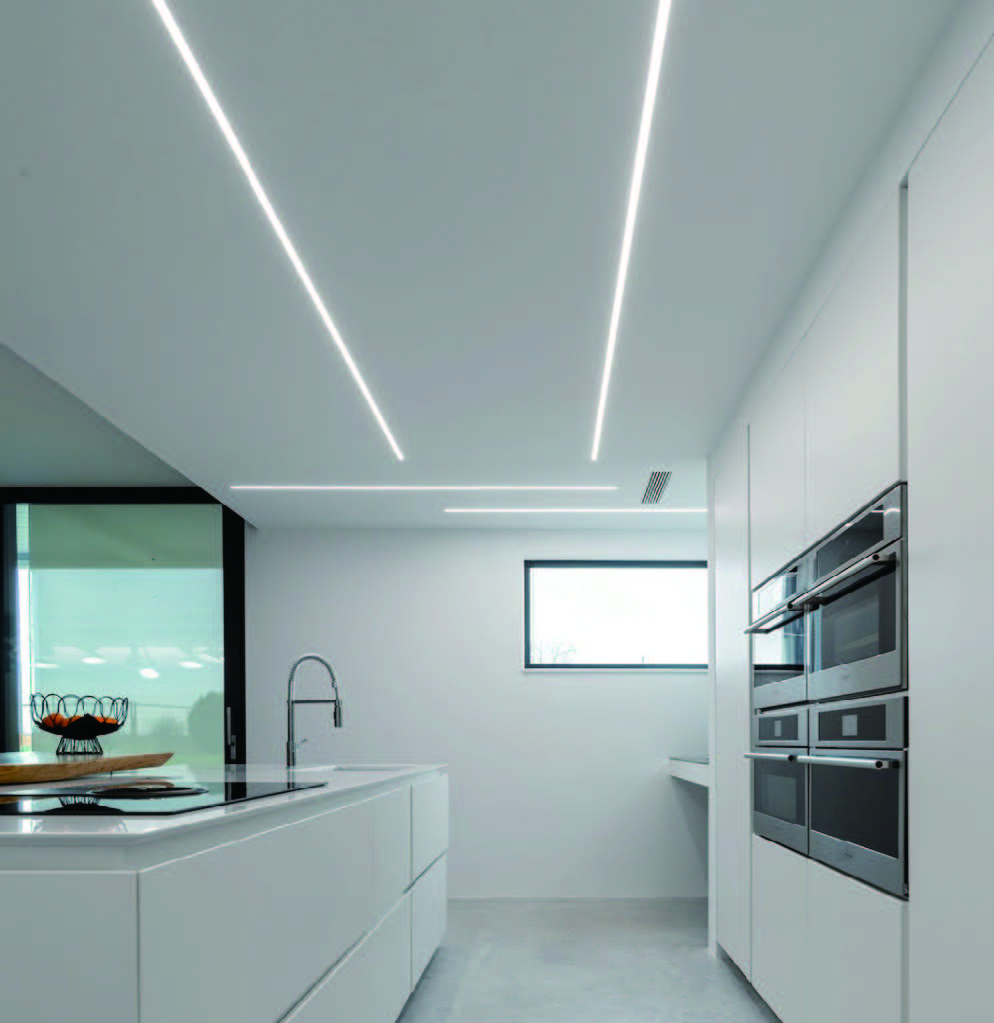

Recessed linear lighting

Recessed into the surface, the channel disappears and leaves only a clean line of light.

Dot-Free Diffused Glow
6063-T5 Premium Aluminum
Supporting precise field cutting or factory pre-cuts.

هل هذا المظهر الجانبي HL-A076 هو قناة شريط الصمامات الثنائية الصمامات ذات الحوائط الجافة التي تبحث عنها؟
اتصل بنا اليوم، وسنساعدك بكل ما نستطيع!

احصل على عرض أسعار الآن

الأسئلة الشائعة

ربما ترغب أيضًا في معرفة المعلومات عند الشراء بكميات كبيرة أو تخصيص قنوات إضاءة LED.

Can I order samples before placing a bulk order?

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.

Do you offer custom cutting to my specified lengths?

Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.

What certifications do your profiles hold?

European market: CE & ROHS certified. North American market: UL certified.

What material are the profiles made of, and what diffuser options are available?

Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.

How do I check if my LED strip fits your profile?

Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.

What accessories come with the profiles?

Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
