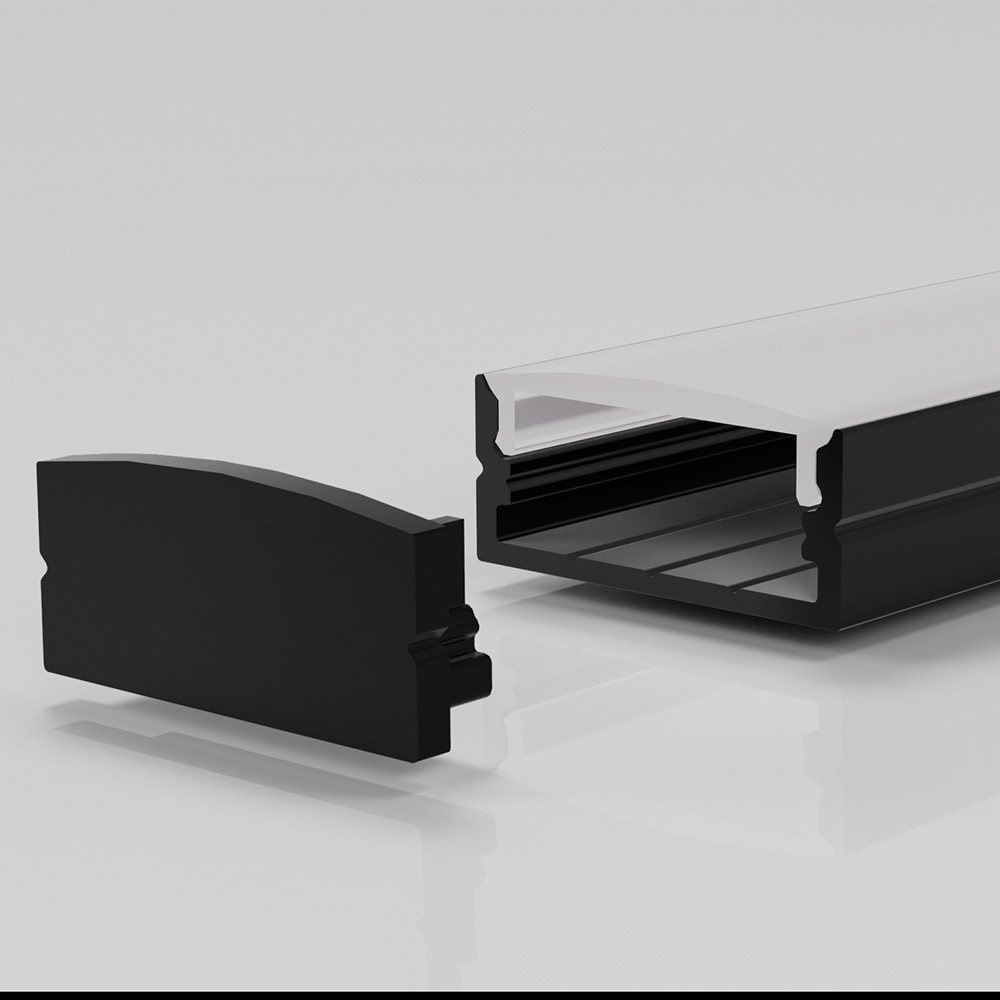

Black Aluminium LED Profile HL-BAPL014 20mm | Upscale Lounge Lighting

Name: Black Aluminium LED Profile HL-BAPL014 20mm | Upscale Lounge Lighting
Brand: إضاءة Helian LED
SKU: HL-BAPL014 black
Availability: InStock

🟢 In Stock & Ready for Rapid Dispatch (Standard Qty)

الموديل: HL-BAPL014 HL-BAPL014 أسود

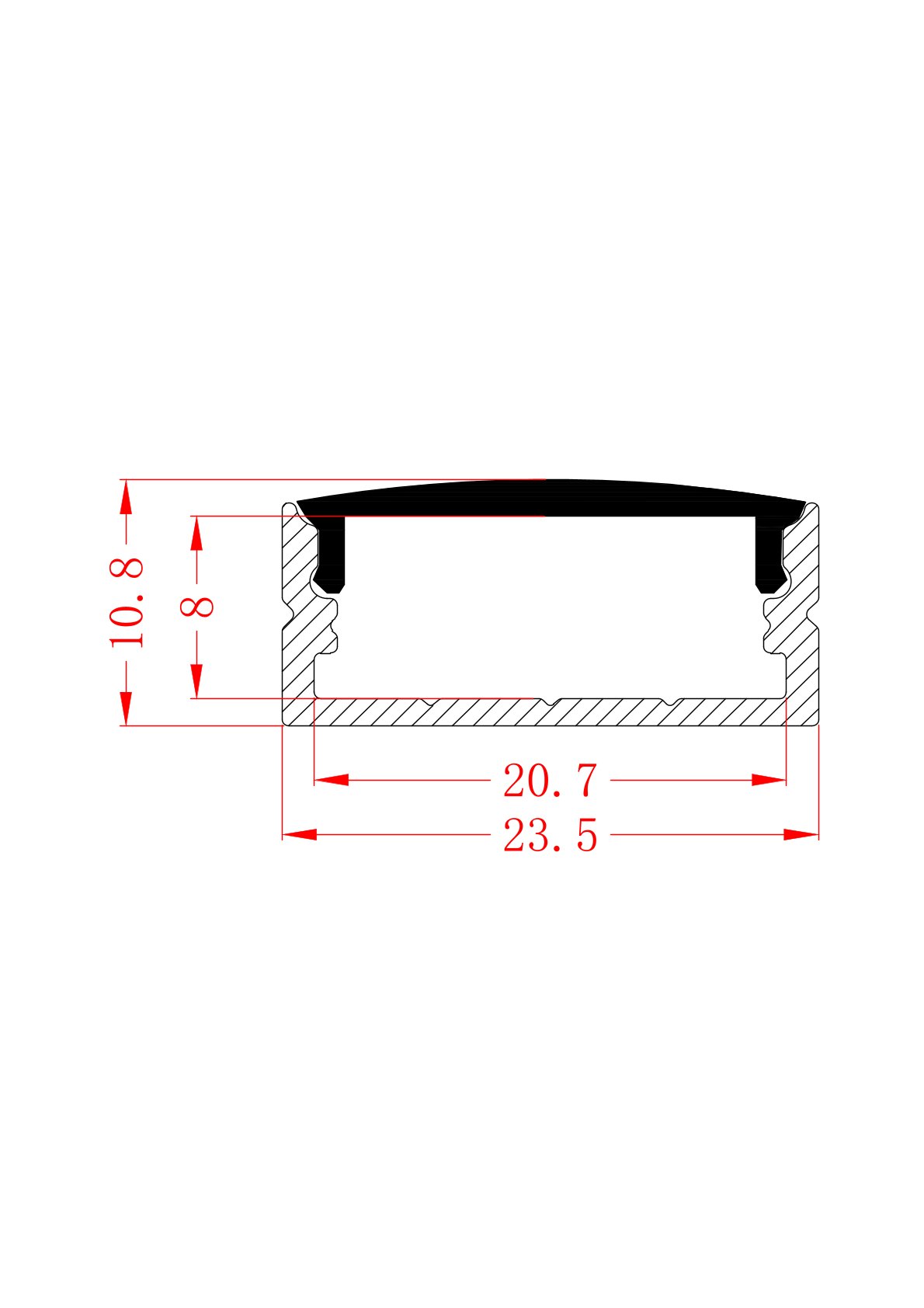

Profile size:W:23.5mm * H: 10.8mm

PCB width: 20 mm

Installation:Surface Mount, Recessed Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

المواصفات الفنية

الموديل:

HL-BAPL014 أسود HL-BAPL014

Profile size:

العرض: 23.5 مم * الارتفاع: 10.8 مم

PCB width:

20 مم

التركيب:

التركيب السطحي، التركيب الغائر

المادة:

AL6063+PC/PMMA

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

مؤكسد/طلاء بأكسيد الألومنيوم

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, PMMA Diffuser, End Cap, Clip

Compatible Accessories System

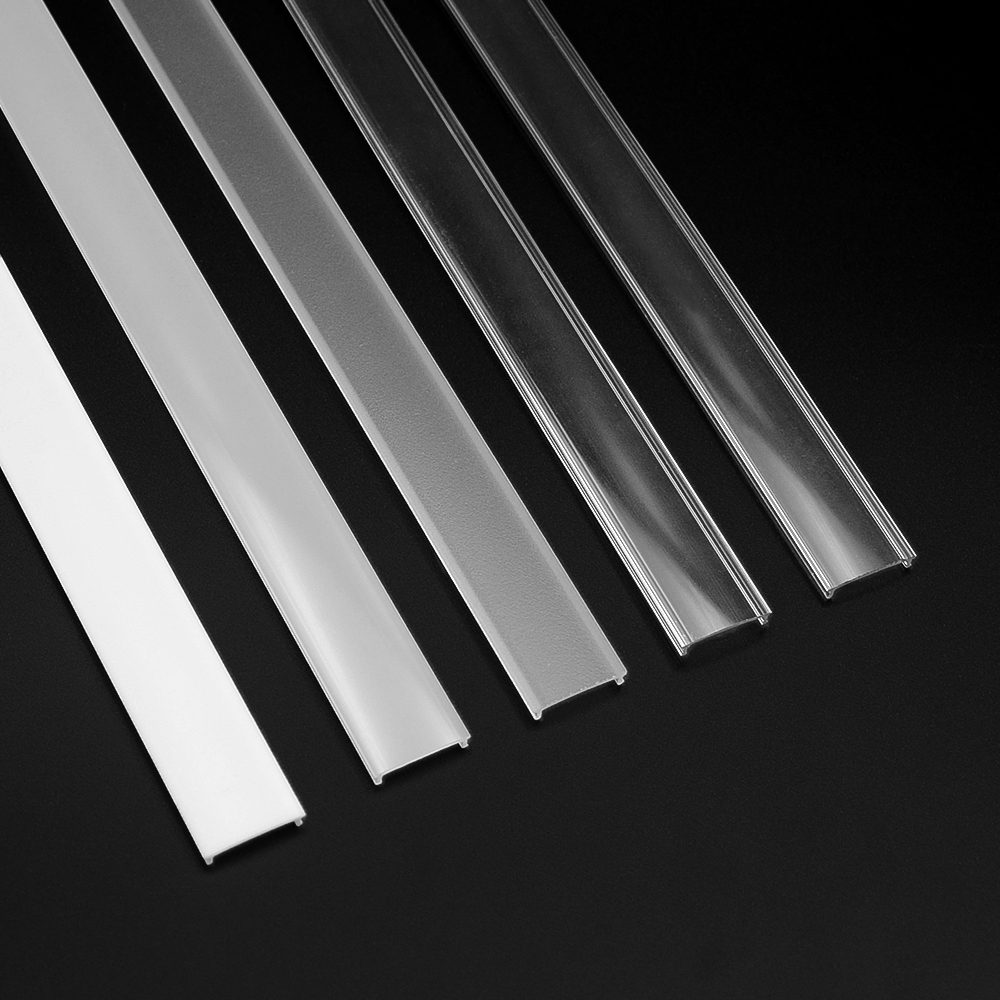

013 Cover

014 Rotating Clip

014 End Cap

Black profile lighting

Black anodizing lets the channel vanish against dark surfaces, leaving just the light.

Dot-Free Diffused Glow
6063-T5 Premium Aluminum
Supporting precise field cutting or factory pre-cuts.

هل هذا المظهر الجانبي الأسود HL-BAPL014 هو المظهر الجانبي الأسود من الألومنيوم الذي تبحث عنه؟
اتصل بنا اليوم، وسنساعدك بكل ما نستطيع!

احصل على عرض أسعار الآن

الأسئلة الشائعة

ربما ترغب أيضًا في معرفة المعلومات عند الشراء بكميات كبيرة أو تخصيص قنوات إضاءة LED.

Can I order samples before placing a bulk order?

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.

Do you offer custom cutting to my specified lengths?

Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.

What certifications do your profiles hold?

European market: CE & ROHS certified. North American market: UL certified.

What material are the profiles made of, and what diffuser options are available?

Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.

How do I check if my LED strip fits your profile?

Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.

What accessories come with the profiles?

Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
