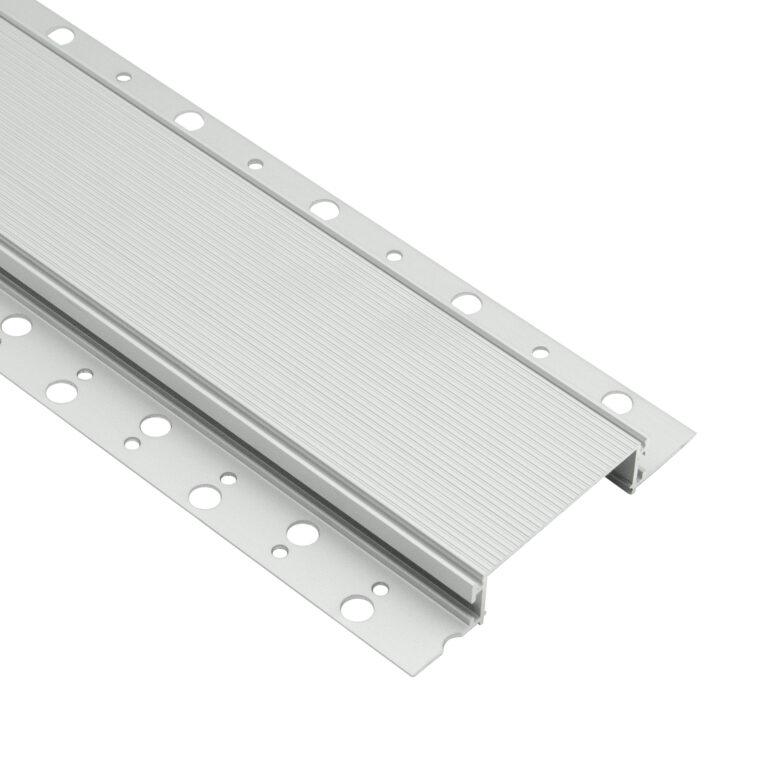

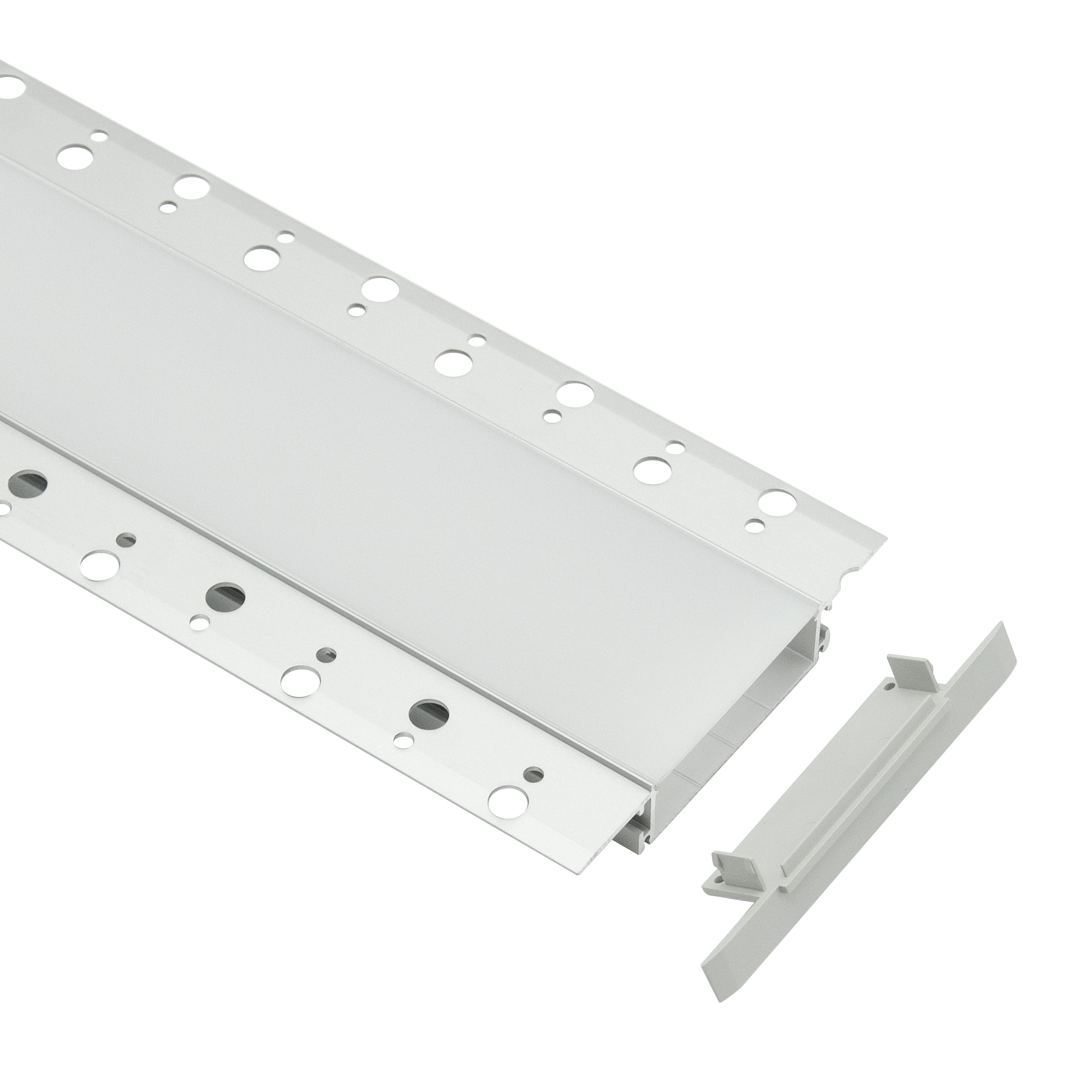

HL-A058 Canal LED para tabiquería seca | Iluminación de centros de negocios en yeso

Name: HL-A058 Canal LED para tabiquería seca | Iluminación de centros de negocios en yeso
Brand: Helian Iluminación LED
SKU: HL-A058
Availability: InStock

🟢 In Stock & Ready for Rapid Dispatch (Standard Qty)

Modelo: HL-A058

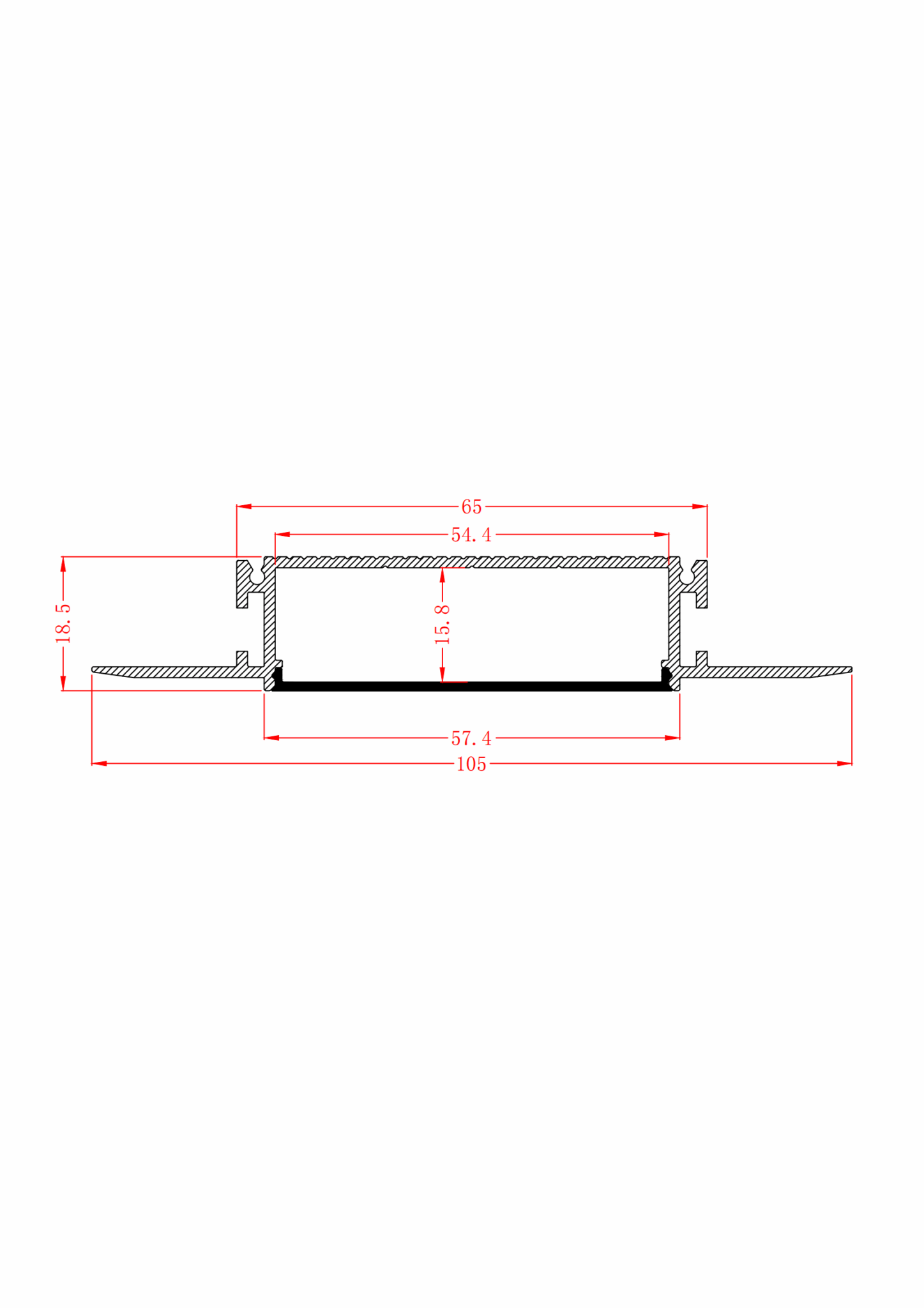

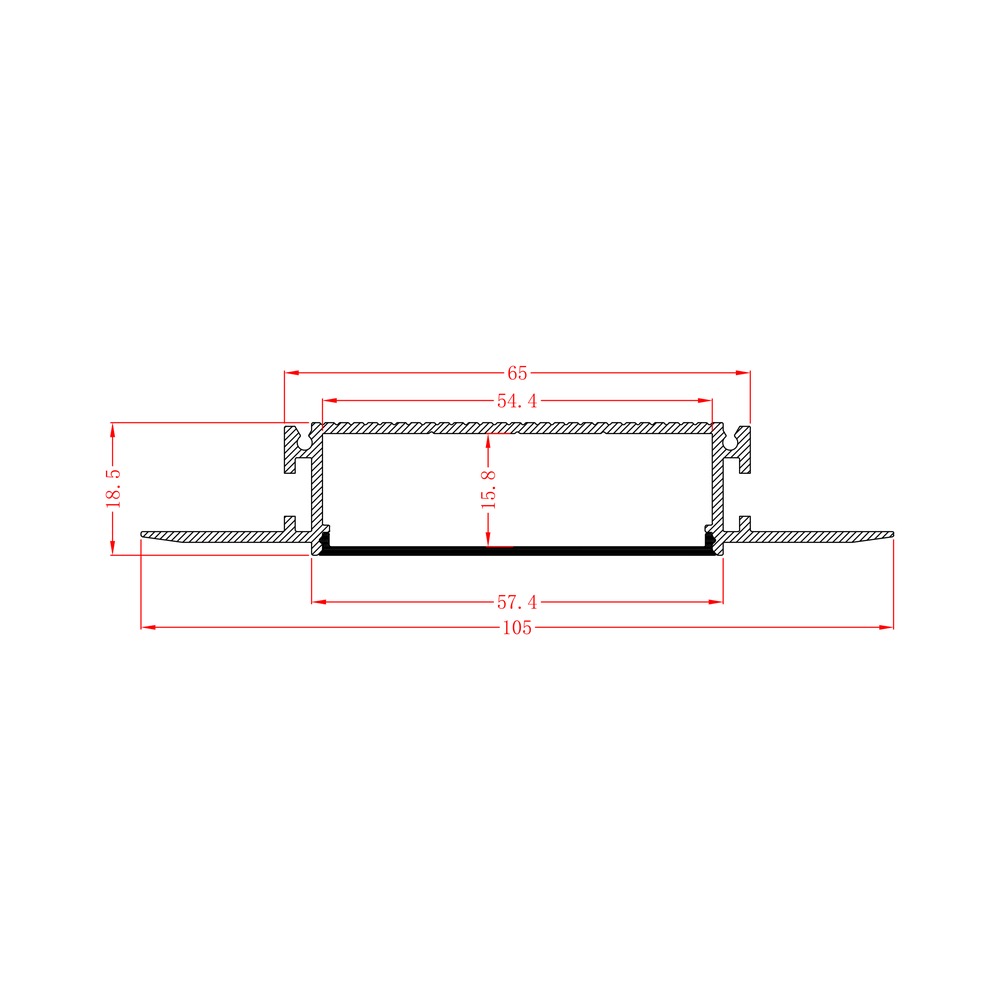

Profile size:W:105mm * H: 18.5mm

PCB width: 54 mm

Installation:Recessed Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

Especificaciones técnicas

Modelo:

HL-A058

Profile size:

An:105mm * Al: 18,5mm

PCB width:

54 mm

Instalación:

Montaje empotrado

Material:

AL6063+PC

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodizado/Pintura

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, End Cap

Compatible Accessories System

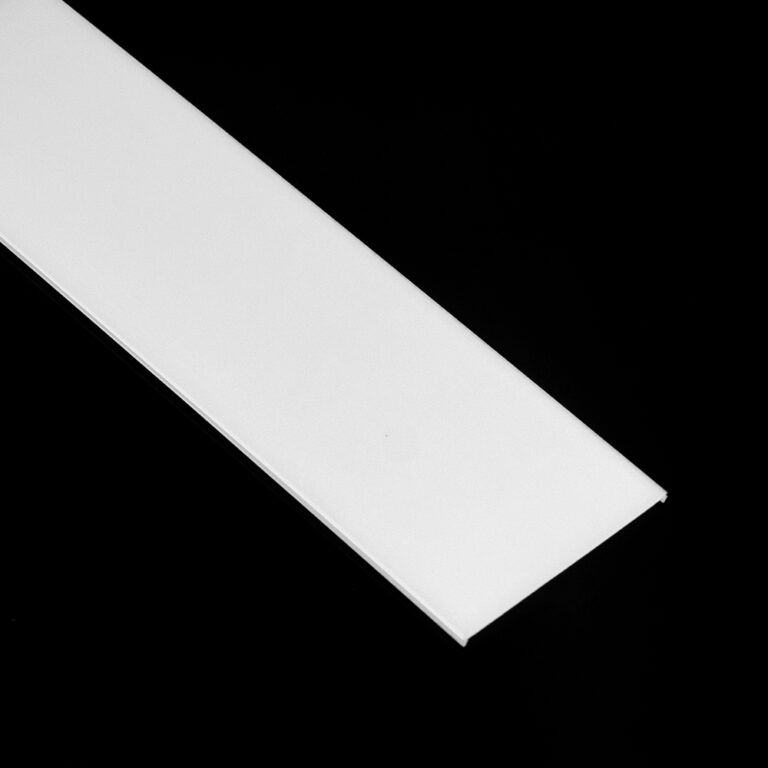

A058 Cover

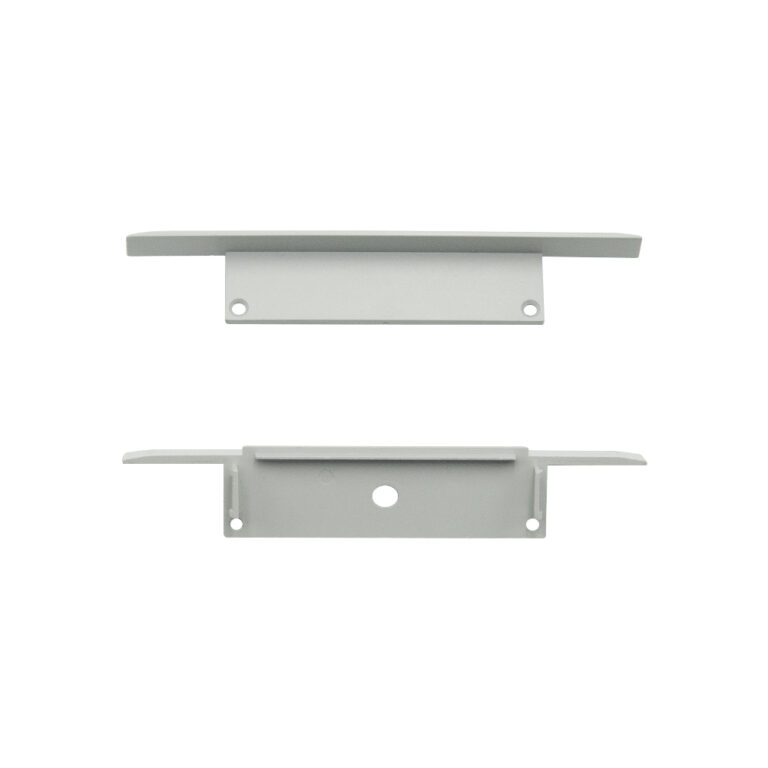

HL-A058 End Cap

Recessed linear lighting

Recessed into the surface, the channel disappears and leaves only a clean line of light.

Dot-Free Diffused Glow
6063-T5 Premium Aluminum
Supporting precise field cutting or factory pre-cuts.

¿Es este perfil HL-A058 el canal led para tabiquería seca que busca?
Póngase en contacto con nosotros hoy mismo y le ayudaremos en todo lo que podamos.

Solicitar presupuesto

Preguntas frecuentes

Quizá también le interese conocer la información a la hora de comprar al por mayor o de personalizar los canales de luz LED.

Can I order samples before placing a bulk order?

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.

Do you offer custom cutting to my specified lengths?

Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.

What certifications do your profiles hold?

European market: CE & ROHS certified. North American market: UL certified.

What material are the profiles made of, and what diffuser options are available?

Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.

How do I check if my LED strip fits your profile?

Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.

What accessories come with the profiles?

Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
