Perfil LED suspendido

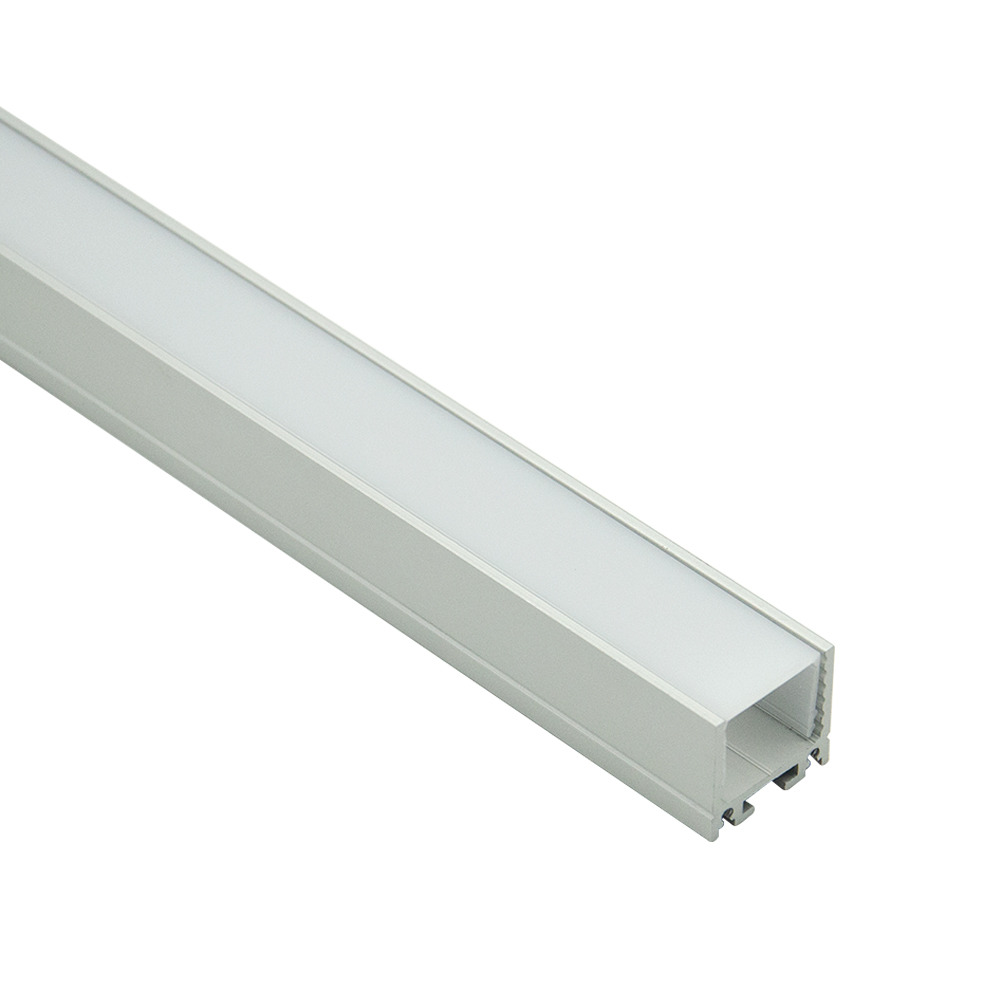

Compact Suspended LED Profile 23.5×31.7mm – Aluminum Channel HL-A074

Name: Compact Suspended LED Profile 23.5×31.7mm - Aluminum Channel HL-A074
Brand: Helian Iluminación LED
SKU: HL-A074

⚡ Quick Turnaround: 5-7 Days for Custom Lengths

Model: HL-A074

Profile size:W:23.5mm * H: 31.7mm

PCB width: 15mm

Installation:Suspended Mount, Surface Mount

REQUEST A BULK QUOTE Download PDF Spec

100% Virgin Aluminum (No Recycled) – Better Cooling, Longer Lifespan. CE & RoHS.

Wholesale Pricing Available Upon Request

Especificaciones técnicas

Modelo:

HL-A074

Profile size:

W:23.5mm * H: 31.7mm

PCB width:

15 mm

Instalación:

Montaje suspendido, montaje en superficie

Material:

Aluminio 6063 +PC

IP Rating (Profile):

IP20 / IP44 (Depends on strip used)

Surface:

Anodizado/Pintura

Standard Length:

1m / 2m / 3m / 4m

Compatible Accessories :

PC Diffuser, End Cap, Clip, Suspended Rope

Compatible Accessories System

HL-A074-End Cap

014 Rotating Clip

Furring Strips

Suspended Rope HL-DS004

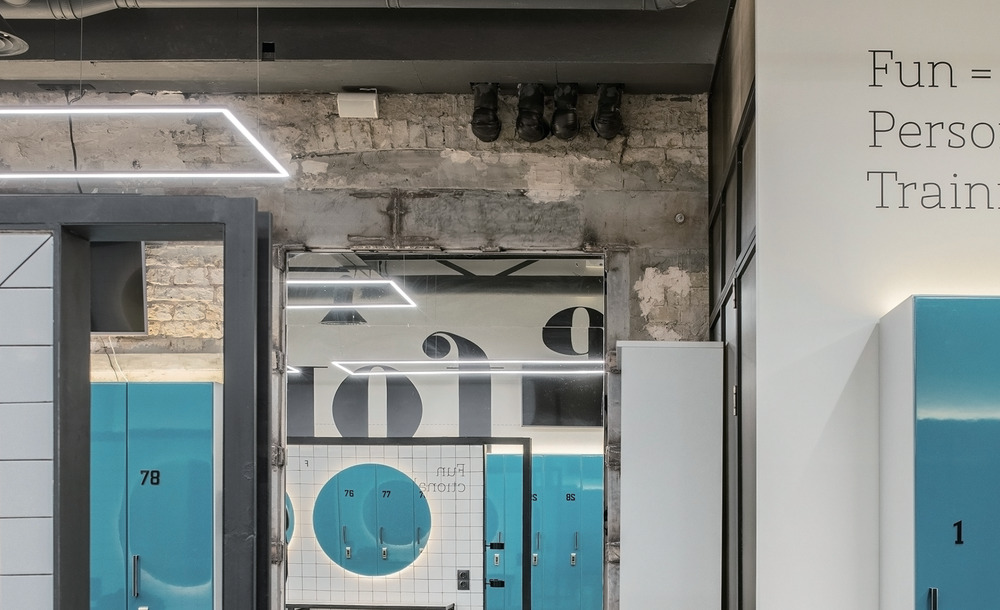

Suspended linear lighting

Hung on suspension cables, the channel becomes the line of light itself, floating below the ceiling.

Dot-Free Diffused Glow
6063-T5 Premium Aluminum
Supporting precise field cutting or factory pre-cuts.

Is this HL-A074 profile the compact suspended LED profile you are looking for?
Póngase en contacto con nosotros hoy mismo y le ayudaremos en todo lo que podamos.

Solicitar presupuesto

Preguntas frecuentes

Quizá también le interese conocer la información a la hora de comprar al por mayor o de personalizar los canales de luz LED.

Can I order samples before placing a bulk order?

Yes. We support sample orders. Contact our sales team with your required model numbers, and we will arrange sample delivery for your evaluation.

Do you offer custom cutting to my specified lengths?

Yes. Our standard aluminum profiles come in 4-meter lengths. For bulk project orders, we provide factory precision cutting to your required lengths. Simply provide your cut list or shop drawings.

What certifications do your profiles hold?

European market: CE & ROHS certified. North American market: UL certified.

What material are the profiles made of, and what diffuser options are available?

Aluminum body: 6063-T5 aluminum alloy, available with anodized or painted surface finish.

Diffuser cover: PC (opal, transparent) or PMMA (milky white, transparent, semi-transparent). Both materials are UV-stabilized and resist yellowing during long-term commercial use.

How do I check if my LED strip fits your profile?

Check the "Lighting Source Width" parameter on each product's specification sheet. Your LED strip's PCB width must be equal to or smaller than this value. Our profiles support PCB widths from 5mm to 185mm, depending on the model.

What accessories come with the profiles?

Each profile includes compatible end caps, mounting clips (stainless steel or aluminum), and optional suspended rope sets. Diffuser covers are ordered separately. For drywall mud-in or suspended ceiling installation, check the structure diagram in the product spec sheet.
